Step-by-Step VW Beetle 2002 Radio Wiring Diagram Guide
Begin by locating the harness connectors behind the dashboard panel. The main power feed is a red wire (terminal 12V constant) paired with a yellow wire (illumination), both requiring a 10-amp fuse. Ground connections–black with a white stripe–must be secured to clean, unpainted metal to prevent interference.
Front speakers use a four-wire setup: gray/orange (+) and gray/black (-) for the driver side, green/orange (+) and green/black (-) for the passenger. Cap unused wires with electrical tape to avoid shorts. The antenna lead (blue with white stripe) connects directly to the head unit’s rear–ensure it’s insulated from grounding.
For aftermarket installations, bypass the stock wiring block and match the manufacturer’s pinout. Check resistance between speaker wires (4-8 ohms) before powering on. If static persists, verify the ground’s integrity–corrosion here is a common failure point.
Refer to the factory service manual (section 97-10) for exact color codes, as variances exist between models with premium versus base audio systems. Failure to follow polarity will damage the amplifier.
Guide to Retrofitting Audio Systems in the New Beetle Model
Locate the factory harness behind the dashboard center console–pin #12 (solid yellow) delivers permanent 12V power, while pin #4 (red/white stripe) activates accessory voltage only when the ignition is on. Ground connections split between pin #8 (brown) and a bare chassis stud beneath the glove box; use star washers to prevent corrosion on painted surfaces. Aftermarket units often require an ISO adapter (part #VW-ADPT-ISO) to bridge the OEM plug’s 18-pin layout to standard DIN connectors.
Speaker Wire Color Codes and Locations
Front-left tweeter wires consist of gray (+) and gray/black (-) strands, emerging from behind the kick panel under the steering column. Rear-right door speakers use violet (+) and violet/black (-) leads, threaded through the rubber boot between the body and door hinge. Subwoofer-ready models route an additional orange/white (+) and orange (-) pair to the trunk-mounted amp, typically secured under the spare tire well.
Solder all connections and insulate with heat-shrink tubing–avoid twisting wires, as this creates resistance and can burn out crossover networks in premium sound packages. Test each circuit with a multimeter before reassembly; a 4–6 ohm reading confirms speaker integrity, while 0 ohms suggests a short in the loom. Keep the blower motor’s 20A fuse accessible during testing, as accidental shorts can trip it instantly.
For integrated steering-wheel controls, splice the gray/violet and brown/green leads into the corresponding wires of the OEM clock spring connector–early models lack CAN bus support, so a bypass resistor module (1–3 kΩ) is necessary to mimic button presses. After installation, reset the vehicle’s computer by disconnecting the negative battery terminal for 10 minutes to clear any stored fault codes from interrupted power.
Finding the Audio System Harness Plug in Your Volkswagen Retro Model

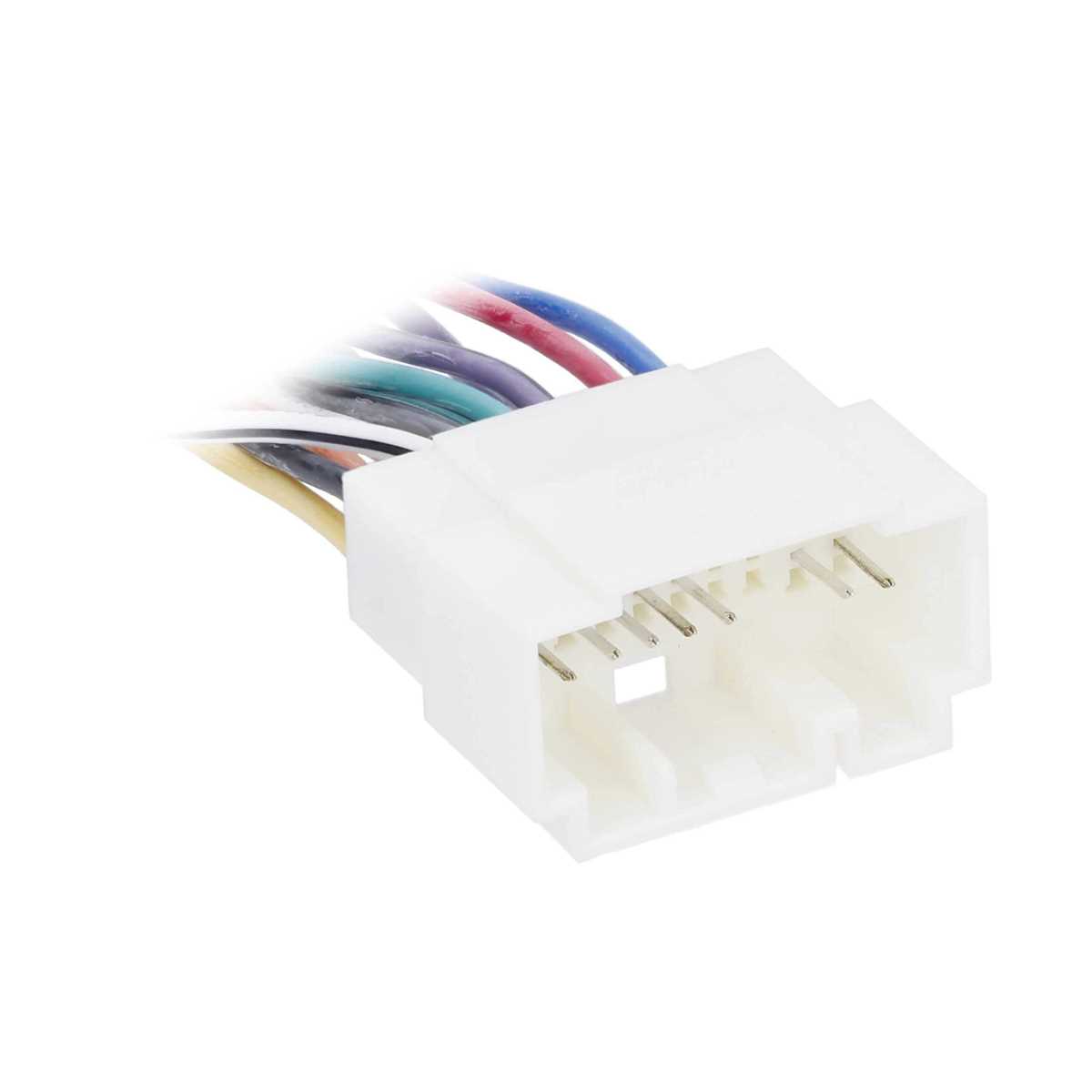

The primary connector for the sound unit sits directly behind the dashboard fascia on the driver’s side. Remove the lower trim panel beneath the steering column–two Torx T20 screws secure it–then peel back the carpeted kick panel to reveal a white or gray 18-pin plug. This harness links the factory head unit to the vehicle’s electrical network.
Follow the harness bundle upward: it routes behind the climate controls and terminates at a snap-lock connector adjacent to the air vent. The plug is marked with colored wires–orange with a white stripe for constant power, solid yellow for switched 12V, red for illumination, and brown for ground. Verify each wire against a pinout reference before disconnecting.
If the main harness remains elusive, trace the antenna cable from the rear parcel shelf. The antenna lead merges into the same multi-pin connector, serving as a reliable landmark. Factory harnesses often include secondary plugs for amplifiers or CD changers; disregard these unless retrofitting aftermarket components.
Check for a small release tab on the connector housing–press it firmly while pulling the two halves apart. Avoid tugging wires directly; applying uneven force risks damaging terminal pins. Mark each wire with tape or a label before separating to prevent misalignment during reassembly.
In models equipped with Monsoon sound systems, an additional inline fuse box hides behind the glove box. Remove the glovebox liner–six plastic clips secure it–to access the auxiliary harness. This setup feeds power to subwoofers and independent speaker channels via fused leads distinct from the main connector.
After locating the plug, use a multimeter to confirm voltage on the orange and yellow wires before installing a replacement unit. Set the meter to DC 20V; probe the terminal pins while the ignition is off and on. Correct readings–12V constant on orange, switched power on yellow–ensure compatibility with third-party stereos.
Installation Guide: OEM Audio System Color-Coded Connections
Disconnect the negative battery terminal before handling any electrical connections to prevent short circuits. The 18-pin harness adapter for the original stereo system uses standardized color codes–locate the following conductors on the rear of the unit:
- Yellow (B+ constant): Connects directly to the battery via a 10A fuse. This wire powers memory functions.
- Red (ignition-switched +12V): Requires connection to a fuse box terminal that activates with the key in ACC or ON positions.
- Black (ground/chassis): Secure this to a bare metal point using a star washer; avoid paint or corrosion.
- Blue/White (power antenna trigger): Activates the retractable antenna (if equipped).
- Orange (illumination dimmer): Links to the headlight switch to sync display brightness.
For speaker outputs, match these pairs to the corresponding door or dashboard terminals–reversing polarity causes phase cancellation and muffled sound:
- Front left (+): Gray / (–): Gray/Black
- Front right (+): White / (–): White/Black
- Rear left (+): Green / (–): Green/Black
- Rear right (+): Purple / (–): Purple/Black
Verify each connection with a multimeter before reattaching the head unit–measure 12V on yellow/red leads with key ON, and near 0 ohms between black and chassis ground. A 1kHz test tone played at low volume can confirm speaker wiring integrity; distorted audio signals crossed channels. For steering wheel control retention, splice the violet wire (data bus) to the aftermarket interface module–cutting this disrupts on-board diagnostics.
Direct Integration of Replacement Head Unit into Factory Harness
Start by stripping 5–7mm of insulation from the original loom’s speaker leads–solid-color wires carry positive signals, while those with stripes are grounds. Cross-reference the aftermarket unit’s pinout with the factory connector using a multimeter set to continuity mode; Volkswagen’s 19-pin ISO plug typically maps: pins 1–4 handle front/rear left/right outputs, 5–6 deliver 12V constant and switched power, and 7–8 handle illumination and dimming. Avoid splicing into pins 9–12–they carry data for steering-wheel controls, which require specialized interfaces.
For power, bypass the factory fuse box and run 10AWG wire directly from the battery to the new unit’s red (switched) and yellow (constant) terminals, installing a 15A inline fuse within 18 inches of the battery. Ground the black wire to a bare metal chassis point near the dash–clean the surface with a wire brush and secure with a serrated washer to prevent oxidation. If the head unit fails to power on, add a 1000µF capacitor across the red and ground wires to smooth voltage drops during startup.
| Factory Wire Color | Function | Aftermarket Connection | Notes |
|---|---|---|---|
| Solid Green | Front Left (+) | White (typically) | Shield ground separately |
| Green/White Stripe | Front Left (–) | White/Black Stripe | Twist with solid green |
| Solid Purple | Rear Right (+) | Gray | Route away from power wires |
| Purple/Black Stripe | Rear Right (–) | Gray/Black Stripe | Use heat shrink on splices |
| Solid Yellow | Constant 12V | Yellow | Fuse at 15A |
Use T-taps or solder-and-heat-shrink splices for speaker connections–crimp connectors introduce resistance and can degrade audio quality. If the system emits a faint hum, relocate the ground wire away from the antenna cable and power wires, or add a ferrite choke at the base of the antenna. For auxiliary inputs, repurpose the factory CD changer pins (often 13–15) by soldering a 3.5mm jack to the corresponding wires–check the head unit’s manual for correct pin assignments.
Illumination wires (solid brown) may require a 1kΩ resistor inline if the new unit’s display doesn’t dim proportionally to the dash lights. Test by turning the headlights on and off–if the display remains at full brightness, adjust the resistor value downward in 200Ω increments. Antenna triggers (solid blue) typically need a 12V relay if the replacement lacks automatic power antenna support; wire the relay coil to the switched power lead and the contacts to the antenna motor wire.
Label all splices with color-coded heat shrink or vinyl tape, and secure bundles with nylon ties every 15cm to prevent vibration-induced shorts. If the vehicle exhibits electrical gremlins post-installation, disconnect the battery for 10 minutes to reset the system–some models retain faults in the instrument cluster’s memory. Recheck all connections with a multimeter before reassembling the dash panels.
