Complete 2003 Chevy Suburban Bose Radio Wiring Color Code Guide
Locate the amplifier control wire–typically a dark blue with white stripe (14-gauge)–running from the head unit’s rear harness to the factory amp behind the rear seat. Splice this directly to the aftermarket signal cable if retaining the stock sound processor, but bypass it entirely by connecting to the speaker outputs when upgrading. The left and right front channels use gray (positive) and gray-black (negative) pairs; rear speakers follow violet (positive) and violet-black (negative).
Ground connections require 10-gauge bare copper with a dedicated bolt to chassis–avoid daisy-chaining to existing grounds, as weak connections cause intermittent pops. The dimmer wire (light green with white stripe) must be isolated; it carries PWM voltage that disrupts signal if tied to modern digital interfaces. For amplifiers exceeding 50W RMS per channel, upgrade the factory fuse from 15A to 20A using a blade-type inline holder spliced into the red primary power wire near the under-hood distribution block.
Verify meter readings between the yellow constant-power wire and chassis–expect 12.6V DC with ignition off; anything below 12.0V indicates parasitic drain, likely from the stock amplifier’s standby circuit. To preserve steering-wheel controls, retain the tan wire (data bus) and interface it to an ASWC-1 module, but ensure the module’s ground is tied to the same point as the head unit to prevent voltage mismatches.
Speaker impedance on the premium sound system measures 2 ohms for woofers, 4 ohms for tweeters–match this precisely with aftermarket components to avoid overheating crossovers. The factory subwoofer (if equipped) uses a single 4-ohm voice coil wired in parallel via brown and brown-yellow leads; replace with dual voice coils only if recalculating amp power to prevent clipping.
Wiring Guide for Factory Premium Sound System in GM Full-Size SUVs
Begin by locating the harness behind the head unit–pins 1 through 8 handle power, ground, and illumination. Pin 1 (yellow) delivers constant 12V from the battery, while pin 2 (red) supplies switched power via the ignition. Verify these voltages with a multimeter before connecting any aftermarket components; fluctuations above 14.2V indicate a faulty alternator requiring service.
The chassis ground (pin 3, black) must attach to bare metal within 18 inches of the unit’s mounting bracket. Clean the contact surface with a wire brush and apply dielectric grease to prevent oxidation. Skipping this step risks intermittent audio dropout, especially in humid conditions or after prolonged idling.
- Pin 4 (purple/gray stripe): Left front speaker (+)
- Pin 5 (purple/white stripe): Left front speaker (–)
- Pin 6 (gray/black stripe): Right front speaker (+)
- Pin 7 (gray/light blue stripe): Right front speaker (–)
- Pin 8 (brown/black stripe): Amplifier remote turn-on
The amplifier remote wire (pin 8) activates a 25A relay when the system powers on. If replacing the head unit, splice this wire directly to the new harness’s blue/white lead–failure to do so leaves the amp in standby, muting rear and subwoofer outputs. Test with a 12V bulb; it should illuminate when the key is in the ACC position.
Rear Channel and Subwoofer Connections
Rear speakers and the subwoofer bypass the dashboard harness, fed through a separate 12-pin connector near the driver’s kick panel. Labels correlate to the following:
- Dark blue: Left rear (+)
- Light blue: Left rear (–)
- Dark green: Right rear (+)
- Light green: Right rear (–)
- White/black stripe: Subwoofer (+)
- Brown: Subwoofer (–)
All speaker wires use 18-gauge twisted pairs with polyethylene insulation. Resist stripping beyond 1/4 inch to avoid shorting adjacent circuits–excess exposed copper degrades fidelity through induced noise. For aftermarket subwoofers, match the amplifier’s impedance to the factory setup (typically 2 ohms bridged).
Retain the original ground distribution block under the passenger seat. It consolidates grounds from the amp, head unit, and antenna motor. Disconnecting it triggers a Check Chassis Light and disables the equalizer presets. Reattach using a 10mm bolt torqued to 8 ft-lbs; overtightening distorts the chassis ground plane.
Finding the OEM Premium Sound System Connector in Your Full-Size SUV

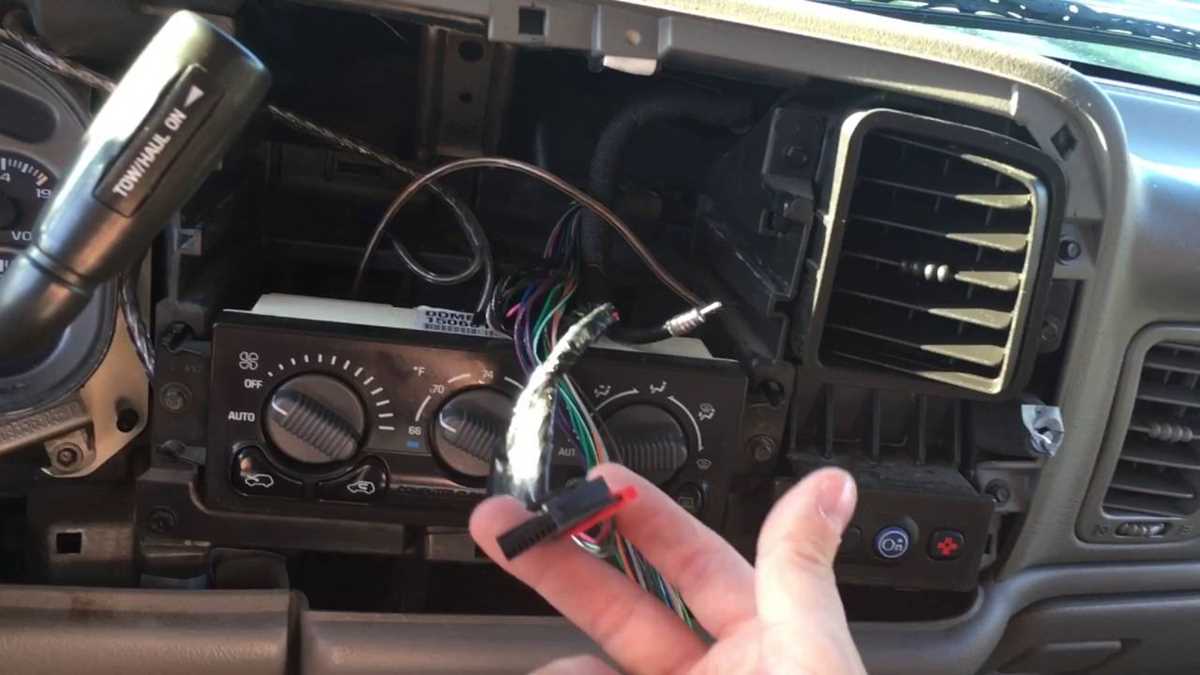

Begin by removing the center dash trim panel directly behind the climate control module. Two 7mm screws secure the lower edge–one near the cigarette lighter, the other beside the ash tray housing. After unscrewing, pull the panel straight out; four plastic clips around the perimeter will release without resistance. Behind this panel, the 24-pin Bose harness is visible, clipped to the metal dash frame with a single white plastic retainer.
The connector itself sits vertically, oriented with the locking tab facing the vehicle’s firewall. Key identifying features include a purple secondary lock mechanism and staggered pin rows– pins 1-12 on the left, 13-24 on the right. Common wire labels embossed on the black plastic connector body include “BATT,” “GND,” “ILL+,” and “AMP-CTRL” on the upper row, while speaker outputs occupy the lower half.
If the harness isn’t immediately visible, follow the bunched loom exiting the rear of the head unit cavity. The loom splits into two branches 12 inches from the dash; the right branch leads downward into the floor console tunnel, while the left branch–terminating in the Bose harness–curves upward toward the climate control blend door actuator. Trace this branch until the 24-pin connector emerges.
Common Mistakes When Locating the Connector
| Error | Correction |
|---|---|
| Pulling climate control knobs expecting hidden screws | All screws are behind the lower dash panel, none under knobs |
| Assuming the aftermarket receiver plug is the Bose harness | The aftermarket harness is round, 12-pin; Bose harness is rectangular, 24-pin |
| Disconnecting the temperature sensor harness instead | Sensor harness is 8-pin white; Bose harness is black |
To confirm the correct connector, use a multimeter on DC volts scale. Probe the red wire with stripe (pin 6) against chassis ground; the display should read a consistent 12.6V with the ignition off. Similarly, the orange wire (pin 3) should show 12V only when the headlights are activated, confirming illumination feed. No voltage reading indicates either an incorrect harness or blown fuse 29 in the underhood fuse box.
Before disconnecting, press the purple secondary lock toward the top of the connector and release the main tab simultaneously. Avoid yanking wires individually; the entire harness should slide free in one motion. If resistance is met, check for hidden screws or misaligned clips–no force should be necessary.
For installations requiring additional amplifier control leads, note that the gray wire with stripe (pin 21) carries a 7.2V reference signal when the ignition is in ACC or RUN. This signal enables the Bose amplifier and must be retained or mimicked when retrofitting non-factory audio systems. Failure to account for this will result in silent rear door speakers despite wiring completion.
Identifying Wire Color Codes for Power, Ground, and Speaker Connections
Locate the yellow cable first–it supplies constant 12V power regardless of ignition state. Verify with a multimeter set to DC voltage; readings should remain steady at 12-14V even when the vehicle is off. If absent, inspect the fuse box for blown elements before proceeding.
Ground connections use black or dark brown wires, often terminating at the chassis or a designated bolt near the audio unit’s mounting bracket. Test continuity between the wire and bare metal; resistance should approach zero ohms. Poor grounding causes intermittent sound cutouts or static.
- Front left speaker: Light green (+), dark green (-)
- Front right speaker: Gray (+), dark gray or light gray (-)
- Rear left speaker: White (+), brown (-)
- Rear right speaker: Purple (+), violet (-)
Turn-key ignition sources, typically orange, deliver power only when the key is in the “ACC” or “ON” position. Confirm function by toggling the ignition–voltage should appear and disappear accordingly. Cross-check against factory schematics if readings differ.
Speaker polarity follows a striped convention: solid colors denote positive leads, while striped or dotted variants indicate negative. Mismatching these can reverse audio phase, neutralizing bass and creating a hollow soundstage. Use a 9V battery briefly to test speaker direction; the cone should push outward on the correct positive lead.
- Label each wire with masking tape before disconnecting the original harness
- Match factory colors to aftermarket adapters–common brands include Metra or Scosche
- Secure connections with solder or crimp terminals, then insulate with heat-shrink tubing
- Route wires away from sharp edges or moving components to prevent abrasion
Dim lighting controls, usually pink or pink-slashed, adjust display brightness. Test by covering ambient sensors or toggling dash lights–voltage should vary between 0-5V. If static, the wire may require a resistor to mimic factory resistance values.
Step-by-Step Guide to Integrating a Third-Party Audio Head Unit with Factory Premium Sound
Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts or damage to sensitive components. Use a 10mm wrench to loosen the clamp–this step is non-negotiable for safety. Locate the OEM harness behind the dash assembly, typically secured with a single Torx T20 screw or push clips. Extract it carefully to avoid snapping plastic tabs.
Identify the amplifier’s signal harness, distinct from the main power connector. The premium sound system in this model uses a 12-pin plug with color-coded wires: pink (left front +), gray (left front –), purple (right front +), green (right front –), tan (left rear +), blue (left rear –), brown (right rear +), and yellow (right rear –). Note the absence of standard RCA outputs–this system relies on differential signaling.
Procure a high-quality aftermarket wiring adapter designed for factory amplified setups. Models like the Metra 70-2003 or Scosche GM2003B include built-in load resistors to emulate the OEM speaker impedance (typically 2 ohms). Without these, the amplifier may default to protection mode or produce distorted audio. Connect the adapter’s harness to the vehicle’s plug, matching wires by function–not color–as aftermarket standards differ.
For power and retention of steering-wheel controls: Splice the red (switched 12V) and yellow (constant 12V) wires from the new head unit into the corresponding wires from the factory harness (orange and purple, respectively). Use solder or crimp connectors with heat shrink tubing–twist-and-tape methods fail under vibration. For steering-wheel interface, install a PAC RP4-GM10 adapter, following its manual to map buttons to the new device’s protocols. Test each function before reassembling the dash.
Ground the system properly by attaching the black wire from the new unit to a bare metal point on the chassis. Avoid using the factory ground point–bolt corrosion can cause intermittent failures. Sand the contact area lightly with 120-grit paper and apply dielectric grease to prevent oxidation. Reconnect the battery, then verify all connections with a multimeter set to 20V DC: probe between the ground wire and each signal wire; readings should not exceed 0.1V.
Reinstall the new head unit into the dash kit, ensuring proper fitment–gaps around the trim indicate misalignment. Route excess wiring behind the glove box or under the carpet, securing with zip ties to prevent rattles. Power on the system and test each channel at moderate volume: adjust the amplifier’s gain if needed by turning the potentiometer clockwise (located on the rear of the amp, accessible via the cargo area side panel).
Finalize by calibrating the new unit’s EQ settings. The premium sound system’s tuning assumes a 4-ohm load; set the aftermarket unit’s bass boost to +3dB at 80Hz and treble to flat. Use a test track with broad frequency response (e.g., “Fighter” by Christina Aguilera) to verify balance–muddy bass indicates incorrect gain, while tinny highs suggest phase inversion on a channel. Store these settings as a preset for future reference.
