Complete 2003 Toyota Tundra Wiring Diagram and Electrical Schematics Guide
Start by verifying the exact model variation–double cab, access cab, or regular cab–since connector pinouts differ even between trim levels. The factory service manual’s wiring section remains the most reliable source, but third-party aftermarket guides like Chilton or Haynes often omit critical revisions made late in the production cycle. Owners dealing with intermittent sensor faults or trailer harness modifications should cross-reference the EWD (Electrical Wiring Diagram) with real-time voltage readings taken at the OBD-II port under load.

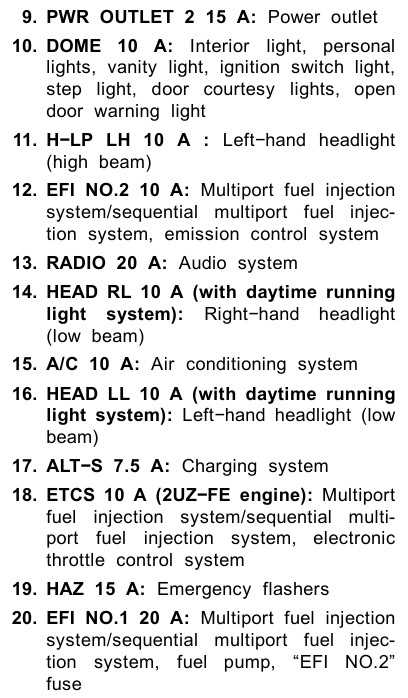

Fuse box mapping reveals hidden circuit protection rarely documented in consumer manuals. Label each wire bundle by tracing from the main junction block near the brake master cylinder back to the instrument cluster; this step eliminates guesswork when diagnosing gauge cluster backlight failures or erratic ABS warnings. For aftermarket audio installations, isolate the radio ignition wire directly from the fuse tap F55 to prevent parasitic drain that mimics battery failure.
Relay locations vary by build date–check the underside of the driver-side dash for hidden modules not listed in generic diagrams. When retrofitting LED marker lights, bypass the factory diode matrix by splicing into the gray wire (pin 8) at the rear tail light connector instead of relying on the brittle splices in trailer wiring kits. Always ground auxiliary circuits directly to the chassis at unpainted mounting points to avoid voltage drop that triggers false check engine codes.
Post-refresh models include additional harness branches for optional traction control; skip universal wiring harnesses and order OE part numbers ending in “-82” or higher to ensure compatibility with late-run modifications. When adding a winch or auxiliary lighting, route power through the relay center above the left kick panel to maintain proper circuit breaker ratings–alternative paths can overheat the 30-amp circuit reserved for daytime running lamps.
Electrical Schematic for the 2003 Pickup: Hands-On Approach
Locate the fuse block under the dash on the driver’s side–remove the lower panel by releasing two 10mm bolts and two clips. Label each connector with masking tape: “A” for headlamp relay (terminals 30 and 87), “B” for A/C clutch (terminals 85 and 86), “C” for ignition feed (terminal 30). Use a multimeter in continuity mode to verify circuit paths before disconnecting any harness; expected resistance between terminal 30 and ground should read 0.2 ohms or less. If readings exceed 0.5 ohms, trace corrosion at splice points near the firewall grommet–clean with 400-grit sandpaper and apply dielectric grease.
Identify the engine bay harness connector labeled “C1” (white 24-pin plug) near the brake master cylinder. Pinout reference: pin 1 (red/blue stripe) powers the MAF sensor, pin 7 (black/yellow stripe) grounds the ECM, pin 15 (green/white stripe) triggers the EGR solenoid. Disconnect the negative battery terminal before probing; use a sharp 18-gauge probe to avoid damaging insulation. If replacing the rear taillight assembly, note the trailer tow harness splice behind the left rear wheel well–tap into the brown/red wire (pin 3 of connector T3) for brake lights, not the brown wire (running lights).
Finding Key Electrical Link Junctions in the Full-Size Pickup Model Year

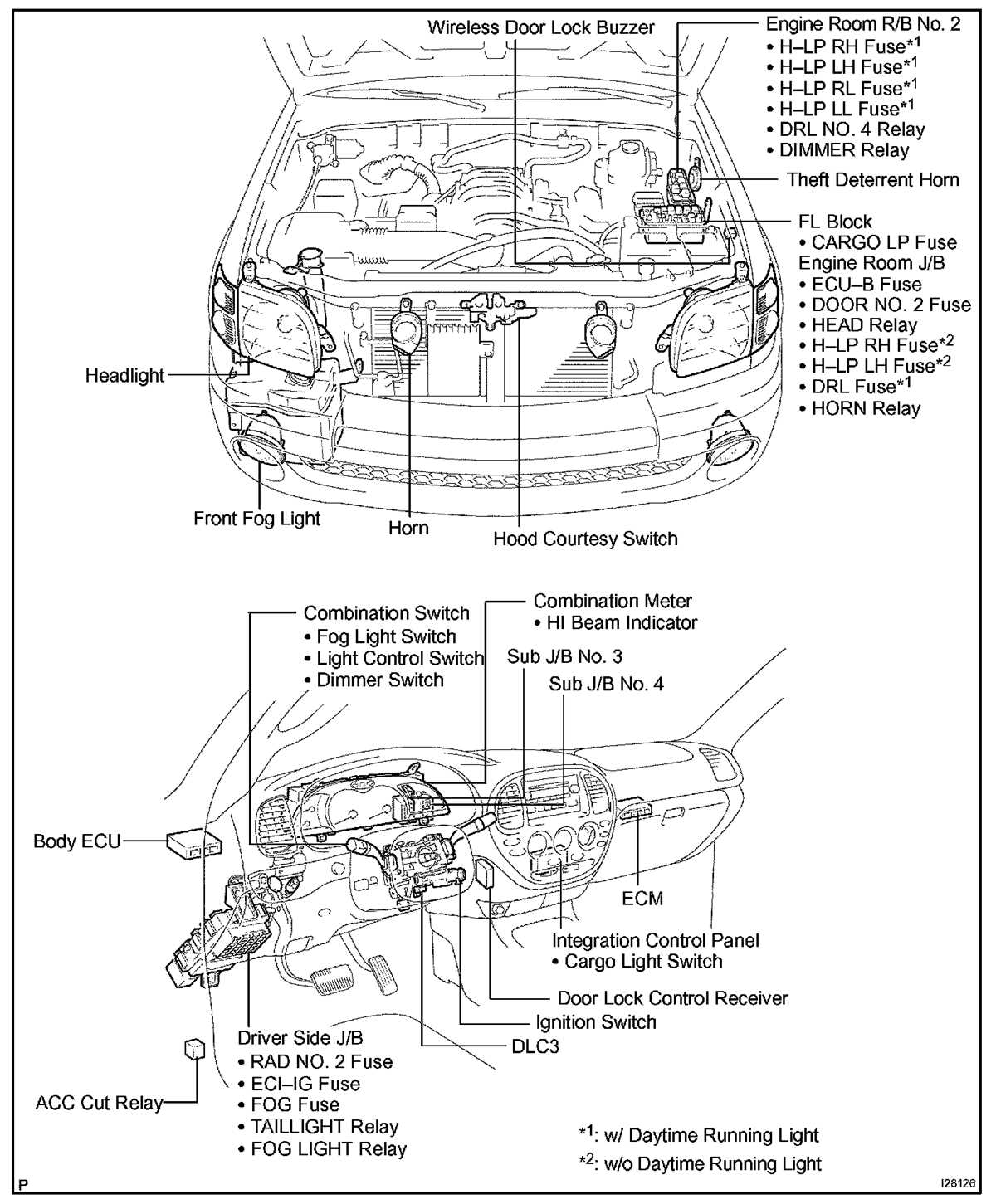

Begin beneath the dashboard on the driver side–remove the lower knee bolster by unscrewing two 10 mm bolts and releasing two plastic clips. The primary power distribution block sits directly above the parking brake lever, wrapped in black corrugated sheathing. Label each branch: battery feed (thick red), ignition (thinner red with yellow tracer), ground bus (black with white stripe), and accessory circuits (purple/yellow). A 35-pin rectangular junction under the steering column serves the instrument cluster, airbag module, and body control relay; note the locking tab orientation for correct reassembly.
Under the hood, pry the plastic cover off the driver-side fuse box to expose the main engine harness junction. The largest connector here mates to the powertrain control module–a 68-pin plug with polarized keys at positions 3 and 27. Smaller harnesses snake toward the alternator (two-pin, yellow/black), A/C compressor clutch (single blue/red), and starter solenoid (thick purple). Trace each branch to its destination using the table below; corrosion often begins at the fuse block terminals, so inspect crimps with a continuity tester before assuming fault lies farther downstream.
| Harness Branch | Connector Location | Pin Count | Key Wire Colors |
|---|---|---|---|
| Powertrain ECM | Driver fuse box rear | 68 | Gray/black, red/yellow |
| Headlamp switch | Behind glove box hinge | 12 | Light green/orange |
| Trailer brake controller | Frame rail near rear axle | 7 | Brown/white, dark green |
| 4WD actuator | Transfer case front | 8 | Dark blue/light blue |
Behind the glove compartment hinge, the body control module junction hides behind a snap-in panel. Disconnect the battery negative terminal first, then depress the white locking tab to release the 42-pin white connector. Key circuits include door locks (white/black, pin 19), interior lights (brown, pin 25), and rear defrost (pink, pin 33). Probe the female terminals for voltage drop after reconnecting power–any reading above 0.2V indicates terminal burnishing required.
Along the driver-side rocker panel, a 24-pin harness feeds the rear lighting cluster and fuel pump relay. Locate it by removing the threshold trim and inner sill plate; the junction box sits atop the rear wheel well, secured by three Torx T20 screws. Inspect the socket seals–moisture ingress here commonly corrodes the taillight and reverse light feeds (green/yellow, pins 8–11). Reroute branches through dielectric grease if seals appear brittle.
Under the rear seat cushion, the fuel pump harness junction connects via a circular 6-pin plug. Detach the cushion by pulling the two front hinge clips upward, then rotate the seatback forward. The connector sits beneath a rubber grommet; annotation of each pin prevents mis-mating: pump motor (orange/black, pin 1), sender unit (pink/black, pin 3), and ground (black, pin 5). Back-probe terminals with a multimeter while cycling the ignition–pump prime should register 11–14V for exactly 2 seconds.
Identifying Wire Colors and Their Functions Under the Hood
Start by locating the main harness bundle near the battery–usually secured with black plastic clips. Trace the thickest cables first: red or red/white stripes typically carry power from the alternator to the fuse box, while brown or brown/yellow leads ground critical components. Check voltage at these points with a multimeter before proceeding; 12.6V+ indicates proper charging.
For ignition-related circuits, follow these signals:
- Yellow/red: 12V ignition feed to relays and sensors
- Black/yellow: Starter motor trigger (momentary 12V during crank)
- Green/white: ECM power, active when key is in “ON” position
Sensor circuits often use thin-gauge wires with distinct patterns:
- Orange/black: Throttle position sensor (TPS) reference voltage (5V)
- Light blue: Oxygen sensor heater control (varies between pre-1996 and later models)
- White/black: Engine coolant temperature (ECT) signal return
Transmission wiring clusters near the bell housing. Key identifiers include:
- Black/pink: Shift solenoid A (automatic models only)
- Gray/red: Vehicle speed sensor (VSS) output
- Dark blue: Transmission fluid temperature (TFT) ground
Fuel system connections require precise tracing. The fuel pump relay uses:
- Pink/light blue: Relay activation (key-on/engine running)
- Black/orange: Fuel pump ground (verify at tank connector)
- Gray: Injector pulse (varies between cylinders, often paired with cylinder-specific colors)
Lighting systems branch from the main harness near the radiator support:
- Dark green: High-beam indicator (front)
- Yellow/black: Left turn signal (blinks at 1-4Hz)
- Light green/black: Right turn signal (same frequency)
Ground points cluster near the firewall. Critical paths include:
- Solid black: Direct chassis ground (test continuity to battery negative)
- Brown: Accessory ground (horn, radio, interior lights)
- Purple: Ignition-switched ground (disconnect when testing)
For aftermarket modifications, note the following substitute colors (OEM only):
- Tan: Reserved for trailer wiring harness
- Blue/red: Cruise control actuator (rarely used)
- Dark green/red: ABS diagnostic connector (not functional without scan tool)
Always cross-reference observed colors with a digital schematic–reproduction manuals may invert yellow/white or blue/green hues in diagrams. Label each wire with masking tape before disconnecting connectors to avoid mixing critical circuits.
Step-by-Step Guide to Tracking Dashboard Electrical Pathways
Disconnect the vehicle’s negative battery terminal to prevent short circuits before handling any connections behind the gauge assembly. Use a 10mm socket to loosen the terminal clamp–do not force the bolt if corroded; apply penetrating oil and wait 15 minutes.
Remove the trim panel surrounding the instrument cluster by prying carefully along the edges with a plastic trim tool. Start at the bottom left corner where the clips are weakest, then work upward to avoid breaking tabs. Store screws and clips in a labeled container to avoid misplacement.
Locate the main harness plug at the rear of the dashboard display. Press the release tab while gently wiggling the connector free–excessive force can bend pins. Count and record the number of pins (typically 24-32) to verify against the factory service manual’s pinout schematic.
Identifying Key Circuits
Inspect the wiring colors for consistency with documented standards. Red wires usually carry power, black or brown ground circuits, and yellow or green signal leads. Deviations suggest repairs or aftermarket modifications–probe suspect wires with a multimeter set to continuity mode to confirm paths.
Trace the power feed wire from the cluster plug back to its fuse in the under-dash panel. The fuse box cover lists fuse numbers for specific functions; the instrument cluster typically draws from a 10A fuse. If the fuse is blown, check for insulation damage along the harness where it may rub against sharp edges.
Testing and Validation
Reconnect the battery and use a test light to verify voltage at the cluster’s power pins with the ignition in the “ON” position. A dim or flickering test light indicates a weak ground or failing alternator–retest with the engine running at 2000 RPM to confirm voltage stability (should read 13.5-14.5V).
For intermittent issues, flex individual wires while monitoring gauges. A sudden change points to a break inside the insulation–use a tone generator on the suspect wire and follow its path with an inductive probe to pinpoint the fault within 1-2 cm. Repair with solder and heat-shrink tubing, avoiding electrical tape which degrades over time.
