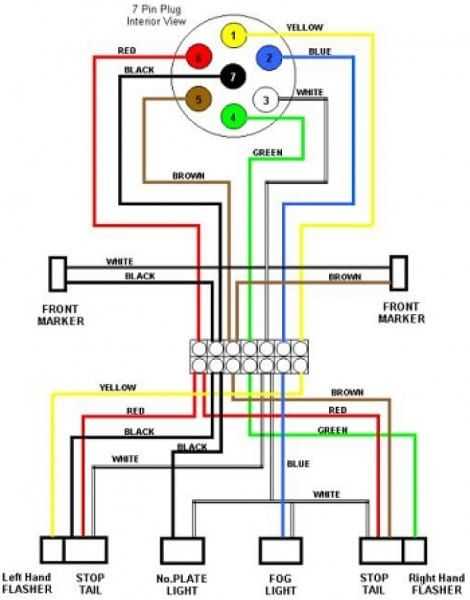

Step-by-Step 2004 Chevy Silverado 7-Pin Trailer Wiring Guide with Diagram
If your full-size truck’s electrical harness uses a 7-connector setup for towing, follow this precise configuration to avoid common mistakes. The brown wire handles running lights–route it to the same terminal on the vehicle and tow unit sides. Left and right turn signals (yellow and green) must match strictly; mixing them causes reverse polarity in brake lights. The white ground wire requires a clean, metal-to-metal connection at both ends–bolting it to painted surfaces leads to intermittent failures.
For the auxiliary circuit (blue), verify voltage output at the truck’s harness before connecting. Many aftermarket controllers wrongly assume 12V output; test with a multimeter to confirm 5-10 amps. The purple wire, often for backup lights or auxiliary power, may be inactive on some models–check the vehicle’s manual against the tow package code (usually RPO U18 or U25). Solder each connection and protect with heat-shrink tubing; crimp caps corrode within a season, especially in road salt zones.
Use a circuit tester to validate each function before attaching the trailer. Load-test the 12V supply (typically the black wire) under a 20-amp draw to ensure it holds voltage; factory wiring can’t always handle modern LED trailers’ low-resistance loads. If the brake controller triggers erratically, add a diode near the Vehicular Electronic Control Unit–this isolates feedback from the trailer’s brake magnets that often interferes with the truck’s system.
Understanding the Electrical Connector for Heavy-Duty Towing on Your Full-Size Pickup
Begin by locating the factory-installed receptacle under the rear bumper or integrated into the hitch assembly–this is your 7-way circular connector. The standard configuration follows SAE J560 guidelines, though minor variations exist between model years. Use a multimeter to verify each terminal’s function before connecting any auxiliary equipment. The left-side post supplies constant 12V power for trailer batteries or auxiliary lighting, while the right-side post handles brake controller output.
Terminal Identification and Voltage Verification
- Battery feed (left, 12 o’clock position): 12V direct from the vehicle’s main power distribution block–verify with a test light that this remains live with the ignition off.
- Ground (center): Thickest wire in the harness; often corroded–clean with a wire brush and apply dielectric grease to prevent future oxidation.
- Right turn/brake (3 o’clock): Yellow wire in OEM harness–should read 12V pulsed when brake pedal is depressed or right turn signal is activated.
- Left turn/brake (9 o’clock): Dark green wire–same pulsing voltage check applies as the right-side circuit.
- Electric brakes (5 o’clock): Blue wire–only energized when a brake controller is installed; expect 3-12V proportional output during deceleration.
- Auxiliary circuit (7 o’clock): Brown wire–typically 12V for running lights; confirm continuity along the entire trailer harness.
- Backup lights (optional, 6 o’clock): Purple wire–only present in later production runs; absent if retrofitting an older vehicle.
Aftermarket adapters marketed as “plug-and-play” often invert the brake and running light circuits–cross-reference the adapter’s pinout with the vehicle’s service manual (Section 8A-4B) before installation. Incorrect wiring can trigger the Body Control Module to log DTCs U1000 or B2606, disabling anti-lock brakes or stability control until cleared with a scan tool.
Harness Modifications for Non-Factory Equipment
Integrating a third-party brake controller requires tapping the blue wire at the master cylinder under the driver’s side dashboard–follow the factory harness along the firewall, where it transitions from a 14-gauge to a 12-gauge wire. Solder all connections and wrap with adhesive-lined heat shrink tubing to prevent chafing against the frame rail. For aftermarket reverse signal functionality absent from the original harness, splice the purple wire directly to the reverse lamp circuit above the rear axle–use a 15A fuse to protect against short circuits.
Trailer-side plugs must match the vehicle’s gender; most heavy-duty connectors use a male plug mated to a female socket on the truck. Replace any damaged connectors with Weather-Pack or Deutsch equivalents–avoid generic auto parts store options that lack sealing grommets. Apply dielectric grease liberally to both sides of the connection before mating to prevent moisture intrusion, which causes intermittent faults. Store any unused harness ends in sealed plastic bags to keep terminals corrosion-free between uses.
Testing after installation involves four distinct checks: verify running lights illuminate steadily, turn signals flash at 60-120 cycles per minute, brake lamps activate when the pedal is depressed, and the electric brake circuit outputs correct voltage on a decelerometer. Use a dedicated trailer brake tester rather than improvised methods to confirm proportional braking force; incorrect calibration leads to trailer sway under load, especially at highway speeds above 55 mph.
Locating the OEM 7-Way Plug on Your Pickup
Begin underneath the rear bumper on the driver side. The factory harness exits the frame rail approximately 12 inches forward of the rear axle. Trace the bundled wires–typically encased in black convoluted tubing–until they terminate at a rectangular plastic housing approximately 3 inches tall. This is the OEM connector block; the latch faces downward for tool-free release.
If obstructed, remove the spare tire carrier using a 15 mm socket to access the full mounting surface. The harness routes vertically through a slotted hole in the frame bracket. Follow the wires from the central junction box mounted beneath the driver-side taillight assembly, where two bolts secure a grounding strap and a 10 AWG power feed.
Examine the connector’s color-coded terminals: yellow for left turn/brake, green for right turn/brake, brown for marker lamps, white for chassis ground, blue for 12 V auxiliary, red for battery hot, and black for electric brake output. Verify each circuit with a multimeter set to 12 V DC before splicing aftermarket adapters.
Step-by-Step Connector Color Guide for Heavy-Duty Tow Setup
Begin by securing the vehicle-side harness near the rear bumper–locate the factory connector bundle tucked above the driver-side frame rail. Use a multi-meter to confirm voltage (12V DC) on the white wire; this serves as the ground reference for all other circuits. If voltage is absent, trace the red/black ignition feed from the fuse box (position 30, 20A) before proceeding.
Match wire functions to colors as follows:
| Wire Color | Function | Load Capacity | Verification Method |
|---|---|---|---|
| Yellow/Stripe | Left turn/brake | 3.0A continuous | Activate hazard lights |
| Green/Stripe | Right turn/brake | 3.0A continuous | Cycle turn signal |
| Brown | Tail lights | 7.5A max | Switch headlights to running mode |
| Blue | Electric brake control | 20A fused | Connect trailer and engage manual slide lever |
| Black | Battery 12V+ | 30A fused | Test with multimeter (probe red lead on wire, black on chassis) |
| Red | Reverse lights | 2.0A per bulb | Shift to reverse and check for 12V pulse |
Strip ½ inch of insulation from each wire, crimp on female spade connectors (16-14 AWG), then insert into the modular plug housing–ensure locking tabs click audibly. For brake and power circuits, splice in 12-gauge pigtails to accommodate higher amperage without overheating factory connectors. Seal splices with adhesive-lined heat shrink tubing to prevent corrosion from road salt or moisture ingress.
Post-Installation Checks
Verify circuit integrity with a plug-in tester: both turn signals should blink simultaneously when hazards are activated, brake lights must override taillights, and the blue wire should carry 12V only when the trailer brake controller is energized. If erratic behavior occurs, disconnect the ground (white) and clean the chassis connection point–factory paint or undercoating often causes poor contact. For auxiliary power (black wire), install a dedicated 30A relay triggered by the ignition circuit to prevent parasitic drain.
Solving Electrical Problems in Heavy-Duty Pickup Towing Systems
Check the ground connection first–corrosion or loose bolts on the frame near the tailgate often disrupt circuits. Use a multimeter to test continuity between the chassis and the negative terminal of the vehicle’s battery. If resistance exceeds 0.5 ohms, clean the contact surface with a wire brush, apply dielectric grease, and secure the bolt with a torque of 15-20 ft-lbs.
Verify the fuse for the lighting circuit–typically a 20-amp fuse in the under-hood fuse box labeled “Trailer Lamps.” If blown, inspect the harness for short circuits by tracing each wire from the connector to the rear lights. Pinch points near the suspension or sharp edges on the frame commonly damage insulation, exposing bare wire to moisture.
- Ammeter test: Connect one probe to the turn signal terminal (yellow or green wire) and the other to ground. Activate the signal; readings should fluctuate between 12 and 0 volts. No change indicates a failed bulb, open circuit, or defective relay.
- Voltage drop test: With lights on, measure voltage at the plug (12.5V minimum) and again at the bulb socket. A drop over 0.3V suggests high resistance in connectors or wiring.
- Thermal inspection: After 10 minutes of operation, feel each connector. Excessive heat (above 140°F) signals poor contact–disassemble and clean contacts with electrical cleaner.
Replace the 7-way connector if internal contacts show pitting or oxidation. Molded connectors fail after prolonged exposure to road salt; solder and heat-shrink each joint for a permanent fix. Use T-taps only for testing–crimp connectors rated for 16-14 AWG wire provide reliable long-term connections.
For intermittent brake light failure, inspect the brake switch under the dash. Faulty switches send erratic signals to the trailer module. Adjust or replace the switch if voltage at the brake terminal doesn’t rise above 10V when depressing the pedal. Ensure the tow/haul mode is activated–some modules require this setting to enable full lighting functionality.
