Dodge Ram 1500 2004 Radio Wiring Harness Color Code Guide
Locate the C2 harness connector behind the dashboard–it’s a 24-pin plug with a black housing. Pin 1 carries constant 12V power (yellow wire, 18 AWG), fused at 15A. Pin 10 (gray, 20 AWG) delivers switched power from the ignition, critical for memory retention. Grounds cluster at pins 5, 12, and 22 (black/white, 16 AWG)–verify resistance below 0.5 ohms.
Speaker outputs use paired polarity-coded wires: front left (pin 3: dark blue/white, +; pin 14: dark blue, -), front right (pin 4: gray/light blue, +; pin 15: gray, -), rear left (pin 6: brown/yellow, +; pin 17: brown, -), rear right (pin 8: purple/white, +; pin 19: purple, -). Confirm continuity with a multimeter: each pair should measure 4–8 ohms across terminals. Antenna trigger (pin 20, pink, 22 AWG) requires a 12V pulse; insufficient voltage causes motorized antenna failure.
For amplifier integration, tap the blue/white wire (pin 9) at the harness–this carries a remote turn-on signal at 12V when the system activates. Data lines (pins 2 and 7, orange and tan, respectively) link to the vehicle’s CAN bus; splicing here without a load resistor (1.5 kΩ) can trigger error codes P0600–P0606. Always disconnect the negative battery terminal before probing or modifying connections to prevent shorts or ECU reset.
If static or popping occurs, inspect the ground straps between the chassis and the unit’s mounting bracket–corrosion here increases resistance. Replace any oxidized connectors with gold-plated terminals (AMP or Molex) to ensure signal integrity. For aftermarket upgrades, use a harness adapter (Metra 70-1761 or Scosche CR02B) to avoid cutting factory wires; these adapters map to the original pinout without requiring soldering.
How to Connect Your Pickup’s Stock Audio System Harness
Start by locating the 12-pin connector behind the dashboard’s center bezel–it’s on the left side, clipped to the metal bracket. Release the lock tab with a small flathead screwdriver and pull the plug straight out. Match the wires to the following pinout:
- Pin 1 (Yellow): Constant 12V memory feed–splice directly to battery positive with a 10A fuse within 6 inches.
- Pin 3 (Red): Switched ignition 12V–tap from the fuse box at slot 27 (cavity 10A mini).
- Pin 5 (Black): Ground chassis point–bolt to bare metal behind the glove box using a star washer.
- Pin 7 (Dark Green/Orange): Left front speaker (+).
- Pin 8 (Dark Blue/White): Left front speaker (−).
- Pin 9 (Light Blue/Red): Right front speaker (+).
- Pin 10 (Purple/White): Right front speaker (−).
- Pin 12 (Gray/Yellow): Illumination dimmer tap–hook to dash light variable resistor.

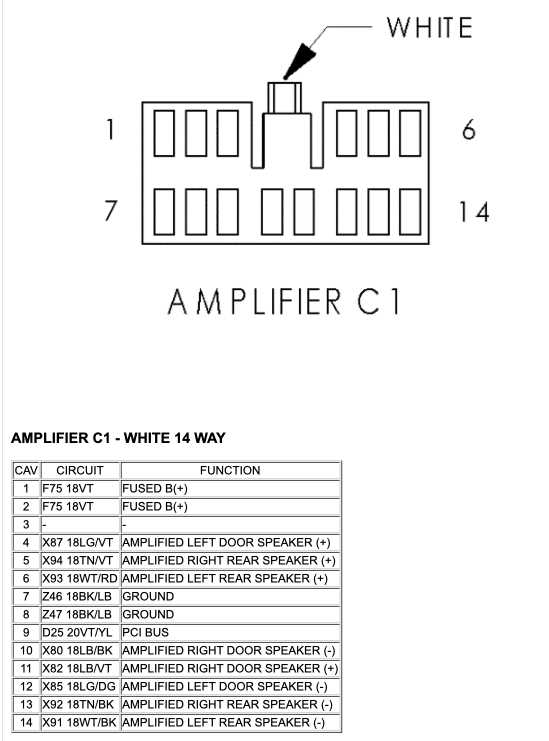

For aftermarket units, use a Metra 70-1817 harness adapter to map the above pins to ISO colors without cutting factory wires. If retaining the stock amp under the passenger seat, splice the 4-channel outputs through an 8-speaker relay kit (Crutchfield KUFX-16LE) to prevent amplifier turn-on pops.
Label each connection with 3/16″ shrink tubing and color-coded heatshrink rings before crimping–avoid solder for Michigan winter vibration risks. Test continuity with a digital multimeter set to 200 ohms; expect 4–6 ohms across each speaker pair. If upgrading to a double-DIN head unit, remove the climate control bracket screws (Torx T20) and slide the panel downward to access the upper mounting pocket.
Seal unused pins with dielectric grease to prevent corrosion. Tuck harness branches into the existing wire loom behind the fuse box and secure with nylon zip ties every 4 inches. Route new power cables through the grommet behind the brake pedal to the engine bay, following the factory main bundle path to the battery.
Finding the Audio System Plug-in Point on a 2003 Chrysler Pickup
Begin by removing the lower dashboard panel beneath the climate controls. A 7mm socket or nut driver loosens the two screws securing the trim. Once detached, the main harness connection sits directly behind the center stack, identifiable by a grey 12-pin rectangular plug with locking tabs on either side.
Key Visual Markers
The plug’s top row contains solid color wires: orange (+12V constant), dark green (illumination), and light blue (power antenna relay). Below, striped cables–yellow/light green (rear left speaker) and yellow/violet (rear right)–confirm correct orientation. Trace these back to the firewall grommet if harness routing is unclear.
On trucks equipped with premium audio, a secondary 8-pin harness hides behind the glove box. Access requires dropping the kick panel under the passenger side; locate the beige clip near the cabin air filter housing. Match connector shapes before attempting disconnection.
Double-check for factory security systems before probing. Some variants integrate a small inline module–black box with dual red/black leads–between the main plug and chassis ground. Bypassing this without proper disarm risks triggering anti-theft lockouts.
Decoding Vehicle Audio System Wire Color Codes and Purposes
Locate the light green wire with a black tracer–this feeds constant 12V power directly from the battery, ensuring memory retention for preset stations and settings even when ignition is off. Verify this connection first; incorrect wiring here causes recurring data loss.
Identify the dark green wire (sometimes paired with an orange stripe) as the main ignition-switched power lead. This wire activates the stereo when the key is turned to “ACC” or “RUN,” cutting power when the engine shuts off to prevent parasitic drain. Test for 12V only when the ignition is engaged.
The purple wire typically handles the right rear speaker positive (+) signal, while its counterpart–often gray–carries the negative (-) return. Miswiring these results in phase cancellation, muting or distorting audio in the rear channels. Use a multimeter set to AC voltage to confirm signal presence during playback.
Track the pink wire for the left front speaker positive terminal. Its twin, a tan or brown variant, serves as the negative return. Reversing these wires flips stereo imaging, placing instruments and vocals in incorrect spatial positions. A quick polarity swap during installation confirms proper channel assignment.
Inspect the yellow wire for the vehicle’s dimmer circuit, adjusting display brightness in sync with dashboard lights. This wire may tap into the headlight switch or a dedicated rheostat. If illuminated controls remain overly bright at night, this connection likely needs re-routing.
Spot the black wire–usually grouped with bare copper strands–as the primary ground. Attach it to a bolt secured to unpainted chassis metal, avoiding contact with painted or coated surfaces. Poor grounding introduces static, signal interference, or complete system failure.
Look for a dark blue wire with a white stripe; this delivers the amplified turn-on lead for aftermarket amplifiers or powered antennas. Connecting this to an external amplifier triggers it only when the stereo is active, preventing stand-by mode power drain. Some vehicles omit this, requiring manual splicing to an accessory circuit.
Note the white wire with a violet stripe: this carries the vehicle speed sensor (VSS) signal in some models, enabling speed-sensitive volume adjustments. If your system lacks this feature but wires are present, cap them to prevent stray voltage from disrupting other circuits.
Step-by-Step Guide to Integrating a New Sound System with Original Harness
Start by sourcing a vehicle-specific adapter harness to avoid cutting the original connectors. These adapters match the OEM pin configuration and simplify integration. Verify the adapter model aligns with your vehicle’s trim and year–different trims often use distinct harness layouts.
Disconnect the negative battery terminal before handling any electrical connections. A multimeter set to 12V DC will confirm power and ground wires by probing the harness while the ignition is in the accessory position. Label each wire with masking tape to prevent confusion during reconnection.
| Wire Color | Function | Testing Method |
|---|---|---|
| Yellow/Black Stripe | Constant 12V | Multimeter reads 12V regardless of ignition state |
| Red/White Stripe | Switched 12V | Multimeter reads 12V only with ignition in ACC or ON |
| Black | Ground | Multimeter reads 0 ohms to chassis |
| Gray/Purple | Speaker (+) Front Right | Audio test tone emitted when probed with a 9V battery |

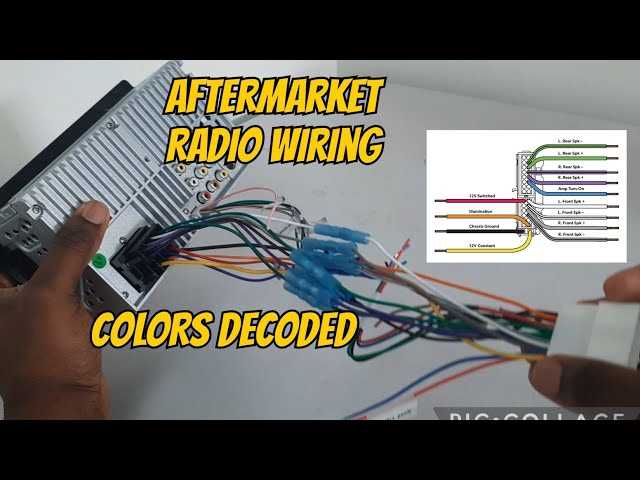

Identify the aftermarket unit’s wires using its manual–colors rarely match OEM standards. Use a crimping tool to attach butt connectors or solder joints for a secure connection. Heat-shrink tubing over each joint prevents corrosion and electrical shorts. For amplified systems, locate the blue/white remote turn-on wire and splice it into the vehicle’s accessory wire to activate external amplifiers.
Reconnect the negative battery terminal and test the system before final assembly. Cycle through audio sources, balance/fader controls, and steering wheel controls if retained. If static persists, recheck grounds–poor grounding is the primary cause of interference. A noise filter inline with the power wire may resolve residual alternator whine.
Secure the new unit into the dashboard cavity using mounting brackets or ISO adapters. Some vehicles require removing climate control knobs or trim panels for clearance–refer to a disassembly guide for snap-in points. Reinstall factory panels carefully to avoid rattles or misalignment.
Troubleshooting Common Issues
If speakers produce distortion at high volumes, downgrade the aftermarket unit’s preamp voltage output. Most OEM systems handle 2V–4V outputs; exceeding this can damage stock amplifiers. For vehicles with premium speaker options, bypass the internal amplifier by wiring speakers directly to the head unit if clarity suffers.
Steering wheel control functionality requires an interface module like Metra ASWC-1 or PAC SWI-RU. Wire this inline between the harness adapter and the new stereo, following the module’s specific pairing process for button retention. Some modules require firmware updates–check the manufacturer’s website for compatibility patches.
Verify antenna functionality last. Manual antennas need a power adapter, while motorized systems require retaining the original amplifier module. If reception weakens, inspect the antenna cable for fraying or shorts, particularly near the mast. Re-crimping the coaxial connector often resolves signal dropouts.
