Hyundai Sonata 2004 Camshaft Position Sensor Wiring Guide and Diagram
If your engine cranks but refuses to start, the issue often traces back to a faulty angle switch circuit. Locate the signal wire on the three-pin connector–it’s typically the middle terminal. Use a multimeter set to DC voltage and probe the wire while cranking: a healthy reading should spike between 0.5V and 4.5V. If voltages are absent or erratic, inspect the harness for breaks near the valve cover or transmission bellhousing, where chafing frequently occurs.
Begin repairs by unplugging the ECM and switch connectors. Check continuity between the switch’s signal pin and the corresponding ECM pin (usually labeled CKP or REF). Resistance should be below 0.5 ohms. Next, verify the ground return path–many failures stem from corroded chassis grounds near the intake manifold. Scrub oxide from the mounting points with a wire brush and apply dielectric grease before reattaching.
Critical wires to trace: red (12V ignition power), black/white (ground), and light green (signal). The signal wire loops through a firewall grommet near the brake booster; brittle insulation here causes intermittent faults. Splice in new 18-gauge wire if resistance exceeds 1 ohm over a 1-meter run. Avoid pigtail connectors–crimp solder and heat-shrink all repairs for permanent conductivity.
For ECUs rejecting aftermarket replacements, reflow the solder joints on the control module’s circuit board, focusing on the surface-mount capacitors adjacent to the processor. A hot-air rework station at 350°C for 10 seconds often restores communication without component failure. If the engine still stalls at operating temperature, swap the switch first–labor to access the timing cover exceeds parts cost, so rule out the cheaper variable first.
Locating the Engine Timing Signal Connector on Your Sedan

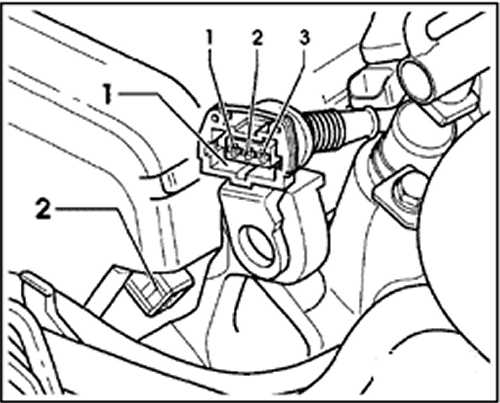

Trace the harness from the crank angle detector toward the upper valve cover–here, the OEM pinout appears as a three-wire plug: terminal A (blue wire) carries the 5V reference feed from the ECM, terminal B (green/yellow stripe) delivers the pulsed signal, and terminal C (black/white stripe) serves as chassis ground. Confirm voltage between A and C with a multimeter set to DC; readings below 4.8V indicate either a corroded connector at the timing cover or frayed insulation near the cylinder head gasket area.
Splice repairs demand 18-gauge tinned copper wire spliced via crimp connectors protected with adhesive-lined shrink tubing; solder introduces stiffness that can fatigue under engine vibration cycles. Map the loom route away from exhaust manifolds and sharp edges, securing slack every 15 cm with spiral wrap rated for 125°C. If signal gaps persist, command the ECM to output diagnostic pulses through an OBD-II scanner: PID 0x0C5 should toggle between 0V and 12V at 1,200 RPM–otherwise the reluctor ring teeth spacing likely exceeds 0.05 mm tolerance.
Aftermarket replacements often invert pin B and C; verify mating connector polarity by tracing the loom back to the bulkhead firewall grommet–correct orientation mirrors the vehicle-side plug numbering.
Finding the Dual Overhead Timing Tracker in Your Sedan
Pop the hood and secure it with the prop rod on the driver’s side fender well.
The engine’s upper timing housing sits near the rear of the cylinder head, partially concealed under the ignition coil pack assembly and a plastic cover. Three 10 mm bolts hold the coils; remove them to expose the two-wire connector and the black sensor body.
Look for a small, rectangular unit measuring roughly 2.5 inches by 1.25 inches, bolted into the head with a single 8 mm bolt. The sensor’s tip protrudes directly into the cam lobe gallery, so orientation is critical.
Trace the harness from the connector: it routes along the top of the valve cover, then loops down the firewall side of the engine bay towards the main engine loom. Pinch-style clips keep the wires tight against the cover; release them to free up slack if needed.
On the 2.4 L inline-four, the device is installed at the rear-most position, just before the valve cover gasket rail. V6 versions locate it on the front bank, right behind the alternator pulley.
Clean any oil residue from the mounting surface with a shop rag to ensure proper reseating. A magnetic thread chaser (1/4″ x 20 tap) can clear any metal shavings if the original bolt refuses to spin free.
Once unbolted, gently rock the sensor side-to-side while pulling upward to disengage the O-ring seal. Avoid prying tools that could scratch the soft aluminum bore.
The wiring harness plugs into a white rectangular connector that locks with a small sliding tab; depress it before attempting to disconnect to prevent terminal damage.
Pinpointing Circuit Paths in the Timing Signal Component

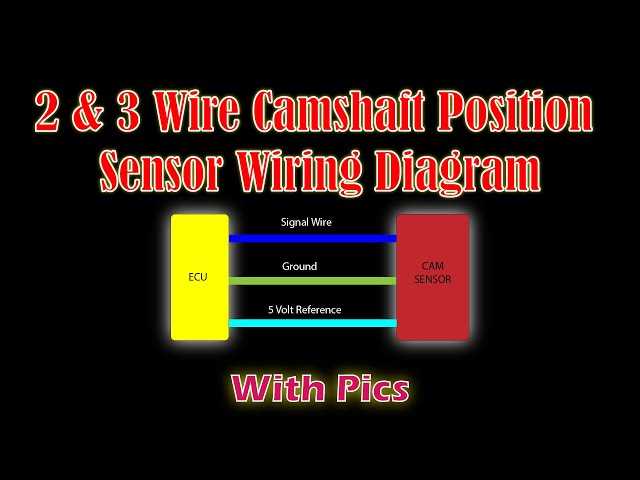

Locate the ignition-controlled power feed–typically a 5V reference line originating from the engine control module–using a multimeter set to DC voltage. Probe the connector terminals while the key is in the ON position: the active lead should register 4.8–5.2V, while the ground reference remains at 0V. If readings deviate, trace the harness back to the ECU connector (C101 for most mid-size sedans) and inspect for chafed insulation or corroded pins. Use a wiring schematic specific to the 2.4L or 2.7L engine variant to cross-reference pin assignments, noting that the signal wire (often coded blue or gray) carries a pulsed waveform during cranking.
| Pin Function | Color Code (Typical) | Expected Voltage (Key ON) | Diagnostic Steps |
|---|---|---|---|
| Reference Voltage | Yellow/Green | 4.8–5.2V | Check continuity to ECU; test for opens or shorts to ground. |
| Signal Return | Blue/White | 0.5–4.5V (pulsed) | Scope waveform during startup; verify no flatline. |
| Ground | Black | 0V | Ensure less than 0.1V drop when probed with engine running. |
Isolate the signal path by back-probing the connector: insert a fine wire into the socket while keeping the harness intact, then connect an oscilloscope to capture the pulse train. A healthy component will produce a clean square wave with consistent amplitude; irregularities indicate internal faults or noise intrusion. For bench verification, apply 5V to the reference terminal and ground the black lead–swinging a small magnet past the sensing element should generate a simulated signal, confirming functionality outside the vehicle.
Step-by-Step Guide to Tracing the Engine Component Circuit Path
Locate the signal output connector near the variable valve timing mechanism–typically a three-pin plug with color-coded leads: a solid yellow (signal), black with white stripe (ground), and red with black stripe (reference voltage). Disconnect the harness from the ECU first to prevent accidental shorts, then probe the harness side of the connector.
Use a multimeter set to 20V DC range to verify voltage on the reference lead; it should read between 4.8V and 5.2V when the ignition is in the ON position. If the reading is absent, follow the red-black striped wire backward through the harness toward the powertrain control module, checking for nicks, corrosion, or disconnections at every splice point.
Trace the yellow signal wire through the engine bay, noting every junction where it intersects with other harness segments. The path often runs parallel to the intake manifold or valve cover gasket before merging into a larger loom near the firewall. Label each segment with masking tape to avoid confusion during reassembly.
Inspect inline connectors for stray strands or bent pins–common failure points that cause intermittent faults. Gently pry open plastic housings with a flathead screwdriver, but avoid force to prevent cracking. Clean contacts with electrical cleaner and a small wire brush if oxidation is visible.
- Disconnect the battery negative terminal to prevent voltage spikes.
- Remove intake tubing or engine covers obstructing access to the harness route.
- Follow the yellow wire visually, separating it from bundled cables every 6 inches to verify continuity.
- Reconnect segments temporarily to test signal flow before final reassembly.
If the signal wire disappears into a sealed loom, use a non-contact voltage probe to detect live current without piercing insulation. Mark locations where the signal disappears–these are prime spots for hidden chafing against metal edges, such as exhaust manifolds or suspension components.
Common Pitfalls During Tracing
- Misdirected wires rerouted during prior repairs–compare both sides of the engine.
- Heat-damaged insulation near exhaust components, causing internal shorts.
- False ground connections from improperly secured bolt-on sensors.
- Pinched cables behind interior panels or underdashboard mounts.
Reinstall components incrementally, testing signal integrity after each step. If the original path proves compromised, reroute the wire along a safer trajectory–secure it with zip ties every 4 inches to prevent future abrasion. Confirm functionality with a scope before finalizing repairs.
Common Signal Path Faults and Troubleshooting Methods
Inspect the harness connector pins for corrosion or bent terminals–this causes intermittent signal loss. Use a multimeter in continuity mode to verify the ground wire (typically black) connects directly to the engine block with less than 0.5 ohms resistance. A corroded ground disrupts reference voltage, triggering false error codes.
Test the reference voltage wire (often 5V) by probing the ECM-side connector with the ignition on. Values below 4.8V suggest a degraded ECM output or a short-to-ground elsewhere in the circuit. Check for chafed wires near the valve cover, where insulation damage commonly occurs due to vibration.
Voltage Drop Testing Under Load
Connect the multimeter between the sensor’s power pin and battery positive while cranking. A drop exceeding 0.2V indicates high resistance in the power feed–trace the circuit back toward the fuse box, focusing on splices and relays. Replace any oxidized connectors rather than cleaning them to prevent recurrence.
For signal wire faults, backprobe the sensor connector and monitor voltage while manually rotating the engine. A missing pulse during cam lobe engagement confirms either a faulty pickup coil or an open circuit. Waveform analysis with an oscilloscope reveals glitches invisible to standard DVOM tests.
If error codes persist despite intact circuits, verify timing chain alignment–stretched chains alter synchronization signals. Swap the component with a known-good unit to isolate electronic failures from mechanical misalignment.
