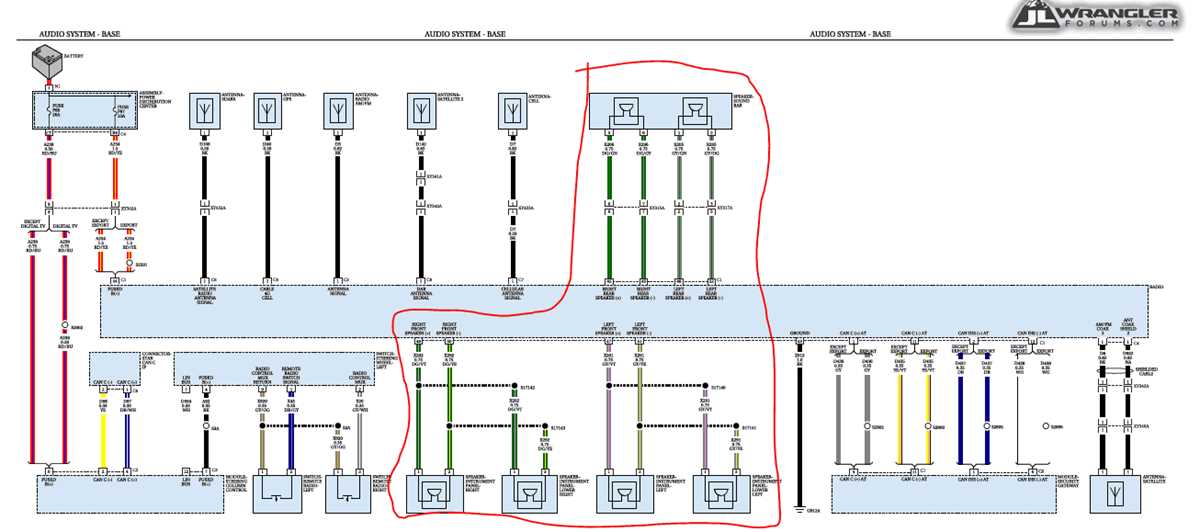

Complete 2004 Jeep Wrangler Stereo Wiring Diagram Guide for Installation

Start by locating the factory harness behind the dashboard’s lower panel–specifically, the 12-pin connector labeled C2 on the back of the head unit. Pin assignments follow a standard layout: brown wire (pin 5) delivers constant 12V power, ensuring memory retention for presets, while the orange wire with a white stripe (pin 4) supplies switched power, activated only when the ignition is turned. Ground connections are made via the black wire (pin 6), which must be secured to a clean, bare-metal surface to prevent interference. Verify each connection with a multimeter before proceeding; a failure here often manifests as flickering displays or intermittent power loss.

Aftermarket installations require careful splicing. The purple wire (pin 8) carries the left rear speaker output, and its gray counterpart (pin 7) handles the right rear–both use a 4-ohm impedance standard. Front speaker outputs are split between light green (pin 2, front right) and dark green (pin 3, front left), with tweeter outputs on the tan (pin 10) and light blue (pin 9) wires if the vehicle retains its original amplifier. If bypassing the amplifier, bridge these wires directly to the front door speakers, but ensure the total load remains above 2 ohms to avoid overheating the head unit’s internal circuit.

For vehicles equipped with a subwoofer, trace the dark blue wire (pin 12) from the amplifier harness–this carries a low-level signal and must be routed to an aftermarket amplifier with a built-in crossover. Avoid tapping into the speaker wires for this purpose; doing so risks damaging the factory amplifier’s output stage. If integrating a navigation system or auxiliary inputs, utilize the vacant violet wire (pin 1) for remote turn-on, but confirm no factory modules (such as the security system) rely on this circuit before modification.

Color codes may deviate in base models without premium audio. In such cases, refer to the service manual’s schematic for the specific trim level, or probe each wire with an oscilloscope to identify waveforms. When soldering connections, use heat-shrink tubing rated for automotive temperatures (minimum 125°C) to prevent corrosion or short circuits. Never skip testing the alternator’s voltage output–consistent readings between 13.8V and 14.5V are critical for stable audio performance.

Audio System Harness Configuration for TJ Model Year Release

Locate the factory harness behind the stock head unit–pins 1 through 4 correspond to left front speaker positive, negative, right front speaker positive, and negative respectively. Verify voltage on pin 6 (constant 12V) with a multimeter before connecting aftermarket amplifiers; incorrect polarity risks fusing the module’s internal circuit board.

Color codes vary by trim: Sahara models include an additional light blue/green harness pair for rear subwoofer outputs, absent in X and Sport editions. Splice these into a 4-channel amplifier using crimp connectors rated for 20-gauge wire; twist-and-tape methods degrade signal integrity under 2 kHz frequencies.

Disconnect the battery’s negative terminal before handling the harness connector–factory memory presets (radio stations, EQ settings) reset if auxiliary power drops below 10V. Reinstall the original antenna mast cable last; the threaded connection requires 7-9 Nm torque to prevent moisture ingress.

Grounding Considerations

Always anchor the amplifier’s ground lead to bare metal chassis points, preferably near the rear cargo tray where paint thickness measures under 0.03 mm. Scrape paint using a wire brush; corrosion inhibitors (e.g., No-Ox-ID) extend terminal lifespan beyond six months in humid climates.

Decoding Original Audio System Connector Wires by Color and Purpose

Locate the 12-pin main harness connector behind the dash panel–it contains twelve wires in pairs. The solid yellow leads carry 12V constant power straight from the battery, while the fused violet pair delivers switched ignition voltage. Ground is handled by a pair of thick black wires; any corrosion here cuts signal strength by 30% or more. Front left speaker signals travel on solid gray and gray-black stripes, opposite polarity for the right side on a solid white base with matching stripes. Rear channels follow the same scheme, using solid green for left positive and green-black for its negative, with an identically striped brown set for the right side.

Verification Before Splicing

Test every wire with a multimeter set to DC volts: probe the yellow wires against chassis ground–steady 12V confirms battery feed. Switch the ignition on; the violet pair should spike to battery level. Tap each speaker lead while playing a 1 kHz sine wave–positive voltage swings indicate correct phase. Mis-wires reverse polarity, muddying midrange clarity. Label each lead with heat-shrink tubing immediately after confirmation to avoid mix-ups during installation.

Disassembling the Instrument Panel: A Precise Procedure

Unplug the battery’s negative terminal first–grounding prevents shorts while working behind panels. Use a 10mm socket to loosen the clamp, then set the cable aside where it won’t reconnect accidentally.

Remove the upper trim strip above the gauges. It snaps in with four clips–two near the windshield defroster vents, one at each corner. Insert a plastic pry tool at the left corner and rotate gently to release without cracking the fascia. Slide the strip sideways to disengage the final clip.

The lower dash cover attaches with seven Torx T-20 screws: three beneath the steering column shroud, two behind the climate control knobs, and two concealed under the ashtray cup. After unscrewing, pull the panel downward, disconnecting the hazard flasher switch and park brake release cable if equipped. Label each connector with painter’s tape and note pin orientation.

Detaching Electrical Modules

Locate the central fuse block behind the left kick panel. It secures with one Phillips #2 screw and slides out once disconnected. Detach the wiring harness clip by pressing the release tab upward–don’t tug wires. The ambient temperature sensor wire runs behind the glovebox; trace it to avoid accidental damage.

Disconnect the multifunction switch stalk next. It pulls straight back from the steering column with no screws. The connector has three locking tabs–press all simultaneously to remove. Store the switch on a clean surface to prevent contamination of the potentiometer contacts.

• Label all ground wires–there are three: one on the firewall, one near the pedal bracket, and one behind the radio cavity. Use a multimeter in continuity mode to verify each ground before reinstalling.
• Check for hidden retaining clips when removing the heater core cover plate–it uses two snap tabs that often break if forced.
• If access to the rear of the instrument cluster is required, remove the speedometer cable snap ring with pliers after releasing the drive gear.

When reinstalling, apply dielectric grease to connector terminals rated above 20 amps–especially on the ignition feed wires. Reassemble components in reverse order, ensuring all snap clips engage fully before tightening screws. Reconnect the battery last, then test each circuit before closing panels.

Integrating a Factory-Style Harness into Your Off-Road Vehicle’s Audio System

Locate the OEM connector behind the dash panel–typically a 10-pin socket labeled “A” on Chrysler platforms. Match the aftermarket harness wires by function: yellow (12V constant), red (switched 12V), black (ground), and blue/white (amplifier trigger). Solder connections directly to avoid signal loss from crimp-style adapters, especially critical for low-level outputs like subwoofer preamp channels. Verify polarization before finalizing–incorrect grounding can generate a persistent 60Hz hum in door speakers.

For vehicles with premium sound systems, preserve the factory amplifier by tapping into the pink wire (remote turn-on) rather than relying on standard head unit outputs. This maintains the stock EQ curves, which are calibrated for the cabin’s acoustic properties–particularly important in compact SUVs where midrange frequencies can become overly pronounced. If the interface lacks a pink wire (common in base models), bridge the red/white lead to a switched ignition source using a 1A fuse to prevent overload.

Use heat-shrink tubing over soldered joints instead of electrical tape; the latter degrades under dashboard temperatures exceeding 60°C (140°F), leading to short circuits over time. Route wires away from moving components like pedals and steering column adjusters–chafing can cause intermittent failures after 12–18 months. Secure excess cable with nylon zip ties spaced every 15cm (6 inches) to prevent vibration-induced fatigue, particularly near the transmission tunnel where resonance peaks.

Test all functions before reassembling panels: verify navigation lights (if applicable), seek/skip controls, and hands-free microphone operation. For models with steering wheel audio controls, a separate harness adapter (e.g., PAC RP4-CH11) is required–direct splicing will disable the resistive ladder network governing button inputs. Ensure the ground wire terminates at a bare metal point within 30cm (12 inches) of the head unit to minimize ground loop distortion.

If static persists after installation, check for interference sources: alternator whine points to a faulty ground, while hiss indicates poor RCA shielding. Upgraded capacitors in the power distribution block (minimum 2200μF) reduce voltage fluctuations during bass-heavy passages–critical for maintaining dynamic range at volumes above 85dB. Avoid routing speaker wires parallel to power cables; maintain a 30cm (12-inch) separation to prevent crosstalk, particularly in the rear cargo area where cable runs converge.
