Complete 2005 Audi A4 Radio Wiring Diagram Color Codes Guide

Begin by locating the ISO 10487 connector behind the factory head unit in the center console–this 16-pin harness splits into power, speaker, and ground channels. Use a multimeter to verify pin assignments: pins 4 (constant 12V), 7 (switched ignition), and 5/6 (ground) must register stable voltage to avoid display errors or backfeeding. Third-party adapters often mislabel these; cross-reference with a vehicle-specific pinout schematic before cutting wires.

The front door tweeters (2.5Ω, 50W) connect via pins 14 (left+) and 15 (right+), while rear fill speakers use pins 13 (left+) and 10 (right+). For amplified systems, splice the CAN bus data line (pin 12, orange/violet)–interrupting this wire triggers dash warnings. Install a 10-amp fuse on any new power tap to prevent fire risks; the factory wiring loom uses 0.5mm² gauge for signal paths, not rated for aftermarket amplifiers.

For Bluetooth modules or USB interfaces, prioritize OEM-grade connectors like Scosche or Metra–generic harnesses ignore the quadlock retention clip and may loosen over time. If retrofitting a double-DIN unit, measure the dashboard cavity depth (150mm x 100mm)–standard kits rarely accommodate the climate control hump without modification. Test all connections with the ignition in accessory mode before final assembly; mismatched grounding causes alternator whine or dimmed instrument clusters.

Complete Guide to Your B7 Sedan Entertainment System Connections

Start by locating the 16-pin ISO connector behind the dashboard trim on the passenger side–this interface handles all power, speaker, and mute signals for the factory head unit. Pin 1 carries constant 12V from the battery (red wire), while Pin 2 supplies switched 12V via ignition (yellow). Ground sits at Pin 4 (brown) and must connect directly to chassis for stable operation; avoid splicing it with other circuits to prevent ground loops.

Front speaker outputs emerge from Pins 5 (left positive, white) and 6 (left negative, white-brown), with rear channels at Pins 11 (right positive, green) and 12 (right negative, green-brown). All four leads use 0.75mm² wire and should terminate at 4-ohm door-mounted drivers without intermediary resistors or capacitors–factory impedance matching is already optimized. Verify polarity before securing connections; reversed leads will invert stereo imaging.

CD changer integration uses the MOST optical bus (orange and white fiber), but auxiliary audio sources (like aftermarket amplifiers) require tapping into Pins 7 (orange) and 8 (orange-white) for speed-sensitive volume compensation. If upgrading, retain the CAN-Bus interface (Pins 13-15) to preserve steering wheel controls and dashboard display functionality–third-party adapters like Metra ASWC-1 simplify this retrofit without coding.

The telephone mute circuit activates via Pin 9 (black-violet), pulling current below 5mA when engaged. Bluetooth hands-free modules from brands like Parrot or iDatalink require a direct tap here to avoid false mute triggers. Keep all splices soldered and heat-shrunk; electrical tape degrades over time and introduces moisture ingress risks.

Aftermarket Integration Pitfalls

Harness adapters claiming “plug-and-play” often omit critical wiring for antenna power (Pin 3, blue) or reverse signal sensing (Pin 10, violet). Check the adapter’s pinout against the vehicle’s original schematic–some models route antenna power through a dedicated connector separate from the ISO plug. Without this wire, FM reception will be severely attenuated, especially in weak-signal areas.

Amplifier turn-on leads must sync with the ignition circuit. Use a relay for high-current aftermarket amps, drawing switched power directly from the fuse box (fuse #27, 10A) rather than splicing into the head unit’s limited supply. The factory Bose system (if equipped) includes inline fuses on each speaker line–bypass these only if upgrading to components with separate crossovers to avoid overdriving drivers.

Dashboard illumination (Pin 16, grey-red) varies intensity with dimmer settings. Aftermarket radios must support PWM dimming; otherwise, use a load resistor (1kΩ, 0.25W) to prevent flickering. For vehicles with automatic climate controls, retain the climate control module’s Pin 14 (yellow-violet) connection to prevent fault codes that disable certain HVAC functions.

Troubleshooting Common Issues

Static or distorted audio usually stems from poor grounding–verify the chassis connection near the ISO plug hasn’t corroded. Use a multimeter to test resistance between Pin 4 and bare metal; values above 2Ω indicate oxidation requiring cleaning with a wire brush. If rear speakers produce no sound but front channels work, inspect the harness for pinched wires where it passes through the rear seat fold-down mechanism–a known failure point.

Clock-spring-related faults (erratic steering wheel controls) can mimic entertainment system issues. Disconnect the battery before inspecting the spiral cable behind the steering column; misalignment here damages the CAN-Bus connection. For persistent error messages on the MID (Multi-Information Display), recode the instrument cluster using VCDS with the exact vehicle’s PR numbers–incorrect coding disrupts radio frequency data sharing.

Matching the Proper OEM Head Unit Plug for Your B7 Generation Sedan

Locate the quadlock connector behind the factory entertainment module–it’s the 32-pin square plug with L-shaped keying. Part number 8E0 035 504 is stamped on the plastic shell; if absent, compare pin layout: two vertical rows of 16 slots each, with the top row housing pins 1–16 and the bottom pins 17–32. Pins 1, 2, 7, 11–13, 17, 18, and 23–25 must be populated for CAN bus, power, and speaker feeds.

Sedan variants built before week 22/2004 use a slightly different harness (8E0 035 504 C), identifiable by an extra ground lead at pin 16; later models (8E0 035 504 D) merge this ground into pin 31. Verify with a multimeter: pin 17 should read 12V constant, pin 30 12V switched (accessory), and pin 4 CAN-H around 2.5V. Any deviation suggests aftermarket interference or a mismatched plug.

For models equipped with the premium sound system, an additional 12-pin expansion connector (4B0 035 364) sits adjacent to the main quadlock, handling amplified speaker feeds (pins A–L). If your vehicle lacks the BOSE badge but has this plug, clip it off–installing a non-amplified unit without removing it will blow the head unit’s internal amp stages.

Adapter harnesses labeled “20-pin to 32-pin” or “ISO to Quadlock” are incompatible; these bypass critical CAN communication lines, triggering dashboard errors for climate control, convenience module, and instrument cluster. Only use a direct OEM plug or a verified harness (Metra 70-1761, Scosche ASWC-1 for steering controls) that retains CAN connectivity while rerouting speaker outputs.

If splicing is unavoidable, twist each pair (left front +/–, right rear +/–, etc.) into 18-gauge copper wire, solder joints, and insulate with adhesive-lined heat shrink–never use Posi-Taps or crimp connectors on CAN lines. Label every wire with a Brother P-touch before cutting; Audi’s color codes are inconsistent across markets (e.g., vio/yel for CAN-L in North America, grn/wht in ROW).

Test before final reassembly: eject the CD tray to confirm the accessory voltage appears on pin 30; if absent, trace the pink/white wire back to the fuse box (slot 42, 10A) or the ignition relay. Splice a 1N4001 diode between pin 30 and a constant 12V source if ghost-drain persists on parked vehicles, ensuring the head unit shuts down completely after ignition off.

Step-by-Step Color Code Guide for Aftermarket Stereo Integration

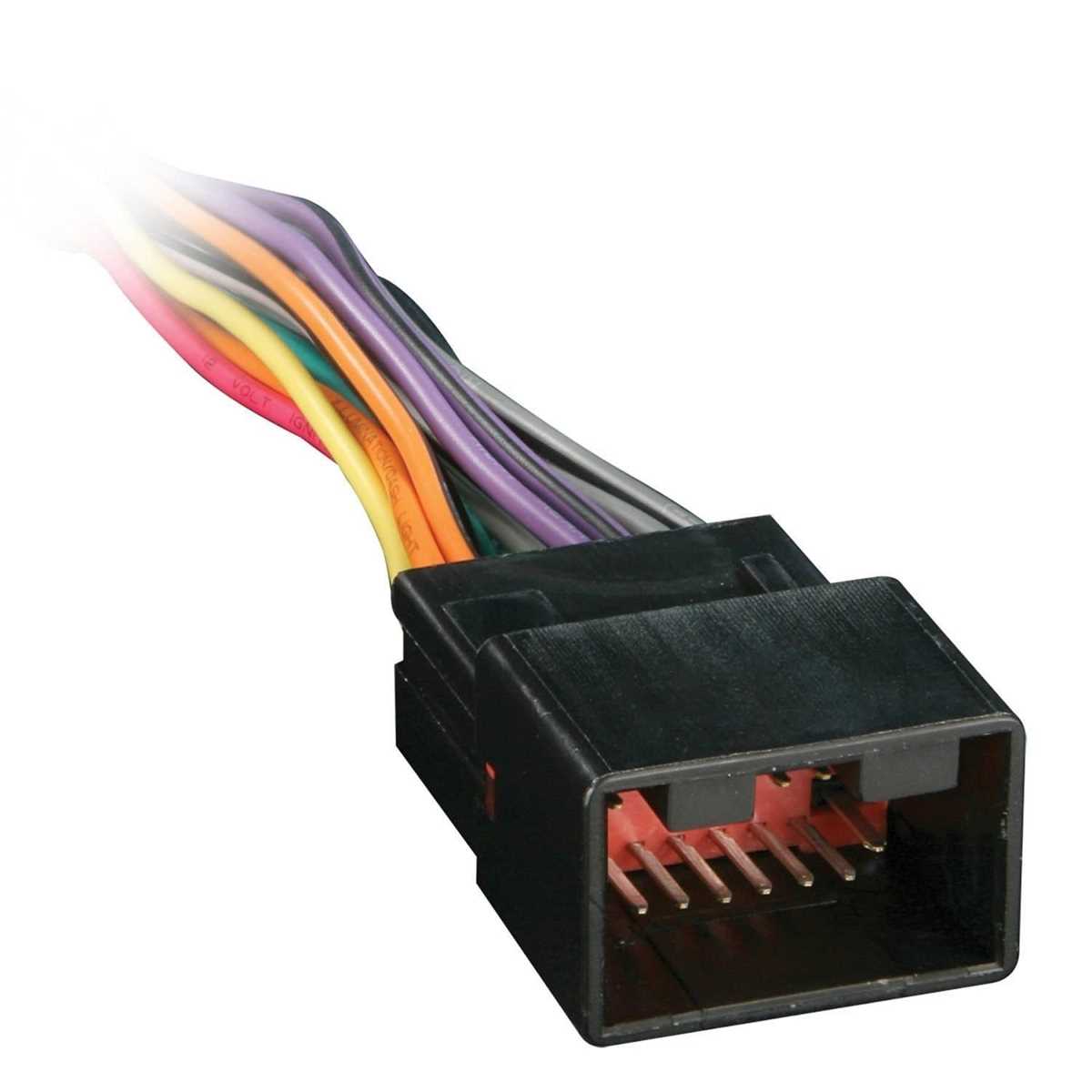

Begin by matching the 12-pin connector from the vehicle’s harness to the adapter kit. Identify the solid yellow wire (constant 12V power) first–this ensures memory retention for presets. Connect it directly to the aftermarket unit’s corresponding lead, typically labeled “B+”. Use a crimp connector or solder for a secure bond; avoid twisting wires alone, as vibrations can loosen them over time. Verify voltage stability with a multimeter before proceeding.

Next, locate the red (ignition-switched) cable on the original loom. This wire activates the sound system when the key is turned. Attach it to the “ACC” or “IGN” terminal on the new head unit. Mistaking this for the yellow wire risks draining the battery. Double-check by toggling the ignition: the display should power on and off accordingly. If the unit remains lit after the key is removed, re-examine the connections.

Critical Speaker and Ground Wires

• Front Left (+): Gray/black stripe (negative) and solid gray (positive). Confirm polarity with a 9V battery test–briefly touch leads to the wires; the speaker cone should push outward.
• Front Right (+): Purple/black stripe (negative) and solid purple (positive). Repeat the battery test.
• Rear Left (+): Green/black stripe (negative) and solid green (positive). Ensure these are not tangled with parking brake or reverse signal wires (blue/white), which serve separate functions.
• Rear Right (+): Blue/black stripe (negative) and solid blue (positive). Miswiring here creates phase cancellation, causing muted or absent audio.
• Ground: Black wire, often thickest in the harness. Attach it to a bare metal chassis point near the install site, sanding away paint or corrosion first. Poor grounding introduces hiss or distortion.

For steering wheel controls, locate the tan/white data bus wire. Pair it with a compatible interface module (e.g., iDatalink, Metra ASWC). Follow the module’s specific color-code chart–generic guides often omit model-year variances. Flash the module with the latest firmware via USB to avoid unresponsive buttons. Test each button press; delayed or erroneous responses indicate a firmware reflash is needed.

Finalize by securing all connections with electrical tape or heat-shrink tubing. Route wires away from moving parts, sharp edges, and excessive heat sources. Power on the system and play pink noise through each speaker at equal volume. Adjust fader/balance settings to neutral. If subwoofer output is absent, revisit the amplifier trigger wire (typically orange/white), ensuring it aligns with the aftermarket unit’s remote turn-on lead. Store the original harness in a labeled bag; future diagnostics may require reconnection.
