Chevy Suburban 2005 Radio Wiring Color Codes and Schematic Guide
Locate the orange (+) constant power wire behind the factory stereo harness–this delivers 12V regardless of ignition state. Pair it directly to the memory red lead on aftermarket head units to retain presets and clock settings when the engine shuts off. Skipping this connection will force users to reset stations each ignition cycle.
The yellow switched ignition wire sits adjacent, supplying power only when the key turns. Connect this to the accessory orange wire on new radios to enable on/off functionality synced with vehicle start. Resistance readings should fall between 0.5 and 1.2 ohms across both wires–values outside this range signal corroded terminals needing immediate cleaning or replacement.
Ground wires (black) must attach to bare metal chassis points without paint or rust. Factory grounds near the dash firewall cluster often suffice; verify zero continuity to negative battery terminal before finalizing connections. Poor grounding creates whine, static, or intermittent dropout during acceleration–symptoms mistakenly blamed on faulty receivers.
Speaker leads follow a color-coded four-wire scheme: front left (gray), front right (white), rear left (green), rear right (purple). Observe polarity strictly–positive (+) light stripe, negative (-) solid–reversing pairs diminishes bass response and stereo imaging. Confirm wiring with a 1.5V AA battery: proper connection moves cones outward; reversed wires pull them inward.
Factory amplifiers occupy the rear quarter panel; their 12-pin harness requires splicing if retaining OEM sound staging. Bypass modules altogether for direct aftermarket integration, but ensure fuse inline at 10A on constant power lines to prevent electrical fires. Wire gauge should match original specs–18AWG for signal paths, 14AWG for power and ground.
Factory Audio System Harness Guide for GM Full-Size SUVs
Locate the 24-pin connector behind the dashboard center stack–it’s the black rectangular plug labeled “C1” on the original harness sticker. Pin assignments follow this sequence:
- Pins 1–4: Front left speaker (+), (–), rear left speaker (+), (–)
- Pins 5–8: Front right speaker (+), (–), rear right speaker (+), (–)
- Pins 9–12: Constant 12V (yellow), ignition (red), ground (black), illumination (orange)
- Pins 13–16: Antenna trigger (pink), data bus (brown), mute (gray), amplifier turn-on (blue)
- Pins 17–20: Rear auxiliary (tan), unused, unused, speaker relay (white)
- Pins 21–24: Rear subwoofer (+), (–), (if equipped), unused
Remove the trim panel securing the climate controls to access the harness. Use a T20 Torx driver to unclip the factory unit–avoid force; the left and right release tabs must disengage simultaneously. Disconnect the antenna lead first to prevent cable strain; it’s the thin coaxial wire terminated with a threaded F-connector.

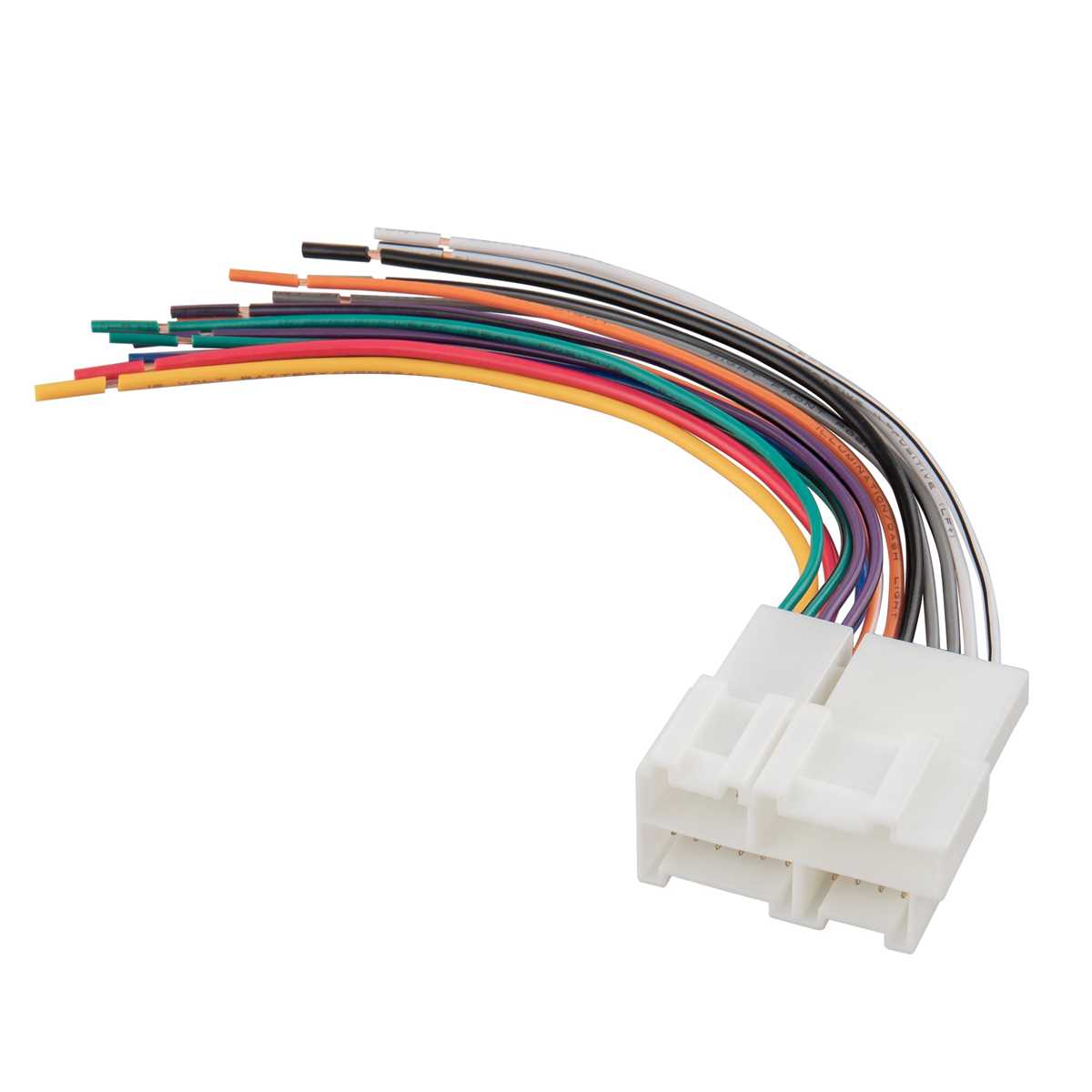

Aftermarket units require a GM-specific adapter harness. Match these serial numbers to ensure compatibility: Metra 70-2003, Scosche GM05B. Both adapters include labeled pigtails for power, speakers, and steering wheel controls. The red ignition wire must connect to a fuse tap rated at 10A–use slot 29 in the under-dash fuse box, verified active when the key is in the “ON” position.
Speaker polarity follows a non-standard phase pattern: positive leads carry a polarity diode that reverses current flow at low volumes. Testing with a 9V battery reveals correct polarity only when the battery’s positive terminal produces an audible pop from the driver-side tweeter. Swapping polarity on a single channel cancels midrange frequencies, detectable as a hollow sound even at moderate volumes.
Retain the factory OnStar module if present. The tan wire (pin 17) carries serialized signals; splicing this to an aftermarket unit voids OnStar functionality. Instead, bridge the tan wire to the new unit’s dedicated OnStar input or use a bypass adapter like PAC RP4-GM11. Verify the bypass by calling OnStar’s diagnostic number (1-888-4ONSTAR)–the system should respond within 15 seconds.
Antenna signal strength degrades without proper grounding. The factory coaxial cable requires direct connection to the aftermarket unit’s antenna port–do not use extension cables longer than 6 inches. If reception weakens, clean the ground connection behind the glove box (bare bolt marked G100) with sandpaper and apply dielectric grease to prevent corrosion.
Matching the Right Electrical Connector for Your Full-Size GM SUV
Start by locating the vehicle’s original audio unit–measure its rear connector width and pin count. The 2002–2007 platform uses a 12-pin rectangular plug (part #GM-10A) for base models, while premium trims may include an 18-pin variant (#GM-12B) with additional amplifier outputs. Check the existing harness label for part numbers before ordering; common aftermarket replacements mistakenly bundle 9-pin connectors incompatible with onboard chimes and OnStar integration.
Key Verification Steps
- Count visible pins under direct light–misalignment often indicates wrong part.
- Trace pink and tan wires; these must link to factory retainers or chimes disable.
- Compare harness shape–OEM plugs have asymmetrical notches absent in universal adapters.
- Test continuity with a multimeter on door switch triggers–aftermarket harnesses often omit this circuit.
Installers frequently overlook the orange and dark green wires responsible for retained accessory power; cutting these forces manual power cycling after each ignition cycle. For vehicles with rear entertainment systems, ensure the harness includes a 4-pin mini-DIN extension–standard aftermarket kits rarely include this, leading to missing audio/video inputs. Demand harnesses with pre-crimped Metri-Pack terminals to avoid insecure connections causing intermittent signal loss.
How to Trace Audio System Cables Behind the Control Panel
Disconnect the battery terminal before touching any connectors to avoid short circuits. Locate the negative cable on the vehicle’s power source and use a 10mm wrench to loosen the clamp. Wait at least 10 minutes for residual current to dissipate from capacitors in the sound system.
Remove the trim panels around the console. Start with the lower knee bolster beneath the steering column–pry it gently with a plastic trim tool to avoid scratching. Next, detach the center vent assembly by squeezing the retaining clips on either side and pulling outward. Behind it, you’ll find a metal bracket securing the entertainment unit; remove its screws with a #2 Phillips screwdriver. Slide the unit forward carefully–harnesses for the amplifier and antenna are usually clipped to its rear.
Identify the harness colors using the vehicle’s manual or a trusted schematic. The constant power feed is typically orange, while the switched accessory line is yellow or pink. Speaker outputs follow a consistent pattern: front left (gray), front right (purple), rear left (tan), and rear right (green). Ground connections are usually black or brown. Use a multimeter to verify voltages–set it to DC 20V and probe the connector pins while the ignition is on (but do not reconnect the battery yet).
Reattach panels in reverse order once all connections are confirmed. Secure the sound module back into place, ensuring no wires are pinched. Reconnect the battery last, then test all functions–volume, station presets, and auxiliary inputs–before finalizing reassembly.
Connector Pinout and Signal Designations for Audio System Harness
Locate the 12-pin main interface harness typically found behind the factory head unit. Verify each lead with a multimeter before splicing or connecting aftermarket components to prevent short circuits.
The following chart details the standardized color scheme and functional purpose of each terminal in the harness:
| Pin | Wire Color | Designation |
|---|---|---|
| A1 | Dark Green/White | Front Right Speaker (+) |
| A2 | Light Blue/White | Front Left Speaker (+) |
| A3 | Gray | Front Right Speaker (–) |
| A4 | Yellow/Black | Front Left Speaker (–) |
| A5 | Brown | Rear Right Speaker (+) |
| A6 | Pink | Rear Left Speaker (+) |
| A7 | Orange/Black | Rear Right Speaker (–) |
| A8 | Dark Green | Rear Left Speaker (–) |
| A9 | Red | Ignition-Switched Power |
| A10 | Pink/Black | Accessory Power |
| A11 | Black | Ground |
| A12 | Light Green | Power Antenna Trigger |
Measure continuity between speaker wires and chassis ground to confirm polarity if original markings appear ambiguous. Always pair positive (thicker stripe) with negative (thinner stripe) leads; reversing polarity degrades sound quality and risks damaging speakers.
The ignition-switched lead (A9) delivers 12V only when the key turns to ACC or RUN; utilize this for memory retention if integrating retained accessory power circuits. Ground (A11) must connect to bare metal chassis points with less than 0.5 ohm resistance–use star washers and dielectric grease to prevent corrosion at connection points.
For amplified systems, the antenna trigger (A12) activates when the head unit powers on. If installing an aftermarket amplifier that requires remote turn-on, tap this lead or route ignition-switched 12V through a switched relay to handle higher current draw safely.
When modifying rear speaker outputs (A5-A8), ensure speaker wires run separated from power cables to reduce electromagnetic interference. Twist positive and negative leads together for each channel to minimize noise pickup. Avoid running signal cables parallel to power wires over long distances.
Always double-check fuses located in the under-hood junction box: circuits serving audio components typically use 10A or 15A fuses. Replace blown fuses with identical amperage ratings to prevent electrical fires or damage to connected devices.
