Complete Wiring Guide for 2005 Dodge Durango Factory Stereo System
Locate the C2 harness–a 14-pin connector behind the factory head unit–to simplify rear speaker and amplifier integrations. Pin assignments: #1 (pink/yellow) delivers constant 12V power, #7 (dark green/violet) carries right rear output, and #14 (gray/red) grounds the system. Always verify polarity with a multimeter before soldering aftermarket adapters.
The amplifier interface hides under the driver-side rear seat, tapped via an 8-pin plug labeled AMP-CONN. Striped wires match Sony component specifications: black/white (pin 1) for amplifier turn-on, purple/red (pin 3) for left channel signal. Bypass the factory amplifier completely for cleaner signal paths or retain it by bridging pins 2 and 3 to the new head unit’s RCA outputs.
For navigation-ready models, the GPS antenna lead (solid green at pin 6 of the 24-pin harness) must remain connected if retaining OEM telematics. Non-navigation units repurpose this wire as a speed sensor input–use a resistor (47kΩ) if installing aftermarket speed-dependent features like time alignment.
Warning: The data bus wire (orange/light blue) carries CAN signals–never cut or splice this line without a proper load resistor (120Ω between CAN-H and CAN-L) to maintain module communication. Failure risks triggering U-code errors or disabling dash displays.
Swap the illumination wire (light blue/violet) with a variable 0–12V dimmer output from the aftermarket unit if retaining fade-to-off lighting. Default constant 12V illumination will blind nighttime operations.
Audio System Color-Coded Harness Guide for 2005 Model SUV
Begin by identifying the vehicle’s aftermarket or factory head unit connector pins using this color reference: constant power (yellow), switched ignition (red), ground (black), and illumination (orange with white stripe). For amplified systems, locate the rear subwoofer output (gray/violet) and front speaker outputs – LF+ (tan), LF- (gray), RF+ (light blue), RF- (dark blue), LR+ (brown), LR- (yellow), RR+ (dark green), and RR- (light green). Verify connections with a multimeter before powering on to prevent short circuits; target 12V DC on the constant and switched leads.
For bypassing the factory amplifier on premium trims:
- Disconnect the 12-pin amplifier connector (located behind the glovebox).
- Route front speaker wires directly to the head unit, ignoring the violet/light blue and violet/white leads (amp triggers).
- Match impedance (4Ω typical) to avoid distortion.
- Secure all connections with heat-shrink tubing or crimp connectors; avoid solder alone for high-current paths.
Finding the Audio System Plug Behind the Instrument Panel
Remove the driver-side lower dash trim first. Locate the single T20 Torx screw beneath the steering column; it secures the panel’s left edge. Slide a plastic pry tool between the panel and the metal frame, working upward along the side to release the hidden clips. Lower the trim carefully–attached wiring for the dimmer switch and hazard flasher will remain connected via small harnesses.

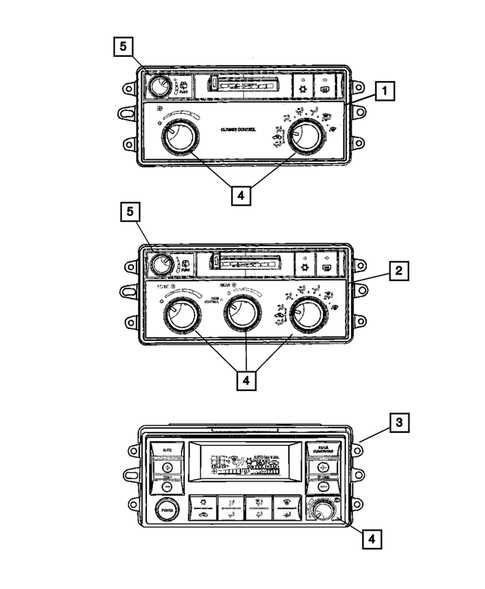

Identify the climate control unit next. Two 7mm bolts hold it in place; one is visible above the heater knobs, the other partially obscured behind the temperature blend door lever. After removing the bolts, tilt the unit outward–do not disconnect the vacuum lines or electrical connectors unless necessary for better access.
The radio mounting cage sits directly behind the climate module. Examine the upper portion of the cage for a rectangular plug; it’s typically a 12-pin white or gray connector with a retaining clip on the top edge. Gently depress the clip with a small flathead screwdriver while pulling the harness straight back–do not twist or wiggle, as this can damage the terminal pins.
If the connector isn’t visible, check for an aftermarket interface adapter between the factory harness and the head unit. These adapters often use smaller plugs and may be secured with zip ties or electrical tape. Cut any zip ties carefully to avoid slicing into the wires, then trace the adapter’s output side to the original plug location.
For vehicles with steering wheel controls, a secondary harness may run alongside the main connector. This thinner, multi-colored plug typically slots into a separate input on the rear of the radio or the adapter. Note its position relative to the main harness–misalignment during reinstallation can disable button functionality.
Accessing Tight Areas
- Use a right-angle pick tool to reach connectors lodged behind the glove box support beam.
- Remove the passenger-side airbag sensor switch (single 10mm bolt) for additional clearance if needed.
- Shine a flexible inspection light between components to spot elusive plugs.
Common Pitfalls
- Avoid forcing connectors–persistent resistance often indicates a hidden retaining clip.
- Tape or marker labels on harnesses before disconnecting prevent misreassembly.
- Temperature control wiring at the bottom of the climate unit is fragile–handle with care.
Once disengaged, move the plug to a clean workspace away from metal surfaces to inspect for bent pins or corrosion. Reconnect any temporary disconnections before reinstalling trim pieces–test all functions with the ignition on before final reassembly.
Decoding Vehicle Audio Cable Colors for Seamless Integration
Locate the 12-pin harness connector behind the factory head unit to begin matching cable colors with their functions. The solid yellow wire delivers constant 12V power from the battery, ensuring memory retention for presets and clock settings–never splice this directly without a fuse. A red cable provides switched 12V power, activating only when the ignition is turned on; confusion between yellow and red will drain the battery overnight. Ground connections use black or dark brown wires, often with a slight green stripe–verify continuity with a multimeter before finalizing connections to avoid intermittent audio cutouts or electrical interference.
Front speaker outputs follow a consistent pattern: gray wires with a stripe (typically violet or dark blue) carry the positive signal for the right channel, while pure gray wires handle the negative. The left channel pairs white (positive) with a white/black-striped (negative) cable. For rear speakers, purple wires manage the right rear positive, with purple/black stripes for negative; green wires serve the left rear positive, and green/black stripes complete the circuit. Subwoofer outputs, if present, appear as solid dark blue or light blue wires–these require amplification and will not function with standard speaker-level inputs.
Check for compatibility with the vehicle’s amplifier harness if upgrading to aftermarket components. The factory amp often uses pale orange or pink wires for mute control, preventing audio playback during phone calls or navigation prompts–bypassing this without proper handling may cause distorted sound or system errors. A single dark orange or gray wire with a yellow stripe typically carries illumination control, dimming display lights in sync with vehicle headlights–ignore this for non-LED head units to avoid backlight malfunctions. Always cross-reference color codes with the manufacturer’s documentation, as variations exist between trim levels, and never assume polarity based on color alone.
Connecting Aftermarket Head Unit to OEM Audio Harness
Locate the factory amplifier behind the rear seat or near the subwoofer enclosure–common hiding spots for midsize SUV models. Disconnect the 16-pin plug labeled “Radio Out” or “Audio Output” before cutting or splicing wires; this avoids damaging the built-in crossover network still needed for proper sound staging.
Use a multimeter set to 20V DC scale to identify speaker wires by polarity and impedance. Probe each wire at the harness end while a helper plays pink noise through the stock system–valid speaker leads will read 2-4V with a faint buzzing sound. Mark positive wires with red tape and negative with black to prevent phase cancellation during aftermarket connection.
Wire Matching Reference
| Factory Wire Color | Aftermarket Connection | Impedance (Ohms) | Notes |
|---|---|---|---|
| Dark Blue/White | Front Left (+) | 4Ω | Cross-check with rear door tweeter wire |
| Light Green | Front Right (-) | 4Ω | Confirm continuity with dash tweeter |
| Violet | Rear Left (+) | 2Ω | Subwoofer channel may share ground |
| Tan/Black | Rear Right (-) | 2Ω | Factory amp outputs balanced signal |
Solder all connections using 60/40 rosin-core solder and heat-shrink tubing; crimp connectors risk corrosion and poor signal transfer over time. Apply dielectric grease to each joint after shrinking to prevent moisture ingress–critical for vehicles with rear liftgate speaker terminals.
Test each channel before reassembly by playing a 1kHz sine wave signal at moderate volume; distorted sound indicates reversed polarity or a bad ground. Verify bass response separately using a 40Hz test tone–factory subwoofer wiring often includes an inline 250Hz low-pass filter that must be bypassed for full-range operation.
Route new wiring harness through existing grommets near the kick panels or along the driver-side A-pillar conduit. Avoid routing behind airbag controllers or near the ECU harness–electromagnetic interference from power wires can trigger false airbag codes.
Secure loose wires with nylon zip ties spaced every 6 inches; vehicle vibrations can stretch or sever connections over time. Reconnect amplifier ground last–using the original mounting bolt ensures proper chassis bonding. If installing a subwoofer, tap the constant 12V wire from the fuse box (fuse #23, 15A) instead of splicing the ignition wire to avoid power drain when the vehicle is off.
Troubleshooting Common Issues
Static or popping sounds often indicate poor grounding–check resistance between ground wires and chassis (should read less than 0.5Ω). Whining noise at idle usually stems from alternator interference; install a noise filter inline with the head unit’s power lead. Uneven volume levels may require recalibration of the amplifier’s gain settings–match input sensitivity to the aftermarket unit’s preamp outputs (typically 2-4V).
