Honda Civic 2005 AC Compressor Electrical Connection Diagram Guide
Locate the main relay labeled under-dash fuse box position 13–this 30-amp component powers the A/C clutch circuit directly. Trace the red/white wire from the relay to the pressure switch connector near the accumulator; corrosion here is the primary failure point. Use a multimeter to verify 12V+ at this junction during compressor engagement–any reading below 11.8V indicates voltage drop from undersized wiring or poor ground.

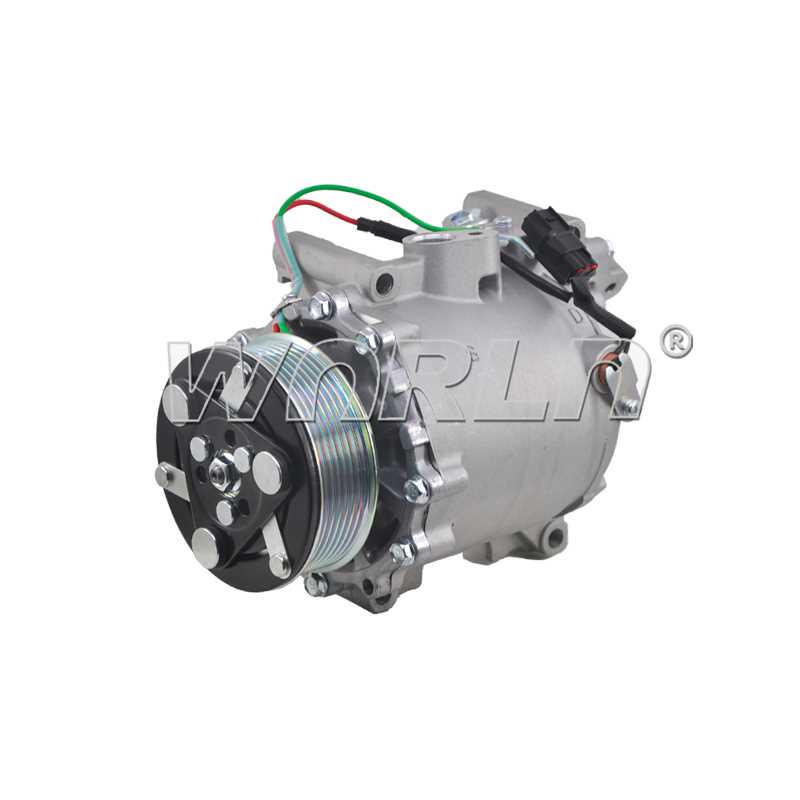

Observe the two-wire clutch coil connection at the front of the compressor body. The larger gauge blue/yellow wire carries power while the thinner black/white wire serves as ground. Disconnect both terminals and check resistance across the coil: 3.0–5.0 ohms is standard. Readings approaching 0 ohms signal internal short; readings exceeding 10 ohms confirm open circuit requiring replacement.
Follow the green/red wire from the cabin temperature sensor to the climate control unit’s 16-pin plug–pin 8. Verify continuity between sensor and control module; resistance should vary smoothly between 100–10k ohms as cabin temperature fluctuates. A fixed resistance indicates faulty sensor or severed wiring inside the dashboard harness.
Identify the low-pressure cycling switch mounted on the accumulator. The brown wire here feeds critical pressure data to the PCM. Use a scan tool or oscilloscope to monitor switch state during operation: closed below 30 psi, open above 45 psi. Erratic cycling confirms switch failure triggering intermittent cut-out.
Electrical Connections for Climate Control System in the 2006 Compact Sedan
Locate the main climate control relay under the dashboard, near fuse box position 13 (10A). Trace the black/yellow wire from the relay socket to pin 1 on the climate control unit’s 12-pin connector. Verify continuity between this wire and ground–resistance should not exceed 0.3 ohms. If readings are higher, inspect the splice at harness clip S203 (driver’s side kick panel) for corrosion or broken strands. Replace any damaged section with 18-gauge copper wire, soldering joints and sealing with adhesive-lined shrink tubing.
Key Pinout and Voltage Readings
- Pin 3 (Blue/Red): 12V constant source–test with ignition off. If absent, check fuse 22 (15A).

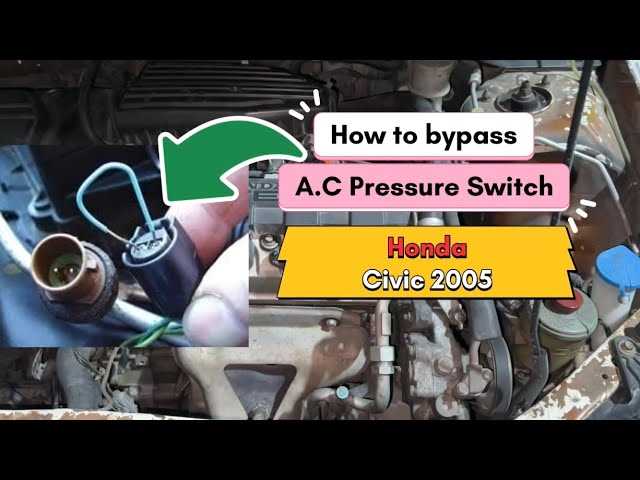

- Pin 5 (Green/Yellow): Switched power from A/C pressure switch. Jumper pins 5 and 10 on the engine bay relay connector (R110) to bypass switch temporarily for diagnostics.
- Pin 8 (White/Black): Ground reference. Ensure clean contact at chassis ground G103 (behind left headlight).
- Pin 12 (Yellow/Red): Signal to clutch coil. Back-probe with multimeter; voltage should drop to 0.1V when engaged. If not, replace clutch relay (part #39794-SDA-A02).
Disconnect the battery negative terminal before servicing. Label all connectors with tape to prevent misrouting during reassembly.
Finding the Climate Control Electrical Connection in Your Vehicle
Begin beneath the hood on the driver’s side, where the climate system clutch assembly mounts to the engine block. Trace the bundled cables extending from the rear of this unit–these exit near a cylindrical aluminum component and lead downward along the firewall, secured with plastic clips. Look for a trio of wires: one thick gauge red, a thinner green, and a black variant often tucked beneath the other two.
The connection cluster splits just above the lower radiator support, threading into a rectangular plug encased in black molded plastic. Disconnect the negative terminal from the battery first–this avoids accidental shorts while handling the harness. Use a flat-blade tool to gently release the clip holding the plug in place, then wiggle the connector free by pulling straight back without twisting.
Hidden behind the left headlight assembly, a secondary branch feeds power from the under-dash fuse box. Locate the 10mm bolt securing the inner fender liner, remove it, and peel back the liner to expose an additional six-inch segment of cabling. This section merges with the main run near the condenser fan, identifiable by its braided outer sleeve and heat-resistant tape wrapping.
If corrosion is present–common near battery terminals–clean contacts with a wire brush before reconnecting. The red lead typically carries 12 volts when the ignition is active; verify with a multimeter before assuming continuity. Attach a fused jumper directly to the green wire only if bypassing a faulty pressure switch–never splice into the high-current red cable without proper insulation.
Label each wire with masking tape during disassembly to simplify reassembly. Store removed fasteners in a magnetic tray to prevent loss. Recheck torque specs (typically 8-10 ft-lbs for electrical grounds) when reattaching components to avoid future vibrations loosening connections.
Step-by-Step Guide to Tracing Climate Control Power Links

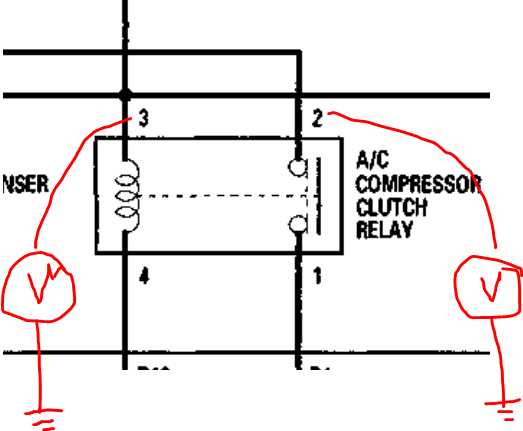

Locate the clutch relay first–it’s typically found within the under-hood fuse box, identifiable by a 4-pin configuration and labeled input/output markings. Use a multimeter set to continuity mode to verify pin assignments: terminal 85 connects to the control module, 86 to switched ignition, 30 to battery voltage via a fuse, and 87 to the magnetic coupler. Probe each pin while cycling the climate control switch to confirm consistent 12V pulses on terminal 87 during engagement. If voltage is absent, inspect the relay socket for corrosion; clean contacts with a wire brush if resistance exceeds 0.5 ohms.
Verifying Secondary Circuit Paths
Trace the cable from the magnetic coupler to the pressure transducer–look for a two-wire plug near the accumulator-drier. Disconnect the connector and measure resistance across the transducer’s terminals: readings below 10 ohms or above 100 ohms indicate failure. Next, examine the ground strap linking the coupler housing to the chassis; scrape paint off the mounting point and reattach the fastener to ensure a solid return path. For intermittent faults, bypass the clutch relay temporarily with a fused jumper wire–activates the coupler directly only for testing–then monitor current draw; excessive amperage (above 5A) signals internal shorting.

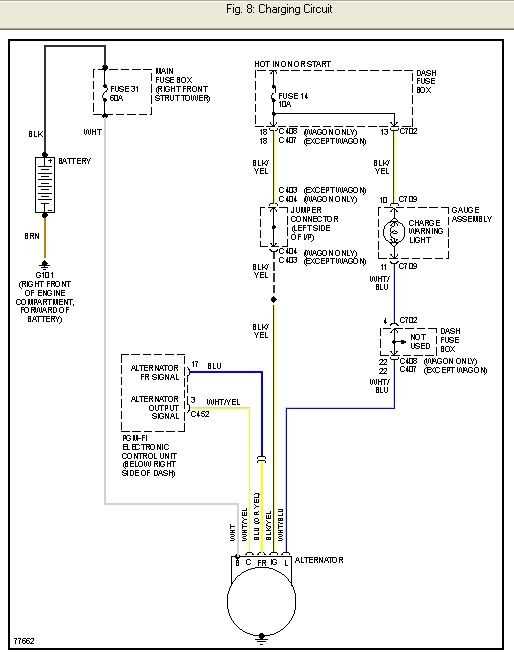

Locating Critical Elements in the Air Conditioning Pump Electrical Schematic
Trace the main power feed directly to the clutch solenoid connector–labelled C on most OEM schematics–using a multimeter set to DC voltage. Expect 12.0–14.5 V with the ignition switched to ON and the climate control engaged.
Inspect the pressure switch trio mounted near the accumulator: low-pressure (45 psi cutoff), high-pressure (450 psi cutoff), and dual-pressure (integrated logic). Each sends a ground signal to the engine control module through distinct 16–18 AWG purple-striped wires.
- Low-side probe port: brass fitting, upstream of orifice tube
- High-side probe port: aluminum fitting, adjacent to condenser outlet
- Dual-pressure common lead: 0.8 mm² wire, terminates at ECM pin 17
Verify the relay–typically a 30 A ISO micro relay–positioned in the under-hood fuse box, slot 8. Coil side receives a 5 V trigger from the HVAC control head via a light-green wire; contact side carries battery voltage from fuse F3 (15 A).
Ground Reference Integrity
Confirm the clutch solenoid ground splice behind the right strut tower. This G101 splice aggregates multiple systems: condenser fan, evaporator drain, and pump clutch return. Corrosion at this junction causes sporadic engagement.
- Release plastic retainer clip securing the wiring harness
- Examine the splice for verdigris or aluminum oxide
- Scrape until bright metal appears, apply dielectric grease
Follow the thermal limiter inline with the clutch solenoid feed. The device resembles a small ceramic resistor and opens at 180 °C. Replace if resistance exceeds 2 Ω at room temperature. The bypass wire–often overlooked–connects to the main harness via a single-pin connector under the air intake tray.
Controller Command Pathway
Pinpoint the climate control head’s 8-pin connector on the underside of the dashboard. Key outputs: pin 6 (blue/black, 5 V clutch engage), pin 4 (grey, condenser fan relay control). Use a scope to detect PWM signals–correct duty cycle ranges 70–90 % at idle, scaling inversely with engine load.
Common Electrical Problems and Troubleshooting Steps in Climate Control Circuits
Check the clutch relay first–it often fails silently. Remove the relay and test continuity between terminals 85 and 86 with a multimeter; resistance should read between 50-120 ohms. If infinite, replace it. Swap with a known-working relay (like the horn relay) to confirm functionality before purchasing a new one. Relays corrode internally due to moisture, so inspect the socket for green oxidation; clean with contact cleaner and a small wire brush.
Inspect the pressure switch for intermittent connections. Disconnect the connector and probe the terminals with the AC activated–voltage should read battery-level (12V+). If voltage drops below 10V, trace back to the fuse box; the 10A fuse for the climate system often blows without obvious cause. Use a test light to verify power at the switch; a dim light indicates a corroded fuse terminal or loose connection in the fuse block.
Frayed wires near the compressor engagement coil are a frequent failure point. Peel back the harness insulation where it bends near the engine mount; look for cracked or exposed copper strands. Repair with solder and adhesive-lined heat shrink, not electrical tape–tape degrades under heat and vibration. Strip 5mm of insulation, twist strands tightly, solder, and cover with shrink tubing to prevent future abrasion.
The thermal limiter inside the compressor clutch coil can open unexpectedly. Test resistance across the clutch coil terminals–normal readings are 3-5 ohms. If infinite, the coil or thermal limiter has failed. Replace the entire clutch assembly; isolated thermal limiter repair is unreliable. Ensure the replacement coil has the correct part number–aftermarket clones often have mismatched resistance values.
Ground connections degrade over time, especially where wires attach to the chassis. Locate the main climate system ground (usually near the firewall or strut tower) and remove corrosion with a wire wheel. Apply dielectric grease to the terminal before reinstalling; this prevents future oxidation. Use a star washer under the terminal to ensure solid contact–plain washers compress over time, loosening the connection.
Intermittent power loss often traces back to the ECM connector. Remove the ECM and inspect the pins for bent or pushed-back contacts. Straighten pins with needle-nose pliers, then reconnect and cycle the climate control switch multiple times to reseat the connector. Clean pins with contact cleaner–never use sandpaper, as it removes the gold plating. If the issue persists, check the ECM fuse (15A) and relay; a failing ECM often exhibits no other symptoms.
| Symptom | Likely Cause | Diagnosis Steps | Repair Solution |
|---|---|---|---|
| Clutch does not engage | Failed clutch relay | Test relay resistance; swap with known-good relay | Replace relay; clean socket terminals |
| Intermittent engagement | Corroded pressure switch connector | Probe terminals with multimeter while cycling AC | Clean contacts; apply dielectric grease |
| No power to clutch | Blown 10A fuse | Check fuse with test light; verify voltage at fuse block | Replace fuse; inspect for short circuits |
| Clutch cycles on/off rapidly | Low refrigerant or faulty low-pressure switch | Check refrigerant level; test switch continuity at varying pressures | Recharge system; replace switch |
Refrigerant leaks can mimic electrical issues. A system losing pressure triggers the low-pressure switch, cutting power to the clutch. Use an electronic leak detector–cheap dyes are unreliable. Common leak points include the O-rings at the service ports and condenser fins. Repair leaks before recharging; refrigerant without proper oil circulation destroys internal seals.
Aftermarket components often cause compatibility issues. Universal relays and switches may not match OEM specifications for activation voltage or timing. Replace with exact part numbers from the manufacturer–cross-reference with the vehicle’s service manual. Verify installation: incorrect pin assignments in relays or switches will prevent the system from operating, even if all other components are functional.
