Complete 2005 Polaris Sportsman 700 Electrical System Wiring Guide
Locate the main harness connector near the battery–this 22-pin plug controls critical systems like ignition, lighting, and fuel injection. Pin assignments vary slightly by model year, but core functions remain identical. Verify continuity between pin 1 (red/black wire) for +12V output and pin 7 (black) for ground using a multimeter set to 200Ω. Readings above 5Ω suggest corrosion; disassemble the connector and clean terminals with contact cleaner and a small brush. Replace damaged pins immediately–factory replacements cost $8–$12 each.

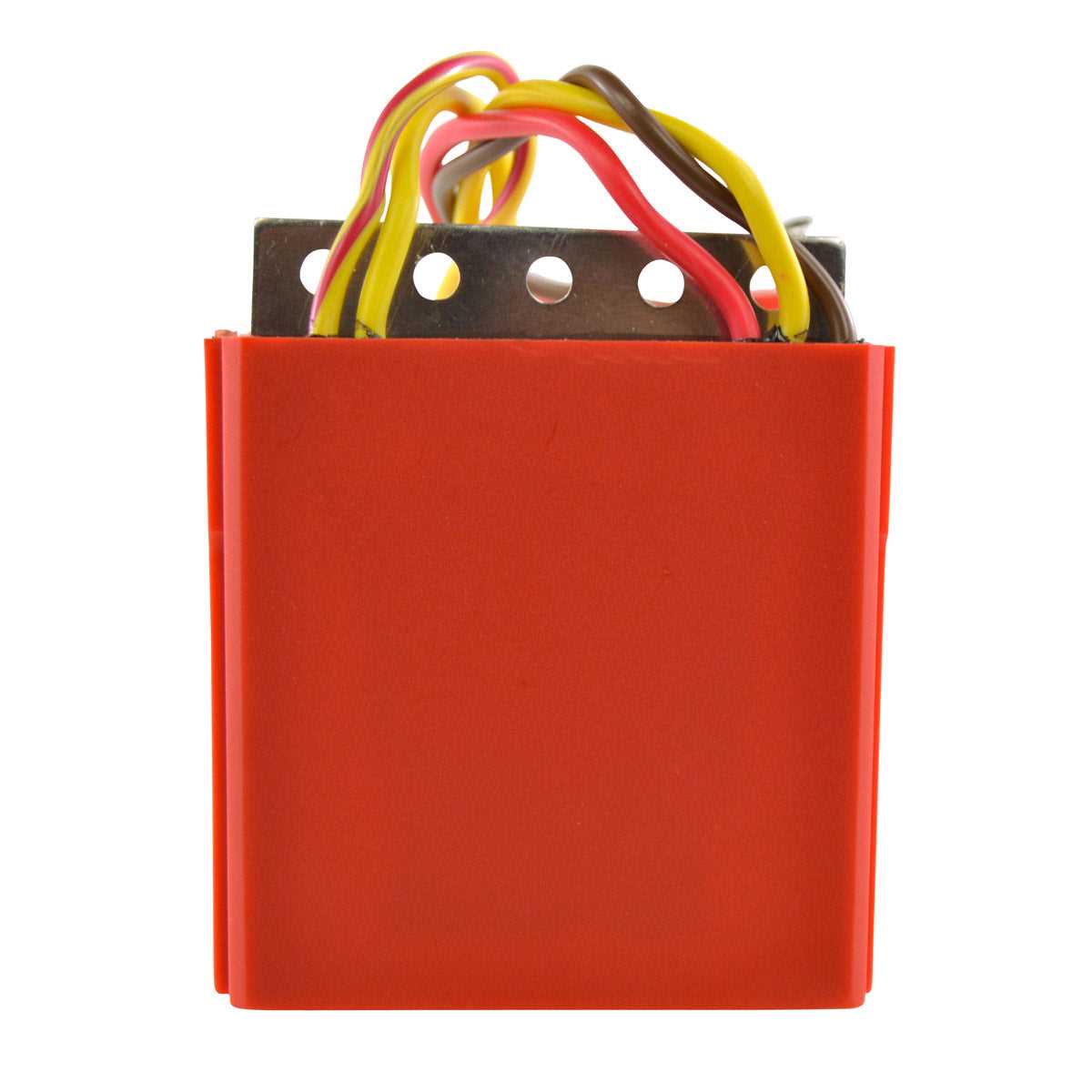

Focus on the stator output next. The white/orange wires exit the magneto and terminate at the regulator-rectifier, combining AC generation and DC conversion. Measure AC voltage at idle (should be 20–28V AC) and under load (35–50V AC at 3,000 RPM). Low readings indicate worn stator windings or shorted diodes–common failures after 800 operating hours. The regulator-rectifier typically fails near its thermal limit; aftermarket units from brands like Rick’s Motorsport provide better heat dissipation for $75–$90.
Trace the ignition switch circuit if the vehicle refuses to start but cranks normally. The pink wire supplies power from the ignition switch to the engine control module. Use a test light at the ECM connector (pin 18) while turning the key–if the light doesn’t illuminate, inspect the ignition fuse (15A, located under the seat). If the fuse is intact, check for broken wires near the steering column where cables flex repeatedly. Splice repairs here often fail; reroute the entire wire loom for reliability, securing it with heat-shrink tubing and zip ties every 3 inches.
Monitor the battery charging system through the solenoid relay. The purple/white wire carries voltage from the alternator output. At 3,000 RPM, readings should stabilize at 13.8–14.5V DC. Voltages below 13.2V during extended idling drain the battery quickly–replace the alternator if voltage drops persist. For aftermarket solutions, Shindengen regulators offer direct-fit compatibility and include diagnostic LEDs for $120.
Replace damaged wiring harnesses in segments rather than fully. The factory harness splits into sub-sections: engine, lighting, and instrument clusters. Each segment uses distinct colors and connectors; purchase pre-assembled replacements from dealers for $250–$350 or rebuild sections using 14-gauge wires (not 18-gauge–voltage drop affects sensor accuracy). Solder all splices and seal with adhesive-lined heat shrink to prevent moisture ingress. Label every connection with numbered flags before disconnecting anything; photographs assist reassembly.
Electrical Schematic for the 2005 High-Performance ATV
Locate the main harness connector behind the left front fender–it’s a 12-pin black plug labeled C-1. Pin assignments follow this sequence: 1 (battery +), 2 (ground), 3 (starter relay), 4 (ignition switch), 5 (headlight low), 6 (headlight high), 7-10 (sensor feeds), 11 (reverse light), 12 (auxiliary). Test each terminal with a multimeter set to 20 VDC; ignition off readings should show 0 V at pins 4-12, ignition on readings jump to 12.6 V.
Key relay positions:
- ECU relay mounts on the frame rail beneath the seat–two red wires (8 AWG) link directly to the battery via 30 A fuse.
- Fuel pump relay sits adjacent, yellow/red stripe wire outputs 12 V intermittent pulse; verify with tach signal at 1,000 RPM.
- Fan relay triangular cluster–uppermost relay controls radiator cooling fan; swap relays if temperature gauge exceeds 230 °F without fan engagement.
Sensor Circuit Troubleshooting
The throttle position sensor (TPS) connects via 3-wire harness (gray, black, orange). Unplug the connector, probe pins:
- Black to ground–should read 0 Ω.
- Gray to 5 V reference–steady 4.95-5.05 V.
- Orange to gray–idle position outputs 0.8-1.2 V, wide-open throttle outputs 4.2-4.6 V.
Calibration requires cycling the key three times, then holding the throttle fully open for five seconds within ten seconds of ignition on.
CDI module sits mounted under the front storage box–four white wires (two thick, two thin) correspond to ignition coil primary pairs. Thick wires (14 AWG) carry coil negative; thin wires (18 AWG) carry trigger signals. Trigger waveforms must peak at 50 V minimum; scope the thin white wires at 4,000 RPM to confirm uniform spike timing within ±50 µs between cylinders.
Replace cracked sheathing on the rear cargo light leads–exposed orange/white wires chafe against the swing arm pivot bolt. Route new 16 AWG silicone wire inside split loom tubing, secure with plastic ties every 4 inches. Verify continuity at the tail light bulb socket with the key off; corrosion bridges between socket and chassis ground frequently mimic bulb failure.
Step-by-Step Guide to Tracing Your ATV’s Electrical Connectors
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the main fuse box beneath the left side panel–it’s typically secured with a single thumbscrew. Remove the panel to reveal the primary harness routing; the thickest bundle leads directly to the engine control module.
Check behind the front bumper for auxiliary connectors tied to headlights and winch relays. Use a multimeter set to continuity mode to probe pins if connections appear corroded. Clean terminals with a wire brush if resistance exceeds 0.5 ohms.
Identifying Split Points
Trace the harness from the ignition switch toward the handlebar controls. The bundle splits near the steering column–one branch feeds the starter solenoid, another loops to the instrument cluster. Label each segment with masking tape if disassembly is needed.
Inspect the rear section by removing the cargo tray. The harness here services the rear brake light, taillight, and auxiliary power outputs. Look for heat-shrink tubing–it marks factory splice locations. If fraying is present, wrap exposed wires with electrical tape rated for 600V minimum.
Reassemble components only after verifying all connections with a voltage tester. Reattach the battery last, then start the engine to confirm dashboard lights and accessory functionality before finalizing repairs.
Pinpointing Critical Elements in Your ATV’s Electrical Framework

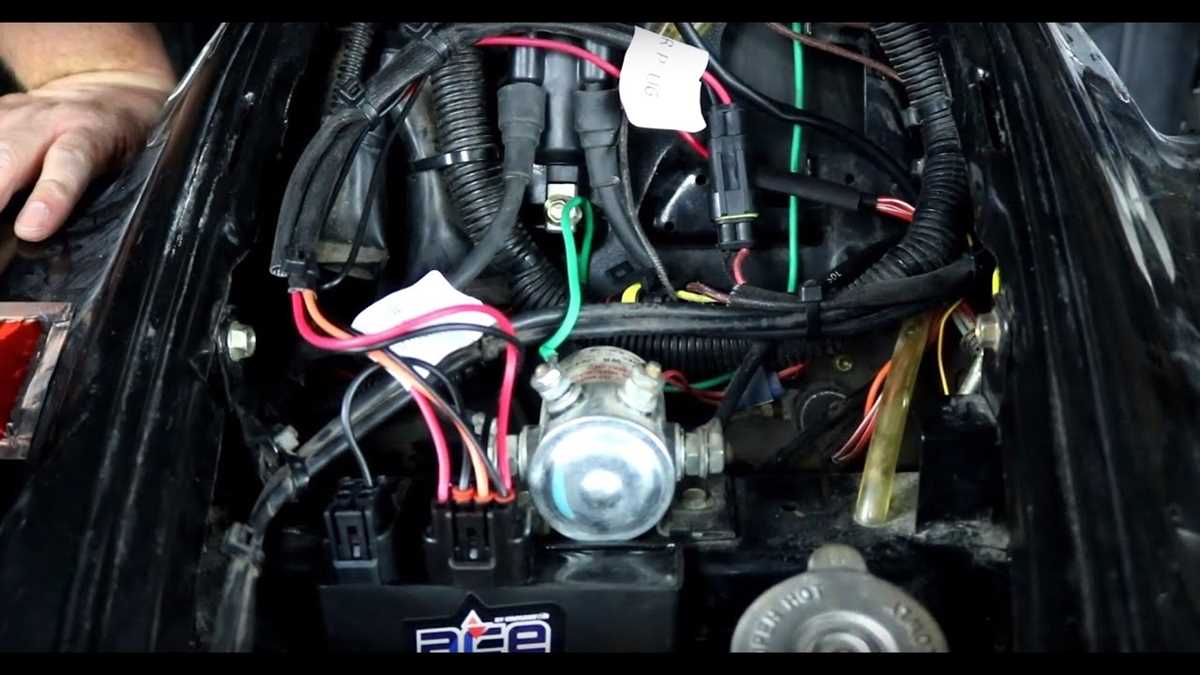

Begin by locating the main fuse block beneath the front hood, near the battery tray–this houses 30A and 20A fuses that protect the ignition, lighting, and accessory circuits. Label each fuse with its amperage and connected system using a permanent marker to simplify future diagnostics. Directly adjacent, the solenoid and voltage regulator demand attention; corrosion on their terminals often causes intermittent starting failures. Clean these with a wire brush and apply dielectric grease to prevent oxidation.
Trace the harness from the ignition switch to its bifurcation points–one branch leads to the starter motor, another to the CDI box. The CDI’s black/red wire (pulse trigger) and white/red wire (ignition coil output) are prone to chafing where they pass behind the left front fender. Secure these with zip ties and inspect for nicks every 50 operating hours. Below the seat, the rectifier’s heat sink should be free of debris; overheating here reduces charging efficiency by up to 40%. Ensure the cooling fins are unobstructed during routine maintenance checks.
| Component | Location | Failure Symptoms | Inspection Interval |
|---|---|---|---|
| Rectifier | Rear frame, right side | Dim lights, weak battery charge | Every 20 hours |
| Stator Coil | Behind engine cover | No spark, misfiring | Every 30 hours |
| CDI Box | Under seat, near rear shock | Intermittent ignition, rough idle | Every 25 hours |
The stator coil’s three-phase output wires (yellow, green, blue) should have crisp, unworn insulation–compromised shielding here mimics battery drain issues. Probe these connections with a multimeter set to AC voltage (expect 30-50V at 3000 RPM). The kill switch wiring, typically a thin tan/black wire, frequently suffers from pinched sections; bypass testing with a jumper wire confirms faults. Lastly, the ECU’s 16-pin connector under the seat often collects moisture; applying contact cleaner and reseating it resolves sporadic sensor dropouts.
Solving Electrical Faults in Classic ATV Models
Check the ignition switch connector for melted terminals first–corrosion here mimics starter failure. Use a multimeter to confirm voltage drop across pins 1 (battery) and 3 (run) with the key in the “on” position. Readings below 11.8 volts signal a broken trace inside the harness; bypass the switch with a 14-gauge jumper wire temporarily to isolate the issue. Replace the switch assembly if resistance exceeds 0.2 ohms after cleaning contacts with 600-grit sandpaper and dielectric grease.
Inspect the stator’s three-phase output under load–voltage should stabilize between 12.5 and 14.2 volts at 4,000 RPM. Any spike above 15.5 volts indicates regulator-rectifier overcharge; disconnect the battery and retest with only the ignition coil connected to avoid false readings. If output remains unstable, swap the regulator with a known-good unit before condemning the stator. Note the stator’s resistance values: yellow-yellow (0.1-0.3 ohms), white-white (0.2-0.5 ohms); deviations confirm internal shorting, requiring full replacement.
A recurring parasitic drain–often traced to the CDI box–can flatten a fully charged battery overnight. Disconnect the CDI’s 3-pin connector while monitoring current draw with an ammeter; a drop below 50 milliamps exonerates the ignition system. If draw persists, probe the accessory relay socket (terminal 86) for stray voltage with the key off–any reading above 0.1 volts identifies a faulty diode in the relay coil. Clip the diode’s leads and solder a 1N4007 in its place to restore proper grounding.
Intermittent fuel pump sputters usually stem from frayed grey-black wires at the pump’s quick-disconnect. Strip back 15mm of insulation, twist strands tightly, and solder a 16-gauge extension directly to the connector terminal after verifying the existing wire’s continuity. Protect the joint with adhesive-lined heat shrink tubing rated to 125°C to prevent moisture ingress. Test operation by cycling the ignition three times; the pump should prime audibly within 3 seconds each time.
Headlight flicker at idle points to a weak alternator field coil–measured across the two small stator wires (blue and white), expect 0.5-1.2 ohms resistance. Readings outside this range mandate stator replacement. For auxiliary lighting issues, trace the yellow-red wire from the handlebar switch to the relay; a brittle section near the right front fender often breaks internally under vibration. Splice in a parallel run using 12-gauge marine-grade wire secured with nylon ties every 10cm to prevent future fatigue.
