Complete 2005 PT Cruiser Radio Wiring Guide With Color Codes and Diagrams
For immediate troubleshooting, locate the C1 connector behind the dashboard lower trim panel. Pins A6 (yellow/light green) and A8 (yellow/dark green) feed the left and right front speakers respectively–verify continuity with a multimeter before proceeding. Ground issues frequently trace back to G401 near the pedal bracket; clean corrosion with 400-grit sandpaper and apply dielectric grease.
The factory harness splits into three main branches: power (red/white, fused at 10A), illumination (orange, 12V dimmable), and antenna (pink/black, powered via ignition). Junction C2 houses the data bus (pin A4, purple/white); if the display fails, check resistance between this pin and chassis ground–values below 80Ω indicate a short. Aftermarket units often require adapter Metra 70-1761; bypassing it risks PCM communication errors.
Behind the climate control housing, connector C3 handles all audio inputs. Pin A2 (gray/black) carries the speed-sensitive volume signal–interruptions here cause erratic volume changes. For vehicles with amplifiers (optional code APX), the subwoofer output is A12 (dark blue/white); verify with an oscilloscope (5V peak-to-peak at max volume). Replace blown fuses F13 (10A) or F31 (15A) only after confirming no parasitic draws with the ignition off (max 50mA).
Color codes deviate post-mid-2004 models: speaker positives shift to solid colors (e.g., solid purple replaces purple/white), while ground references adopt brown/tracer stripes. Use a wiring diagram dated August 2005 or later to avoid misidentification. For retained accessory power, the tan/black wire at C1 pin A10 must maintain 12.6V for 10 minutes post-key-off–weak voltage here drains the battery within 48 hours.
Understanding the Audio System Connections in Your Compact Retro Hatch
Locate the 12-pin harness connector behind the factory sound unit–pins 1 through 4 deliver switched power, ground, and illumination signals. Use a multimeter to verify pin 1 carries 12V when the ignition is in the ACC or ON position; if absent, trace the orange wire to fuse box slot 22 (10A).
Connect aftermarket amplifiers to the rear speaker outputs (pins 5-8) utilizing the vehicle’s existing 18-gauge wires–red/white (right positive), red/black (right negative), dark blue/white (left positive), dark blue/black (left negative). Avoid tapping the green/white antenna lead (pin 9) unless integrating satellite tuners; instead, splice into the gray wire feed from the dash clock for cleaner RF reception.
For steering wheel control retention, identify the light blue/yellow resistor ladder wire (pin 10) and pair it with an interface module rated for Chrysler’s 5V logic protocol. Verify the module’s compatibility with the OEM head unit’s 220-ohm resistor network before installation to prevent erratic volume or track skipping behavior.
Ground the chassis via the black wire (pin 3) at a bare metal point beneath the glovebox; scrape paint and apply dielectric grease to prevent corrosion-induced signal loss. Test continuity between this point and the negative battery terminal–resistance should not exceed 0.2 ohms.
When integrating a navigation unit, route the pink/light blue data bus wire (pin 11) through a noise filter to the CAN transceiver; failed filtration triggers intermittent GPS dropouts. Keep the yellow/red memory feed (pin 12) isolated from parasitic drains–verify current draw under 30mA when the vehicle is off.
Replace the stock 4-channel amplifier (if equipped) by matching impedance–factory speakers are 2 ohms, aftermarket replacements often require 4-ohm units to avoid overheating the stock circuitry. Use twisted pairs for front speaker leads to minimize electromagnetic interference from the instrument cluster.
For vehicles with premium audio packages, bypass the fiber-optic MOST ring (visible behind the kick panel) by connecting auxiliary devices directly to the head unit’s RCA outputs–optical connections are non-user-serviceable without dealer-level diagnostics.
Document all modifications with labeled wiring diagrams taped inside the fuse panel door; include wire gauge, color codes, and connection points for future troubleshooting. Store a backup fuse assortment (7.5A, 10A, 15A) in the console–this hatch’s electrical architecture is notoriously sensitive to even minor overloads.
Locating the Factory Stereo Harness Interface
First, remove the dashboard center panel by gently prying along the edges with a plastic trim tool–start at the lower right corner near the ashtray and work clockwise. The connector sits directly behind the climate control unit, attached to the back of the original sound system bracket. It’s a 16-pin Molex plug with a distinctive white or gray housing; if you see a separate 4-pin mini-ISO for the antenna lead, you’ve found the right bundle. Label each wire with masking tape before disconnecting to avoid confusion during reinstallation–match colors to the table below for pin assignments.
| Pin Number | Wire Color | Function |
|---|---|---|
| 1 | Dark Green/White | Left Front Speaker (+) |
| 2 | Gray/Black | Left Front Speaker (-) |
| 3 | Violet/White | Right Front Speaker (+) |
| 4 | Light Green/Black | Right Front Speaker (-) |
| 5 | Brown/Yellow | Battery Constant (+12V) |
| 6 | Black | Ground |
| 7 | Pink | Ignition Switched (+12V) |
| 8 | Dark Blue/White | Power Antenna |
Troubleshooting Hidden Connections
If the harness interface isn’t visible after removing the center stack, check the driver’s side kick panel–some models route auxiliary connectors through a secondary 6-pin inline splice near the fuse box. Use a multimeter to verify continuity on the pink wire (ignition feed) before attaching any aftermarket unit; a reading below 11.8V indicates a blown fuse (likely #19 in the interior fuse block). For vehicles equipped with a factory amplifier, an additional harness with orange, gray, and tan wires will be tucked behind the glovebox–disconnect the battery before probing these cables to prevent short circuits.
Understanding Cable Hues and Their Roles in Vehicle Audio Schematics
Trace the illumination feed by locating the light green stripe paired with white–this supplies voltage for display backlighting during headlight operation. Verify continuity between this conductor and pin 16 on the 18-pin harness connector under dash lighting activation. The solid yellow cable, often thicker gauge, carries constant 12V from the battery via fuse 2 (10A) and must show uninterrupted power even when ignition is off; test with a multimeter set to DC voltage to confirm no voltage drop exceeding 0.2V.
Match the dark green and white striped lead to the left front speaker positive terminal, ensuring proper polarity by checking for 4-8 ohms resistance across its corresponding orange and black mate (negative return). The gray/red pair typically handles right rear output; swap these temporarily with a known-working channel to isolate distortion or dropout faults. For antenna control, identify the blue wire with white stripe–this triggers the power motor when switched, so verify activation at 12V only during accessory or ignition-on states.
Step-by-Step Guide to Removing the Factory Head Unit
Disconnect the battery terminal first to prevent electrical shorts. Locate the negative cable–typically a black wire with a minus symbol–and loosen the clamp using a 10mm wrench. Set the cable aside but ensure it doesn’t touch metal.
Identify the trim panel surrounding the center console. Most models use hidden clips; insert a flat trim removal tool at the bottom edge and pry upward gently. Work around the panel to release all clips before pulling it free. Avoid forcing it to prevent cracking.
Remove any screws securing the dashboard bezel. These are usually Phillips-head screws, often found behind the trim panel. Check the top, sides, and bottom–common locations include near air vents or climate controls. Keep screws organized to avoid confusion later.
Slide the bezel away from the dash to expose the mounting cage. Some vehicles require gentle wiggling to disengage locating tabs. If the unit is stuck, check for overlooked screws or wiring harnesses still attached before applying excessive force.
- Locate the power connector at the back of the unit. Pinch the release tab and pull the plug straight out.
- Find the antenna cable–typically a thin coaxial wire with a threaded collar. Rotate the collar counterclockwise to detach it.
- If the vehicle has steering wheel controls, disconnect the small auxiliary harness by depressing its retaining clip.
Remove the mounting brackets securing the head unit. These are usually metal clips or screws on the sides of the cage. Some models use spring-loaded tabs that require inward pressure to release. Check the manual for exact locations.
Wiggle the unit forward until it clears the dash. Tilt it slightly to access rear connections if necessary. Pull it out slowly to avoid damaging wires. If resistance is felt, recheck for attached harnesses or overlooked screws.
Inspect the empty cavity for debris or forgotten fasteners. Reconnect the battery only after verifying all wires are intact. Test the replacement system before reassembling dashboard panels to confirm functionality.
Installing a Third-Party Audio Head Unit in Your PT Compact Hatchback

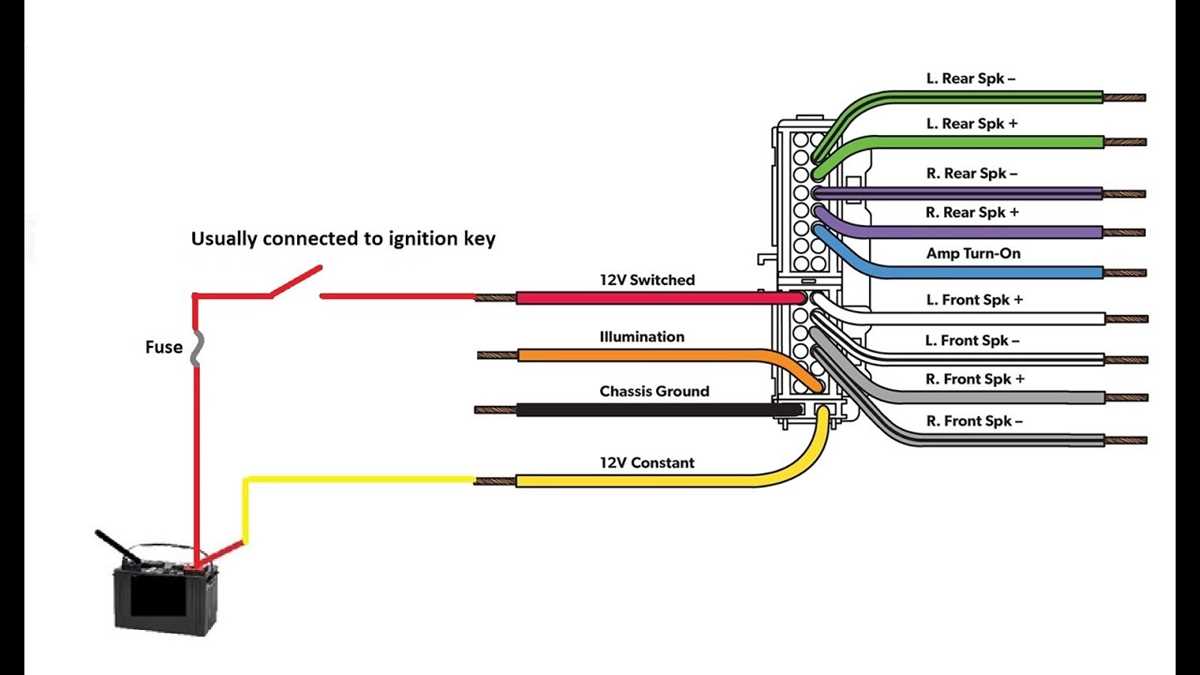

Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits. Locate the factory harness behind the stock interface–it’s a 12-pin connector (Metra 70-1787 or equivalent) with color-coded leads matching the Chrysler platform. Match each wire precisely: yellow (constant 12V), red (switched 12V), black (ground), orange (illumination dimmer), and gray/purple (antenna trigger). Use a multimeter to verify voltages; the red wire should read 12V only when the ignition is in the ACC or ON position.
For speaker outputs, the PT’s harness uses a four-speaker setup with distinct pairs:
- Front left (+): gray, front left (-): gray/black
- Front right (+): white, front right (-): white/black
- Rear left (+): green, rear left (-): green/black
- Rear right (+): violet, rear right (-): violet/black
Solder each connection and insulate with heat-shrink tubing. Avoid twisting wires or using electrical tape–corrosion-resistant connectors like Deutsch DT or Metra snap-lock terminals ensure durability. If your aftermarket unit lacks a built-in amplifier, retain the factory amp (located behind the glove box) by bridging the blue/white remote turn-on wire to the new head unit.
Parking brake and reverse signal wires (light green and purple/white, respectively) must be retained for video safety compliance. Splice these into your new harness using Scotchlok connectors or crimp caps. For vehicles with steering wheel controls, integrate a PAC RP4-CH11 interface adapter; program it by holding the “volume up” button during setup until the LED flashes twice.
Test all functions before reassembling the dash. Play audio at moderate volume to check for distortion or channel imbalance. If the unit powers down unexpectedly, verify the yellow wire’s fuse (20A) and ensure the black ground wire is secured to bare metal–paint or corrosion can cause resistance. For amplified systems, relocate the ground point near the battery tray to avoid noise interference.
Aftermarket harnesses like Scosche CR03B simplify integration by including pre-terminated connectors, but manual wiring yields better signal purity. If retaining the factory CD changer, retain the CD bus wire (tan/light blue) and connect it to the new unit’s auxiliary input or designated CD changer port. Some models require a firmware update for full compatibility–check the manufacturer’s support page.
Finalize installation by securing the new interface with the included mounting sleeve. Reconnect the battery and turn the ignition to ACC to initialize settings. Calibrate the time and presets, then route excess wiring away from moving components (e.g., heater controls) using zip ties. For PDIM-equipped PTs, ensure the data bus (pink wire) remains uninterrupted to maintain vehicle diagnostics.
