Complete Honda CBR 600 F4i Wiring Diagram for Troubleshooting and Repairs

If you need to troubleshoot or modify your machine’s electrical pathways, start by locating the main fuse block beneath the seat–this is where the primary power distribution occurs. The color-coded harness for this model follows a strict pattern: white/red for ignition input, black/yellow for charging output from the stator, and green as the universal ground. Disconnect the battery before probing any connections to avoid short circuits, especially near the ECU and ignition coils, where voltage spikes can damage sensitive components.

The stator wiring requires particular attention–inspect the three-phase output wires (yellow/red, yellow/blue, yellow/green) for fraying or corrosion, as weakened connections here directly impact charging efficiency. The regulator/rectifier unit, mounted near the front fairing, should be checked for overheating; test its diodes with a multimeter set to resistance mode (forward bias should read ~0.5Ω, reverse bias should show infinite resistance). If the bike fails to start but cranks normally, focus on the side stand safety relay (gray wire) and clutch switch (yellow/blue wire)–both are common failure points that disable ignition.

For fuel injection diagnostics, trace the injector connectors (four pairs, each with a single brown/white trigger wire) back to the fuel pump relay. The pump’s power feed (blue/red) should show ~12V for 3-5 seconds after key-on; if absent, test the relay’s coil resistance (should be ~80-120Ω). The throttle position sensor (black/green signal wire) and MAP sensor (white/red signal wire) are critical for ECU feedback–verify their ground references (both share green at the sensor) to rule out erratic idle or stalling issues.

LED upgrades or accessory installations often introduce grounding errors. Route new wires through existing grommets near the frame to prevent chafing, and avoid tapping into the headlight harness (yellow high beam, white low beam) unless absolutely necessary, as overloading risks melting the stock connectors. If the dash lights flicker or the tachometer behaves erratically, check the white/black signal wire from the alternator to the instrument cluster–this is a high-failure link prone to intermittent faults.

Complete Electrical Guide for the Middleweight Sport Bike

Begin diagnosis by locating the main fuse box under the left side fairing–press the tabs firmly to release the cover without snapping plastic tabs. Inside, three 30-amp fuses protect circuits: red stripe for ignition, blue stripe for lighting, yellow for auxiliaries. Replace blown units with identical amperage; substitutes risk wiring harness burnout.

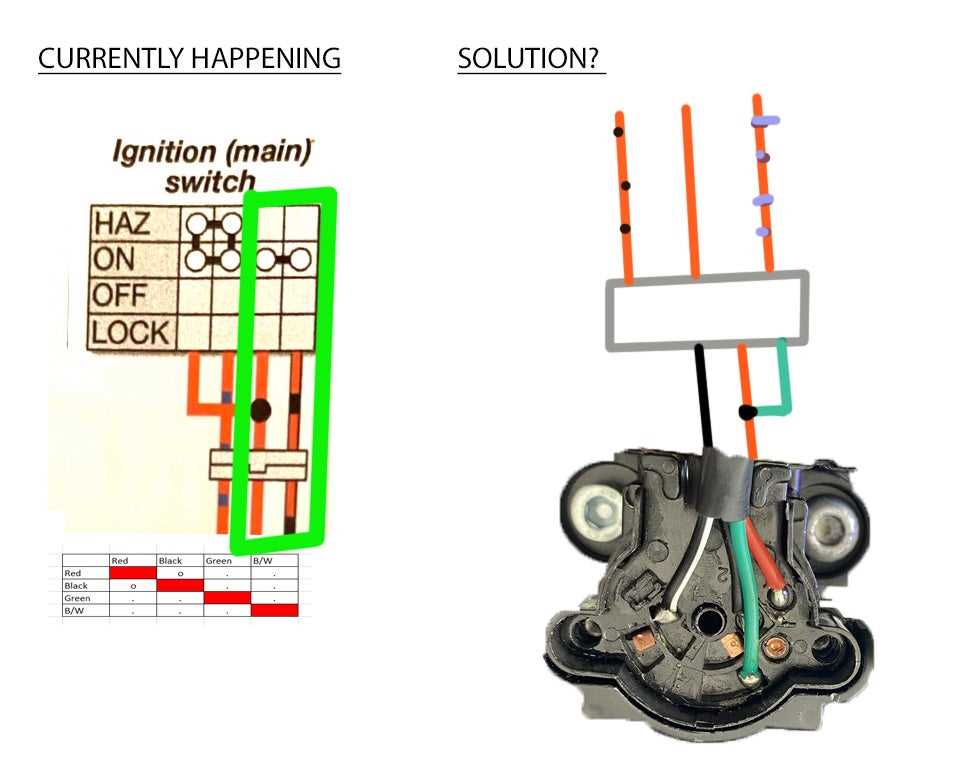

Trace the purple wire from the ignition switch to the ECU pin 14: this 0.5mm² conductor carries the 12V signal that enables fuel injection. Scrape insulation at a midpoint, attach multimeter probes in DC mode, and verify 11.8V or higher with key ON; readings below 10.5V indicate corroded terminals or faulty switch contacts–clean with electrical-grade contact cleaner and re-test.

The charging circuit employs a 360-watt alternator spinning behind the left engine cover. Disconnect the white three-pin connector at the rectifier/regulator; AC volts on pins A and B should peak at 60–70V at 5,000 RPM. If below 55V, inspect stator coils for discolored windings–replace the entire unit rather than attempting rewinds.

High-beam and low-beam bulbs share a common ground at the front sub-harness connector near the headlight shell. Probe the green/black ground wire with continuity setting; resistance above 0.2 ohms signals a loose bullet connector–crimp new terminals with heat-shrink tubing to prevent moisture ingress.

For turn signals, follow the gray wire from the flasher relay to the handlebar switch; resistance between switch terminals should toggle between open and 3-5 ohms when toggled. If readings stay fixed, disassemble the pod and clean switch contacts with isopropyl alcohol and a fiberglass pen, avoiding sandpaper that can leave conductive debris.

The neutral switch wire, light blue with a white stripe, routes from the transmission to the ECU pin 37. At engine standstill, ensure it reads infinite resistance; with clutch engaged, it should drop to near zero. Errant readings necessitate lubricating the plunger with synthetic assembly grease–never use petroleum-based products that degrade seals.

Diagnose ECU ancillary circuits by probing pink/black wire at pin 29 under fairing; this 5V reference voltage must remain steady regardless of throttle position. Voltage fluctuations exceeding ±0.2V reveal a compromised throttle position sensor–adjust or replace the potentiometer hub rather than attempting in-situ repairs.

Color-coded wiring schematics are printed on the underside of the right fairing inner panel; reference before splicing any wires. Use chassis-specific connectors: AMP seals for waterproof joints, gold-plated pins to minimize corrosion, and 16-20 AWG heat-shrink terminals rated for 600V insulation breakdown–mismatches risk intermittent shorts under vibration.

Finding Key Electrical Bundle Connections on the Middleweight Sport Bike

Begin by removing the right-side fairing panel–held by three 8mm bolts and two plastic rivets near the lower edge. The primary harness junctions cluster behind this panel: the 22-pin white connector (ECU interface), the 12-pin black connector (sensor power distribution), and the 6-pin green connector (ignition coils) sit directly adjacent to the battery tray. Label each connection with masking tape and a fine-tip marker to prevent cross-wiring during re-assembly.

• ECU link: white, 22-pin, located forward of the battery, mates with the main harness’ thick white bundle.
• Sensor cluster: black, 12-pin, positioned below the ECU connector, delivers reference voltage to TPS, MAP, and IAT sensors.
• Ignition leads: green, 6-pin, sits rearward, connects directly to coil packs.
• Ground straps: two 10mm ring terminals bolt onto the frame rail beneath the battery–verify clean contact with a multimeter set to ohms.

Sub-Harness Access Points

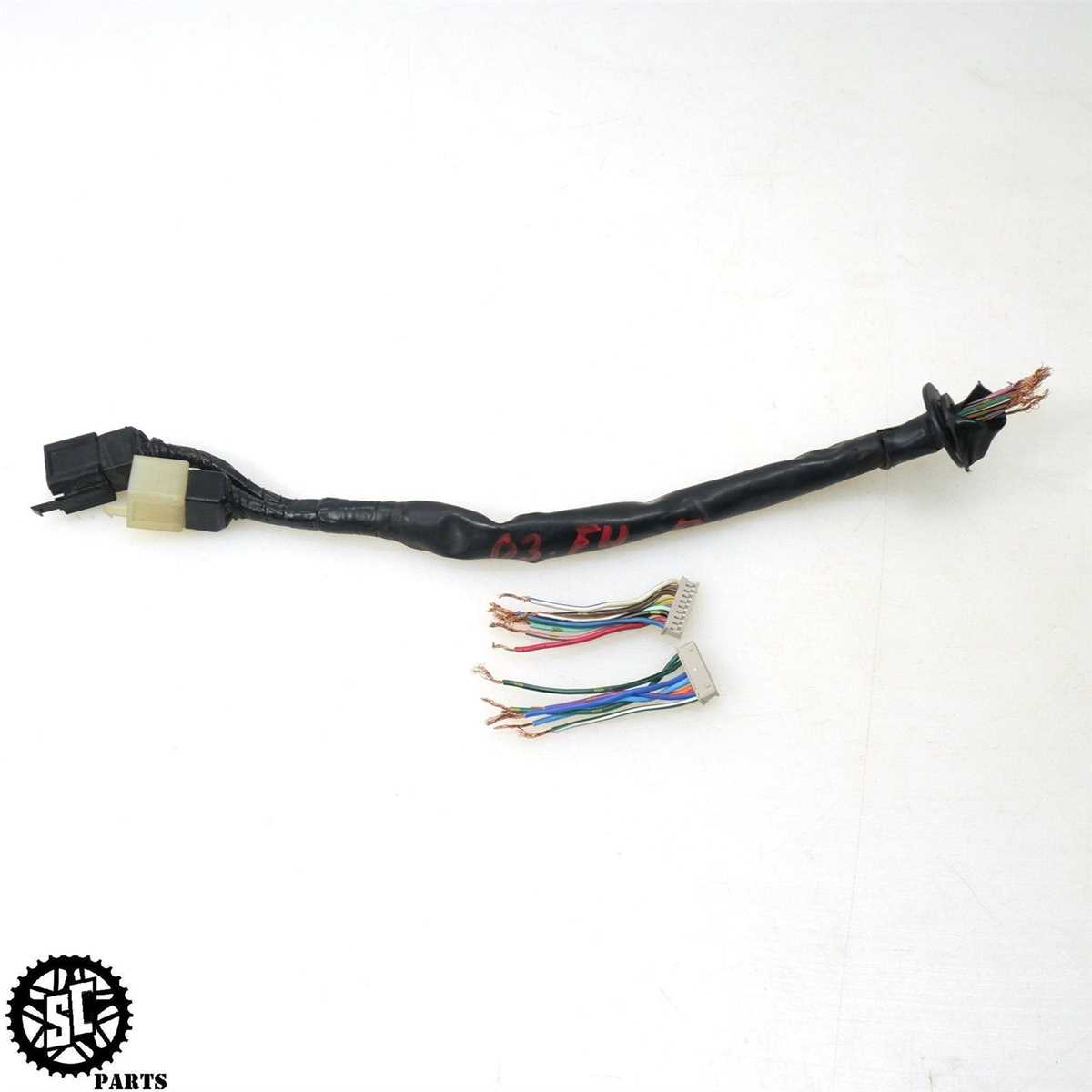

After releasing the 10mm upper engine mount bolt, pivot the entire fairing bracket upward. This exposes the 14-pin brown connector (instrument cluster feed) and the 8-pin grey connector (turn signal flasher module) tucked behind the speedometer. Rotate the bracket 45 degrees to access the 4-pin yellow connector (starter relay trigger) mounted on the subframe, directly above the kickstand sensor.

Step-by-Step Guide to Reading the Sportbike’s Color-Coded Wire Labels

Locate the main harness connector behind the fairings near the ignition coil–this is where most color-coded leads originate. Each wire’s base color (e.g., light green, red, or black) identifies its primary circuit, while the stripe (often a secondary hue like white, yellow, or blue) denotes its specific function within that system. For example, a light green wire with a red stripe typically carries ignition-related signals, while a solid brown lead is nearly always ground.

Use a multimeter set to continuity mode to verify connections. Probe the wire at both ends–start at the sensor or component (throttle position, oil pressure switch) and trace back to the ECU or fuse box. If the reading shows infinite resistance, the wire may be severed or disconnected; a consistent low resistance confirms integrity. Avoid relying solely on visual inspection–chafed insulation often hides broken strands.

Refer to the service manual’s color-code legend section, not the schematic alone. Labels like “G/Y” (green with yellow stripe) or “W/B” (white with black stripe) follow a standardized notation where the first letter is the base color and the second is the stripe. Common exceptions include orange wires with green stripes (fuel pump power) and pink with white stripes (diagnostic lines), which deviate from the norm.

Label each wire with masking tape and a fine-tip marker before disconnecting anything. Note the connector type (e.g., 3-pin, 6-pin) and pin numbers–some components, like the starter relay or turn signals, share ground wires but require distinct power feeds. Cross-reference your notes with known wiring faults for this model: frequent issues include corroded battery terminals (affecting black/yellow leads) and worn clutch switch wiring (light blue/white).

Test circuits in pairs: power and ground first, then signal and sensor wires. A logic probe or oscilloscope helps detect intermittent faults like ruptured ABS sensor wires (gray with blue stripe) or erratic ECM signals (black with white stripe). If a wire’s function isn’t immediately obvious, isolate it by disconnecting the battery and using a test light to confirm whether it’s live–some leads, like those for the neutral switch (dark green/red), are only powered under specific conditions.

Solving Electrical Faults with the Bike’s Circuit Blueprint

Start by isolating the ignition system if the engine cranks but fails to start. Locate the ignition coil connectors on the schematic: pin A (red/white) should deliver 12V from the main relay, pin B (black/yellow) connects to the engine control unit (ECU), and pin C (black/white) grounds the coil. Measure voltages at each terminal with a multimeter–if voltage drops below 10V at pin A, inspect the relay, fuse 15 (10A), and wiring harness for corrosion or breaks. Replace the relay if it clicks but doesn’t maintain output.

For repeated battery drain, follow the parasitic load path on the blueprint. Disconnect the negative terminal and place an ammeter between the terminal and cable. A reading above 0.05A indicates a leak. Trace the circuit backward: remove fuse 2 (7.5A) for the tail light, fuse 17 (10A) for the ECU, and fuse 34 (10A) for the instrument cluster one at a time. If the current drops when removing fuse 17, check the ECU harness for chafed wires near the frame or a faulty ignition switch (black/yellow wire).

When headlights flicker or fail, examine the charging circuit first. The alternator’s three-phase output (yellow wires) should produce 13.5–14.5V AC at 3,000 RPM. Rectify issues by testing each diode in the regulator/rectifier: disconnect the unit, set the multimeter to diode mode, and touch probes to the yellow and green wires. A reading outside 0.3–0.7V suggests a failed diode. Replace the assembly if more than one diode is faulty–repairing individual components is unreliable.

Non-functional turn signals often stem from a bad flasher relay or corroded bulb sockets. The relay (gray unit, 6-pin) should click 60–120 times per minute; if silent, swap it with a known-good relay (e.g., hazard light relay). Test socket continuity: insert a spare bulb, then measure voltage between the socket’s center tab and ground–12V confirms the circuit, 0V points to wiring breaks or a blown fuse (fuse 1, 10A). Clean socket contacts with electrical cleaner to restore signal.

Symptom	Key Components to Check	Diagnostic Steps
Engine stalls at idle	IACV (Idle Air Control Valve), MAP sensor	Backprobe ECU connector pin 10 (black/white) for 5V reference; if absent, test sensor resistance (400–600 ohms)
No power to fuel pump	Pump relay, fuel pump ground	Jump relay terminals 30 and 87–if pump primes, replace relay; no prime suggests open ground (black wire)
Speedometer erratic	Vehicle Speed Sensor (VSS), ECU	Check VSS waveform with oscilloscope–irregular pulses indicate sensor failure; wiring should show 12V (pink wire) and ground (green/white)

Misfires under load typically involve ignition coils or spark plug wires. Swap coils between cylinders to confirm failure localization. Measure secondary ignition resistance: 8–15 kΩ for healthy coils. Inspect plug wires for cracks; resistance should not exceed 10 kΩ per foot. Replace wires in sets to avoid uneven performance.

For intermittent ABS faults, focus on wheel sensors. Each sensor (front: blue/yellow; rear: blue/white) outputs a 0.1–1.0V AC signal at speed. Clean sensor tips of debris, then measure gap–0.3–0.5 mm is critical. If output voltage is low, check for broken wires in the swingarm or frame; even partial breaks cause erratic ABS activation.

Dashboard warning lights without stored codes require physical checks. The neutral indicator (green wire at the switch) should show continuity when depressed; if not, the switch or wiring is faulty. For the oil pressure light, bypass the sensor (blue/yellow wire) with a jumper–if the light persists, the gauge cluster is damaged. Replace sensors before condemning the gauge, as false positives are common.
