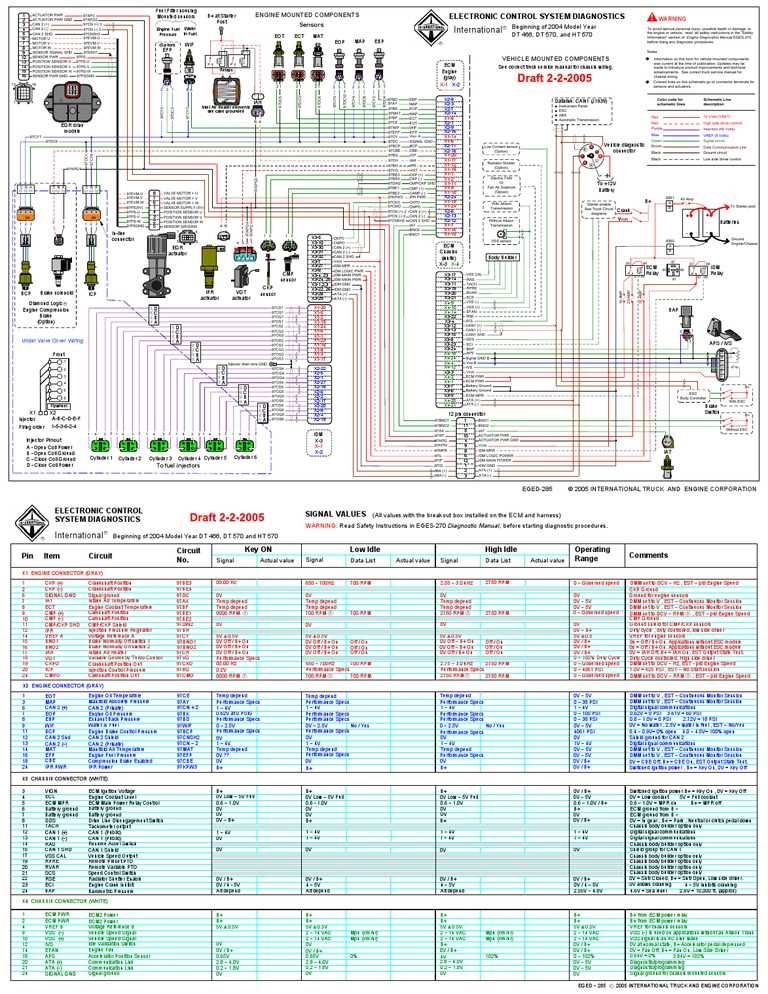

Understanding the Wiring Schematic for a 2006 International 4300 IDM Truck

Start by locating the injector driver module near the firewall on the driver’s side–its connectors (C1 and C2) must be inspected first. Check pins 1 through 4 on C1 for corrosion or bent terminals, as these supply power from the ECM. Pin 5 (C2) carries the return signal; a loose connection here disrupts fuel delivery timing. Replace the entire harness if insulation damage is visible along the main loom.

For the engine control harness:

• Verify continuity between the ECM relay (cavity 87) and the module’s power input (red/white wire).
• Test the ground circuit (black wire) at the chassis stud–resistance should not exceed 0.5 ohms.
• Inspect the CAN bus (yellow/green and white/green wires) for proper termination at both ends; open circuits trigger fault codes P1209 and P1210.

If the instrument cluster flickers, focus on the pink/black wire from the ignition switch to the fuse block–this feeds both the gauge cluster and the module. Bypass the fuse (20A) with a multimeter in voltage mode; readings below 12.2V indicate a faulty alternator or parasitic draw. For hard-start conditions, probe the purple wire at the module’s pin 16 (C2) with a scan tool while cranking; voltage drops below 9V signal a weak battery or corroded starter solenoid contacts.

Use the factory repair manual’s section 9–2 for exact wire gauge specifications–aftermarket replacements often use thinner wire, causing voltage drop under load. Solder all repairs with marine-grade heat shrink to prevent moisture ingress. Replace the module if internal shorts are suspected; bench-testing requires a 12V power supply and a resistive load (470 ohms) across pins 1 and 5.

Electrical Schematic Guide for Medium-Duty Truck IDU Module

Locate the injection drive unit (IDU) harness connector at the rear of the engine bay, near the firewall on the driver’s side. Pin assignments follow this sequence: A (12V ignition), B (ground), C (CAN high), D (CAN low), and E (sensor reference voltage). Use a multimeter set to 20V DC to verify A-B voltage reads 12.6V±0.5V during key-on; deviations suggest fusible link failure at F3-15A in the under-dash fuse block.

Troubleshooting Signal Integrity

Inspect the twisted-pair CAN bus wires (pins C-D) for chafing where they pass through the chassis grommet; replace the entire section if insulation damage exceeds 3mm. Resistance between C-D should measure 60Ω±5Ω with the ignition off; readings above 140Ω indicate an open circuit at either the IDU connector or the ECM pin 37-38 junction. Corrosion at the firewall bulkhead connector often causes intermittent faults–clean contacts with electrical contact cleaner and apply dielectric grease.

For actuator bench testing, disconnect the IDU harness and inject a 5V PWM signal into pin F (injector drive) at 200Hz–verify output with an oscilloscope probe across the solenoid terminals. A clean square wave confirms module functionality; distorted waveforms suggest internal transistor failure, requiring IDU replacement (part #3071715C1). Always flash the ECM to the latest calibrations after module swap (software level 2018_B) to prevent timing synchronization errors.

Finding Injector Drive Module Harness Plugs on the DT466 Chassis

Begin by raising the cabin hood fully–secure it with the safety prop rod to prevent accidental closure. The primary ECM-related connectors cluster near the driver-side rear corner of the engine compartment, directly behind the turbocharger housing. Look for two rectangular plugs mounted on a black junction block: the upper 60-pin connector (tan locking tab) supplies injector command signals, while the lower 72-pin plug (black tab) carries sensor feedback lines. Mark these with tape before handling; misalignment during reinstall risks controller fault codes.

Trace the main harness conduit down the left frame rail until it branches underneath the transmission bell housing. A smaller two-wire pigtail departs here–bright yellow insulation identifies the high-voltage injector supply circuit, critical for maintaining 105 VDC spike integrity. Corrosion often hides inside the rubber boot; peel it back to inspect terminals for pitting or discoloration. Replace any degraded connectors rather than attempting cleaning; residual resistance above 0.5 ohms invalidates HEUI function.

Connector Color	Cavity Count	Wire Gauge	Function	Key Test Voltage
Tan (primary)	60	18 AWG	Injector command bus	5 VDC logic pulse
Black (secondary)	72	20 AWG	Engine sensor inputs	12 VDC supply
Yellow/Black	2	14 AWG	HEUI high-voltage feed	105 VDC intermittent

Remove the transmission dust shield plate to expose the starter motor cavity. Tucked behind the starter solenoid lies the IDM output stage–accessible only after unbolting the solenoid mount. A single 4-pin Deutsch connector (gray plastic) delivers pulse-width modulation to each injector solenoid; pin assignments shift between Model Year updates, so confirm against service bulletin 430-05-12 rather than relying solely on color codes. Snap the connector free by squeezing the retaining tabs inward; distortion risks fracturing the brittle thermoplastic housing.

Follow the driver-side cylinder head toward the rear of the block. Alongside the valve cover mounting flange, identify a heavy-gauge ground strap bolted directly to the head–remove the 15 mm bolt, clean mating surfaces with a stainless brush, and apply dielectric grease before reassembly. Inconsistent grounding here mimics injector coil failures, triggering P0201–P0206 series codes despite all electrical checks passing.

Inspect beneath the air filter housing tray for additional splices. A secondary harness typically forks toward the coolant temperature sensor and oil pressure sender. Misrouted wires near the exhaust manifold can melt insulation; reroute any compromised sections away from heat sources using convoluted loom and zip ties spaced every 15 cm. Seal connector boots with silicone tape rated for 200 °C environments to prevent moisture ingress correlated with intermittent cuts.

Decoding Wire Color Standards for the Fuel Injection Control Unit

Locate the 16-pin connector on the fuel injection control assembly. Pin 1 carries an orange stripe wire delivering switched ignition voltage (+12V); confirm with a multimeter before proceeding. Pin 2 uses a light blue stripe lead for the camshaft position sensor signal–ensure continuity below 0.5 ohms to ground.

Probe the gray stripe wire at Pin 3 for the crankshaft position signal; acceptable resistance ranges 120–250 ohms. Pin 4’s dark blue stripe lead transmits injector feedback–verify no shorts using a megohmmeter at 500V test voltage, minimum reading 1MΩ. Disconnect the battery before testing.

• Pin 5: White stripe wire–glow plug relay trigger; max current 2A.
• Pin 6: Yellow stripe lead–fuel temperature sensor; expected voltage 0.5–4.5V linear scale.
• Pin 7: Brown stripe wire–sensor ground; resistance to chassis <0.1Ω.
• Pin 8: Red stripe lead–permanent power (+12V)–verify fuse rating 15A.

Pins 9–12 route to injectors 1–4 in sequence: white, purple, dark green, and light green stripe wires respectively. Measure injector coil resistance at 0.3–0.5Ω per circuit. Pins 13–16 (blue, gray, tan, and black stripe) monitor boost pressure, intake air temp, and exhaust gas recirculation–calibrate sensors against manufacturer specs (0.25–4.75V range).

Critical Connection Checks

Inspect the engine wiring harness at firewall bulkhead: twist rates must exceed 20 turns/meter for interference suppression. Strip lengths on splices: 6–8mm exposed copper. Replace vinyl insulation if cracking exceeds 10% of surface area–use dielectric grease on reconnected terminals.

1. Remove ECM cover to access control unit pins directly.
2. Back-probe Pin 2 with a T-pin; engine running, signal should pulse 0–5V at 50% duty cycle.
3. Check Pin 7 for voltage drop >0.2V–indicates corroded ground.
4. Verify Pin 16 gray stripe reads 0.8–3.5V with engine warm–outside range suggests faulty EGR sensor.

Document all readings in a table format: wire color, pin number, measured voltage, expected range, and pass/fail status. Use a dedicated notebook–digital records risk corruption. After validation, secure harness with braided nylon sleeves; replace any zip ties exceeding 40N tensile strength.

Verifying Power and Common Returns at the Injection Drive Module Interface

Start by probing pin A (typically 12V+ ignition-sourced voltage) with a multimeter set to DC volts. Observe a steady reading between 11.5V and 14.5V while cycling the key to the “ON” position–fluctuations beyond this range indicate either a compromised relay, corroded fuse link, or excessive parasitic draw from downstream loads. For repeated failures, trace the circuit backward to the central power distribution block and inspect the fusible link (usually marked F2-15A) for internal degradation or inconsistent solder joints.

Check the dedicated ground path at pin E (engine control module return) using the continuity setting on the multimeter; expect resistance under 0.3 ohms. Higher readings reveal surface oxidation, loose terminal crimps, or a fractured chassis connection that demands immediate disassembly–clean mating surfaces with a high-gauge wire brush and apply dielectric grease upon reassembly to prevent recurring corrosion. If resistance persists, bypass the factory harness with a temporary 10-gauge jumper directly to the battery negative post, then remeasure; persistent high resistance confirms an internal break requiring full harness replacement.

For dynamic verification, connect a graphing scan tool or oscilloscope to capture voltage dips during active injector pulse events. Monitor pin C (injector drive signal) while cranking–healthy operation should display square-wave pulses between 0V and battery voltage at 8–16 Hz depending on engine load. Absent or erratic pulses indicate either a defective control module, intermittent open in the drive circuit, or excessive back-EMF from a failing injector coil. Isolate faults by swapping a known functional harness segment and retesting before condemning components.
