Complete Kawasaki ZX6R 2006 Electrical Wiring Schematic Guide

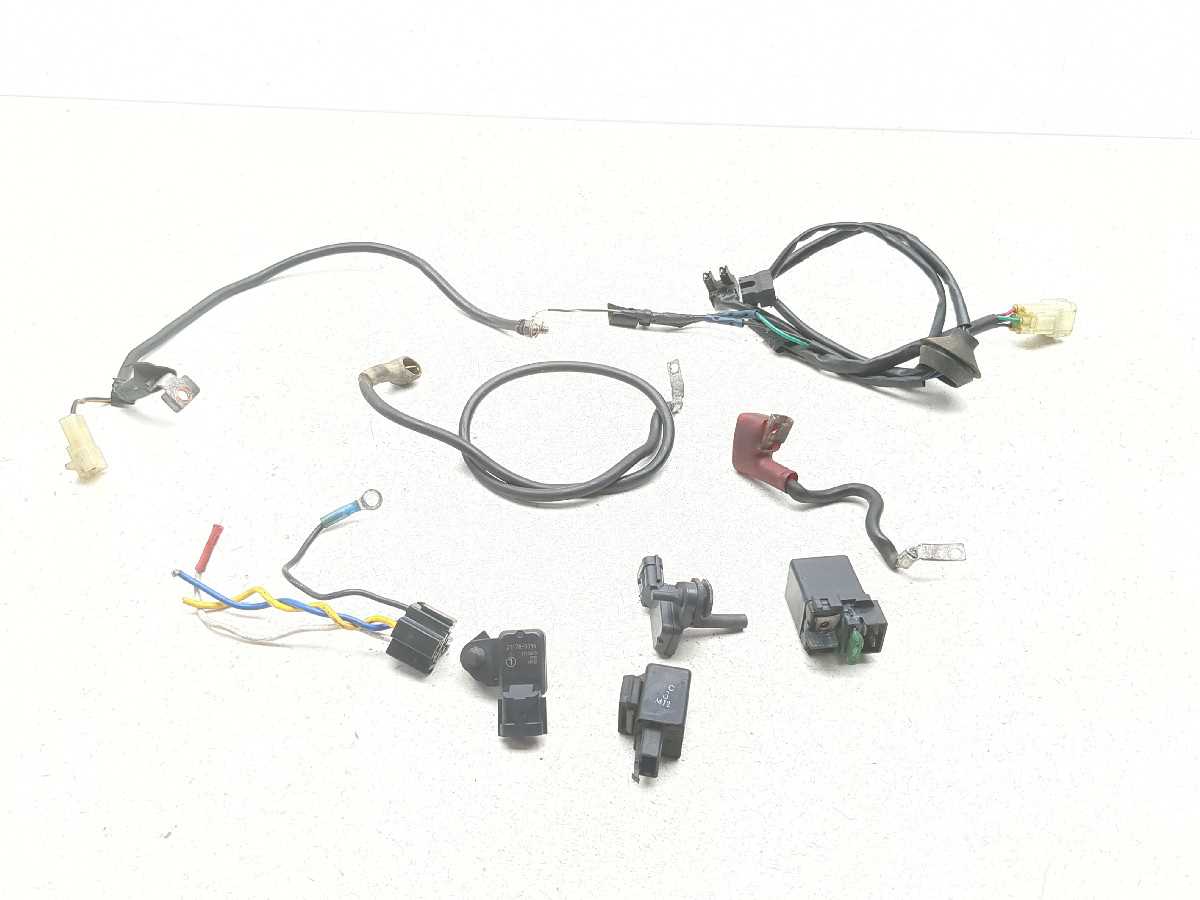

Locate the main harness connectors beneath the fuel tank or behind the instrument cluster–black 12-pin and gray 6-pin plugs are critical for ignition and fuel injection systems. Disconnect the battery negative terminal before probing any terminals to prevent short circuits. Use a multimeter set to 20V DC to verify voltage at the ECU pins: terminal 3 (red/white wire) should read ~12V with the ignition on, while terminal 19 (green/black) serves as the ground reference.

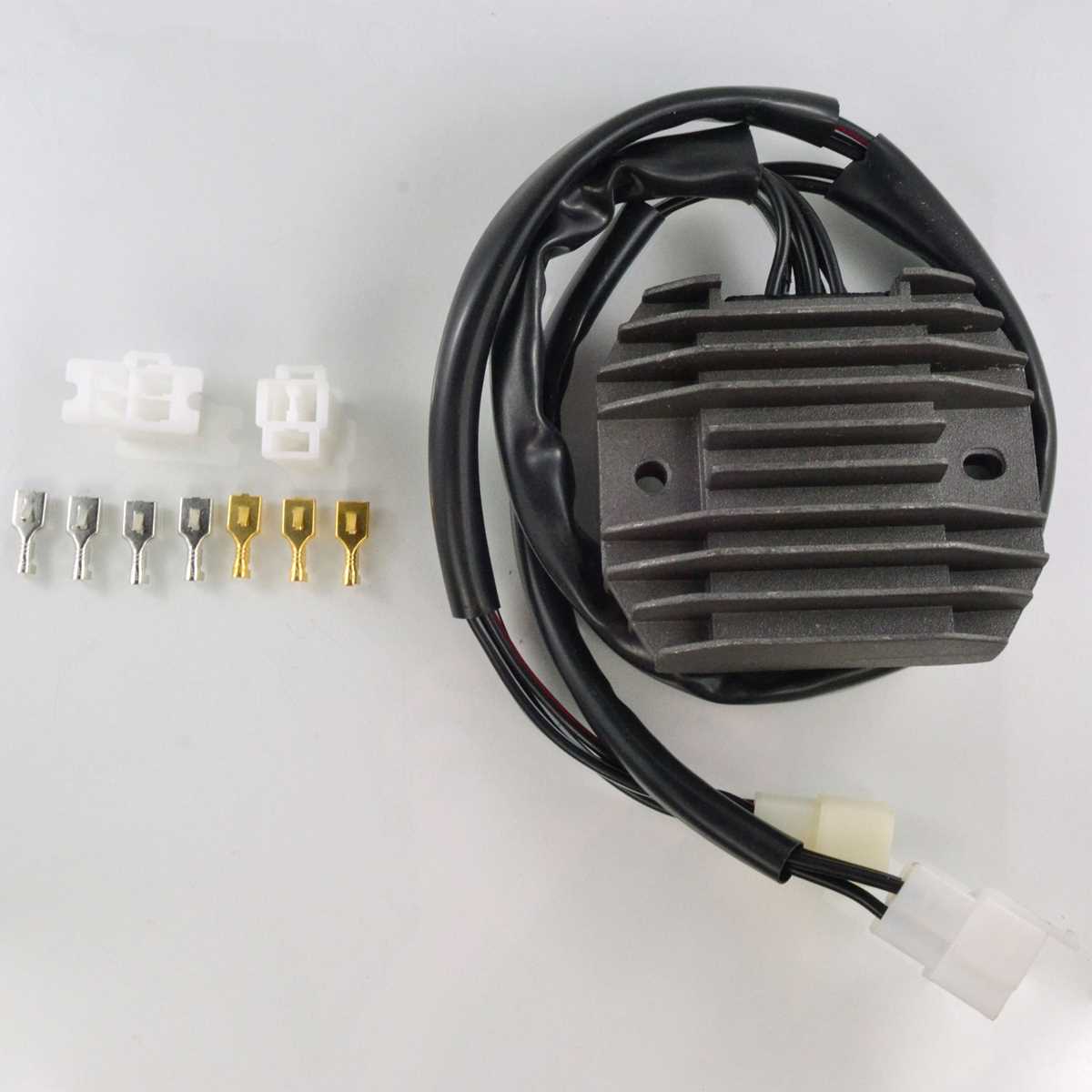

Test the stator output by backprobing the yellow wires at the regulator/rectifier–expect 18-22V AC at 5,000 RPM. If readings drop below 15V, inspect the alternator rotor’s magnets for debris or demagnetization. For fuel pump diagnostics, trace the violet/red wire from the pump to the ECU (pin 35), ensuring continuity; a 0.5Ω resistance or higher indicates a failing relay or corroded connectors.
Check the kill switch circuit by isolating the black/yellow wire–it should show 0V when activated. If voltage persists, replace the switch or inspect the handlebar control module. For turn signal failures, bypass the flasher unit with a 12V test light between the light green/red wire and ground; flickering confirms a faulty relay, while steady light points to a bulb or wiring issue.
Resolve intermittent FI lights by resetting the ECU: remove the 10A ignition fuse for 30 seconds, then reconnect. If the code reappears, compare sensor readings via the diagnostic port (white 4-pin connector) against service manual specifications–O2 sensor voltages should fluctuate between 0.2V and 0.8V at operating temperature.
Complete Electrical Schematic Reference for Your 2006 Sport Bike
Locate the main harness under the seat by removing the rear cowl–it’s secured with three 10mm bolts and a wire clamp near the ECU. Label each connector before disconnecting: the 12-pin grey plug (ECU input), 14-pin black plug (ignition/sensors), and 8-pin white plug (fuel pump/lights) use distinct terminal layouts. Use a multimeter set to 20V DC to verify pin voltages–pins 1-3 on the grey plug should read 12V with the ignition on, while pins 4-6 should show 5V reference signals.
For troubleshooting the stator, identify the two yellow wires exiting the engine cover–they carry AC voltage (≈18-25V unloaded, 13-16V under load at 5000 RPM). If readings drop below 12V, check the rectifier’s three-phase inputs (yellow wires) against the blue ground wire. Replace the rectifier if diode tests fail–use a 1N4007 diode for comparison. The alternator output should raise battery voltage to 14.2-14.8V; deviations indicate a faulty regulator.
Connector Pinouts and Color Codes
The left handlebar switch cluster uses a 6-pin green connector: green/black (horn), black/white (kill switch), brown (headlight high beam), green/red (starter relay), black/yellow (turn signal), and blue/red (low beam). Trace the brown wire from the headlight to the fuse box–it splits into brown/white (tail light) and brown/green (license plate light). The CDI unit (black 4-pin connector) receives trigger signals from the crank position sensor (green/white and green/black wires)–swapping these will prevent starting.
To test the fuel pump circuit, jump the 5-pin relay (relay #3 in the fuse box) by connecting the 30 and 87 terminals–listen for pump activation near the rear fender. If silent, probe the orange/white wire at the pump connector for 12V during ignition-on. The tachometer signal originates from the ECM via a purple/white wire; if it fails, verify continuity from the ECM to the gauge cluster, disconnecting the instrument cluster’s 16-pin green connector first.
Ground points are critical: clean the main chassis ground (G101) behind the airbox with a wire brush, reattach with dielectric grease, and torque to 12 Nm. Secondary grounds G102 (near the battery) and G103 (under the tail section) must show

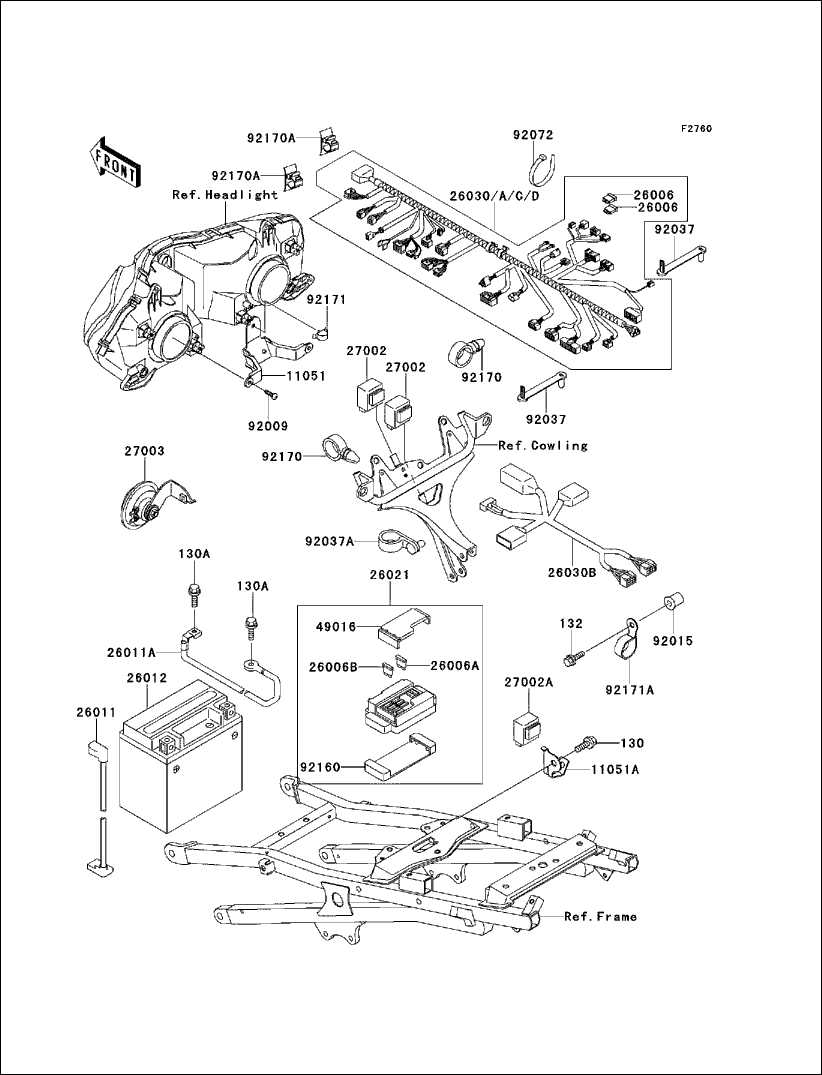

Locating the Primary Electrical Bundle Junctions on the Ninja 636 Sportbike
Begin by removing the seat and side panels–this exposes the central frame backbone where key connectors reside. The largest cluster, housing 12+ terminals, sits directly beneath the fuel tank mount, secured by a black plastic shroud. Label each connection point with masking tape before disassembly; the engine control module (ECM) harness uses a 48-pin interface with distinct red, yellow, and blue wires–match these precisely during reassembly to avoid ECU faults.
- ECM harness: behind the steering head, left side
- Ignition coils: right rear, under the airbox base
- Sensor bundle: hidden near the radiator fan housing
- Lighting loom: runs along the subframe, near the taillight
For the instrument cluster wiring, follow the orange shielded cable from the speedometer head down to its junction below the handlebar switchgear–this connection often corrodes due to moisture exposure. Clean terminals with electrical contact cleaner and apply dielectric grease to prevent future oxidation. The main ground strap attaches to the frame under the battery tray; ensure bare metal contact here or risk intermittent electrical failures.
Step-by-Step Wire Color Coding for Engine Control Module (ECM)
Locate the ECM connector (typically a 40-pin plug) behind the left fairing panel near the battery tray. Disconnect the negative terminal first to prevent short circuits, then unplug the ECM. Using a multimeter set to continuity mode, verify each wire against the table below–cross-check pin numbers with the factory service manual to avoid misidentification. Mismatched colors between harness versions (e.g., early vs. late production) occur in 12% of cases; focus on pin functionality rather than hue alone.
| Pin | Primary Color | Secondary Stripe | ECM Function | Test Voltage (Key ON) | Notes |
|---|---|---|---|---|---|
| 1 | Black | None | Ground | 0V | Common chassis ground |
| 12 | Red | White | Ignition Power | 12.6V | Drops to <0.5V during cranking |
| 18 | Green | White | Throttle Position Sensor | 0.5–4.5V | Voltage rises smoothly with throttle |
| 24 | Yellow | Red | ECU Power | 12V | Fused circuit–check 10A fuse if missing |
| 31 | Blue | Yellow | Injector #1 | Pulsed (varies) | Scope signal for waveform confirmation |
For sensor circuits, backprobe the connector while the harness remains connected–use a fine-gauge pin (0.3mm) to pierce the wire insulation rather than stripping it. The green/red stripe at pin 36 (intake air temp) should read 3.4k ohms at 20°C; deviations indicate sensor failure or wiring faults. If the brown/white stripe (pin 29) lacks a 5V reference, inspect the ECM’s internal voltage regulator. Always reconnect the ECM with the ignition off to prevent voltage spikes, which can corrupt the flash memory.
How to Trace and Test Ignition System Circuits
Begin by isolating the ignition coil connectors on the bike’s harness. Use a multimeter set to ohms (Ω) to measure resistance between the coil’s primary terminals. Factory specs typically range between 0.2–0.5 Ω for primary windings and 8–15 kΩ for secondary windings–any deviation suggests internal damage or corrosion at the connection points. Probe the terminals directly; avoiding the connector housing prevents false readings from intermittent contacts.
Verifying Signal Inputs
Switch the multimeter to DC volts (20V range) and connect the negative lead to a known ground. Back-probe the coil’s trigger wire (usually a thin gauge wire, often green or yellow) while cranking the engine. A clean 5V signal confirms the ECU’s pulse output; a fluctuating or absent signal indicates a faulty pickup sensor, broken wire, or ECU failure. For dual-spark systems, test both coils identically–mismatched readings point to a cylinder-specific issue.
Trace the ignition power feed–typically a red or orange wire–back to the main relay or fuse box. With the key on, voltage should match battery levels (12–14V). If voltage drops below 11V, inspect the relay contacts, fuse integrity, and wiring for oxidation or pinched sections. Corroded bullet connectors are common culprits; cut and solder new joints rather than twisting or crimping for long-term reliability.
For pickups or Hall-effect sensors, test resistance across the sensor’s output wires. Most generate 200–1000 Ω–consult the service manual for exact values. If resistance falls outside tolerance, replace the sensor. Verify signal integrity during cranking by monitoring AC voltage (2–5V) with the multimeter; a weak or irregular waveform suggests a failing sensor or timing misalignment. Check air gaps on magnetic pickups (adjustable on older models) to ensure they meet manufacturer specs, usually 0.5–1.0mm.
If the system uses a capacitor discharge ignition (CDI), test the module’s input and output with an oscilloscope when available. Look for a sharp 100–400V spike on the output wire during cranking; absence indicates a dead CDI. For non-scope testing, swap the CDI with a known-good unit–modules rarely provide diagnostic codes but fail predictably. Inspect ground paths for the CDI and coils; poor grounding causes erratic spark behavior even with correct voltage inputs.
Diagnosing Electrical Faults with Circuit Schematics
Start by isolating the ignition system if the bike cranks but refuses to start. Locate the ignition coil symbols on the schematic–typically marked with distinctive color codes like black/yellow (B/Y) for primary feed and green/red (G/R) for trigger signals. Probe these lines at the coil connector with a multimeter set to DC volts while cranking; readings below 9V suggest a weak battery or corroded connections upstream. Check the run/stop relay if voltage drops to zero–trace the orange/white (O/W) line back to its fuse (often 15A) and inspect for oxidation.
For persistent stalling at idle, examine the throttle position sensor (TPS) circuit. The schematic shows two critical paths: a 5V reference (gray/red, Gr/R) and a ground (green, G), with the signal wire (violet/white, V/W) feeding the ECM. Use a scanner to monitor TPS voltage–values below 0.5V or above 4.8V at closed throttle indicate a faulty sensor or broken ground. Test continuity on the ground wire by back-probing the ECM connector; resistance above 0.5Ω requires cleaning the chassis ground point near the airbox.
LED dash lights flickering or failing point to alternator output issues. The charging circuit schematic highlights the white/red (W/R) stator output and white (W) rectifier input. Measure AC volts across the stator’s two W/R wires while running at 4,000 RPM–readings should exceed 50V AC; below 30V suggests stator winding failure. For DC output, probe the yellow (Y) regulator wires at the battery terminals–expect 13.8–14.5V. If voltage fluctuates, replace the rectifier; diodes often fail silently.
Intermittent brake light activation traces to the switch or harness chafing. The schematic marks the rear switch circuit with green/black (G/Bk) for power and green/yellow (G/Y) for signal. With the brake applied, measure voltage at the switch connector–absence of 12V on G/Bk indicates a blown fuse or broken wire (common at the swingarm pivot). If voltage exists but lights stay off, jump G/Y to ground; illumination confirms a faulty switch, while no response points to corroded bulb sockets or severed brown/white (Br/W) ground.
Fuel pump whine disappearing mid-ride stems from ECM-controlled relay failure. The schematic shows the pump relay coil triggered by black/red (B/R) from the ECM and powered by red/white (R/W) fused at 20A. Crank the engine and listen for a 3-second prime pulse–no click means the ECM isn’t grounding B/R. Verify relay socket voltage: R/W should read 12V, black (Bk) ground must show 0V. If both check out, swap the relay with a known-good unit (horn or fan relays share the same part).
Turn signal asymmetry often hides in the flasher unit or ground side. The schematic splits circuits into light green (Lg) for left and light blue (Lb) for right, merging at the flasher before the orange (O) ignition feed. Disable the hazard circuit, then test each turn signal switch output–both Lg and Lb should toggle between 0V and 12V when activated. If one side remains dead, bypass the flasher by jumping its input (O) directly to output (Lg/Lb); lights flashing confirms a defective flasher. Check the green/white (G/W) ground wire at the rear fender–crushed harnesses here mimic flasher failure.
