Complete Electrical System Guide for 2007 Mazda 3 Schematics

Locate the fuse box under the driver-side dashboard–remove the lower panel by releasing two plastic clips. Label relay slots R1 through R7; R3 controls the cooling fan, and R6 manages the rear defogger. Use a multimeter set to 200 ohms to verify continuity across terminal 30 and 87 on each relay socket; deviation beyond 0.5 ohms indicates corrosion or a failed relay.

Pinout verification: Disconnect the battery before probing connectors. The main engine harness (black 48-pin plug) carries the following critical circuits:

• Pin 12: 12V constant from fuse F19 (10A)
• Pin 24: Ignition-switched 12V from fuse F3 (7.5A)
• Pin 36: Ground reference, chassis-mounted near the master cylinder

Measure voltage drop between Pin 24 and ground; readings above 0.2V suggest a corroded chassis ground.

Trace the instrument cluster wiring: the speed sensor signal enters through the gray 12-pin connector at Pin 7, while the tachometer signal terminates at Pin 10. If the fuel gauge reads erratically, swap the sender unit with a known-good resistance curve–specifically, the sender should range from 10 ohms (full) to 180 ohms (empty) at 20°C.

For transient voltage suppression, install a 330 µF 25V capacitor across the VSS input at the PCM connector (Pin 87B on the blue 64-pin plug). This mitigates false CEL triggers caused by inductive spikes from the ABS module. Replace all crimp connectors with soldered and heat-shrink joints–factory crimps often develop 0.3 mm of oxidation per year under standard humidity.

Document every modification directly onto the PDF schematic using colored permanent markers:

• red for power feeds
• blue for signal paths
• green for grounds

Store the annotated copy alongside the ECU flash drive for future diagnostics.

Essential Electrical Blueprint Insights for Your Compact Hatchback

Start troubleshooting by locating fuse box B under the dashboard’s driver side–this central hub controls critical circuits like headlamps, power windows, and the ECU. If components fail, check fuses F3 (10A, headlights) and F15 (20A, injectors) first; corrosion or loose connections often mimic blown fuses. Use a multimeter set to continuity mode to verify integrity without guessing.

Ground points G101 (near the battery) and G201 (behind the glove box) are frequent culprits for intermittent faults. Scrub these points with a wire brush and apply dielectric grease to prevent oxidation, especially in humid climates or after heavy rainfall. For audio system failures, inspect the wiring harness behind the radio unit–chafing against the climate control housing causes static or power loss.

Critical Harness Routes and Pinouts

Harness Section	Color Code	Connector Pin	Function	Failure Symptoms
Engine Compartment Main	Black/Yellow stripe	C102-1	Ignition coil power	Misfires, stalling
Dash Cluster	Green/Red	D5A-7	Tachometer signal	Gauge fluctuations
Rear Light Assembly	Brown/White	R4-3	Brake light switch	Non-functional brake lights

For climate control malfunctions, probe the two-wire sensor near the evaporator (pins 1T and 2T) with the AC on–voltages below 1.5V indicate a faulty switch or short to ground. Door lock actuators frequently fail due to water ingress; replace the entire harness if resistance exceeds 5 ohms across the motor coils.

Alternator output should read 13.8–14.4V at 2,000 RPM with all accessories off–lower readings point to a worn rectifier or slipping drive belt. Test the voltage regulator by jumping terminal F to B+; if voltage spikes above 15V, replace the regulator immediately to avoid ECU damage. For ABS faults, scan codes first–wheel speed sensors often fail due to metallic debris; clean the tone rings with brake cleaner before replacing the sensors.

Always disconnect the battery’s negative terminal before probing live circuits. Use a 10A inline fuse when bridging wires for testing to avoid fire hazards. For persistent CAN bus errors, verify termination resistance between pins 6 and 14 on the OBD-II port–values outside 55–65 ohms indicate a broken loop or damaged module.

Finding the Right Electrical Schematic for Your 2007 Mazda 3 Trim

The first step is identifying your specific trim and engine configuration. The BK chassis (sedan/hatchback) splits into multiple variants: i, s, and Sport, each with distinct harness layouts. Locate the vehicle identification number (VIN) stamped on the dashboard near the windshield or inside the driver’s door jamb. The eighth character reveals the engine code–L3 (2.0L), L5 (2.3L), or LF (2.3L turbo)–which directly impacts the schematic’s wiring paths for sensors, injectors, and ignition systems. Cross-reference this with Mazda’s official service manual (section 07-41 for base models, 07-43 for turbo-equipped versions) to avoid mismatched diagrams.

For accurate pinouts, prioritize factory repair guides over aftermarket alternatives. The Mazda workshop manual labels connectors with alphanumeric codes (e.g., T60 for the main engine harness, F42 for the instrument cluster) and color-codes each wire (black/yellow for ground, red/blue for power). Third-party sources often consolidate circuits incorrectly–stripped-back diagrams mislabel ABS module pins or fuse box terminals, causing diagnostic errors. If official manuals are unavailable, use the Motor Age subscription database, which archives OEM schematics with verified splice locations.

Online forums like Mazda3Revolution or Reddit’s r/Mazda host user-uploaded scans of vintage diagrams, but verify revisions against your build date. Pre-2006 schematics omit later emission compliance changes (OBD-II updates, CAN bus additions), while post-2008 versions merge unrelated circuits. For the 2.3L MZR DISI engine, focus on the turbo wiring supplement–it details unique components like the boost solenoid (pin C210) and intercooler pump relay (pinout F16). Missing these leads to misdiagnosed turbo lag or false P0234 codes.

Use a multimeter to confirm circuit continuity against the schematic–probe connector G24 (under the hood) for the MAP sensor signal wire (light blue/red stripe) while comparing voltage readings to the manual’s expected values (1.5V at idle). Discordant voltages indicate either a misread diagram or a faulty sensor. For intermittent issues, trace the harness route physically: the main bundle runs from the firewall grommet (bulkhead connector B22) along the driver’s side sill into the rear door harness–chaffing here causes random warning lights. Replace any corroded terminals with Mazda’s part #N2D0-67-700 to prevent future signal loss.

Identifying Common Electrical Components and Their Wire Color Codes

Locate the fuse box under the dashboard on the driver’s side; the cover typically lists each fuse’s function. Check the owner’s manual for a schematic–fuse ratings for lighting, ignition, and power windows differ by circuit. Replace blown fuses with the exact amperage to prevent damage.

Trace the battery’s positive cable–it’s usually thick red, terminating at the starter or fuse block. The ground strap, often black, connects the battery’s negative post to the chassis. Corrosion on these terminals can cause intermittent failures; clean with baking soda and water, then retighten.

• Headlight circuits: high beam (light blue stripe), low beam (white or gray).
• Turn signals: front (green/black), rear (green/orange).
• Brake lights: red/yellow stripe.
• Reverse lights: purple or purple/yellow.

Detect faulty relays by swapping with a known-good one from the fuse box–clicking confirms operation. Sensors like the crankshaft position sensor often use a three-wire harness: power (red), ground (black), and signal (green or blue). A multimeter reading 4.8–5.2V on the signal wire indicates proper function.

Inspect the alternator’s output wire–typically a heavy yellow or red cable–to ensure it charges the battery correctly. Voltage should read 13.8–14.5V at idle; readings outside this range suggest regulator failure. The exciter wire, thinner and brown, engages the alternator; no voltage here means no charging.

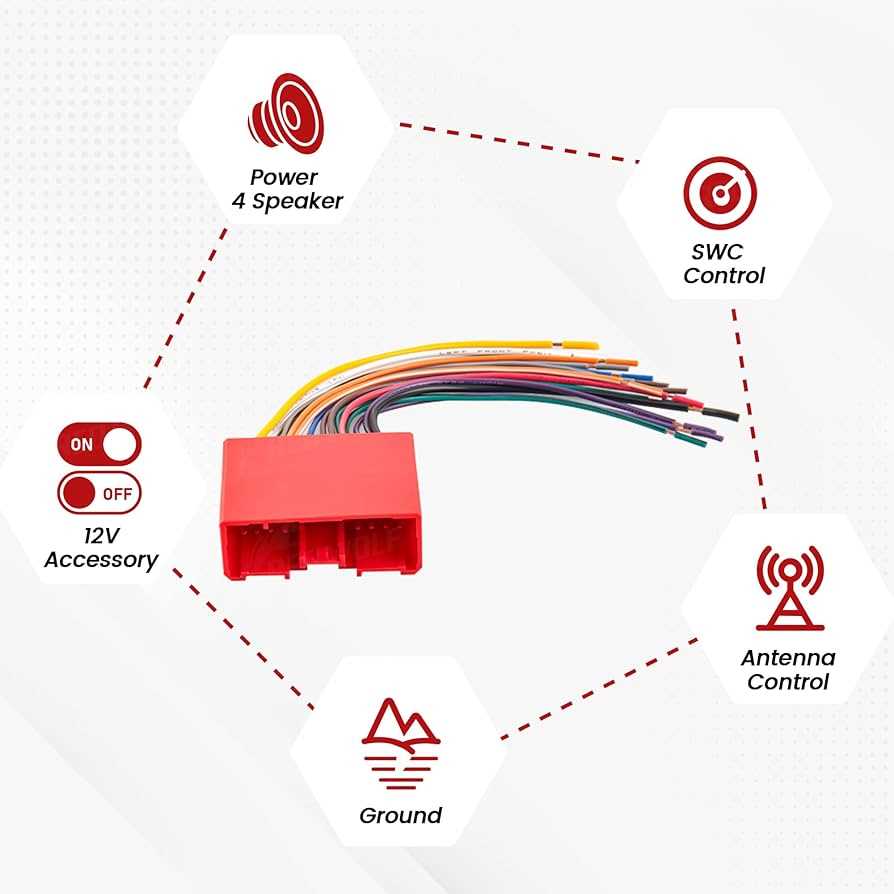

Radio harness wires follow this pattern: power (yellow, 12V constant), ground (black), illumination (orange), and speaker outputs (left front gray, right front purple, rear pairs vary by trim). Static or no sound often traces to loose speaker wires–reseat connections or test for continuity.

Test oxygen sensors by probing the signal wire (usually white or gray) while warming the engine; voltage should fluctuate between 0.1 and 0.9V. Heated O2 sensors add two more wires (red for power, black for ground). A steady reading below 0.45V denotes a lean condition–check the fuel pump or injectors.

Door lock actuators share a common wiring scheme: power (pink or light blue), ground (black), and switch wires (white/blue or white/green). If locks operate intermittently, the problem lies in the actuator’s motor or corroded ground connections–disassemble the door panel to verify.

Step-by-Step Guide to Tracing Electrical Circuit Paths in a Compact Sedan

Disconnect the battery’s negative terminal before handling any vehicle circuit system to prevent shorts or accidental activation. Use a multimeter set to continuity mode to verify connections–probe the harness contacts directly rather than relying on color codes alone. Factory schematics often label circuits with numbered terminals (e.g., “T3/4” or “A-25”), which correspond to specific junction points; cross-reference these with the vehicle’s repair manual for pinpoint accuracy.

Locate Key Junction Points

Identify primary distribution blocks beneath the dashboard and near the fuse box. In this model, the main relay center houses connectors for the engine control module, lighting, and accessory circuits. Trace wires by following their routing paths, noting where they pass through grommets or protective sleeves into the cabin or engine bay. Label each segment with masking tape to avoid confusion, especially where multiple harnesses intersect.

• Engine bay: Check behind the headlight assemblies, along the firewall, and near the starter motor.
• Interior: Remove trim panels near the driver’s footwell and center console to access hidden connections.
• Rear: Inspect under the rear seat or cargo area for tail light and sensor interfaces.

Document every splice or connector encountered, using a notebook or phone camera. Critical components like the BCM (body control module) or ABS sensors often use unique connectors–match these to the schematic using terminal numbers rather than wire colors. For fused circuits, test for voltage drops at both the fuse’s input and output sides before assuming a break in the path.

Validate Each Circuit Segment

1. Set the multimeter to 20V DC and probe the source side of a connector while the ignition is on.
2. If voltage is present but the component isn’t functioning, switch to resistance mode to check for opens (infinite resistance) or shorts (near-zero resistance).
3. Wiggle suspect wires while monitoring the meter to reveal intermittent faults, common in aged insulation or corroded terminals.
4. Replace damaged sections by soldering and heat-shrinking new wires, ensuring gauge and color match the original.

Reconnect the battery only after confirming all repairs. Test systems individually–headlights, power windows, instrument cluster–to isolate any remaining issues. Use dielectric grease on connectors to prevent future corrosion, particularly in exposed areas like door jambs or undercarriage pathways.
