Complete 2007 Toyota Avalon Stereo System Wiring Color Code Guide
Begin by sourcing the electrical pinout directly from the original equipment manufacturer’s service manual. For this sedan variant, the infotainment harness typically consists of a 20-pin connector with color-coded leads. The ignition-powered wire is pink (IG1), while the constant 12V supply is yellow (B+) or white/black stripe. Ground connections use black or brown conductors–verify these first to avoid system faults.

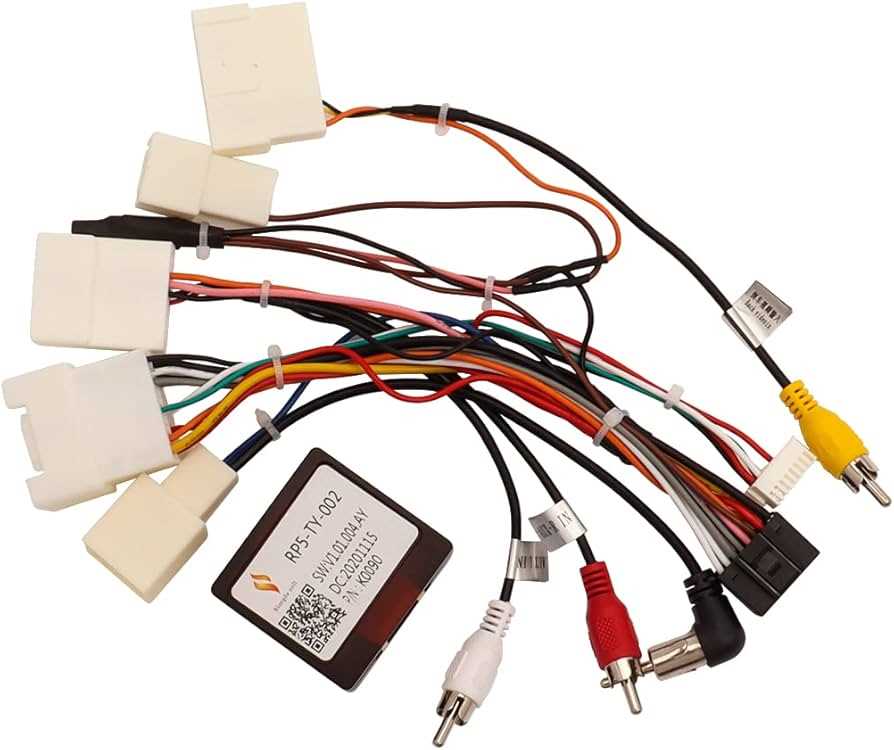

Head unit integration requires matching aftermarket harness adapters to the factory plug layout. Common aftermarket brands like Metra or Scosche provide pre-mapped harnesses (e.g., Metra 70-8113) that correspond to the sedan’s original wiring. If splicing is unavoidable, use soldered connections with heat-shrink tubing to prevent oxidation or signal interference.
Avoid relying solely on online diagrams without cross-referencing with a multimeter. Resistance checks on speaker wires (light green/red for front right, violet/red for rear left) confirm continuity. Illumination control circuits (light green) and antenna triggers (blue/white) must also be tested–improper grounding here causes noise issues.
For vehicles with JBL premium audio, the amplifier is bypassed during aftermarket upgrades. Identify the 12-pin amplifier connector (labeled C11) near the driver’s kick panel. Speaker outputs here use thicker gauge wires (e.g., gray/red, gray/black)–retain these for OEM-level fidelity.
If retaining the factory clockspring for steering wheel controls, ensure compatibility with the new unit’s communication protocol (typically CAN-BUS). Adapter modules like Pac SWI-X translate these signals without requiring additional wiring. Failure to integrate this step may disable cruise or phone functions.
Electrical Connection Guide for the 2007 Sedan’s Audio System
Start by locating the factory harness behind the dashboard center console–pinout details are critical here. The aftermarket unit’s power lead, typically red, connects to terminal 4A (12V constant) on the OEM plug, while the yellow ignition wire links to slot 2A (switched power). Ground wires, usually black, attach to chassis points near the climate control module or the lower left dashboard panel. Verify connections with a multimeter: constant power should read 12V regardless of ignition state, switched power only when the key is in ACC or ON.
Illumination and signal wires demand precision. The dimmer-compatible orange wire must splice into terminal 3A of the original harness, ensuring dashboard lights sync with audio brightness. Speaker outputs follow this sequence: front left positive (gray) to 1C, front left negative (gray/black) to 2C, front right positive (light green) to 1D, and front right negative (light green/black) to 2D. Rear channels mirror this pattern, with left positive (purple) at 1E and right positive (green) at 1F. Use crimp connectors or solder for secure joins–avoid twisting wires alone.
For steering wheel controls, integrate an adapter like the Metra ASWC-1, which bridges the OEM interface to aftermarket head units. Install the adapter inline between the factory harness and the new stereo, matching the labeled inputs (RES, SEEK, VOL+, VOL-, MODE) to the corresponding wires in the vehicle’s plug. Test each function before finalizing the dash reinstallation–faulty connections often manifest as non-responsive buttons or erratic volume changes. If static persists, check for loose grounds or interference from power wires routed too closely to RCA cables.
Essential Instruments for Audio System Integration in Your Sedan
Begin with a multimeter (minimum 600V CAT III rating) to verify circuit continuity and detect potential shorts in factory harness connectors. Avoid relying on visual inspection–test each lead for proper voltage (12V DC on constant power, 10-14V on switched circuits) and ground integrity. A wire stripping tool with 18-24 AWG capacity prevents insulation damage, which can cause intermittent failures months after installation. For harness splicing, a butt connector crimping tool rated for 16-22 AWG ensures vibration-resistant connections; never use twist-and-tape methods, which degrade under heat cycles.
| Tool | Specification | Critical Check |
|---|---|---|
| Digital Multimeter | CAT III 600V, True RMS | Calibrate probes before testing; check for ghost voltages |
| Wire Stripper | Self-adjusting, 18-24 AWG | Ensure jaws cut copper cleanly without nicking strands |
| Crimping Tool | Ratchet-style, insulated butt connectors | Verify crimp pull strength (>15 lbs for 20 AWG) |
| Soldering Iron | 60W, temperature-controlled (350°C) | Use resin-core solder only; avoid acid-flux |
Add a temperature-controlled soldering iron (60W, 350°C max) for permanent splices–crimped connectors alone risk corrosion in high-humidity climates. Apply heat-shrink tubing (dual-wall adhesive-lined) immediately after soldering to prevent moisture ingress. For panel removal, use plastic trim tools (non-conductive nylon) to avoid marring surfaces or disrupting airbag sensors. A headlamp with adjustable focus (500+ lumens) eliminates shadows during dashboard disassembly, where factory clips often hide in tight spaces. Store all removed fasteners in labeled zip bags–mismatched screws can damage mounting threads during reassembly.
Step-by-Step Guide to Finding the Original Audio System Connector
Begin by lowering the dash trim panel beneath the climate controls. Use a trim removal tool to gently pry the panel away–avoid forcing it to prevent snapping the plastic clips. The panel secures with four clips along the bottom edge and two smaller ones on the sides. Set the panel aside carefully to avoid damaging the integrated wiring.
Locate the central fascia surrounding the entertainment unit. The harness will be positioned directly behind the head unit’s metal mounting cage. Identify the primary connector–a rectangular plug with 20-24 pins arranged in two staggered rows. Confirm it matches the factory color coding: yellow (constant power), red (switched power), black (ground), and multiple colored wires for speaker outputs.
If the connector isn’t immediately visible, trace the bundle of insulated wires exiting the back of the stereo. Follow the loom toward the firewall–it typically routes behind the glovebox or alongside the climate control housing. The harness may be secured with zip ties or foam tape; cut these gently with diagonal cutters, leaving enough length to reconnect later if needed.
For vehicles with optional navigation or premium sound systems, an additional smaller harness (8-12 pins) may be present. This secondary plug handles functions like amplifier triggers, data buses, or steering wheel controls. Note its position relative to the main connector to avoid misalignment during reinstallation.
- Disconnect the battery negative terminal before handling any wiring to prevent shorts or electrical damage.
- Label each harness plug with masking tape to streamline reassembly.
- Use a multimeter to verify pin assignments if the connector lacks clear color-coding.
- Avoid pulling wires by their insulation–grasp the connectors firmly when unplugging.
In some configurations, the harness may be split into two separate plugs. One handles power and ground, while the other manages speaker outputs. Match the larger plug’s pin layout first, as it carries critical signals. The smaller plug often mirrors the aftermarket adapter’s configuration–compare shapes to ensure compatibility before modifications.
If corrosion or damage is visible on the pins, clean contacts with electrical contact cleaner and a small wire brush. Bent pins can be straightened with needle-nose pliers, but replace the entire harness if damage is severe. Factory connectors rarely fail, but aftermarket adapters may not seat fully–ensure a snug fit to avoid intermittent connections.
Troubleshooting Hidden Connectors
For models with hidden retention tabs, press the release lever (usually located at the top or bottom of the plug) while wiggling the connector free. Some harnesses use a slide-lock mechanism–look for a small plastic tab that must be depressed before removal. If the harness feels stuck, apply WD-40 sparingly to the connector edges, then wait 60 seconds before attempting again.
Reinstallation requires aligning the plugs flush before applying even pressure. Listen for a distinct click indicating a secure lock. Test all functions–power, speakers, and auxiliary features–before reassembling the dash trim to confirm proper seating.

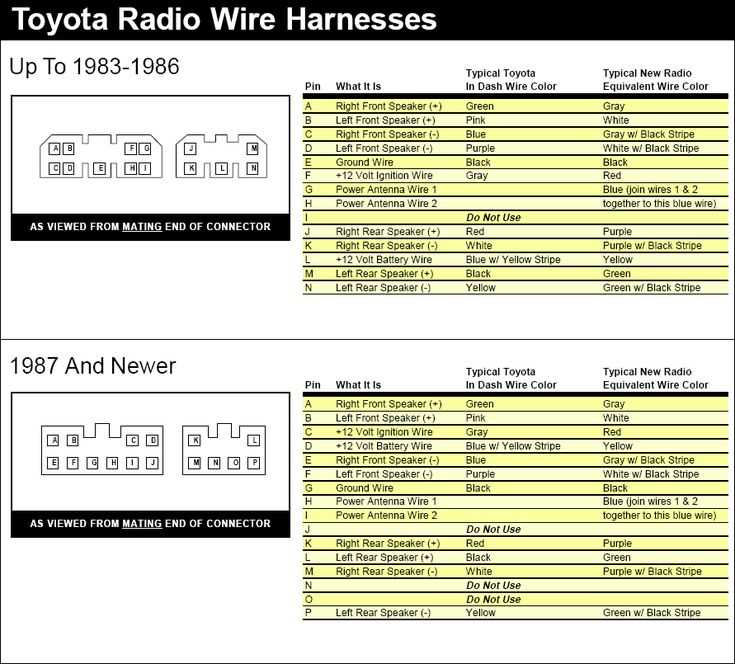

Understanding Wire Color Codes and Their Purpose in the Audio System Harness
Start by identifying the 14-pin harness connector: pinouts follow a standardized layout where each conductor corresponds to a specific signal or power source. The light green wire carries the left front speaker positive signal, while its companion, dark green, handles the left front speaker negative lead. These two must never touch–shorting them will damage the amplifier stage or blow fuses. For the right channel, gray (positive) and brown (negative) follow the same logic; reverse polarity here distorts sound or kills stereo separation.
The yellow cable delivers continuous 12V power straight from the battery–this keeps presets, clock, and memory alive when the ignition is off. A red wire supplies switched 12V, turning the head unit on with the key; swap these and the device drains the battery overnight. Ground is black–always confirm resistance below 0.2 ohms to eliminate noise. Illumination control rides on light blue with a red stripe, dimming dash lights in sync with the vehicle’s rheostat.
White and white with a black stripe form the left rear speaker pair; violet (positive) and violet with black stripe (negative) do the same for the right rear. Mute functionality resides on pink–triggered when a phone call comes through–while orange carries the speed sensor signal, enabling automatic volume adjustment as road noise increases. Data bus communication uses tan with a white stripe, reserved for OEM steering wheel controls or aftermarket interfaces; splicing here incorrectly bricks factory integration systems.
Check continuity with a multimeter before connecting aftermarket gear: gray with black stripe is the right front negative, brown with white stripe grounds the antenna motor, and green with yellow stripe toggles amplifier turn-on when an external amp is present. Misrouted wires cause hiss, signal dropout, or dead channels–trace each one back to the harness socket to avoid headaches later.
