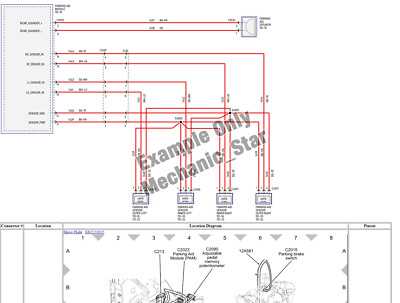

Complete 2008 Ford F150 Wiring Harness Diagram with Color Codes and Connector Locations
Locate the main fuse block under the dashboard on the driver’s side–pin 30 connects to the ignition relay and feeds power to the instrument cluster, power windows, and door locks. Trace the red/yellow-striped wire from the relay to the central junction box beneath the steering column; this line carries 12V constant in all key positions, verified by a multimeter reading of 12.6V with the battery connected and engine off. Disconnect the negative terminal before probing to prevent shorts.
For the engine compartment wiring, reference the oval-shaped connector near the battery–terminal C supplies voltage to the starter solenoid via a 4-gauge purple cable. The alternator’s B+ terminal links to the battery positive through a fusible link rated at 175A; inspect this segment for heat discoloration or brittle insulation, as failure here mimics alternator failure. Test the voltage drop across the link with the engine at 2,000 RPM–values above 0.2V indicate resistance.
The under-hood harness includes a 6-pin rectangular plug for the cooling fan; pin 1 delivers ground, while pin 5 receives switched 12V from the EEC relay. Check the grey/white-striped wire at the PCM connector (pin 71) for 5V reference–absence suggests a short in the sensor power circuit. For trailer brake controllers, the dark blue wire in the rear harness must show continuity to the brake switch; use a circuit tester with the pedal depressed to confirm signal integrity.
To diagnose parasitic battery drain, unplug the BCM connector (black 48-pin plug) and measure current draw–acceptable levels are below 50mA. The fuel pump relay (green housing, right-side kick panel) activates via a yellow/light blue wire from the inertia switch; jump this circuit temporarily to isolate pump failure. Always compare findings against an OEM schematic numbered 33008-2052 to avoid misidentifying spliced or aftermarket modifications.
Complete Electrical Connector Layout for 5.4L V8 Truck Models
Start repairs by locating the main fuse block under the dashboard on the driver’s side. Remove the 7mm bolt securing the cover to access terminals marked C1, C2, and C3. Each terminal corresponds to a color-coded feed: C1 handles red/light blue for ignition, C2 controls black/white ground circuits, while C3 supplies yellow/orange for auxiliary power. Trace these lines toward the bulkhead connector to diagnose intermittent power losses.
Inspect the 13-pin bulkhead connector behind the glove compartment for corrosion. Apply dielectric grease to terminals numbered 1 through 9 if resistance exceeds 0.5 ohms. Terminals 10-13 manage the fuel pump relay–verify continuity with a multimeter set to 200 ohms. Replace the connector if wire strands appear frayed or insulation shows cracking.
The underhood junction box houses relays for cooling fans, AC clutch, and starter solenoid. Label each relay position before removal: top row left to right as R1 (horn), R2 (high-beam), R3 (low-beam). Bottom row holds R4 (ECM), R5 (fuel pump), R6 (cooling fan). Swap relays between positions to isolate faulty units if systems fail intermittently.
For trailer lighting circuits, focus on the rear junction near the spare tire carrier. Pink/white wires (left turn/brake) and brown/yellow (right turn/brake) must register 12V when activated. Test with a circuit tester while an assistant operates controls–replace bulbs or connectors if voltage drops below 11.5V. The gray/black wire carries auxiliary feed; ensure it’s disconnected when not in use to prevent parasitic drain.
Cabin electrical issues often stem from the GEM module behind the radio. Access requires removing the center console trim panel. Check pinouts for door ajar switches (tan/light blue) and dome light circuits (dark green/white). Use a scan tool to monitor live data–PIDs for “GEM_BatterySaver” should toggle between 0 and 1 when doors open/close.
Oxygen sensor connectors use a unique six-wire setup for heated circuits. Probe the tan/light green (heater +) and white/black (sensor ground) at the exhaust manifold harness. Voltage should rise from 0.1V to 0.9V within 20 seconds of startup. Clean or replace sensors if response time exceeds 30 seconds–corrosion at terminals mimics faulty sensors.
Transmission range sensor wires (gray/red for park, brown/yellow for reverse) terminate at the valve body connector. Set a multimeter to AC volts and back-probe each wire while slowly shifting gears. Readings should spike to 5V in each position; erratic signals indicate internal wear on the sensor or damaged wiring loom.
Avoid splicing into the instrument cluster’s purple/orange (tachometer) or violet/white (speedometer) wires. These runs use thin-gauge copper that degrades if soldered incorrectly. For aftermarket add-ons, tap into the fuse block’s accessory terminal (fuse #29) with a 1A fuse–this preserves factory gauge accuracy while powering devices.
Finding the Primary Powertrain Connector Bundle
Begin by raising the vehicle’s hood and securing it with the prop rod. The central electrical conduit assembly runs along the driver-side inner fender panel, typically concealed beneath a plastic shroud or protective tape. Locate the bundle’s largest junction point–often a rectangular or circular multi-pin connector–near the firewall where the engine bay meets the cabin.
Trace the bundle’s path from this junction toward the front of the vehicle. Key landmarks include:
- The battery tray: One branch splits left to power ancillary modules under the dash.
- The fuse/relay box: A secondary split feeds directly into high-current circuits.
- The coolant reservoir: Follow the bundle’s main trunk past this component; it bends downward toward the radiator support.
Avoid confusing auxiliary harnesses (like the headlamp or sensor bundles) by ensuring continuity with the larger trunk lines.
Pay attention to mounting clips and zip ties–these secure the conduit at 6–8 inch intervals along its route. If corrosion or damage is suspected, check areas where the bundle curves sharply or passes near heat sources (e.g., exhaust manifold, A/C compressor). Use a flashlight to inspect the underside of the bundle, as rodents or chafing against metal edges often target hidden segments.
To access the underside connections, remove the air intake ductwork and upper engine cover if equipped. The main engine control module (ECM) connector attaches to the rear of the bundle, often marked by white, orange, or blue conduit labels. Match these color codes to the factory schematic for precise identification–mismatches risk misdiagnosis.
For ground reference verification, probe the black/brown-striped leads terminating near the motor mount or strut tower. A multimeter set to continuity mode should register 0 ohms between these leads and the negative battery post. If readings exceed 0.1 ohms, clean contact points with a wire brush and reapply dielectric grease.
Tracing the Under-Dash Fuse Box Connections
Locate the fuse panel beneath the left-side instrument panel by removing the protective kick panel. Use a flashlight to identify the numbered fuse slots and their corresponding relay positions–refer to the owner’s manual for exact slot assignments if labels are worn or missing. A multimeter set to continuity mode will confirm live circuits before probing.
Start with the primary power feed wires: thick red or orange cables entering the fuse box at the top-right corner. These originate from the battery via the main junction block under the hood. Trace them backward to verify no corrosion exists at the terminal clamp or inline fusible links–these often fail silently, causing intermittent electrical gremlins.
| Fuse Slot | Amperage | Connected System | Wire Color |
|---|---|---|---|
| 18 | 15A | Instrument cluster | Light blue/orange stripe |
| 22 | 20A | Power windows | White/light green stripe |
| 42 | 30A | Blower motor | Black/white stripe |
Check the ground distribution points–typically three black wires clustered at the lower-left corner of the box, secured to chassis metal. Scrape paint from attachment points if grounding symptoms appear (dim lights, slow accessories). Corrosion here mimics dead battery issues, wasting diagnostic time.
For the ignition-switched circuits, follow the purple wire from the ignition cylinder to its splice inside the fuse box. This wire powers critical modules like the PCM and fuel pump relay–breaks here prevent engine cranking. Probe voltage at the splice with the key in RUN position–absence indicates a broken wire inside the steering column.
Identify the turn signal flasher module mounted adjacent to the fuse box–two purple/yellow wires feed it. If signals flash erratically, replace this unit before chasing wiring; internal contacts corrode unnoticeably. For trailer tow circuits, trace the brown and dark green wires exiting the rear of the box–they often chafe against the frame near the trailer plug.
The data bus wires (orange/light blue twist) link the fuse box to the OBD-II port. These thin wires break easily from vibration; test continuity between the port pin 2 and fuse slot 24 if scan tools can’t communicate. Avoid crimping damaged wires–solder and heat-shrink for longevity.
When reassembling, route all wires away from sharp edges or moving components. Secure loose bundles with zip ties every 6 inches to prevent abrasion. Label each connector with masking tape during disassembly–reversing connectors like the headlight switch or A/C control will blow new fuses immediately.
