Complete Electrical Wiring Diagram Guide for 2008 Suzuki GSXR 1000 Models
The complete circuit schematic for this model serves as the definitive resource for diagnosing electrical faults, performing upgrades, or restoring vintage components. Begin by securing the official service manual–aftermarket publications often omit critical details like wire gauge specifications, connector pinouts, or ECU wiring interactions. Locate the color-coded harness map on pages 12-15; this section cross-references each wire’s function with its terminal location, eliminating guesswork during bench testing.
Prioritize isolating the main fuse block (mounted under the left fairing) before any diagnostics–failure to remove power risks damaging the DFI module or trip the immobilizer. Use a digital multimeter with a 0.1-ohm resolution to verify continuity across ignition circuits (key positions: OFF, ON, RUN, LOCK). Pay attention to the black/yellow (B/Y) wire–this feeds the kill switch and is a common failure point due to vibration-induced fraying near the handlebar bracket.
For fuel system diagnostics, focus on the green/white (G/W) sensor ground and pink (P) ECU power lines. Resistance between the ECM ground and chassis should not exceed 0.5 ohms; values higher than 1.0 ohm indicate corrosion in the frame ground (bolt under the battery tray). When replacing turn signal relays, note the pink/black (P/BK) wire routing–it carries the flasher unit’s output and must bypass the stock connector at three-way splice (TWS-3) if upgrading to LED indicators.
Absorb dual-diagram methodology: overlay the component location map (Section 6-2) with the electrical flow chart (Section 6-5). This reveals hidden dependencies–for instance, the gray/red (Gr/R) wire linking the speedometer to the ECM also powers the odometer memory circuit. Misrouting here causes erratic gear position readouts and can trigger false tachometer spikes above 7,000 RPM.
Mastering Your Bike’s Electrical Blueprint: A Hands-On Approach
Start by locating the main fuse block–mounted behind the left fairing panel, secured with a single 8mm bolt. Remove the cover to expose the 30A main fuse, ignition fuse (10A), and accessory fuses. Use a multimeter set to continuity mode to verify each fuse before proceeding; a reading above 0.5 ohms indicates a blown fuse. Trace the red/white (+12V) power lead from the battery to the fuse block (connector C33), then to the ignition switch (connector C01). If the bike cranks but won’t start, probe the black/yellow starter relay trigger wire at the ECM connector (C45)–voltage should spike to 10-12V when the starter button is pressed. No voltage? Check the sidestand switch (gray/black wire) or clutch switch (green/white wire); both must close to ground for the engine to fire.
Critical Paths and Troubleshooting Shortcuts
- ECM Ground: The black/white wire at connector C02 must show zero resistance to the frame. Corrosion here mimics fuel injection or ignition failures.
- Fuel Pump Prime Circuit: Pin 12 on the pump connector (C26) should pulse to 12V for 3-5 seconds at key-on. Probe with a test light–steady voltage suggests a failed relay or open in the pink/black ECM feed (pin 48, C45).

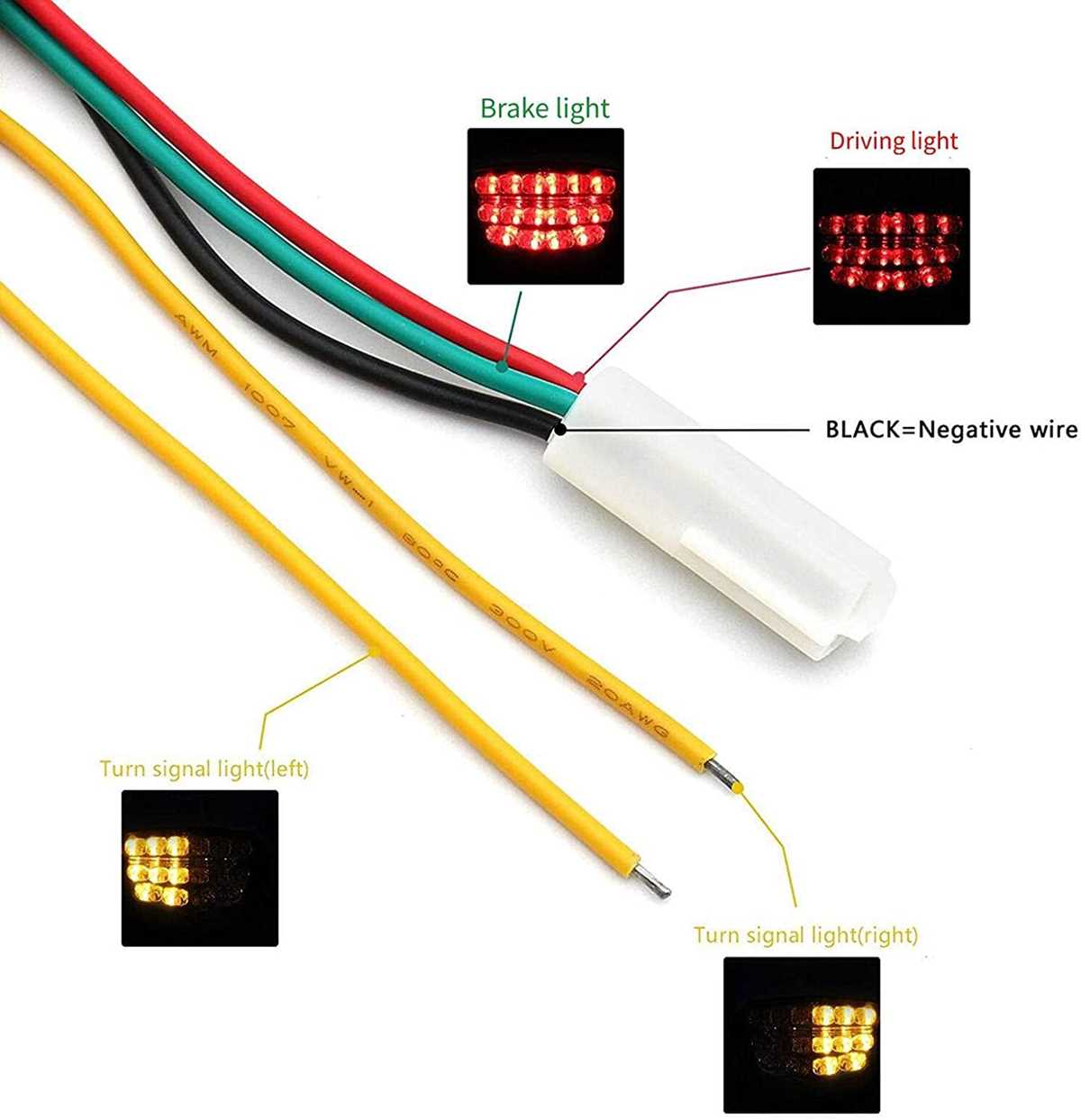

- Lighting Loops: Front turn signals share a brown/white ground at the headlight shell. If one side works but the other doesn’t, scrape paint at the mounting bolt–oxides build fast under fairings.
For parasitic drains, pull fuses one by one while watching an ammeter on the battery leads. The yellow/black wire (pin 2, C24) to the instrument cluster is a frequent culprit; unplug it and note any current drop. Always disconnect the negative terminal before soldering or crimping–capacitors in the ECM hold charge for 10+ minutes, risking shorts if tools bridge live circuits.
Finding Primary Electrical Link Points on the Suzuki Sportbike Model
Begin beneath the fuel tank–remove the two 10 mm bolts and lift the tank slightly to expose the front harness cluster. The largest multi-pin connector, labeled “ECU MAIN,” sits adjacent to the fuel pump relay; its 32-pin white housing distinguishes it from sensor and actuator plugs. Use a flashlight to verify pin orientation before separation–force applied incorrectly can damage locking tabs.
Trace the harness toward the rear; beneath the seat, two additional connectors service the tail light assembly and rear brake light switch. The tail section connector features a distinctive 6-pin arrangement, while the brake switch plug utilizes a smaller 2-pin configuration. Inspect rubber grommets for cracks–compromised seals allow moisture ingress, leading to intermittent failures.
Locate the left fairing pocket for the ignition system connector, a compact 8-pin unit color-coded for precise mating. Ensure the bike’s kill switch remains engaged during inspection–residual current can short unshielded tools. Diagram references should confirm pin functions before any disconnection.
Identifying and Testing the Ignition System Wires for Common Failures
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the ignition coil connectors–typically four on a four-cylinder engine–using a service manual for pinout details. Probe the primary circuit wires (usually 2-3 thick gauge leads per coil) with a multimeter set to 200 ohms. Resistance should read between 0.5–2.0 ohms; values outside this range indicate a shorted or open coil winding requiring replacement.
Trace the secondary circuit wires–thin, high-voltage leads from each coil to the spark plugs. Inspect for brittle insulation, cracking, or carbon tracking, especially near exhaust manifolds where heat accelerates degradation. Use a spark tester: connect it between the coil and plug, crank the engine, and verify a consistent blue arc. A weak or intermittent spark suggests faulty wires or a failing ignition control module.
Checking Signal and Power Wires
Identify the ignition control module’s power and trigger wires (often 5V or 12V). Backprobe these at the ECU connector with the key on, verifying voltage matches specifications–deviations may point to corroded connectors or a dying stator. For signal wires, scope the waveform while cranking; normal pulses should show sharp, consistent spikes. A flat line or erratic pattern confirms a dead sensor or broken circuit path.
Examine ground wires–common failure points under vibration or corrosion. Scrape paint off grounding points to expose bare metal, ensuring tight bolts and zero resistance to chassis ground. Loose or oxidized grounds cause intermittent misfires indistinguishable from coil failures. Test by temporarily jumpering a known-good ground to suspect wires while monitoring spark output.
Replace wires in sets, not singly, to avoid voltage imbalance. For coil-on-plug systems, remove the fuel pump relay and crank the engine for 10 seconds to clear fuel vapors before testing–avoids false flood conditions. If failures persist, swap coils between cylinders to isolate whether the issue is wire-related or mechanical (e.g., compression loss). Thermal cameras can pinpoint overheating wires invisible to visual inspection.

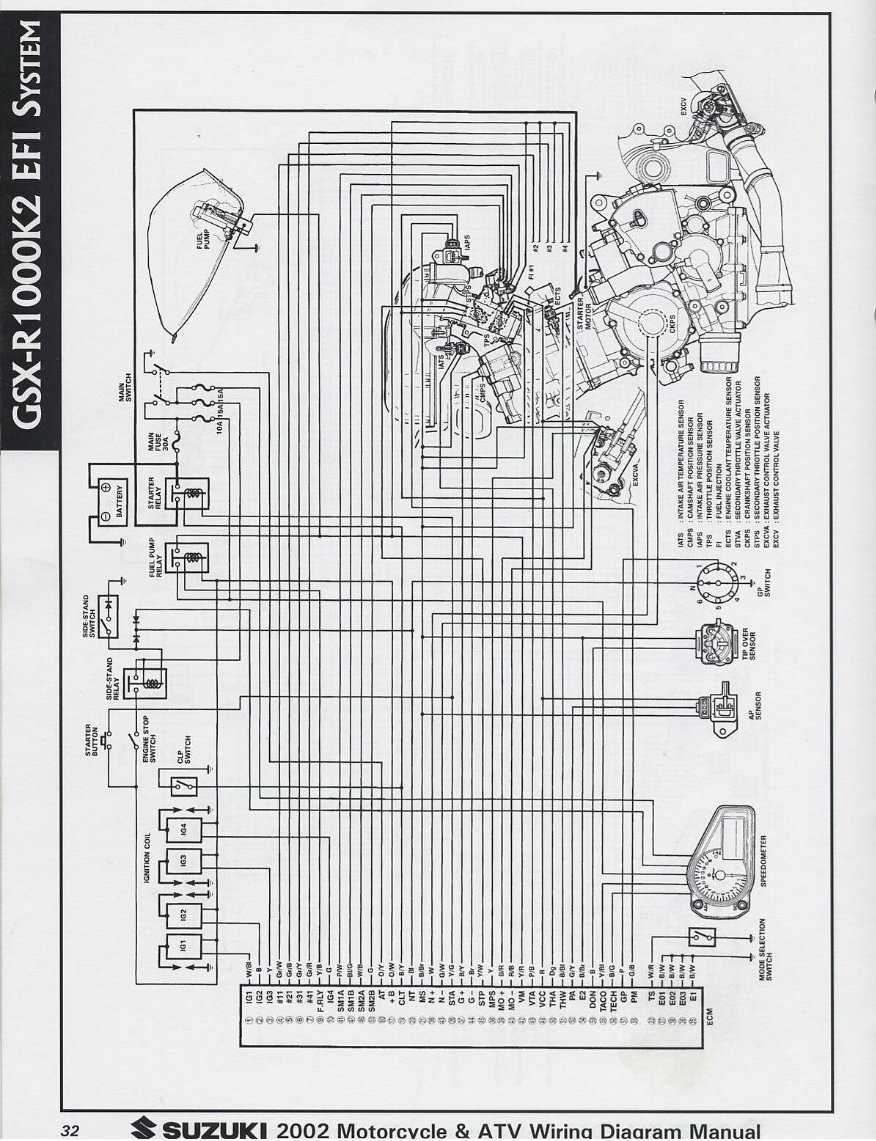

Step-by-Step Guide to Tracing the Fuel Pump Circuit on the Schematic
Locate the fuel pump relay on the electrical layout–it’s typically marked K3 or Fuel Pump Relay near the main fusebox. Pinpoint its connections: terminal 85 (coil power), 86 (coil ground or trigger), 30 (battery input), and 87 (pump output). Use a multimeter set to continuity mode to verify the relay’s internal switch closes when 12V is applied to 85 and 86.
Trace the 30 terminal back to the ignition-switched fuse, usually labeled F14 (10A) or Fuel Pump in the fusebox. Confirm the fuse is intact before proceeding; a blown fuse often indicates a short in the pump or wiring. From the fuse, follow the red/white or pink harness wire to the pump relay–this is the power feed that energizes the relay when the ignition is on.
Identify the 87 terminal, which supplies power from the relay to the fuel pump. This wire–typically yellow/red–runs through the main harness before splitting off near the rear subframe. Disconnect the pump’s electrical connector at the tank and probe the yellow/red wire for 12V with the ignition on (engine not running). If voltage is absent, the relay or its trigger circuit is faulty.
| Wire Color | Function | Expected Voltage (Ignition ON) |
|---|---|---|
| Red/white or pink | Relay power feed (terminal 30) | 12V |
| Black/yellow | ECU trigger (terminal 86) | Pulse signal |
| Yellow/red | Pump power (terminal 87) | 12V |
| Black | Ground (pump) | 0V |
Check the 86 terminal’s trigger signal from the ECU. This is usually a black/yellow wire originating from the engine control unit. With the ignition on, the ECU should send a brief 12V pulse (~-2 seconds) to prime the pump. If the pulse is missing, inspect the ECU connectors for corrosion or pin misalignment, or test for ECU fault codes with a diagnostic tool.
Examine the fuel pump’s ground circuit–this is a black wire linked to chassis ground, often near the pump’s mounting flange. A poor ground will mimic pump failure; use a jumper wire to bypass the ground temporarily and check if the pump runs. If it does, clean the existing ground connection with sandpaper and apply dielectric grease to prevent oxidation.
For pump current verification, measure voltage drop across the yellow/red wire (relay output) and the pump’s positive terminal. A drop exceeding 0.5V suggests high resistance, commonly caused by frayed wires or corroded connectors. Strip back the harness insulation at intervals to inspect for broken strands, especially where the harness bends near the swingarm pivot.
If the relay clicks but the pump remains silent, the issue lies downstream of the relay. Back-probe the yellow/red wire at the pump connector with the ignition on–no voltage confirms an open circuit between the relay and pump. Replace the harness section if damaged, or solder and heat-shrink any repaired joints to match OEM durability.
