Complete 2008 Mitsubishi Lancer Radio Wiring Color Codes and Diagram Guide
Start with identifying the factory harness behind the head unit–pinouts follow a 16-pin ISO layout with distinct color coding for power, ground, and speaker lines. Black/yellow (constant 12V) and red/white (switched 12V) must connect to the aftermarket radio’s harness using crimp connectors or soldered joints for reliability. Avoid wire nuts; they loosen under vibration.
Speaker wires adhere to a consistent pattern: front right (+) gray/black, (-) gray/red; front left (+) white/black, (-) white/red; rear right (+) pink/black, (-) pink/red; rear left (+) violet/black, (-) violet/red. Verify each wire with a multimeter before finalizing connections–crossed polarity distorts audio and risks damaging amplifiers.
If integrating a navigation or hands-free unit, tap the blue/white (remote turn-on) wire to the vehicle’s harness rather than splicing into illumination circuits. This preserves factory dimming controls and prevents module malfunctions. Ground the system to a bare metal chassis point near the unit’s mounting bracket–avoid screws with paint or undercoating.
For vehicles equipped with steering wheel controls, locate the data bus behind the instrument cluster (light blue/black wire). Interfacing requires an adapter module; direct splicing causes CAN bus errors. Test all functions–volume, track skip, mute–before reassembling panels to confirm signal integrity.
Retain the factory antenna adapter (Mitsu part #MR502939) when upgrading to an aftermarket receiver. Without it, AM/FM reception degrades significantly, especially in weak-signal areas. Secure the antenna lead with dielectric grease to prevent corrosion over time.
Color-Coded Audio System Connections for Your Sedan
Locate the harness behind the factory head unit: the yellow wire delivers constant 12V power, red handles ignition-controlled supply, and black connects to chassis ground. Aftermarket amplifiers require an orange/white stripe for illumination dimming, while rear speakers use gray/violet (+) and gray/black (-) for the left channel, green/red (+) and green/black (-) for the right. For subwoofer integration, splice the brown/white stripe into the RCA preamp output labeled “sub out” on premium decks.
Verify all connections with a multimeter before securing–matching the original radio’s fuse rating (15A) prevents blown circuits. Antenna signals route through a single-coax blue/white stripe wire; never ground this lead. If retaining steering-wheel controls, connect the pink/light blue stripe to the adapter’s data bus pin.
How to Access the Factory Audio System Plug Behind the Dashboard Unit
Begin by removing the trim panel surrounding the central infotainment console. Use a flat plastic pry tool to carefully disengage the clips securing the upper and lower dash bezels–these clips are fragile and positioned at 10mm intervals along the edges. The lower bezel conceals two 10mm bolts (one on each side) that must be removed before proceeding.
Once the bolts are out, gently pull the climate control module forward to reveal the OEM audio head unit. The factory plug is located at the rear, held in place by a white or grey plastic locking tab. Press the tab downward while pulling the connector straight out–do not twist or wiggle, as this may damage the pins. The harness consists of two rows of terminals:
- Top row: Power, illumination, antenna trigger (red, yellow, orange/white)
- Bottom row: Speaker outputs, ground (green/black, grey/black, purple/black, white/black)
Trace the harness wires back 3–4 inches to identify splice points if modifying the system. The main power lead (yellow) typically runs directly to the fuse box under the driver’s side kick panel, while ground (black) fastens to a chassis bolt behind the glovebox. Label each cable with masking tape before disconnecting to avoid confusion during reassembly.
Troubleshooting Hidden Connectors
If the plug resists removal, check for an additional security clip at the top center–some models include a secondary latch requiring a 3mm push-button release. For aftermarket installation, note the following voltages with a multimeter:
- Red (accessory): 12V when ignition is ON, 0V when OFF
- Yellow (constant): 12V regardless of ignition state
- Orange/white: 12V when headlights are active (dimmer control)
Avoid bridging yellow and red wires, as this can drain the battery overnight. Secure all connections with solder and heat-shrink tubing for long-term reliability.
Identifying Power and Ground Wire Colors for Aftermarket Installation
Locate the constant 12V wire (yellow) first–it supplies uninterrupted power to retain settings like presets and clock time. Confirm with a multimeter: probe the wire against chassis ground; readings should maintain ~12V regardless of ignition state. Switched power (red) activates only when the key is turned–test by checking voltage drop to 0V when the ignition is off. Ground wires (black) typically bolt directly to the vehicle’s frame; scrape paint from the mounting point to ensure bare metal contact and avoid intermittent signal loss.
Key Wire Connections
Dimmer/illumination (orange) adjusts display brightness in sync with dash lights–match polarity to prevent reverse brightness behavior. Speaker leads (front left positive: white, front right positive: gray, rear left positive: green, rear right positive: purple) often have a thin stripe for negative identification; cross-verify with a 9V battery–positive leads will push the cone outward. Avoid splicing low-level (RCA) signals near power wires to prevent alternator whine; route them along the opposite side of the harness and shield with foil if interference persists.
Hooking Up Audio Cables to the Factory Harness in Your Vehicle

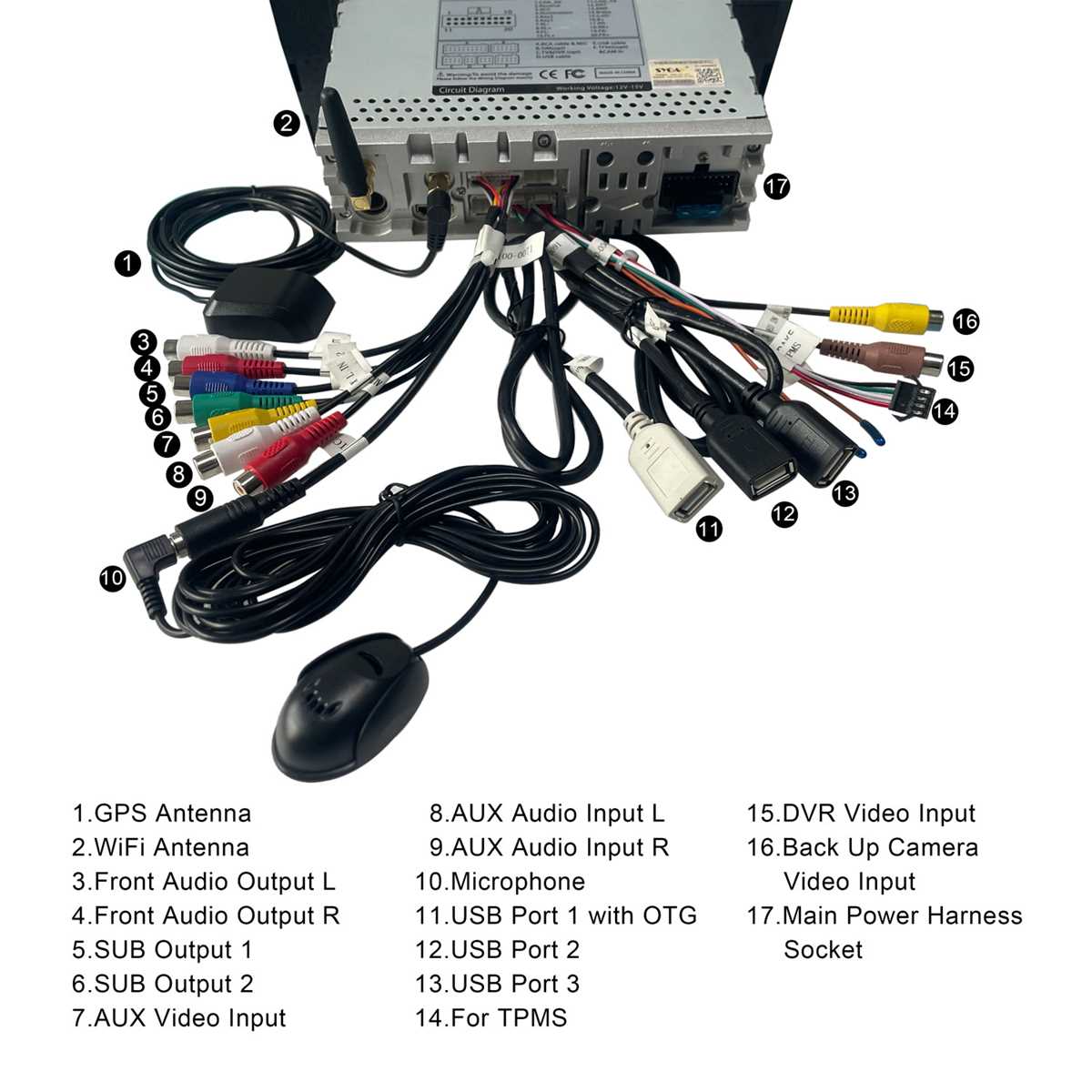

Identify the speaker output terminals on the back of your aftermarket head unit before making any connections. Most modern receivers use color-coded wires for left-front, right-front, left-rear, and right-rear channels. Match these colors exactly to the corresponding wires in the OEM harness adapter–crossing channels will produce reversed imaging and muddy sound.
Strip only 3-4 mm of insulation from each wire end to prevent short circuits when inserting into the harness connector. Twist the stranded copper tightly between your fingers to keep all strands together before crimping or soldering. Use heat-shrink tubing for insulation instead of electrical tape; it lasts longer under the dash’s temperature swings and vibration.
The factory harness typically carries a constant 12V lead (yellow), switched 12V (red), ground (black), and illumination wire (orange with white stripe). Verify each wire’s function with a multimeter before powering up–mistaking the illumination wire for switched power can drain the battery overnight. Set the multimeter to DC voltage, probe the wire against chassis ground, and confirm readings match expected values:
| Wire Color | Expected Voltage |
|---|---|
| Yellow | 12V constant |
| Red | 12V when ignition ON, 0V OFF |
| Orange w/ white stripe | ~1V–12V variable with dash dimmer |
| Black | 0V (chassis ground) |
Connecting tweeters and woofers to the same channel without a crossover will damage the tweeters within minutes. If the new head unit lacks built-in crossovers, insert an inline capacitor (typically 1–2.2 µF) in series with each tweeter wire. This blocks low frequencies while passing highs, preserving speaker integrity under sustained play.
Secure every connection with crimp caps or solder joints, then wrap each joint in heat-shrink. Bundle wires away from moving pedals, steering columns, and sharp metal edges using zip ties every 8–10 cm. Route the antenna lead (usually blue/white) directly to the factory antenna plug–skipping this step will result in weak or no radio reception despite a functional amplifier.
Antenna and Amp Activation Lead: Proper Connections
Locate the blue wire labeled “ANT” or “Amp” in the harness; this controls the motorized antenna power or amplifier turn-on signal. Connect it directly to the corresponding blue wire on the aftermarket head unit–never splice it into accessory circuits powered through ignition switches. Using a relay prevents voltage drop when multiple devices share this lead.
Verify the antenna motor uses a 12V trigger by testing with a multimeter before finalizing connections. Some vehicles integrate this function into a multiplexed body control module, requiring an ISO adapter harness to maintain functionality without splicing into OEM networks. Incorrect tapping risks damaging the antenna motor or amplifier.
Tools and Components Needed
- Crimping tool with insulated connectors
- 40-watt soldering iron (for secure joints)
- Heat-shrink tubing or electrical tape
- SPDT relay (if voltage drop exceeds 0.5V)
- Wire strippers calibrated for 18–22 AWG
- Digital multimeter (auto-ranging)
For amplified systems, route the turn-on lead away from high-current wiring like alternator outputs or ground loops. A poorly shielded path can introduce alternator whine or RF interference visible on signal waveforms. Use braided ground straps connected to chassis points with under 0.2 ohms resistance for optimal performance.
When retrofitting an external amplifier, confirm compatibility with the head unit’s preamp outputs. Most aftermarket units provide 2V–4V preamp voltage; if the amplifier expects 5V+, insert a line output converter (LOC) or adjust gain settings to avoid signal clipping. Measure DC offset on preamp outputs–values above 50mV indicate a faulty ground reference.
Troubleshooting Common Issues
- If the antenna fails to extend, check fuse continuity (typically 7.5A) and continuity between the trigger wire and chassis ground in rest mode.
- Persistent amplifier noise suggests a shared ground path; relocate the amplifier’s ground to a dedicated chassis point at least 18 inches from other grounds.
- Low volume or distortion may result from incorrect impedance matching–amplifiers expect 4–8 ohm loads; verify speaker impedance before installation.
- Test the antenna lead’s voltage (should read 12V when the unit powers on); if missing, trace back to the head unit’s connector pinout.
