Ford Mustang Shaker 500 Audio System Wiring Guide for 2008 Models
Start by locating the main harness connector behind the factory head unit. Pin assignments for the 12-pin plug follow this sequence: A (constant 12V), B (ground), C (illumination), D (ACC power), E (left front speaker positive), F (left front speaker negative), G (right front speaker positive), H (right front speaker negative). Verify these connections with a multimeter before modifying any circuits–incorrect wiring risks fusing the amplifier or damaging the audio processor.
For aftermarket integration, isolate the RCA preamp outputs at the crossover module (typically mounted under the driver’s seat). The stock system uses twisted-pair wiring with foil shielding–retain this arrangement when splicing into the signal path. Cut the factory leads at least 6 inches from the connector to allow for soldering or crimp connections. Match impedance: the amplifier outputs expect 4-ohm loads; substituting 2-ohm speakers without recalibrating the gain settings will overheat the internal components.
Trace the power distribution block near the battery. The red/light blue stripe wire feeds the amplifier’s remote turn-on; splice here for aftermarket head units. Keep runs under 18 AWG to prevent voltage drop. The pink/orange wire supplies 10A fused power–ensure your replacement harness includes an inline fuse no larger than 15A to comply with the vehicle’s electrical specifications.
Test speaker polarity with a 9V battery before finalizing connections. A weak or distorted output frequently stems from reversed-phase wiring in the door tweeters or subwoofer terminals. For troubleshooting, disconnect the negative battery terminal, then systematically probe each connection with an ohmmeter. Shorts in the rear trunk wiring loom often mimic amplifier failure–inspect the coaxial cables for frayed insulation where they pass through the body grommets.
Premium Audio System Electrical Layout: Complete Breakdown
Disconnect the battery negative terminal before handling any connections to prevent short circuits or accidental speaker blowouts. Use a multimeter set to continuity mode to verify each wire’s function, especially the amplifier trigger line (typically violet with a white stripe) that interfaces directly with the head unit’s power antenna output. Label every harness segment with masking tape to avoid cross-wiring the 12-speaker setup–left and right channels share identical color codes but feed entirely different acoustic zones.
Key Harness Pinout Reference
| Connector | Wire Color | Function | Voltage (DC) |
|---|---|---|---|
| C100 (Main) | Yellow/Brown | Constant 12V | 11.8–14.4 |
| C100 | Light Green/Red | Right Rear Door Tweeter (+) | 3.2 (peak) |
| C101 (Amp) | Grey/Violet | Subwoofer Remote Turn-on | 12.0 (switched) |
| C102 | White/Orange Stripe | Dash Left Mid (+) | 2.8 (peak) |
| C103 | Dark Green/White | Antenna Motor Control | 9.5–12.5 |
Route the subwoofer wiring away from the OBD-II port and ABS module harnesses; induced noise can distort bass frequencies below 60Hz. Secure the twisted pair (grey/violet for positive, grey/black for negative) with zip ties every 6 inches–loose wires behind the rear seatback rattle at highway speeds. Test the dedicated ground point (bare chassis stud near the spare tire) with a 0.3-ohm resistance reading; anything higher than 0.5 ohms requires wire-brush cleaning and star-washer installation for proper conductivity.
Check the in-line fuse (20A) on the constant power line before reinstalling the radio fascia; a blown fuse often masquerades as amplifier failure but silently kills retained accessory power. The crossovers built into the door panels require direct 16-gauge speaker wire, not the factory twisted pair–using anything thinner introduces phase lag at 2.5kHz crossover points. Verify that damping material (butyl rubber or dynamat) covers the inner door skins; untreated metal vibrates sympathetically at 90–110 Hz, muddying mid-bass transients.
Adjust the amplifier gain settings with a test CD (1kHz sine wave at 0dB) and an oscilloscope connected to the subwoofer outputs–target 18V peak-to-peak for clean clipping-free output. Re-check all ground connections after temperature cycles (overnight cooling) as thermal contraction can loosen compression terminals; a loose ground manifests as intermittent subwoofer dropout during sustained low frequencies.
Finding the Premium Sound System Amplifier Harness Links
Start by tracing the factory audio module’s rear panel–the amplifier sits directly behind the left rear quarter trim panel, secured by two T20 Torx screws and a single 10mm bolt near the wheel well. Disconnect the battery’s negative terminal before handling the harness to prevent shorts. The main 24-pin connector (black, rectangular) carries power, signal, and ground lines; label each wire with tape before unplugging to avoid mix-ups during reinstallation.
Key Connector Pinouts
Pin 1 (red/light blue) delivers constant 12V+ from the fuse box (F6, 30A), while pin 2 (black/white) grounds to chassis via a star washer–clean the contact surface with a wire brush before reattaching. Pins 3-6 (gray/violet, gray/orange, gray/brown, gray/yellow) feed front and rear speakers; verify continuity with a multimeter (4-8 ohms expected). Pins 7-10 handle subwoofer outputs (dark green/white for +, dark green for -); miswiring here causes phase cancellation.
For audio signal input, locate the 8-pin mini-connector (gray, oval) near the amplifier’s right side–pins A and B (white/purple, white/black) carry left/right RCA-level signals from the head unit. If bypassing the factory radio, splice these wires to aftermarket RCA cables using crimp connectors (not solder) to maintain signal integrity. Secure all connections with loom tape, routing harnesses away from sharp edges or moving parts like the trunk latch linkage.
Decoding Wire Colors and Roles in Your Pony Car’s Sound System

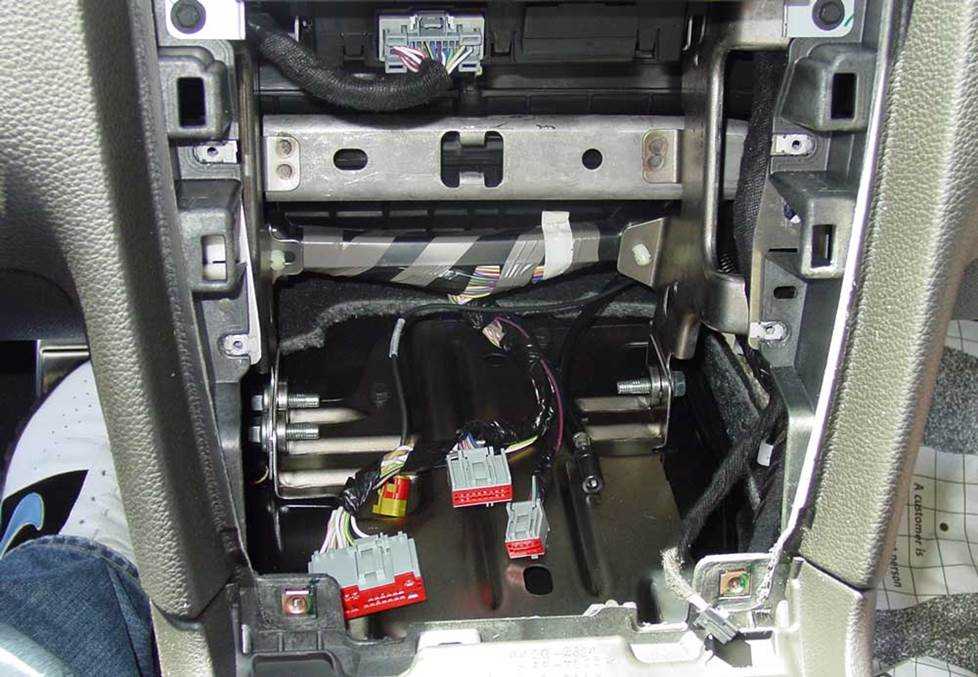

Start by locating the 12-pin harness connector behind the head unit–pin positions are standardized across this performance coupe’s audio variants. The pink/black wire (pin 1) delivers constant 12V power from the battery, critical for memory retention; verify with a multimeter showing 12.6V even when the ignition is off. For switched power, trace the yellow/black lead (pin 3) which activates only in ACC or ON positions–expect 0V when the key is removed. Ground connections use black wiring (pins 5 and 8); optimal performance requires these to be splice-free and secured directly to factory grounding points near the firewall, not the chassis.
- Orange/white (pin 2): Illumination trigger – dims dashboard lights with headlight activation. Test by cycling headlights; voltage should drop from 12V to ~3V in low-beam mode.
- Gray/red (pin 4): Speed-sensitive volume – adjusts output based on vehicle speed. Connect to the VSS (vehicle speed sensor) at the transmission; signal should pulse between 0-5V at 2Hz per mph.
- Light blue/white (pin 6): Mute control – interrupts audio during phone calls or reverse gear. Confirm functionality by probing while engaging reverse; expect ~12V spike.
- Dark green/violet (pins 9/10): Front left/right speaker leads – +14.4V peak-to-peak signal carrying full-range audio. Check polarity by playing a 1kHz test tone; positive terminal should show DC offset when measured with an oscilloscope.
- Violet/pink and gray/light blue (pins 11/12): Rear speaker outputs with identical voltage characteristics as front channels but routed through separate harness paths to prevent signal degradation.
Always disconnect the negative battery terminal before probing and use a non-marring probe tool to avoid damaging insulation. Factory harnesses use 18-gauge wire except for amplified speaker leads (16-gauge); substituting thinner wire will introduce impedance mismatch and potential overheating in high-powered setups.
Connecting Aftermarket Audio Components: A Precise Guide
Locate the factory harness connector behind the OEM stereo–pinouts vary by trim but typically include power (yellow, 12V constant), ignition-switched (red), ground (black), and speaker outputs (grey, white, purple, green). Use a multimeter to verify voltages before mating to the new unit’s harness adapter. Match wire colors strictly; mismatches risk shorting delicate amplifier circuits or blowing fuses. Label each connection with masking tape to prevent cross-wiring during reassembly.
Harness adapters simplify integration, but splice directly for unfiltered signal paths if bypassing factory amplification. Cut ½ inch of insulation from each wire, twist strands tightly, then apply solder for corrosion resistance–crimping alone loosens over time. Wrap joints in adhesive-lined heat shrink tubing to seal out moisture. For amplified systems, tap into the original speakers’ positive/negative leads (solid/dashed lines in schematics) using T-taps to maintain factory crossovers without degrading audio clarity.
Grounding and RCA Signal Routing
Mount the new head unit’s chassis ground to bare metal near the dash stud–a weak ground introduces alternator whine or distorted bass. Run RCA cables away from power wires to minimize interference; bundle signal cables with zip ties at 90-degree angles to power conductors. If retaining the subwoofer, reuse the existing relay module’s trigger wire (blue/white, 12V when active) or install a new relay if removing the factory amp. Test each channel at low volume before finalizing dashboard reassembly; failing speakers often reveal themselves during this step.
