Complete Wiring Diagram for 2008 Nissan Frontier Stereo System Installation
Begin by locating the OEM harness behind the factory head unit–match the color-coded wires to the aftermarket adapter. The constant power lead (typically yellow) must connect to a fused ignition source to avoid battery drain. Ground wires (black) require direct attachment to bare metal, sanded to remove paint or corrosion, for stable signal transmission. Speaker outputs (white/gray, green/violet pairs) should never touch each other or chassis to prevent short circuits.
Verify the illumination wire (orange) aligns with dashboard dimming controls if retaining factory lighting functionality. For amplified systems, splice the remote turn-on (blue/white stripe) to activate external components simultaneously. Use crimp connectors or solder with heat-shrink tubing; twist-and-tape methods fail over time under vibration. Test connectivity with a multimeter before final assembly–resistance below 0.5 ohms confirms proper grounding.
Consult the vehicle-specific pinout for accessory power (red) if integrating USB chargers or backup cameras. Nearby harnesses often include parking brake detection (light green) and reverse signal wires–address these early to avoid rework. Aftermarket units lacking a CAN bus interface may require bypass relays or steering wheel control adapters to restore full functionality. Document each connection with photographs or labeled notes for future troubleshooting.
Understanding Your Pickup’s Audio System Connections
Begin by locating the factory harness behind the head unit–typically a 20-pin connector with color-coded wires. For aftermarket integration, match the following pinout to avoid signal loss or electrical shorts:
| Wire Color | Function | Voltage (Key On) |
|---|---|---|
| Yellow (thick) | Battery (+12V) | 12V |
| Red (thin) | Ignition Switched (+12V) | 12V |
| Black (striped) | Ground | 0V |
| White (+) | Front Left (+) | 2V |
| White/Black (−) | Front Left (−) | NA |
| Gray (+) | Front Right (+) | 2V |
| Gray/Black (−) | Front Right (−) | NA |
Use a multimeter to verify voltages before splicing; factory harnesses often include thin-gauge wires like pink (illumination control, 12V when headlights are on) or light blue (power antenna/amplifier turn-on, 12V). For vehicles with premium sound systems, a separate amplifier harness (usually 8-12 pins) must be interfaced–misfiring this step mutes rear speakers or triggers error codes. T-tap connectors or soldered joints prevent corrosion; avoid twist-and-tape methods.
If retaining the steering wheel controls, procure an adapter specific to the model year’s protocol (e.g., Axxess ASWC-1)–generic interfaces fail to map buttons correctly, leading to erratic volume spikes or unresponsive tracks. Secure all connections with loom tubing or electrical tape rated for automotive use (at least 150°C tolerance).
How to Match Color Codes to Audio System Connections
Locate the 12-pin harness behind the factory head unit–focus on these color-code pairs for immediate verification:
- Solid yellow: Constant 12V power, fuse-protected (10A). Verify voltage with a multimeter before connecting to aftermarket amplifiers.
- Red with black stripe: Switched 12V, activates with ignition. Use for memory retention in third-party receivers.
- Black: Ground, often bundled with two others. Scrape paint at chassis contact points to prevent corrosion-induced noise.
- Gray with red stripe: Front left speaker (+), pairs with gray with black stripe (–). Double-check impedance (4Ω standard).
- White with black stripe: Front right speaker (–), complements white (+). Reverse polarity distorts mid-range frequencies.
- Green: Rear left speaker (+), green with black stripe (–). Wrap exposed wires in heat-shrink tubing to avoid short circuits near exhaust routing.
- Purple: Rear right speaker (+), purple with black stripe (–). Test with a 9V battery before full installation–audible pop confirms proper pairings.
Hidden Harness Functions Often Overlooked
Three less-documented wires may appear in the main bundle:
- Light blue with white stripe: Antenna trigger. Supplies 12V to factory antenna motor–critical for vehicles with retractable units. Omit if installing a fixed mast.
- Orange or orange with white stripe: Illumination control. Dimmer circuit adjusts display brightness in sync with dash lights. Connect to aftermarket radios only if they support variable voltage (0–12V).
- Brown with white stripe: Mute wire. Grounding this line cuts audio abruptly–test by bridging to chassis temporarily.

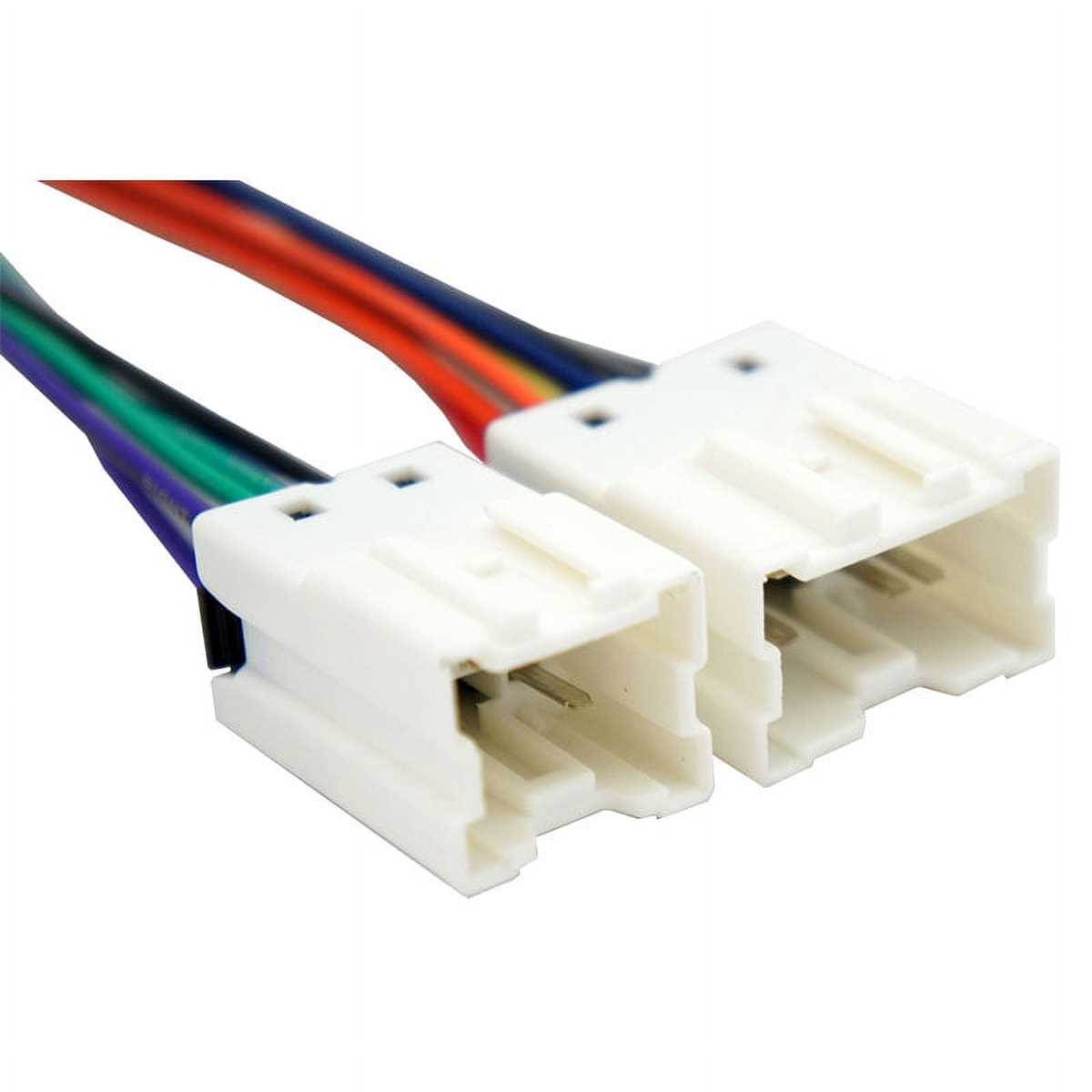

Use a harness adapter (Metra 70-1711) to simplify these connections, but tin all custom splices with rosin-core solder for long-term reliability.
For vehicles equipped with steering-wheel controls, an additional 6-pin sub-connector includes:
- Gray with blue stripe: Data bus (CAN), carries button presses–requires a PAC SWI-X or Axxess ASWC-1 interface for aftermarket integration.
- Solid pink: Reverse signal override. Engages backup camera if installed. If omitted, rear-view activation defaults to manual switch operation.
How to Access the Audio System Connectors Behind the Center Console
Disconnect the negative battery terminal first–this prevents short circuits and resets the vehicle’s radio codes. Remove the gear shift trim panel by prying the edges with a flat-head screwdriver; two clips on the rear side and a single tab beneath the front edge secure it. Set it aside, revealing the lower section of the dash frame where two Phillips screws hold the HVAC control module–remove them next.

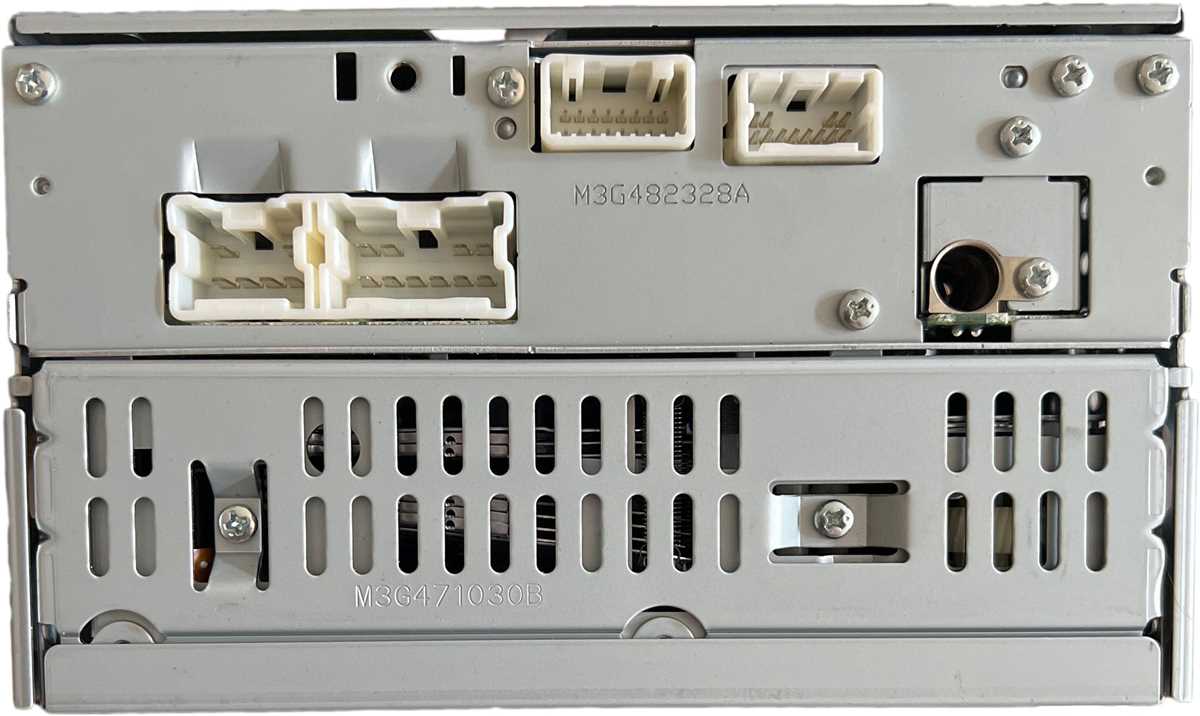

Slide the climate control unit outward carefully; a wiring cluster will be attached to its rear–avoid tugging the harness. Behind it, locate the audio head unit’s mounting bracket–four screws (two top, two bottom) secure it. Extract the head unit halfway to expose the main connector block at the back, then press the release tab on the left side to detach the harness. Note the wire colors and their positions: white (left front), gray (right front), green (left rear), violet (right rear), yellow (constant power), red (accessory), and black (ground).
If resistance is felt during harness removal, check for secondary locking clips on the connector’s sides–these often require simultaneous pinching to release fully. For verification, use a multimeter set to DC voltage: probe the yellow and black wires while the ignition is off (should read 12V); probe red and black with the key in the ACC position. Any deviations indicate a blown fuse (check slot 13 in the under-dash panel) or a severed wire behind the kick panel near the driver’s side.
Integrating Third-Party Audio Power Leads with Stock Harness Connectors
Locate the OEM 14-pin harness behind the dash cluster–its outer two pins (A and N) carry constant 12 V and ground. Splice the red ignition wire from the new head unit into pin K (switched 12 V) using a crimp connector rated for 18 AWG; avoid solder on this circuit to prevent voltage drop during high-current transients.
Mute function activation requires tapping the vehicle’s data bus at pin F (light-green/yellow). Strip ¼ inch of insulation, insert into a male 0.110” spade terminal, then mate it with the aftermarket harness’s purple/white lead; the factory amplifier will remain muted until the new interface sends a 5 V pulse.
For amplifier turn-on, connect the blue/white remote lead to pin E (solid blue) of the stock plug–this triggers the internal amp three seconds after accessory power is detected. If the subwoofer output distorts, add a 100 Ω resistor in series to reduce turn-on pop; omit the resistor only if the dash display complains of “no audio output.”
Test each connection with a multimeter set to 20 V DC scale–probe the reverse side of the harness connector while cycling the ignition. Voltage readings below 11.8 V indicate a partial short; trace with a tone generator before reassembling the dash panel. Color codes on the third-party harness often differ: red → switched, yellow → constant, black → chassis ground.
Harness Pin Mapping Cheat Sheet
- A: permanent battery (yellow)
- B: illumination (-) (brown/orange)
- F: mute control (light-green/yellow)
- K: ignition (+) (red)
- M: left front (+) (gray)
- N: chassis ground (black)
Secure all splices with heat-shrink tubing–exposed copper corrodes in as little as 800 miles of high-humidity operation. Replace the factory fuse (15 A mini-blade) with a 20 A fuse only if the new radio draws more than 12 A peak; the stock harness tracks melt at 18 A.
Diagnosing Faults in Aftermarket Audio Installations
Check the fuse on the power wire if the head unit fails to power on. Locate the inline fuse holder near the battery or distribution block–most harnesses use a 10-amp fuse for the main 12V feed. Replace it with an identical rating; a blown fuse often indicates a short in the constant or switched power lines. Use a multimeter to verify voltage: probe the yellow wire (permanent live) at the harness connector–readings below 11.8V suggest a corroded connection or undersized wire gauge.
Intermittent Sound or No Audio Output
Inspect speaker wires for partial breaks or pinched sections, especially where they pass through door jambs or chassis grommets. Strip 5mm of insulation from both ends of suspect wires, twist strands tightly, and solder for a permanent fix–crimp connectors often fail under vibration. Verify each channel’s impedance with a test tone: a 4-ohm speaker drawing 6W or less at 1kHz confirms correct wiring; deviations point to reversed polarity or incorrect tapering on multi-amp setups.
Static or distortion during volume changes usually stems from poor ground connections. Scrape paint or undercoating from the mounting surface until bare metal is exposed–use a serrated washer to penetrate oxide layers. Secure the ground cable with a self-tapping screw no longer than 6mm to avoid damaging internal threads. For vehicles with aluminum bodies, apply a toothed grounding plate and star washer to ensure conductivity; corrosion inhibitors like dielectric grease prevent future oxidation.
Test the remote turn-on wire (blue/white) with a 12V test light–no illumination when the ignition is switched to ACC or ON signals a faulty relay or blown fuse in the factory amplifier circuit. Tap into the fuse box at slot 42 (20A) for a clean 12V source if the original trigger wire is compromised. Bypass factory amplifiers by connecting directly to aftermarket RCA jacks; set the head unit’s high-pass filter to 80Hz to prevent subwoofer damage from low-frequency overload.
