Complete Wiring Guide for 2008 Nissan Titan Radio Harness and Diagram

For owners needing precise connections, start by locating the factory harness behind the dashboard’s lower panel on the driver’s side. Three primary plugs service the head unit: a 16-pin ISO connector for power and speaker outputs, a separate 8-pin harness for antenna triggers, and a ground wire secured to the chassis within six inches of the unit. Identify the solid yellow (constant 12V), red (switched 12V), and black (ground) wires before proceeding–these form the backbone of the circuit.

Trace the speaker wires next. Front left and right channels use 18-gauge wires with gray (+) and gray/black (-) stripes for the driver-side door, while the passenger side switches to white (+) and white/black (-) for the co-driver’s tweeter. Rear outputs follow violet (+) and violet/black (-) for the left panel and green (+) and green/black (-) for the right. Avoid relying on wire colors alone–confirm with a multimeter set to 200-ohm continuity mode, testing each pair for resistance between 4 and 8 ohms.

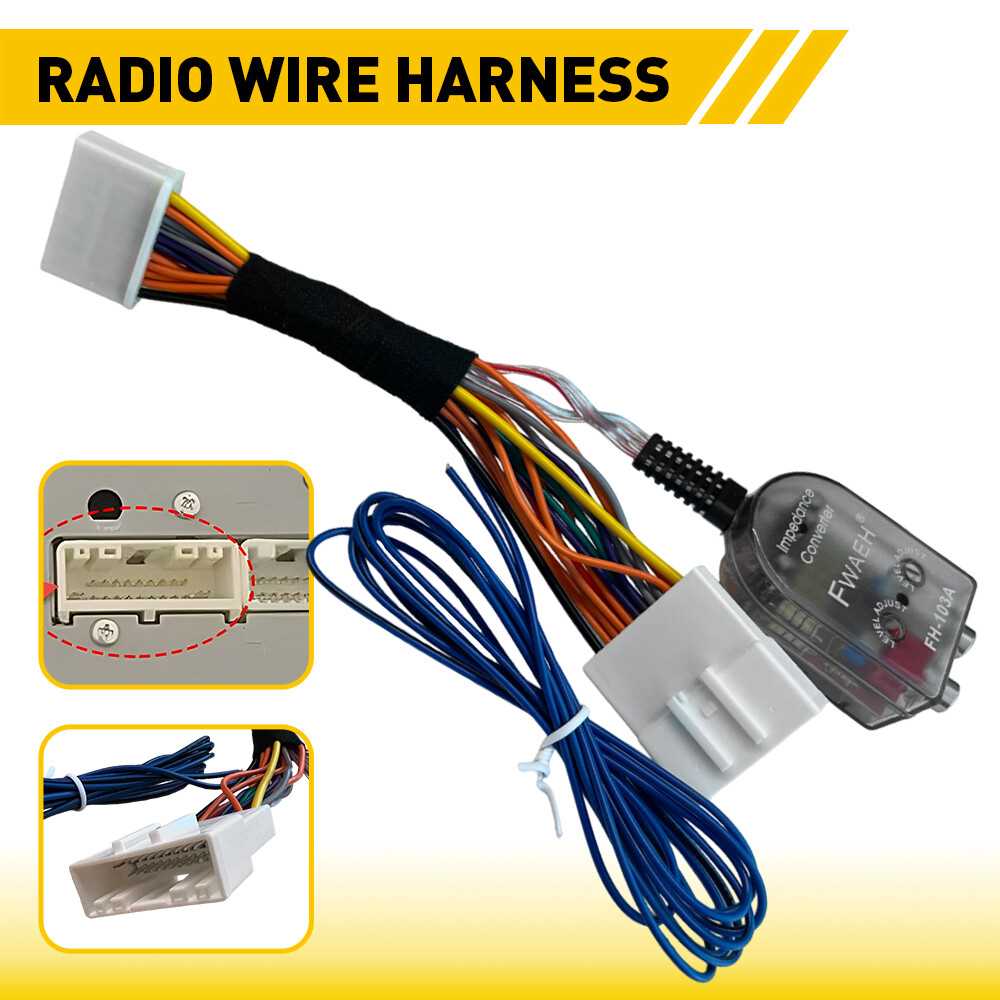

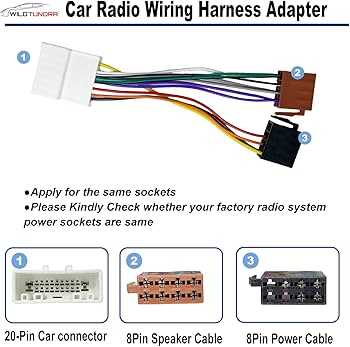

Retrofitting an aftermarket stereo requires bridging the original harness to an adapter, such as Metra 70-1761. Match the constant and switched power leads first, then connect the illumination wire (orange, 12V from lighting switch) to maintain dimming compatibility. Leave the orange/white antenna control wire disconnected unless integrating a powered antenna. Ground the new unit’s bare metal housing directly to the chassis–avoid using the existing ground wire to prevent interference.

For amplified systems, disconnect the factory wiring entirely. Run 12-gauge power cables from the battery through a 40-amp fuse, routed away from the fuel lines and brake lines. Use split-loom tubing between the firewall and engine bay to prevent chafing. Distribute speaker wires in parallel runs, securing them with zip ties every 12 inches. Test each connection with the ignition off before reassembling the dash–look for error codes or flickering displays, which indicate reversed polarity or short circuits.

Final verification involves a battery load test. Set the multimeter to 20V DC and check voltage at the harness with the engine running–consistent readings between 13.8V and 14.5V confirm proper charging. If static persists, shield RCA cables with foil or relocate them away from power wires. For persistent issues, inspect the fusible link near the starter relay, which often degrades in high-mileage models.

Wiring Guide for Aftermarket Audio Systems in 2008 Full-Size Trucks

Disconnect the battery’s negative terminal before handling any electrical connections to prevent shorts or damage. Locate the factory harness behind the dashboard on the driver’s side–it’s a 12-pin plug with color-coded wires. Use the following pinout for correct integration:

• Solid yellow: Constant 12V power (fused at 10A)
• Red with black stripe: Switched 12V (ignition-controlled)
• Black with white stripe: Ground (connect to chassis for stable signal)
• Gray with black stripe: Front left speaker (+)
• Gray: Front left speaker (–)
• White with black stripe: Front right speaker (+)
• White: Front right speaker (–)
• Green with black stripe: Rear left speaker (+)
• Green: Rear left speaker (–)
• Purple with black stripe: Rear right speaker (+)
• Purple: Rear right speaker (–)
• Light blue/white: Amplifier remote turn-on (optional)

For vehicles with premium sound systems, an additional 8-pin plug may be present–this carries amplified signals and requires adapter harnesses (e.g., Metra 70-7552) to interface with aftermarket units. Verify wire gauge matches the replacement system’s requirements; most OEM leads use 18-20 AWG, while high-power setups need 16 AWG or thicker.

Troubleshooting Common Integration Issues

If audio cuts out intermittently, check for corroded terminals in the factory connector–clean with electrical contact cleaner and re-crimp connections. For no sound on one side, test speaker impedance (

Finding Audio System Plugs Behind the Instrument Panel

Lower the driver’s side kick panel by removing two 10 mm fasteners–one near the hood release and another above the fuse box. Use a trim tool to pry the panel loose along its lower edge, avoiding force around the courtesy light wiring.

Disconnect the negative battery terminal before proceeding. Pull the lower dash bezel straight toward you to detach it from the mounting clips; it conceals the left side of the audio module housing.

Connector Color	Pin Count	Typical Use
Light blue	16	Speaker outputs (front/rear)
Dark gray	12	Power/ground distribution
Black	8	Steering wheel controls
White	6	Illumination/antenna feed

Locate the silver metal bracket securing the climate control unit; remove the single Phillips screw at its lower left corner. Gently pivot the climate module forward to expose the backside of the audio head unit assembly.

Trace the bundled cables exiting the rear of the head unit–these terminate in the factory connectors listed in the table above. Match each plug by shape and color prior to detachment to prevent misalignment during reinstallation.

Press the release tab on the underside of each connector while pulling outward with consistent force; excessive tension risks breaking the locking mechanism. Label each connector with painter’s tape if removing multiple at once.

Rotate the climate module back into position to access the lower harness cluster if needed. Secure all modules loosely before final tightening to prevent stress on wiring during reassembly.

Decoding Electrical Connections: Power, Earth, and Audio Signal Lines

Locate the 12V constant feed–typically a yellow or orange cable–before probing any harness. Confirm voltage with a multimeter set to DC 20V range; expect 11.5–13.5V on this line without accessory activation. The switched power lead, often red or light purple, should drop below 0.5V when the ignition is off. For earth, seek a black, brown, or occasionally dark green wire terminating directly to chassis ground; zero resistance reading on continuity mode verifies integrity.

Speaker outputs follow a consistent pattern: front left positive (+) wires are white or light gray, paired with negative (-) leads carrying thin purple, black, or dark blue stripes. Rear channels mirror this logic–gray or green for positive, matched with striped companions in deep red, dark blue, or occasionally orange. Polarity testing involves connecting a 9V battery briefly to each pair; correct pairing produces a distinct, directional pop from the driver without distortion. Misidentified polarity risks phasing issues, audible as weak bass response.

Mismatched or deteriorated connectors often disguise themselves as dead zones–inspect for brittle insulation, corrosion (white or green deposits), or frayed strands before concluding a line is inactive. Repair compromised wires with heat-shrink splices; avoid electrical tape for long-term reliability. Verify every connection at the harness plug before soldering or crimping–intermittent failures frequently stem from overlooked oxidation at pin terminals rather than faulty wire integrity.

Step-by-Step Guide to Extracting the OEM Audio Head Unit

Disconnect the vehicle’s battery terminal first–negative cable only–to prevent short circuits during removal. Use a 10mm socket or wrench to loosen the clamp, then slide the cable off and secure it away from metal contact points. Failure to do this risks damaging the car’s electrical system or triggering airbag deployment errors.

Remove the trim panel surrounding the dashboard center console. Most modern pickups use snap-in clips; pry carefully with a plastic trim tool starting from the bottom edge to avoid cracking the panel. Work your way around, releasing each clip in sequence–there are typically 4-6 on the front face and 2 on each side. If resistance is met, stop; forcing it can break the tabs.

Locate and remove the mounting screws holding the head unit in place. Depending on the model year, expect 2-4 screws (usually Torx T-20 or Phillips #2) positioned vertically on either side of the unit. A magnetic screwdriver prevents dropped hardware from slipping into dashboard cavities. Set screws aside in a labeled container to avoid misplacement.

• Release the factory wiring harness by pressing the retaining clip on the rear plug–no cutting or splicing required unless aftermarket adapters are involved.
• Detach the antenna lead last; twist slightly while pulling straight back to avoid bending the connector pin.
• If the climate control module is integrated, unplug its harness separately–mistakes here can disable HVAC functions.

Slide the unit out slowly, tilting it downward if necessary to clear the dashboard frame. The unit’s depth is usually 6-8 inches, so angle it forward to avoid snagging internal components. If the unit feels stuck, double-check for hidden screws or retaining brackets–some trim levels include a secondary brace at the top edge.

Reinstallation follows the reverse sequence. Align the new unit’s mounting tabs with the dashboard slots, then secure screws firmly–over-tightening can strip the threads. Reconnect all harnesses, ensuring clips click fully into place, then reattach the trim panel by pressing until each snap engages. Reconnect the battery last and test all functions before finalizing dashboard reassembly.

Integrating a Third-Party Sound System into Your Full-Size Pickup’s Electrical Network

Begin by identifying the OEM harness behind the factory head unit. Locate the 12-pin connector labeled A1-A12 and B1-B12–this variant is common across large trucks from the late 2000s. Pin A4 delivers constant 12V power, A7 supplies ignition-switched voltage, and A8 serves as ground. Match these functions precisely when splicing the aftermarket harness to avoid draining the battery or frying the new stereo’s circuits.

Use a multimeter set to DC volts to verify each wire’s purpose before cutting. Probe A4: it should read 12.6V whether the key is off or on. A7 must show 0V with the key off and jump to 12V when turned to ACC or ON. If readings deviate, check the fuse box–blown fuse 17 (10A) often explains missing power. Replace damaged or corroded wires with 16-gauge copper strand, soldering joints and sealing them with adhesive-lined heat shrink tubing.

For audio signals, the B-pins carry speaker outputs: B1/B2 front left (+/-), B3/B4 front right, B5/B6 rear left, B7/B8 rear right. Strip only 3mm of insulation, twist tightly, and crimp female spade terminals onto each wire. Avoid tinning the ends–this weakens the connection over time. If the new system lacks RCA preouts, tap into these speaker wires using a line output converter with a built-in amplifier. Set the converter’s gain to 1.5V RMS for balanced sound without distortion.

Install an inline fuse holder within 18 inches of the battery on the constant power wire (red). Use a 10A fuse for standard head units; upgrade to 20A if adding a subwoofer amp. Route this wire through the firewall via the existing grommet near the brake master cylinder–drill only if necessary, sealing any new holes with silicone to prevent water intrusion. Ground the new stereo by scraping clean a bare metal spot on the truck’s chassis, securing the wire with a star washer to ensure low resistance.

Test the installation with the key off: power antenna (if equipped) should retract, and the display should remain dark. Turn the key to ACC– the stereo should power on immediately. Activate the hazard lights; if the display flickers, the grounds or power delivery are insufficient. Adjust the new unit’s dimmer settings to match the dashboard brightness, preventing glare during night driving. Pair Bluetooth devices while stationary, ensuring the microphone–mounted near the rearview mirror–picks up voice clearly without echo.

For steering wheel controls, wire a resistor-based interface module between the factory switch pack and the aftermarket harness. Map the buttons using the module’s software: volume up/down, track skip, and voice command typically default to the same functions as the OEM setup. If the horn honks when pressing a button, reverse the polarity of the input leads on the module. Secure all loose wires with split loom tubing, zip-tying them to existing harnesses to prevent rattling.

Finalize by reprogramming the truck’s ECU to recognize the aftermarket system–this step is critical for retaining auxiliary functions like chimes and warning tones. Disconnect the negative battery terminal for 10 minutes, then reconnect it to reset the system. If the “no start” message appears, cycle the ignition five times within 10 seconds to reinitialize the CAN bus. Verify all functions before reassembling the dash panels.
