Complete Wiring Diagram Guide for 2009 Chevy Traverse Electrical Systems

Begin by locating the official service manual for the model year in question, as it contains the most accurate fuse box, harness, and connector layouts. Avoid aftermarket diagrams–they often omit critical details like pin assignments, wire gauge, or color codes, leading to misdiagnosis when troubleshooting sensor failures or power distribution issues.

For the 2008–2010 platform variant, focus on three primary sections: the power distribution wiring (including the under-hood fuse block and TIPM), the body control module (BCM) connections, and the rear liftgate harness. Each segment uses a distinct color-coding system–red/white for constant 12V, yellow/black for ground, and orange for high-speed CAN bus communication. Cross-reference these with the vehicle’s build sheet to confirm harness routing, especially if retrofitting aftermarket components.

Use a multimeter to verify continuity before relying on schematics. Probe connectors at the X2 and X3 bulkhead terminals (driver-side kick panel) to confirm voltage drops across critical circuits, such as the fuel pump relay or HVAC blower motor. If a wire trace ends at a splice (marked “S” followed by a number on GM documents), expect shared pathways with other systems–common failure points include the rear defroster grid and trailer tow harness.

For rapid pinpointing of shorts or opens, disconnect the battery and use a low-resistance tone generator (avoid high-wattage test lights). Start at the component and work backward, noting that ground circuits often terminate at chassis points labeled “G” (e.g., G101 near the left-front strut tower). Document every measurement; discrepancies under 0.5 ohms usually indicate corroded terminals, not wiring faults.

If working with third-party repair databases, filter results by VIN-specific revisions. Some online sources omit mid-year updates–for example, late 2009 production models revised the BCM grounding scheme for theft-deterrent systems, rendering earlier schematics partially inaccurate. Prioritize manufacturer-issued corrections over forum posts, which frequently mislabel auxiliary power outlets or trailer wiring.

Electrical Layout for the 2008 GMC Acadia: Hands-On Troubleshooting

Start by locating fuse box B under the dashboard on the driver’s side–it houses relays for the HVAC blower and rear defogger. Pin 30 of relay K12 connects directly to terminal C240 (blue/white stripe), feeding the blower motor at 12V constant. If voltage drops below 11.8V at C240, inspect the ground splice G310 near the left kick panel; corrosion here mimics a failed blower resistor. Replace splice connectors with tin-plated crimps rated for 20A to prevent intermittent failures under humidity.

Power Door Lock Circuit Anomalies

Door lock actuators draw 8-10A during actuation–measure current surge at fuse F47 (25A) while cycling the locks. A reading above 15A indicates a binding actuator; disassemble the door panel to lubricate the mechanism with lithium grease on the regulator rails. For the passenger-side rear door, trace the yellow/black wire from connector X500 to actuator terminal B–this segment is prone to chafing against the window track. Wrap exposed sections in adhesive-lined heat shrink tubing sized for 18AWG wire, ensuring no exposure exceeds 3mm.

Headlight switch faults often misdiagnosed as bulb failure stem from corroded terminals at plug H25. Clean contacts with a brass bristle brush, then apply dielectric grease to pins 6 (dimmer relay) and 10 (park lamp feed). If high beams flicker, verify continuity between BCM pin M3 and headlight relay socket–resistance above 0.5 ohms necessitates replacing the under-hood relay block bracket, a recurring GM TSB issue (document #08-08-42-005).

Finding Official Electrical Schematic PDFs for the Mid-Size Crossover SUV

Start with the manufacturer’s authorized service portal–GM Global Connect offers the most reliable schematic files under the vehicle’s VIN-specific repair manuals. Access requires a paid subscription, but it guarantees unmodified OEM data, including fuse box layouts, sensor pinouts, and harness routing for all trim levels. Free alternatives frequently contain errors or outdated revisions, so avoid crowdsourced PDF repositories unless verified by a GM-trained technician.

Source	Access Type	File Accuracy	Update Frequency
GM Global Connect	Subscription	100% OEM	Quarterly
Helm Inc.	Paid single download	98% OEM	Annually
AlldataDIY	Subscription	95% OEM	Bi-annually
ManualsLib	Free	80% unverified	Irregular

Verifying Alternative Sources

If official portals are unavailable, cross-reference three independent PDFs before proceeding. Focus on consistent part numbers and connector colors–mismatches often indicate corrupted files. Dealer service departments occasionally share schematics under warranty claims; request the document reference ASC18974 for the electrical section.

Step-by-Step Wire Color Identifiers for Primary Vehicle Circuits

Locate the fused power supply for the body control module (BCM) by tracing the orange (ORG) conductor with a black stripe (ORG/BLK) from terminal 30 of the underhood fuse block. This 10-gauge feed supplies 12V constant to the BCM’s ignition input (pin 58) and must be verified before proceeding to downstream circuits–failure to confirm will corrupt sensor data during diagnostics. For the rear liftgate actuator, follow the dark blue (DK BLU) wire from the liftgate switch to the motor assembly, ensuring continuity through the ground splice near the left D-pillar; resistance above 0.5 ohms indicates corrosion requiring terminal cleaning or replacement.

Critical Powertrain and Safety Circuit Markings

Pinpoint the 3.6L engine control module (ECM) harness connection at the intake manifold’s passenger side–terminal 64, a light blue (LT BLU) wire, carries the throttle position sensor (TPS) signal, while terminal 65 (tan with black stripe, TAN/BLK) relays the Manifold Absolute Pressure (MAP) reading. Both conductors must maintain less than 0.2V drop under load; exceedances suggest chafing against the transmission bellhousing. For airbag circuits, identify the yellow (YEL) and light green (LT GRN) wires at the spiral cable connector–these terminate at the driver and passenger inflators, respectively, and require direct-to-chassis ground confirmation (black wire, BLK) at the SRS module’s pin 1 for proper deployment logic.

Diagnosing Frequent Circuit Problems with Schematic Guides

Start by isolating the malfunctioning subsystem using the fuse box layout. Locate fuse F42 (10A) labeled “HDLP Relay” and verify continuity with a multimeter. If resistance exceeds 0.5 ohms, replace the fuse and retest the connected devices–low beams, parking lamps, or instrument illumination may fail simultaneously due to shared circuit paths.

Check the ground points G101 and G102 near the left front shock tower. Corrosion here disrupts multiple high-current paths, including powertrain control modules and anti-lock brake sensors. Clean terminals with a wire brush, apply dielectric grease, and secure connections with new M6 bolts torqued to 8-10 Nm.

For intermittent power windows, trace the driver door module (DDM) connector C2 to pin A8 (yellow/black wire). Voltage should be 12V when the ignition is on. If absent, inspect the splice pack SP300 behind the instrument cluster–this junction feeds all door modules and often develops cold solder joints.

• Fuse F51 (15A) – Controls the rear defroster, heated mirrors, and seat warmers. Measure voltage at connector X3, terminal 3 with the switch activated.
• Relay K12 – Manages the front fog lights. Remove and shake–rattling indicates internal failure; replace immediately.
• Orange harness near the battery – Common failure point for accessory power. Look for melted insulation or shorted wires to ground.

When the starter cranks slowly, probe the starter solenoid terminal S (purple wire) for 12V during ignition crank. Voltage drops below 9V typically indicate a weak battery, corroded cable ends at the positive terminal clamp, or defective ignition switch contacts.

Dashboard warning lights flicker inconsistently? Focus on the body control module (BCM) connectors C1 and C2. Loose pins here mimic CAN bus errors. Remove connectors, inspect for bent pins, and reseat firmly–oscilloscope readings should show clean 2.5V signal baseline on CAN-H and CAN-L lines.

For HVAC blower motor issues, test resistor pack RPO codes R31-R32 (located behind the glove box). Each speed setting corresponds to a specific resistance value:

1. Low: 3.5Ω ± 0.2Ω
2. Medium-Low: 1.8Ω ± 0.1Ω
3. Medium-High: 0.9Ω ± 0.05Ω
4. High: Direct connection (0Ω)

If readings deviate, replace the pack–never attempt repairs on these ceramic elements.

Battery drain exceeding 50mA? Disconnect the alternator B+ terminal and recheck. Persistent high draw points to the electronic brake control module (EBCM) or hybrid powertrain inverter, both known for parasitic loads after key-off. Use the schematic to disconnect modules sequentially until the culprit is identified.

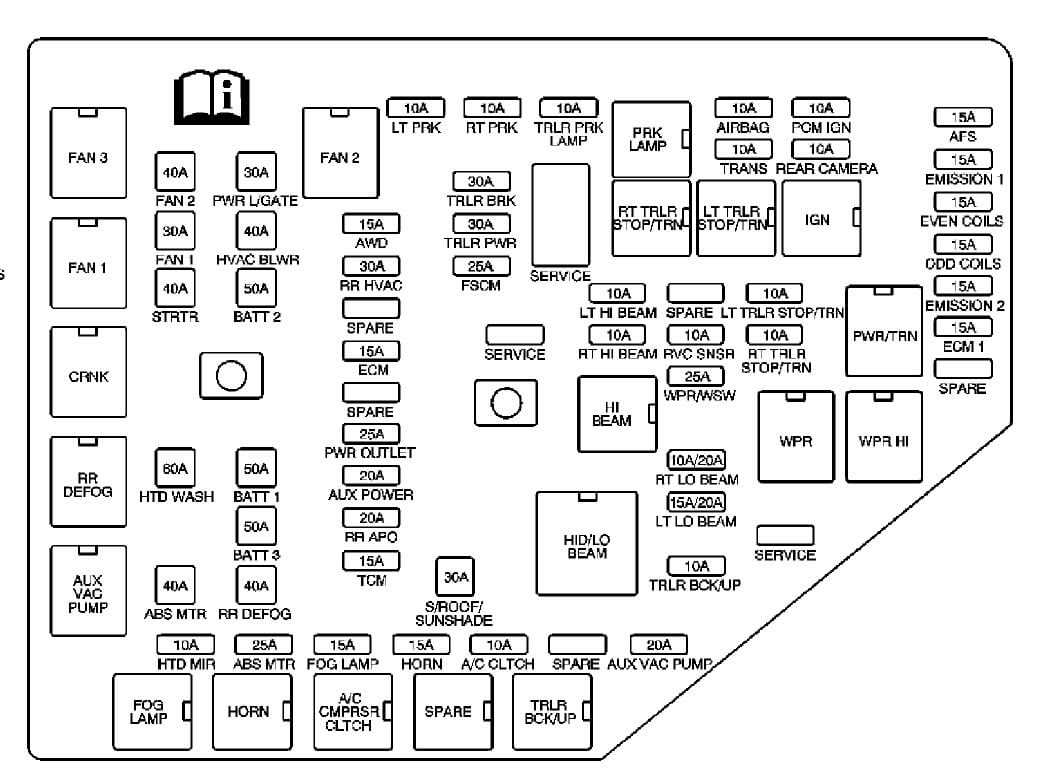

Decoding Fuse Panel and Relay Markings Using Schematic Reference

Locate the legend on the inside cover of the fuse block–typically printed in small type alongside a numbered grid. Match the numbers or labels (e.g., “ABS,” “HVAC Blwr”) to the corresponding lines in the electrical blueprint. Each fuse slot has a current rating (5A, 10A, 20A) etched next to it; cross-reference this with the amperage indicated on the schematic to confirm correct placement. Relays are often labeled with abbreviations like “HORN” or “A/C COMP”–look for these exact codes on the schematic’s relay section to trace their controlled circuits without guesswork.

Trace thin colored lines from the fuse or relay on the schematic to their connected components. For instance, a 15A fuse marked “INJ 1” should lead through a series of nodes to the fuel injector harness connector. Use a multimeter to verify continuity–set to 200 ohms–between the fuse output and the injector plug; resistance should read near zero ohms if the path is intact. If voltage is absent at the fuse output, inspect the upstream feed (often a red or orange wire) for corrosion or breaks, comparing wire colors and pin numbers on the schematic against physical connectors.

Relay diagrams include four numbered terminals (85, 86, 87, 30). Terminal 85/86 form the coil side, energized by a control module; 30 is the power input, and 87 is the output to the load. On the schematic, a dashed line usually indicates the coil circuit, while a solid line represents the power path. Swap the relay with a known-good unit if diagnostics show no voltage at terminal 87–absence of an audible click when the system is activated suggests coil failure. Always cross-check terminal assignments with the schematic, as some vehicles use non-standard pinouts for specific modules.
