Complete 2009 Honda CR-V Radio Wiring Color Code and Diagram Guide
If you need to replace or troubleshoot the stereo in your mid-sized crossover, begin by accessing the vehicle’s fuse box cover. The schematic you require is often printed on the reverse side, detailing color-coded connections for power, ground, speaker, and antenna circuits. For models manufactured in this production year, the main power wire is yellow, ground is black, and illumination utilizes a red/white stripe. Speaker wires follow a standard pattern: front left positive (gray), front left negative (gray/black), rear right positive (purple), and so on. Verify these against your existing harness before making connections.
Avoid splicing wires directly to the factory harness–use a compatible adapter (part number 16940-SDA-A01 for OEM integration). If the schematic is missing from the fuse panel, inspect under the driver-side dashboard; earlier production runs had it printed on a stick-on label near the kick panel. For aftermarket units requiring steering wheel controls, add a resistor inline to the pink/blue wire (typically 120–150 ohms) to maintain functionality. Check for 12V accessory power on the yellow wire using a multimeter before installing any new equipment to prevent damage from electrical faults.
For vehicles with navigation, the factory interface includes an additional green/white serial connector for GPS data. Disconnect the battery’s negative terminal before handling this wire to avoid shorting the system. If retrofitting a newer display, confirm compatibility with the onboard computer–older builds may require a firmware update (available via dealer service tool HDS). When routing wires, avoid areas near moving parts or sharp edges; bundle excess length neatly and secure with zip ties every 15 centimeters to prevent interference with pedal mechanisms or climate controls.
Common issues include blown fuses (check 10A radio fuse in slot 13) or dim lighting on the aftermarket screen; the latter often stems from a misrouted red/white dimmer wire. For hands-free microphone integration, locate the light green/black wire behind the center console–ensure it’s shielded to prevent engine noise bleeding into calls. Always test each connection before final assembly, particularly ground points, which should be sanded clean of paint and tightly secured to bare metal to avoid signal distortion.
Electrical Connections for Your 2008-2010 Compact SUV Audio System
Locate the 16-pin harness connector behind the factory-installed stereo head unit. Pin assignments follow this layout: constant 12V power at position 4 (yellow wire), ground at pin 1 (black), ignition-switched lead at 7 (red), and front speaker outputs on 12/13 (white/white-black) and 14/15 (gray/gray-black). Rear channels connect via 6 (green/green-black) and 8 (purple/purple-black). Verify each connection with a multimeter before splicing–factory voltage drops under 10.5V often indicate faulty wiring or a drained battery.
Aftermarket Integration Guide
For third-party receivers, match the following wire functions: illumination dimming (orange/white, pin 11), antenna trigger (blue/white, pin 5), and parking brake detection (pink/black, pin 2). Isolate leads with heat-shrink tubing to prevent corrosion–exposed copper corrodes at rates up to 0.2mm annually in humid climates. If retaining steering wheel controls, retain the Data Link Connector (DLC) on pin 3 (light green); bypassing it disables volume adjustment via the steering wheel interface.
Test speaker impedance before final installation. Factory units typically drive 2-ohm loads; aftermarket amplifiers may necessitate 4-ohm or higher impedance to prevent distortion. Replace blown fuses (10A constant, 15A switched) with identical ratings–upgrading risks overheating the wiring harness. For troubleshooting, refer to service manual section B-12-3: parasitic draws exceeding 50mA require disconnecting the battery overnight to reset onboard diagnostics.

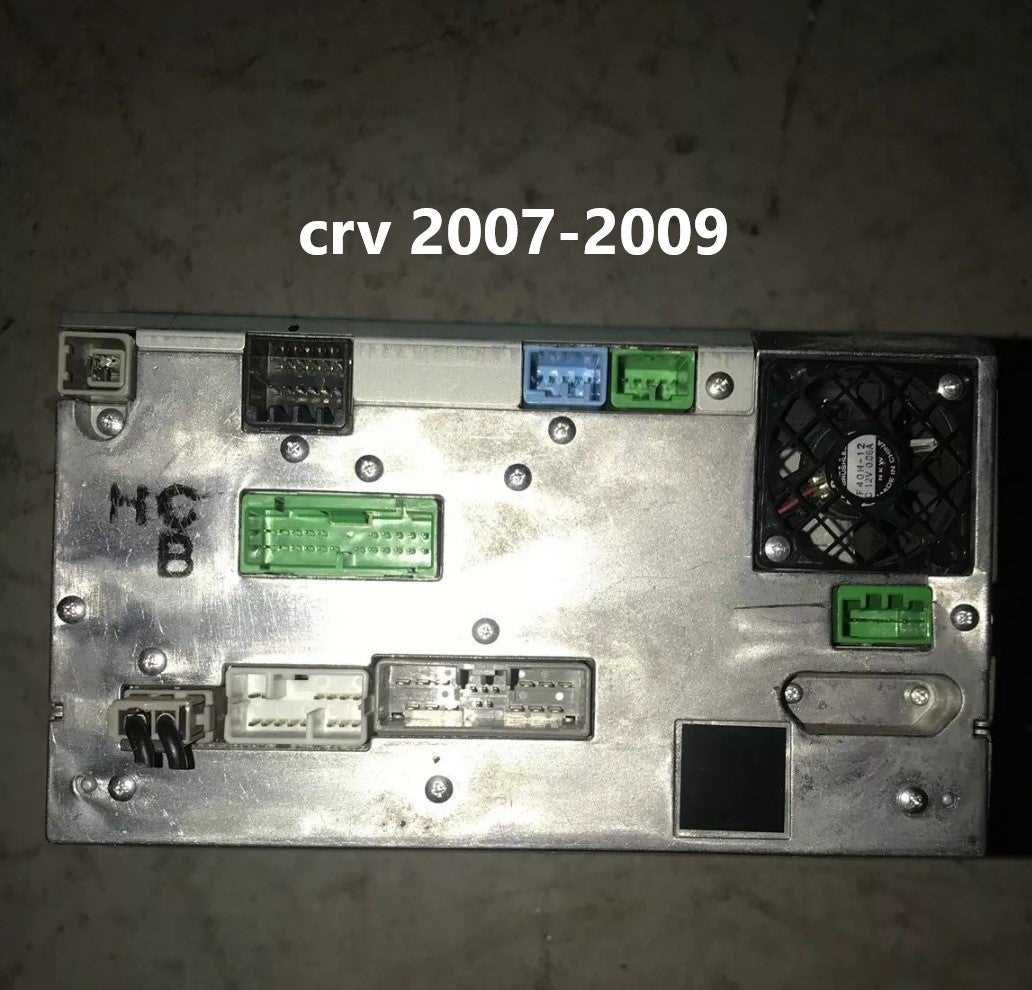

Finding the OEM Audio System Connector Ports on Your Compact SUV
Begin by removing the center dashboard trim panel directly above the climate controls. Pry it loose with a plastic trim tool, starting at the bottom and working upward–clips are secured at the 3, 9, and 12 o’clock positions. Two 10mm bolts hold the audio unit in place; remove these first before attempting to disconnect any harnesses. The primary power connector sits at the rear upper-left corner, a 14-pin white plug with locking tabs on both sides.
The secondary harness is mounted directly below, a smaller 8-pin blue connector reserved for speaker outputs and antenna feed. Each terminal is color-coded: solid yellow delivers constant 12V power, while red supplies accessory voltage (active with ignition). Green with black stripes carries the ground signal for the amplifier–verify continuity with a multimeter before proceeding. Avoid yanking connectors; depress the release tabs fully before separation to prevent terminal damage.
Locate the antenna lead at the rear lower-right side–a thin coaxial cable with a threaded metal collar, requiring a twisting motion to detach. If retrofitting an aftermarket system, note the factory integration port adjacent to the climate control module–a 6-pin beige connector interfacing with steering wheel audio controls. Signals here include mute, volume adjust, and mode selection, typically operating at 5V logic levels.
- Upper dashboard trim clips–3 total, fragile; replace if broken
- 10mm bolts–use a shallow socket to avoid stripping
- Primary harness–locking tabs at 45-degree angles
- Antenna lead–anticlockwise rotation to release
- Steering control signals–measure with multimeter set to DC voltage
The harness routing channel runs beneath the glovebox, accessible via a single Phillips screw near the passenger kick panel. Follow the wiring loom visually to confirm no hidden splices exist–factory installations maintain a clean, bundled approach. For vehicles with navigation, an additional 12-pin orange connector supplies GPS data and display signals; this sits behind the audio unit and requires partial disassembly of the lower dash trim to access.
Before reinstalling components, ensure all connectors align correctly–misaligned pins can trigger error codes or fuse blows. Label each harness segment with masking tape during disassembly; documentation prevents reassembly errors. If resistance is encountered during connector separation, check for obstructions–factory clips sometimes retain debris. Store all fasteners in a magnetic tray to prevent loss during the procedure.
Color-Coded Wire Functions for Aftermarket Head Unit Installation
Connect the yellow (12V constant) wire directly to the vehicle’s battery terminal via a 15-amp fuse–skip the factory harness splice to prevent voltage drop. The red (accessory/switched 12V) must link to an ignition-switched source, typically the fuse box tap labeled IGN or ACC; verify with a multimeter under key-on/off conditions to confirm. Ground the black wire to a bare metal chassis point near the install location, sanding paint for a clean connection–avoid daisy-chaining grounds to prevent noise interference.
Blue/white (power antenna/amp turn-on) triggers external amplifiers; if the vehicle lacks an amp, cap this wire with electrical tape to prevent backfeeding. The purple (+) and purple/black (−) pair handles the rear right speaker, while green (+) and green/black (−) manage the front right–polarity matters: swap leads to reverse phase, muddying audio. For the left side, gray (+) and gray/black (−) feed the front left, white (+) and white/black (−) the rear left; use a crimp connector or solder for secure joins, then heat-shrink to insulate.
Illumination and Data Wires
Orange adjusts the display brightness–tap into the factory dimmer wire (often a thin pink or orange/white stripe) or connect to a dashboard illumination circuit; test with headlights on to confirm dimming behavior. The pink/blue wire carries safety protocols (e.g., parking brake engagement); splice it to the parking brake switch lead to enable video playback features–bypassing this will disable certain functions. For steering wheel controls, the brown or light green data bus wire requires a SWI adapter for proper translation; never splice directly, as this risks corrupting the vehicle’s CAN network signals.
Step-by-Step Guide to Upgrading Your Factory Audio System

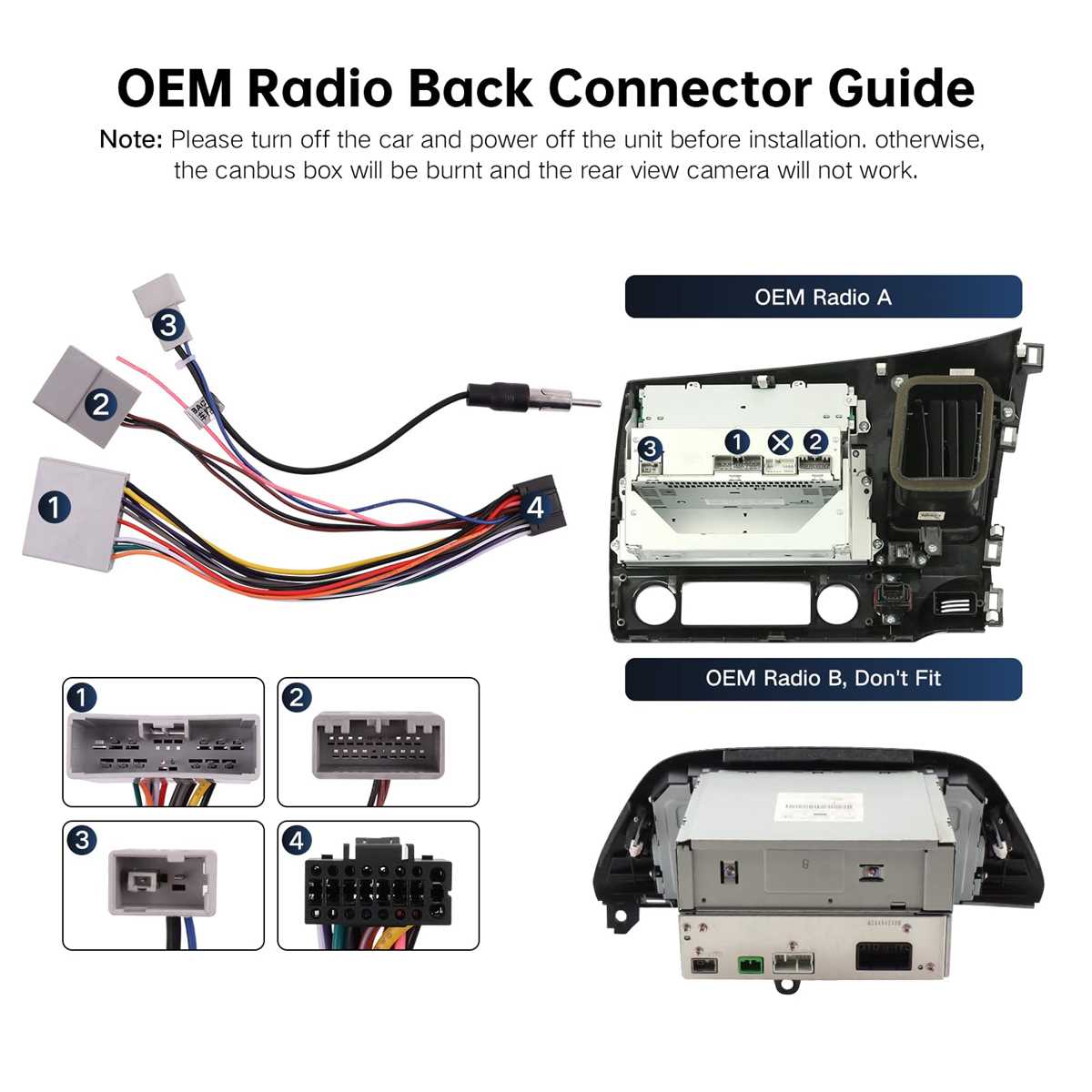

Disconnect the negative battery terminal first–this prevents electrical shorts or damage to the vehicle’s fuses during installation. Locate the dash trim panel around the original head unit; it’s secured with clips and may require a trim removal tool to avoid cracking the plastic. Gently pry upward along the edges, starting from the bottom, then lift the panel away once the clips release. Behind the factory stereo, you’ll find a harness adapter (often Metra 70-1721) that bridges the car’s wiring to the aftermarket receiver–connect this first before handling any direct wiring to preserve signal integrity.
| Vehicle Wire Color | Function | Aftermarket Connection |
|---|---|---|
| Yellow | 12V Constant Power | Red (Memory Power) or Yellow (Main Power) |
| Black | Ground | Black |
| Blue/White | Antenna Trigger | Blue/White |
| White (x2) | Front Left Speaker (+/-) | Gray/Brown or White |
| Green (x2) | Front Right Speaker (+/-) | Green/Violet or Gray |
Align the new unit’s mounting kit (Metra 99-8212) by sliding it into the dash cavity, ensuring it sits flush before securing with screws. Reattach the harness adapter to the back of the receiver, then test all functions–AM/FM, auxiliary input, and steering wheel controls (if retained via an interface module like iDatalink Maestro). Reconnect the battery, power on the system, and verify no error messages appear on the display. Secure the trim panel by pressing it firmly along the edges until the clips snap into place, then reinstall any removed dash components.
