Ford F150 2010 Radio Wiring Harness Color Code and Connection Guide
For immediate installation, locate the factory color-coded connectors behind the dashboard panel. The power lead (yellow, 12-gauge) connects to the fuse box beneath the left kick panel–use terminal 22 for a switched circuit. Ground (black) must bond to chassis metal near the driver-side footwell, verified with a multimeter to ensure resistance under 0.5 ohms.
Speaker outputs follow this mapping:
- Front left: gray/violet pair (positive/negative) at 2-ohm impedance
- Front right: gray/orange pair
- Rear left: tan/light blue pair
- Rear right: tan/brown pair
Tap into the antenna signal wire (blue/white, 18-gauge) at the instrument cluster harness for retained accessory power.
Avoid splicing into the CAN bus wires (pink/light blue and gray/red)–these handle steering wheel controls. Use a Ford-specific adapter (part #HL3Z-14B699-A) to preserve functionality. For aftermarket units, bypass the stock amplifier by connecting the speaker wires directly to the head unit’s harness, ensuring proper wire gauge matching.
Test connections with the ignition off before final assembly–voltage at the power lead should drop to zero when the key is removed. If static persists, check for stray strands in the ground connection and re-secure the chassis bond.
Ford Truck Audio System Connection Blueprint
Locate the factory power adaptor beneath the dashboard on the driver’s side–it’s a rectangular plug with 14 terminals. Pin 1 (red) carries constant 12V, while Pin 4 (yellow) delivers switched power. Connect these directly to the aftermarket head unit’s corresponding wires without splicing; shorting either wire risks frying the vehicle’s fuse box.
Ground the installation properly by securing the black wire from the replacement unit to a bare metal point under the steering column. Avoid daisy-chaining grounding wires; a single solid connection to the chassis prevents interference and voltage drops, especially during bass-heavy playback.
Speaker outputs follow a consistent color scheme across trim levels: front left (gray/light blue), front right (white/light green), rear left (brown/light blue), and rear right (purple/light green). Match these precisely–reversing polarity on any pair creates phase cancellation, making vocals sound muffled. Test each channel with a 1 kHz sine wave before finalizing connections.
For vehicles equipped with premium audio systems, an additional 8-pin amplifier plug sits behind the glove box. Pins 2 and 5 (pink and dark green) handle data signals; intercepting these without a bypass module triggers “no audio” errors. Use a Ford-specific interface adapter (part #FORD-AMP-BYPASS) to retain factory settings.
If integrating navigation or backup camera feeds, the purple/white wire (reverse signal) must be tapped into the reverse light circuit at the tailgate. A failed connection disables both functions. Verify the camera’s 6V power requirement; exceeding this voltage burns out the lens module.
Heat-shrink tubing is mandatory for all splices. Electrical tape degrades under dash temperatures reaching 140°F, leading to exposed wires and shorts. Apply dielectric grease to connector terminals to prevent oxidation, particularly in high-humidity climates.
Troubleshooting Common Issues
Static during FM reception often stems from insufficient ground or antenna amplifier failure. Disconnect the antenna plug (dark blue, located behind the head unit slot) and test signal strength–if clarity improves, replace the mast-mounted amplifier. Persistent static despite a new amplifier indicates shielding damage; reroute the antenna cable away from ignition coils and spark plug wires.
Finding the Audio System Connector in Your Truck’s Dash
Start by removing the center stack trim panel. Use a flathead screwdriver wrapped in electrical tape to pry the panel loose at the bottom near the climate controls. Work slowly to avoid snapping the plastic retaining clips–there are six along the bottom edge and four on each side. Disconnect the cigarette lighter and auxiliary power outlet from their mounts before setting the panel aside.

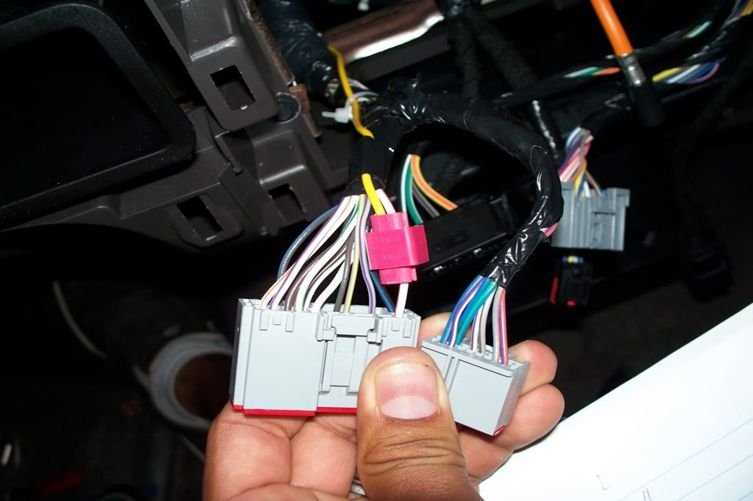

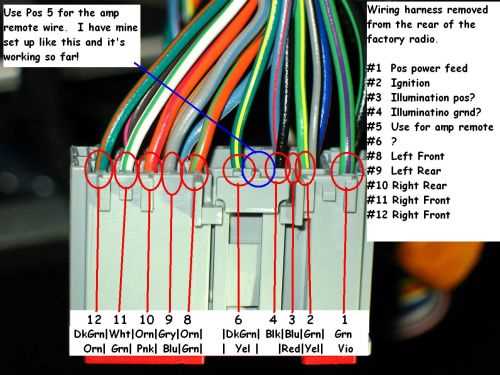

The main feed cluster sits behind the factory infotainment unit, secured by two 7mm screws. After removing these, tilt the unit forward to expose the connection bundle. Look for a rectangular plug with 24 terminals–this is the primary interface. If you’re replacing the entire system, note the lock tab position before unplugging to ensure proper reinstallation.
- Pink wire (terminal 12): switched power source
- White/light blue (terminal 7): front left speaker positive
- Gray/red (terminal 18): front right speaker negative
- Purple/orange (terminal 20): rear right speaker positive
- Dark green (terminal 10): antenna signal
For vehicles with SYNC systems, an additional smaller plug with 8 terminals will be present. This handles microphone input and data communication. Trace the bundle down from the main connector–it routes under the HVAC ductwork toward the passenger side. Follow the wiring loom until it splits near the fuse box; this secondary connector is often overlooked during upgrades.
Factory amplifiers are located in the left kick panel, behind the carpet liner. To access them, remove the hood release handle by pulling straight toward the windshield–it’s friction-fit. The amp module connects via a 16-pin plug. Matching aftermarket adapters require pinout verification, as early model variations exist between base and premium audio packages.
Troubleshooting Hidden Connections
If experiencing intermittent audio cuts, check the inline fuse near the glove box. It’s a 15-amp component separate from the main fuse panel. Gently pull the passenger-side dash panel downward–it’s held by friction clips and doesn’t require tools. The fuse housing is clipped behind the lower knee bolster.
- Inspect the ground wire–it’s a black/yellow stripe terminating near the driver’s side A-pillar.
- Verify speaker impedance hasn’t dropped below 2 ohms; aftermarket units often mismatch factory outputs.
- Test continuity on the dimmer wire (orange/light blue) if display brightness doesn’t adjust with dashboard lighting.
Reinstallation reverses removal, but ensure all connectors snap securely. The main plug has a keyed slot–inserting it backward risks damaging terminals. When refitting the center panel, press corners first, then work toward the middle to avoid warping. Always reconnect the battery last after any electrical work to prevent error codes.
Decoding Vehicle Audio Cable Colors for Custom Head Unit Upgrades
Locate the constant power lead by tracing the yellow conductor in the factory connector–this line delivers uninterrupted 12V supply directly from the battery and must terminate at the corresponding input on the new receiver’s plug to maintain memory settings and clock functionality after key-off. Verify voltage with a multimeter before connecting, as some manufacturer variations use orange or orange/white for accessory power instead.
Ground connections demand uncompromising attention–use the black or brown wire only if it shows continuity to chassis with zero resistance; otherwise, bypass the stock bundle entirely and mount a dedicated ring terminal to an unpainted metal surface near the dash cavity, ensuring flush contact with bare metal to prevent signal interference and localized overheating.
Speaker outputs follow this convention: gray/light gray (front right positive/negative), white (front left), purple/violet (rear right), green (rear left). Polarity cannot be inferred visually–confirm phase by briefly touching leads during a low-frequency test tone, where reversed connections produce noticeably weaker bass response and muddled imaging.
For steering wheel control integration, isolate the pink/blue or blue/white data line and insert an inline load resistor (typically 330–1,000 ohms) between this wire and ground to prevent resistor pack destruction; failure to install this component will trigger rapid flashing on the factory display or prevent module initialization entirely.
Step-by-Step Factory Audio Integration Splicing Guide
Disconnect the vehicle’s negative battery terminal first to prevent short circuits. Locate the OEM connector behind the dash cluster–it typically has 12 to 20 pins, depending on trim. Use a multimeter set to continuity mode to identify each wire’s function before cutting. Label every wire with masking tape to avoid confusion during reassembly.
For power lines, use 18-gauge crimp connectors or solder joints wrapped in adhesive-lined heat shrink tubing. Ground connections must terminate at the chassis; clean the contact point with a wire brush to ensure zero resistance. If retaining steering wheel controls, splice into the data bus wires–usually colored white, purple, or orange–using T-tap connectors sized for 20-22 AWG wires.
Match aftermarket interface colors to OEM schematics. Below is a reference for common signal assignments:
| Function | Standard Color (Ford) | Aftermarket Equivalent |
|---|---|---|
| Constant 12V | Yellow/Orange stripe | Yellow |
| Switched 12V | Red/Light Blue stripe | Red |
| Ground | Black/White stripe | Black |
| Front Left Speaker (+) | Gray/Light Blue stripe | Gray |
| Front Right Speaker (+) | White/Orange stripe | White |
| Rear Left Speaker (+) | Brown/Light Green stripe | Green |
| Rear Right Speaker (+) | Tan/Yellow stripe | Purple |
Strip 3mm of insulation from each wire using precision strippers–never scissors–to avoid nicking copper strands. Twist stranded wires clockwise before inserting into butt connectors. Crimp firmly using a ratcheting tool, then tug-test each connection. For high-current circuits like amplifiers (if equipped), solder joints provide superior durability; apply rosin flux beforehand to prevent oxidation.
Amplifier Retention Steps
If keeping the factory amplifier–commonly found under the front passenger seat–trace its input and output lines. The amplifier harness uses twisted pairs for speaker signals; maintain this configuration when splicing to aftermarket adapters. Failure to preserve twist ratios can introduce interference, manifesting as static or reduced fidelity.
For vehicles with SYNC or navigation, retain the original USB and microphone circuits intact. These require minimal modification: connect the new head unit’s USB port to the existing cable using a female-to-female adapter rather than cutting. Microphone lines–typically a single-pin connector–must be extended with shielded 16-gauge wire to prevent signal degradation.
Reinstall the negative battery terminal last. Power on the ignition and verify all functions before securing panels. If any circuit fails, recheck splices for cold crimps or incorrect wire matching. Use a 12V test light to confirm switched power reaches the new interface’s red input wire the moment the key turns to accessory mode.
