How to Find and Read the 2010 Nissan Versa Wiring Diagram Step by Step

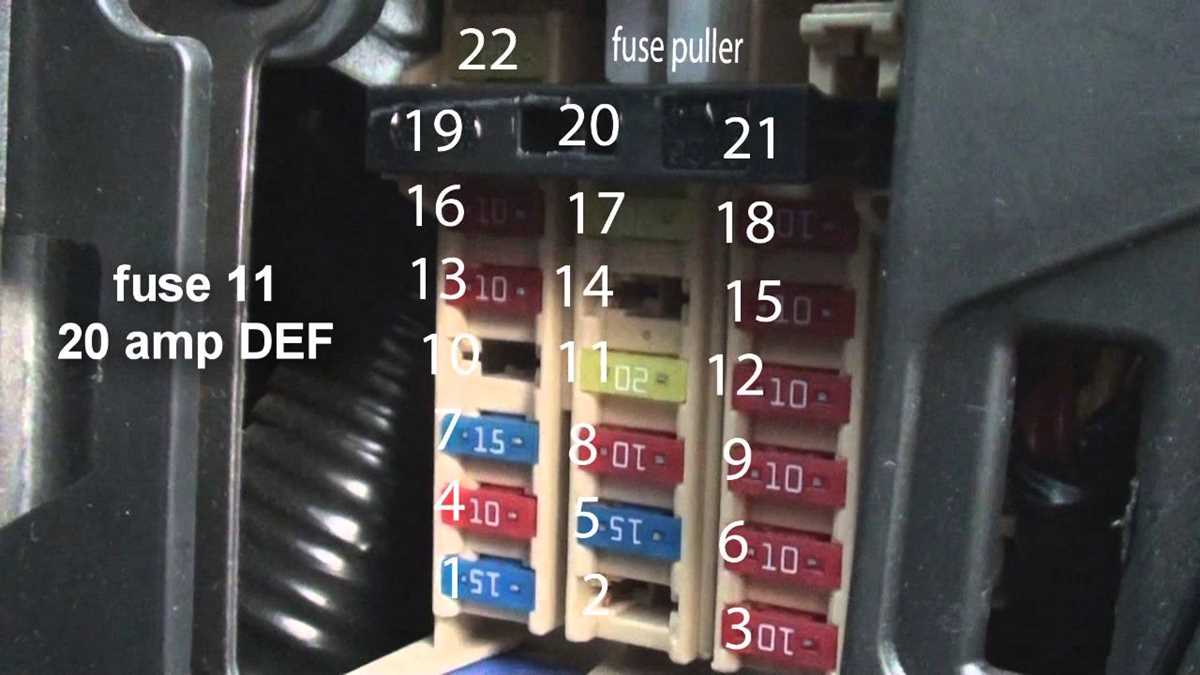

Start by locating fuse box under the dashboard on the driver’s side–label F2 houses critical front lighting relays. Use a multimeter set to 20V DC to verify pin 18 on the BCM connector delivers 12V during ignition; deviations below 11.5V indicate corroded ground at G401. Color codes follow JIS standards: solid red for constant power, yellow/red stripe for switched circuits, and black/white for chassis returns. Replace factory crimp splices with soldered joints if resistance exceeds 0.1 ohms.
For HVAC blower diagnostics, trace the resistor assembly wires–light blue (terminal 2) carries high-speed current, while solid blue (terminal 5) handles low speed. Disconnect battery negative first when probing airbag circuit; pin 14 on the clockspring coil carries 5V reference voltage. Aftermarket radio installations often disrupt CAN bus signals–isolate purple/yellow wires at connector C201 to prevent ECU faults.
Exterior lighting troubleshooting: fog lamp circuit (white/black wires) shares ground with headlamp leveling module–corrosion here dims both systems. Door ajar switches use gray/orange wires; test continuity with doors closed–open circuits trigger dome light drain. Oxygen sensor heater circuits (gray wires) pull 8A peak–check fuses 33 (10A) and 34 (15A) if CEL code P0135 appears.
Transmission control solenoid wiring uses shielded twisted pairs (blue/white and pink/black)–bypass aftermarket alarms here or risk shift delay failures. Evap purge solenoid draws 1.2A at idle–verify supply voltage at pin A of connector E8. For power window failures, test motor resistance (should be 2-4 ohms); bypass faulty switches by jumping wires at connector WH1.
Electrical Schematic Reference for the 2010 Model Compact Hatchback
Locate the IPM connector (white 10-pin plug) behind the fuse block under the left dash; pin 7 delivers 12 V constant from fuse #32 (10 A), while pin 4 feeds the instrument cluster ground–resistance between these two points must stay below 0.3 Ω to prevent CAN bus errors. For engine bay circuits, the Engine Control Module harness (gray 60-pin connector) maps cylinder #3 coil trigger to pin C14; verify continuity with a 2 kΩ resistor across C14 and chassis ground to isolate misfires.
Download the EFL-31E factory manual PDF from the manufacturer’s service portal (file size 18.7 MB, MD5 checksum a3b7c2d9e4f1g8h5i6j0k2l1m3n9o8); use Adobe Acrobat’s “snap-to-grid” ruler set to 1 mm to align custom harness repairs with page 12-7’s power distribution chart, ensuring splice points at least 50 mm from any retaining clip to prevent chafing against the subframe.
Finding the Right Electrical Schematic for Your Compact Sedan Variant
Begin by identifying your exact model configuration–Base, S, or SL–as each edition has distinct fuse box layouts, connector pinouts, and harness routing maps. The owner’s manual typically includes a simplified version, but for full accuracy, consult the Electrical and Electronic Troubleshooting Manual (EETM) specific to your build year. Nissan Technical Information Site (NTIS) or authorized dealership repair portals host these documents, often under “Electrical Body” sections.
For SL trims, focus on pages detailing the BCM (Body Control Module) and AV circuits, as these handle power windows, keyless entry, and audio systems–components absent in lower tiers. The Base variant’s schematics prioritize engine controls, transmission sensors, and lighting, while the S adds fog lamp and mirror circuits. Cross-reference the part number on the back of your vehicle’s data plate (usually near the driver’s door jamb) with the schematic index to avoid mismatches.
If accessing factory blueprints proves difficult, third-party platforms like ALLDATA or Mitchell1 offer subscription-based archives, including wire gauge colors, splice locations, and ground points. Ensure compatibility by filtering search results with your VIN’s eighth digit (engine code) and trim code (e.g., “C11” for Base models). Avoid generic aftermarket diagrams, as they frequently omit trim-specific relays or fuse ratings.
Print physical copies of relevant pages for shop use, marking critical paths–such as the IPDM (Intelligent Power Distribution Module) feeds or O2 sensor harnesses–with highlighters. Label loose connectors with tape flags referencing the schematic’s terminal numbers to prevent misrouting during repairs. For hybrid verification, compare your blueprint with a multimeter reading, confirming voltage at key junctions before disassembly.
Step-by-Step Breakdown of the Engine Compartment Cable Assembly
Identify the main power distribution block first–located near the battery on the driver’s side. Disconnect the negative terminal before handling any connectors to prevent short circuits. Label each connector with masking tape to avoid confusion during reassembly. The block houses fused links and relays; note their positions as deviations can cause electrical failures.
Trace the ignition harness from the coil pack to the engine control module (ECM). The primary wires–typically brown and black–carry critical signals; secure them away from moving components like the serpentine belt. Inspect the insulating sleeves for cracks; replace damaged sections with heat-shrink tubing to prevent moisture intrusion. Connectors here often corrode; clean contacts with electrical cleaner and a brass brush.
Examine the ground straps attached to the chassis. These thin, braided cables–usually black–connect to the engine block and frame. Corrosion here mimics sensor malfunctions; remove rust with a wire brush, apply dielectric grease, and tighten bolts to manufacturer torque specs. A loose ground can cause erratic gauge readings or no-start conditions.
Avoid modifying the oxygen sensor harness–its resistance-matched wires must stay intact. If splicing is unavoidable, use crimp connectors with silicone sealant and avoid solder alone; vibrations can fracture joints. Route the harness away from exhaust manifolds; exceeding 250°F degrades insulation. Test continuity with a multimeter before finalizing any repairs.
Diagnosing Frequent Circuit Problems with Schematic References
Start by locating the ground points in the vehicle’s electrical schematic–these are typically marked with symbols resembling arrows or downward triangles near bare metal chassis points. Corrosion at these junctions causes intermittent failures, particularly in lighting or accessory circuits. Test resistance between the ground point and battery negative with a multimeter: readings above 0.5 ohms indicate oxidation or loose connections.
Identify power distribution fuses using the schematic’s color-coded lines–red usually denotes 12V constant, yellow for switched ignition, and blue for accessory-specific feeds. A blown fuse in a high-current circuit (e.g., cooling fans) often points to a short downstream. Replace with the exact amperage rating; never exceed the original value, even temporarily.
Trace signal wires for sensors by following dashed or thin lines in the schematic. A faulty camshaft position sensor, for instance, may trigger P0340 codes due to frayed wiring near the engine harness grommet. Probe connections at the sensor and ECU with a scope–voltage spikes or flatlines confirm wire damage rather than sensor failure.
Common Failure Points by System
| System | Symptom | Schematic Clue | Fix |
|---|---|---|---|
| Headlamps | Flickering low beams | Gray wire at fuse box pin 12 corroded | Clean terminal; apply dielectric grease |
| Power windows | Motor grinds but glass doesn’t move | Purple/white wire at door jamb connector frayed | Splice or replace door harness |
| Ignition | No crank, dash lights dim | Black/white starter relay wire shorted to ground | Inspect starter solenoid; reroute wire |
Check relay sockets for overheating–darkened pins or melted plastic signal high resistance. Refer to the schematic to find the relay’s control and load circuits. Swap with a known-good relay of the same part number; if the issue persists, probe the socket’s 85 and 86 terminals for proper 12V and ground signals during activation.
Blown taillight filaments often stem from voltage leaks in the trunk harness. Follow the brown wire in the schematic to the trunk lid connector. Wiggle the harness while monitoring voltage–drops exceeding 0.3V indicate internal breaks in the wire strands. Repair by soldering and heat-shrinking the damaged section.
For ECU-related faults (e.g., misfires, erratic idle), examine the schematic’s pinout for the engine control module. Back-probe the ECU connector with needles while cranking–’absence of battery voltage at pin 16 or missing ground at pin 23 suggests harness issues rather than module failure.
Advanced Diagnostic Steps
Use a non-powered test light to verify switched circuits. Connect the light’s clamp to battery positive, then touch the probe to each terminal in the fuse box while cycling the ignition. Lights that stay illuminated independently of switch position reveal shorts in the hidden portion of the harness–common near the firewall grommet.
Isolate parasitic draws by pulling fuses one by one while monitoring amperage at the battery. When the draw drops below 50mA, refer to the fuse’s labeled circuit in the schematic. Focus on aftermarket accessories first–miswired stereos or GPS units are frequent culprits.
Color Coding and Pin Identification in Compact Sedan Electrical Schematics
Begin troubleshooting by isolating connector C-101 (under dashboard, driver side). The harness uses a standardized palette: red/blue stripe (R/B) carries 12V ignition-switched power, black/white stripe (B/W) grounds critical modules, and yellow/black stripe (Y/B) transmits CAN-H signal. Verify continuity between pin 12 (R/B) on C-101 and pin 6 on the BCM–resistance should read below 0.5 ohms; anything above indicates corrosion in the kick panel splice.
- Connector C-202 (passenger footwell): Pin 3 (L/G) feeds the blower resistor–voltage drop exceeding 0.3V at max fan speed confirms failing ground bus bar.
- Connector C-304 (engine bay, near fuse box): Pin 8 (W) supplies the MAF–inspect for 5V reference; deviation by ±0.2V suggests ECM degradation.
- Connector C-401 (rear hatch junction): Pin 4 (B/R) controls the license plate lamp; absent signal here traces back to faulty rear body control module.
Decoding Wire Gauge and Insulation
Thickness and insulation color correlate directly to current capacity: 18-gauge wires with thin green jacket handle up to 10A (e.g., cabin courtesy lamps), while 12-gauge cables clad in thick orange sheathing manage 30A loads (radiator fan relay). Strip 5mm of insulation–look for bright copper; dull orange tarnish necessitates replacement with tinned marine-grade wire to prevent voltage drop. Match the exact gauge; substituting 16-gauge for 12-gauge will cause insulation melt under sustained 18A currents.
- Examine pin-to-socket mating surfaces: Corroded male pins (C-101) can be reconditioned with 320-grit sandpaper followed by dielectric grease; never reuse sockets showing heat discoloration.
- Use a thermal camera to scan harness runs–T-joints hidden behind dash trim often exceed 85°C under load, indicating poor crimping.
- Label every disconnected wire with its destination pin (e.g., “A-2 → ECM Pin 17”); misrouting a single 0.5mm wire (e.g., CAN-L) triggers falsely logged U1000 faults.
