Complete 2012 Chevy Silverado 1500 Stereo Wiring Color Code Guide

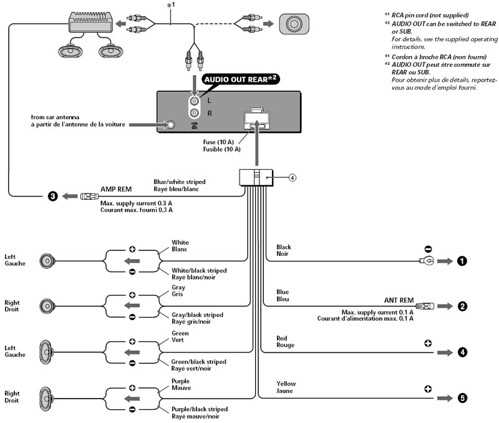

Connecting replacement speakers, amplifiers, or aftermarket head units in your GMT900 platform truck requires precise cable routing. Locate the factory harness behind the dashboard mounting bracket–pinouts match the following color codes: yellow (constant 12V), red (accessory), black (ground), gray (front right speaker +), gray/black (front right speaker –), white (front left speaker +), white/black (front left speaker –). Rear channels follow identical polarity with purple and purple/black (right), green and green/black (left). Always fuse new power feeds within 18 inches of the battery terminal.
Note: Factory relay-switched circuits use thin-gauge wiring; upgrade to 12-gauge for amplifiers exceeding 50W RMS. Ambient-light-sensitive dimming controls tie into the light blue/orange lead–disconnect if replacing with non-OEM illumination modules to prevent erratic behavior. Chime signals route through gray/pink; if eliminating stock tones, cap this wire to avoid fault codes.
RCA adapters for auxiliary inputs attach to brown (right audio) and brown/white (left audio) at the head unit’s rear. Verify continuity with a multimeter before securing connections; oxidized pins on vehicles with rear sliding windows frequently corrupt signal integrity. Re-pin corroded connectors using TE 1-967676-1 terminals and corresponding female housings.
OnStar integration harness branches from the main harness under the driver’s seat. Remove seat track bolts using a 15mm socket, then slide the seat forward to access the dark green/white (voice), pink/black (ground reference), and orange (data bus) bundle. Splice into these only if retaining factory telematics; otherwise, bypass and insulate to maintain BCM functionality.
How to Connect Your Pickup Audio System Without Factory Schematics

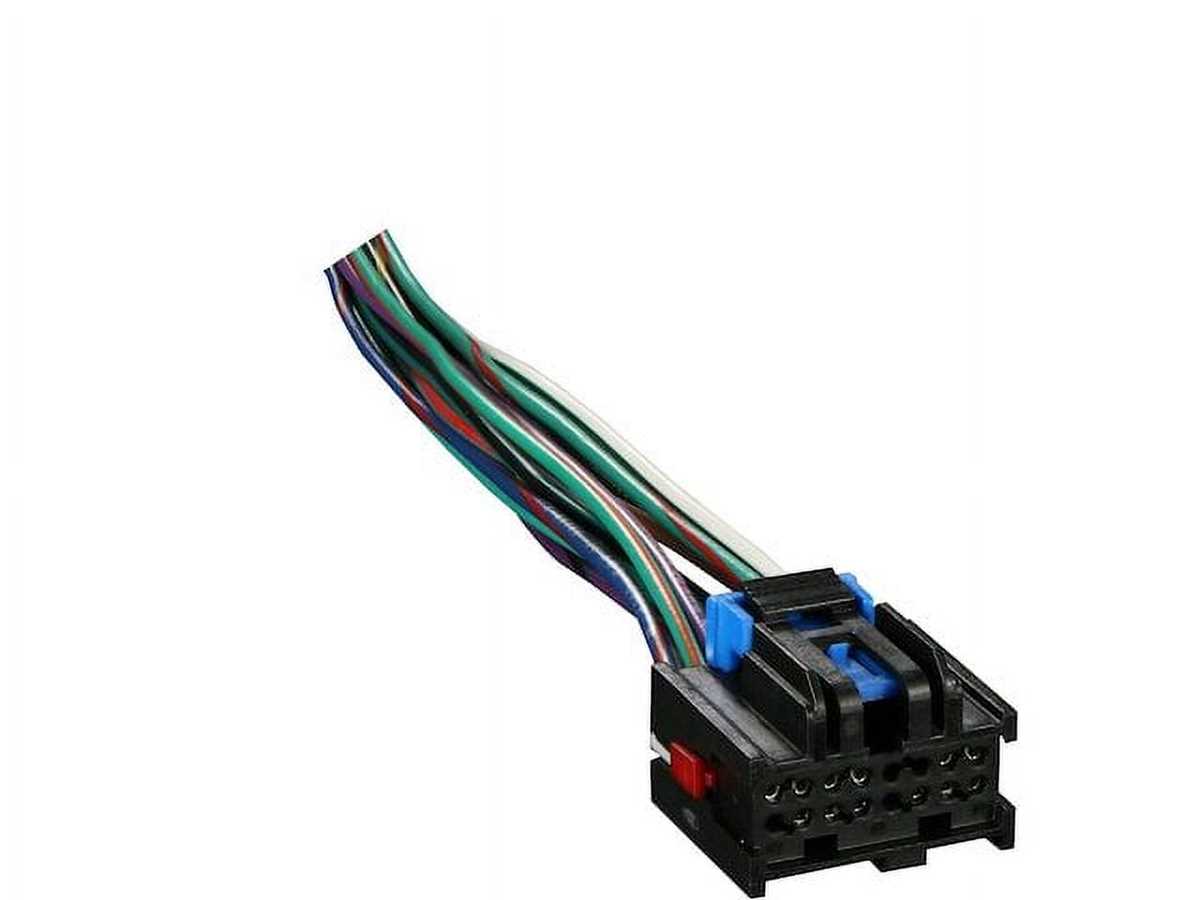

Locate the harness behind the factory radio–it’s a 12-pin Metra 70-2103 connector. Pin assignments differ by trim, but the aftermarket adapter preserves power antennas and amplifier triggers. For LS/LT models, pins 1 (yellow), 4 (brown/white), and 6 (gray) carry constant 12V, switched ignition, and ground respectively. Use a multimeter to verify before soldering; factory splices often degrade from vibration.
| Function | Wire Color | Pin No. | Voltage (Key On) |
|---|---|---|---|
| Battery (+) | Yellow | 1 | 12.6V |
| Ignition | Brown/White | 4 | 12.0V |
| Ground | Gray | 6 | 0.0V |
| LF Speaker (+) | Dark Green | 8 | 2.8V RMS |
For Z71 editions, the Bose system adds tweeters and a subwoofer control module. Tap into the rear door tweeter wires (light blue/violet) at the kick panel–connect directly to avoid signal loss through the factory resistor network. If retaining OnStar, keep the pink/orange data bus intact; cutting it triggers theft-deterrent warnings in later firmware builds. Aftermarket DIN cages fit snugly; remove the HVAC vent mount first to avoid cracking the dash bezel during installation.
Finding Factory Cable Clusters Behind the Instrument Panel
Begin by removing the lower dash panel beneath the steering column. Use a 7mm socket to unfasten the two bolts securing it–one near the parking brake, the other directly below the ignition switch. Slide the panel downward to detach it from the retaining clips. This exposes the central junction block where the audio system’s primary connectors are grouped.
Identify the colored harness bundles emerging from the firewall grommet. The main factory audio cluster typically contains four distinct connectors: 12-pin blue (primary power/information signals), 8-pin gray (speaker output), 4-pin black (ground/illumination), and 2-pin orange (constant 12V ignition). Trace each bundle upward toward the radio mounting cage–follow the wires where they terminate, avoiding confusion with HVAC or lighting harnesses.
Check the left side of the radio cavity for a white 10-pin harness labeled “AUX IN.” This is not part of the original sound system cluster but often houses aftermarket adapter connections. Factory harnesses will be bound in durable plastic loom, whereas extensions or splices appear as loose wires or electrical tape. Separate these immediately to prevent signal interference.
Use a multimeter set to DC voltage to verify each harness connection. Probe the orange wire (pin A on the 12-pin blue cluster) against chassis ground–it should read 12V regardless of key position. The yellow wire (pin H on the same cluster) should deliver 12V only when ignition is on. If readings deviate, inspect the fuse block (fuse #22, 10A) before proceeding further.
Gently pry the climate control bezel upward from the bottom edge using a plastic trim tool. This reveals the upper mounting screws for the radio unit, permitting full access to the rear connectors. Avoid force–clips are fragile. Once the unit is removed, label each harness connector with masking tape noting its position: “AMP,” “FRONT,” “REAR,” “SUB.” This prevents misconnection during reinstallation.
Behind the radio cage, locate the metallic shielded cavity where the amplifier harness resides. Factory configurations include a 14-pin black connector (amplifier integration) and a 6-pin green connector (steering wheel controls). If present, these will be adjacent to the speaker output cluster. Disconnect them only after ensuring the battery is disconnected–this prevents accidental shorting of sensitive circuits.
Inspect the harness retainer clips near the kick panel on the driver’s side. A secondary bundle of wires (usually wrapped in red or purple loom) carries OnStar or telematics data. These should not be disturbed unless installing a bypass module. Cross-check harness colors with a reliable schematic–factory documentation often uses unconventional color-coding for mixed signal lines (e.g., pink/black stripe for left rear speaker positive).
Reassemble in reverse order, ensuring each harness clicks securely into place. Failure to fully engage connectors can result in intermittent audio dropouts or electrical faults. Before mounting the radio unit, reconnect the battery and test each speaker output individually using a 1kHz test tone generator. Verify fade, balance, and volume functions via the driver information display to confirm integrity of all connections.
Understanding Factory Wire Colors for Audio System Connections
Begin by locating the yellow wire (B+)–this delivers constant power directly from the battery, ensuring memory retention for presets and clock settings when the ignition is off. Verify its voltage with a multimeter (12V DC) before connecting aftermarket components to avoid draining the battery or damaging the vehicle’s electrical system.
Purple and purple/white stripes typically handle the right rear speaker output, while gray and gray/black stripes correspond to the front right channel. These wires carry low-level audio signals, so route them away from power cables to prevent interference. Use shielded RCA adapters if extending these connections beyond 18 inches.
Ground connections (black or brown wires) must terminate at the vehicle’s chassis with a clean, paint-free surface and a secure bolt. A poor ground can cause static, dimming dashboard lights, or intermittent audio dropouts. For amplified systems, run a dedicated 8-gauge ground wire back to the battery instead of relying on factory grounds.
Illumination dimming functionality flows through the orange wire (or orange/white), which connects to the dash lighting circuit. This wire adjusts the head unit’s display brightness in sync with the vehicle’s interior lights. If this feature isn’t needed, cap the wire with electrical tape to prevent short circuits.
Speed-sensitive volume control (if equipped) uses a light blue wire that interfaces with the vehicle’s speed sensor. This wire adjusts audio volume based on road noise; disable it by disconnecting if the new audio system lacks this feature. Confirm proper operation by testing at varying speeds–erratic behavior indicates a faulty signal or poor termination.
Pink wires (or pink/black) carry the accessory power signal, activated when the key is in the “ACC” or “ON” position. Avoid splicing these wires to power high-draw devices; instead, install a relay for accessories requiring over 10 amps. Always fuse new connections within 7 inches of the power source to protect the wiring harness.
Step-by-Step Guide to Installing an Audio Head Unit in Your Factory Harness
Locate the vehicle’s electrical connector behind the factory radio–typically a 16-pin Metra 70-2104 or similar adapter. Verify wire functions with a multimeter: yellow (+12V constant), red (accessory), black (ground), blue/white (amp turn-on), and orange (illumination). Mismatched colors between the aftermarket harness and OEM pins risk shorts or inoperative features.
- Cut only the necessary wires from the factory harness–leave excess length for troubleshooting. Strip 5mm of insulation and twist strands tightly to prevent fraying.
- Crimp spade connectors onto each wire, ensuring a snug fit without exposing bare copper. Heat-shrink tubing (4mm diameter) over each joint, then apply heat until the seal grips.
- Avoid soldering unless the connection will endure high-current applications like subwoofer outputs. Factory splices often fail under vibration.
Match the aftermarket harness to the adapter using a wiring key (often included in Metra/Axxess kits). For vehicles with OnStar or navigation, retain the pink data wire–severing it disables voice control and chimes. Test the ignition switch through each position (OFF/ACC/RUN) before finalizing connections; accessory power fluctuations can damage sensitive amplifier circuits.
- If the new unit lacks steering-wheel control functionality, integrate a PAC RP4-GM21 interface module. Connect its purple/black wire to the factory data bus, not the climate-control harness.
- For vehicles with Bose systems, bypass the internal amplifier by linking the aftermarket head unit’s front/rear outputs directly to the door speakers via RCA inputs on a line-level converter.
- Ground the new radio at the chassis–never use an existing bolt shared with the ECU or ABS sensors. Paint scraped clean at the mounting point ensures consistent conductivity.
