Complete Ford Fiesta 2014 Radio Wiring Color Codes and Connection Guide

Begin by locating the fuse box beneath the driver’s side dashboard–individuals often overlook the hidden retaining clip requiring a 7mm socket to detach the panel fully. The audio harness connects via a 12-pin plug (black, rectangular), distinct from the climate control loom which uses an 8-pin variant (grey, oval). Confirm the color codes: yellow (constant 12V), red (switched 12V), black (ground), and purple/white (illumination)–these four wires form the backbone of any aftermarket integration.

If static persists after connection, trace the antenna lead (thin coaxial cable) to the roof-mounted mast–corrosion at the termination point frequently disrupts signal. The factory harness includes two additional leads (blue/white and green/red) reserved for amplified systems; splicing errors here void power-antenna functionality. For non-factory amplifiers, bypass the built-in noise filter by removing the 220-ohm resistor between pins 5 and 6 on the head unit’s rear connector.

Use crimp connectors rated for 22–18 AWG–solder joints invite vibration-induced fractures. For grounding, secure the black wire to the chassis via an M6 bolt within 30cm of the harness exit point; paint must be scraped off to ensure conductivity. Verify all connections with a multimeter set to 20V DC–expect 11.8–12.2V on the yellow wire when the ignition is off, dropping to

Avoid tapping into the brown/yellow wire (vehicle speed sensor)–this triggers false speed-related mute errors in 3rd-party stereos. If retaining steering-wheel controls, map resistance values: volume (±) = 680Ω, track (±) = 1.2kΩ, mode = 2.4kΩ. Check continuity between the head-unit ground and the negative terminal of the battery; a voltage differential >0.05V indicates corrosion in the common ground path.

Understanding Your Vehicle’s Audio System Connections

Begin by locating the harness behind the infotainment unit–it’s encased in a grey plastic cover near the center console. Disconnect the negative battery terminal to prevent short circuits before handling any connectors. The primary wiring bundle includes 12 distinct pins: power (yellow, 12V constant), ignition (red, 12V switched), ground (black), illumination (orange with white stripe), left/right front speakers (grey/white and grey, respectively), and rear speakers (violet and violet/white). Verify each wire’s function with a multimeter before splicing.

For aftermarket upgrades, match the vehicle’s speaker impedance (typically 4 ohms) to avoid damaging the amplifier. If replacing the stock unit, use a wiring harness adapter (Metra 70-1770 or equivalent) to avoid cutting original wires. The antenna lead (blue, ~12V when activated) requires proper grounding–ensure the mast isn’t corroded, as signal loss often stems from poor connections rather than the head unit itself.

Subwoofer integration demands a dedicated line-output converter (LOC) if tapping into factory speaker wires. Splice the LOC’s input into the rear speaker wires (violet pair), then run RCA cables to the amplifier. Avoid daisy-chaining power sources; instead, route a fused 8-gauge wire directly from the battery to maintain clean current flow. Fuse holders should be placed within 18 inches of the battery terminal.

Auxiliary inputs or Bluetooth modules necessitate a stable ground–bolt the grounding wire to a bare metal chassis point near the installation site. Test continuity between the ground and the vehicle’s frame before finalizing connections. For USB retrofits, use a 5V regulator tapping into the red ignition wire, ensuring the data lines (green/white) aren’t bridged to avoid electronic interference.

Address persistent static by inspecting the ground wire’s crimp–solder and heat-shrink all splices for longevity. If static persists, route power and RCA cables away from the vehicle’s ignition coils and alternator. Factory anti-theft systems may require a bypass module (like the PAC RP4-FD67) if the new unit triggers immobilizer errors during startup. Code retrieval requires the vehicle’s original key fob to reset systems.

Backup cameras integrate via the purple/white reverse signal wire–tap this wire near the tail light assembly for simplicity. Ensure the video cable shield is grounded at one end only to prevent ground loops. When routing cables, secure them with zip ties every 12 inches to prevent chafing against sharp edges. Verify all connections with the engine off before reassembling the dashboard panels.

Accessing the Audio System Harness Behind the Console

Begin by removing the lower dash panel on the driver’s side–grip the edges near the hood release lever and pull outward with steady pressure. Two plastic clips secure the panel; once released, tilt it downward to expose the steel support bracket. The primary electrical connector sits directly behind this bracket, mounted vertically on the firewall. Trace the colored wires from the back of the head unit toward the bulkhead–the harness splits into two connectors: an 8-pin plug (power, illumination, ground) and a 12-pin plug (speaker outputs). Disconnect the battery negative terminal before handling any plugs to prevent short circuits or data loss in vehicle modules.

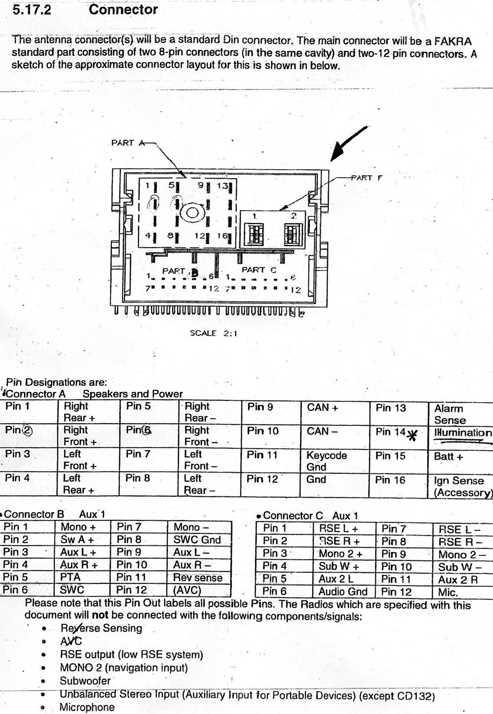

Connector Identification and Pinout Reference

Connector Type	Pin Number	Wire Color	Function	Voltage/Resistance
8-pin (Power)	1	Yellow/Black	Constant 12V	12.6V (±0.2V)
	4	Pink/Black	Switched 12V	12.2V (ignition on)
	5	Black/White	Ground	0.1Ω max to chassis
	8	Purple/White	Illumination	0-12V (dimmer-controlled)
12-pin (Speaker)	1	Dark Blue/White	Front Left (+)	2-4Ω (factory speaker)
	2	Dark Blue/Red	Front Left (-)	Continuity to ground via speaker
	7	Gray/Yellow	Rear Right (+)	2-4Ω (factory speaker)
	12	Gray/Brown	Rear Right (-)	Continuity to ground via speaker

Use a multimeter to verify continuity between the speaker wires and their respective door or pillar locations–factory harnesses often include inline resistors for theft-deterrent systems, which can interfere with aftermarket installations. If resistance exceeds 5Ω, inspect the splice points near the kick panel or under the rear deck for corroded terminals. Re-crimp any suspect connections with 16–18 AWG butt connectors and heat-shrink tubing.

Decoding Connector Shades and Purposes in the Compact Hatchback Audio Interface

Start by locating the main 12-pin harness behind the entertainment unit’s mounting bracket–this cluster houses most critical circuits. The light green cable with a yellow stripe (pin 1) delivers constant 12V power directly from the battery, bypassing ignition switches; verify voltage even when the key is off to confirm integrity. Adjacent, the solid yellow wire (pin 2) carries accessory power, energizing only with the ignition in ACC or ON; a multimeter should show 0V in LOCK but 12V when ignition cycles.

• Orange wire (pin 3) – Illumination feed, dimming in sync with dash lights; test by toggling headlight switch.
• Gray/red tracer (pin 4) – Ground return; continuity must read <1Ω to chassis.
• Dark blue/white tracer (pin 5) – Left front speaker positive; 4-8Ω impedance expected when probed.
• Dark blue (pin 6) – Left front speaker negative; polarity flips may distort audio.
• Light blue/red tracer (pin 7) – Right front speaker positive.
• Light blue (pin 8) – Right front speaker negative.

Speaker and Antenna Circuit Verification

Trace violet/white tracer (pin 9) and violet wires (pin 10) to rear speakers–left rear positive/negative respectively. Brown/light green tracer (pin 11) serves as the antenna amplifier’s power supply; it activates only during audio source engagement. Disconnect the harness, measure 12V here with engine running and audio on–absence indicates fuse F28 (10A) failure in the central junction box.

Pink wire (pin 12) – Auxiliary input trigger for aftermarket devices; factory state is unutilized but holds 5V potential when probed. For system integration, tap constant 12V (light green/yellow) and switched 12V (yellow) first–reverse engineering these prevents head unit resets post-install. Always cross-reference measured values against harness schematic pinout shown on decal inside glove compartment door.

Step-by-Step Guide to Splicing Connections for Aftermarket Audio System Installation

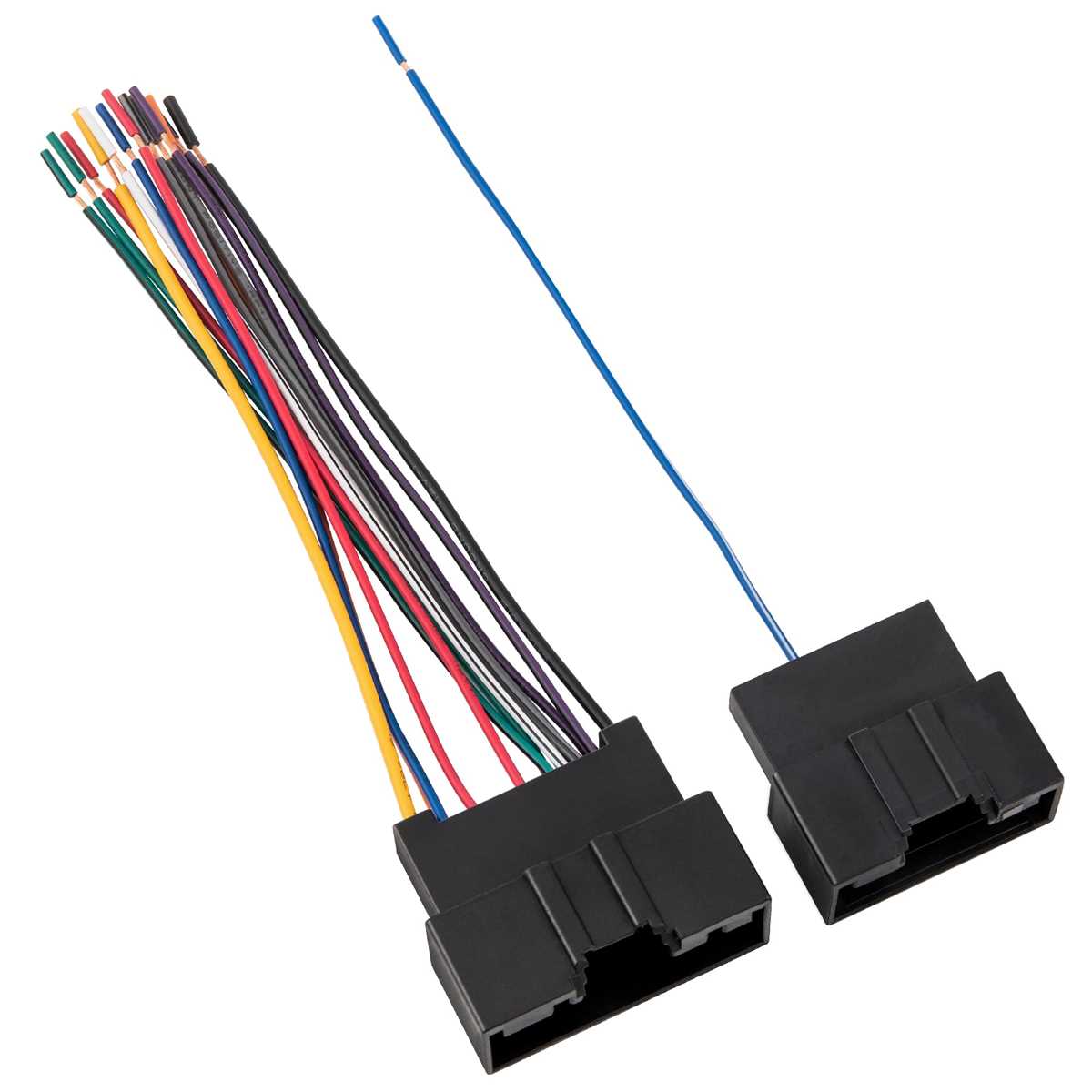

Begin by identifying the power harness adapter compatible with your vehicle’s original connector. Match each pin on the harness to the color codes from the manufacturer’s documentation–typical configurations include a 12V constant (yellow), accessory (red), ground (black), and speaker outputs. Use a multimeter to verify voltage on the constant and accessory wires before proceeding, ensuring they read 12V and 0V with the key off, and 12V when the ignition is on. Misidentifying these can damage the new unit or cause battery drain.

Preparing the Wires for Splicing

Trim each wire to expose 5–7mm of copper, avoiding nicked strands or frayed ends–these reduce conductivity and increase resistance. If the original harness lacks solder-ready connectors, use crimp connectors or heat-shrink tubing instead of electrical tape, which degrades over time. For speaker leads, pair positive (solid color) and negative (striped) wires accurately; reversing polarity distorts audio or damages the amplifier. Cross-test each pair with a 9V battery to confirm correct phase–speakers should push outward, not pull inward.

Solder joints when possible, applying a thin layer of rosin flux to prevent oxidation. Heat the wire first, then touch the solder to the joint–it should flow smoothly without globbing. Insulate each connection with adhesive-lined heat shrink, applying heat evenly with a heat gun until the tubing contracts fully. For vehicles with amplified systems, locate the remote turn-on lead (usually blue/white) and connect it to the new head unit’s trigger output to activate external amplifiers without manual intervention.

Bundle the finished connections with split loom tubing or corrugated conduit, securing them away from moving parts, sharp edges, or heat sources like exhaust manifolds. Route the harness through existing grommets in the firewall, using nylon zip ties spaced every 15cm to prevent sagging. Test the setup before finalizing trim panels–verify power, audio clarity, and steering wheel controls if retained. If static persists, check for loose grounds or interference from poorly shielded wires near the OEM antenna lead.
