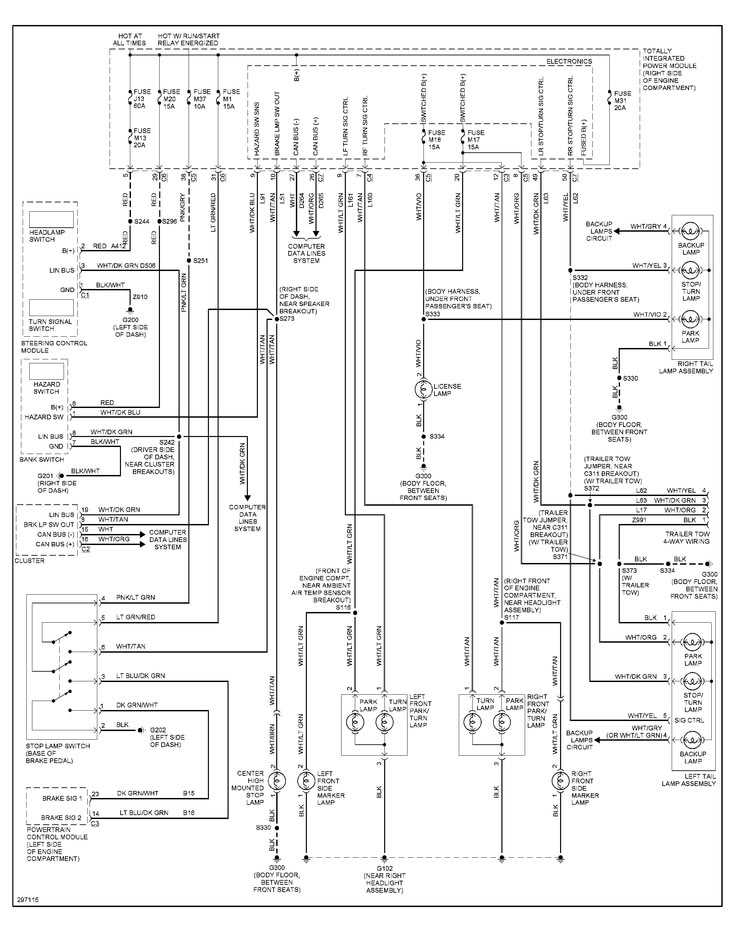

Complete Jeep Grand Cherokee 2014 Trailer Wiring Harness Diagram Guide

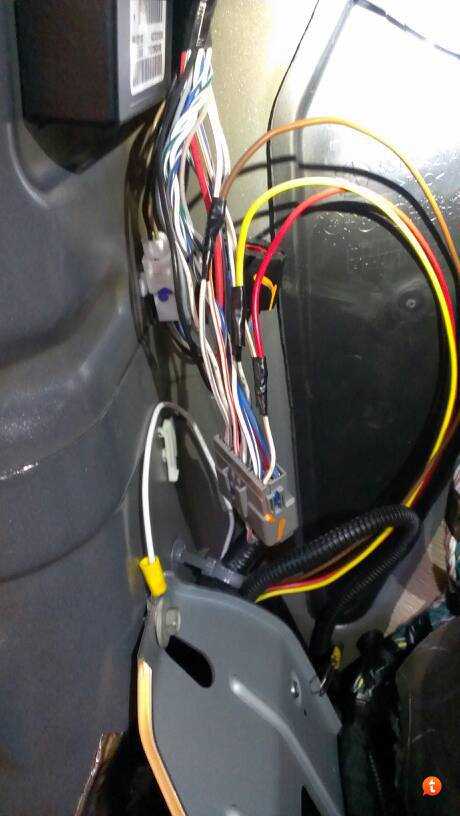

To connect your vehicle’s auxiliary lighting circuit correctly, locate the factory-installed harness behind the rear bumper pass-through. The OEM plug typically includes a seven-pin round connector–match each terminal to the corresponding function: brown for running lights, yellow for left turn/brake, green for right turn/brake, white for ground, blue for auxiliary power, and red for reverse lights (if equipped). Avoid splicing into the main wiring loom; instead, tap into the dedicated towing module, usually situated near the rear tailgate hinge.
Key terminals to verify: Pin A (ground) must register less than 0.5 ohms resistance to chassis ground. Pins B (auxiliary) and D (reverse sensor) often share a fused 15A circuit–check voltage under load before finalizing connections. If integrating a brake controller, use the pre-wired teal circuit (pin C) for proportional output; factory settings default to 12V pulse width modulation at 10Hz. For aftermarket additions, ensure the controller’s max draw (typically 250mA) does not exceed the module’s rated 300mA capacity.
Troubleshooting tip: If LED trailer lights flicker or fail, bypass the vehicle’s internal resistance modulator by adding a separate 47μF capacitor across the affected circuit. This stabilizes voltage dips during brake activation. For vehicles with adaptive cruise control, disengage the trailer sway mitigation system via the infotainment menu when towing loads exceeding 5,000 lbs–this prevents false collision warnings triggered by trailer yaw.
Prioritize factory color codes over third-party diagrams. Mismatched wiring can trip the vehicle’s fault detection system, logging DTCs U0100 (lost communication with brake controller) or U1900 (voltage supply range/performance). Clear codes using a scan tool before retesting. For heavy-duty setups, upgrade the #10 gauge factory wires to #8 gauge and relocate the fuse block to an accessible under-seat mount–this eliminates voltage drop over extended runs.
Keep a multimeter configured to 20V DC on hand. Probe the connector while toggling lights/brake signals to confirm activation before attaching trailer connectors. If signal loss persists, inspect the load equalizer (required for vehicles with LED tail lights) for correct amperage rating–it must match the trailer’s aggregate draw (typically 7-way + 2-way combined).
Electrical Hookup Guide for Late-Model SUV Towing Systems
Locate the factory-installed harness behind the rear bumper on the driver’s side, typically concealed by a plastic cover. This connector features a seven-pin configuration: pins 1–3 handle left/right turn signals and brake lights, pin 4 manages the battery charge circuit, pin 5 controls the electric trailer brakes, pin 6 powers auxiliary lighting or a reverse signal, and pin 7 grounds the system.
The vehicle’s harness includes an inline fuse rated at 25 amps–verify its integrity before attaching any load. If towing a heavier rig, consider upgrading to a relay-based converter to prevent voltage drop, especially when engaging multiple lights or a brake controller simultaneously.
For aftermarket installations, match wire gauges precisely: 12 AWG for lighting circuits, 10 AWG for brake outputs, and 8 AWG for the battery charge line. Mismatched gauges risk overheating under sustained 12V loads, particularly during extended hauls in hot climates.
- Use dielectric grease on all connections to inhibit corrosion, particularly if exposing pins to road salt or coastal humidity. Apply a thin coat before securing terminals.
- Avoid splicing into factory wires–severing the original harness voids powertrain warranty coverage on most late-model SUVs. Instead, procure a plug-and-play adapter that mates directly with the OEM receptacle.
- Test each function independently before final assembly. Activate turn signals, hazard lights, brakes, and reverse lamps sequentially to confirm all seven pins transmit correct voltage (12–14V) without cross-talk.
If equipping a brake controller, position the module within 18 inches of the driver’s seat to maintain manual override accessibility. Route wires along existing harness channels to prevent chafing against sharp metal edges or exhaust components. Secure with nylon ties every 12 inches.
For European-spec trailers requiring a 13-pin socket, utilize an adapter that splits the signals correctly: pins 1–4 and 7 remain unchanged, while pins 5, 6, and 8 combine auxiliary functions. Ensure pin 10 (reverse light) retains a dedicated 12V supply without sharing current with other circuits.
Install an inline circuit breaker rated at 40 amps on the battery feed if towing loads exceeding 5,000 lbs. Position it within 7 inches of the battery terminal to minimize voltage loss. Ground the trailer frame separately from the tow vehicle’s chassis using an 8-gauge wire to eliminate ground loops causing erratic brake signals.
- Disconnect the SUV’s negative battery terminal before initiating any electrical work to prevent short circuits.
- Trace each wire from the rear harness to the under-dash fuse box to confirm no hidden splices or load resistors interfere with signal flow.
- Replace any aging tow module with a new unit if diagnostics reveal inconsistent voltage output (oscillations greater than ±0.5V indicate failure).
Finding the Electrical Link for Towing Equipment Beneath Your SUV
Begin by examining the rear section near the bumper–manufacturers typically position the connector within 12 inches of the frame rail. Use a creeper or lie on a mechanic’s mat to avoid dirt and debris.
The connector is often secured with a plastic clip or mounting bracket. Look for a rectangular or circular plug with four to seven pins, depending on the system configuration. Shine a flashlight directly at the undercarriage to spot it more easily.
- Check behind the spare tire carrier if the vehicle is equipped with one–it may be tucked behind protective shielding.
- Inspect the area adjacent to the exhaust pipe, as some models route the harness away from heat sources.
- Avoid confusing it with the factory backup sensor wiring, which may have a similar appearance but serves a different purpose.
If the connector isn’t immediately visible, probe the wiring loom with your fingers. Many automakers bundle the harness with other cables, so follow the main loom from the rear lights backward.
For models with integrated parking sensors, the towing plug may be located near the sensor module. Trace the sensor wires to their termination point–this often leads to the primary connection hub.
When visibility is poor, use a mirror on an extendable handle. Position it to reflect light upward, revealing hidden fasteners or the connector itself. A smartphone with a high-resolution camera can also help by capturing images of tight spaces.
If the harness appears damaged or disconnected, verify that the vehicle’s fuse box has power to the towing circuit. A test light or multimeter will confirm whether the system is receiving voltage before proceeding with repairs.
Always disconnect the battery before handling any electrical components to prevent short circuits or accidental deployment of modules. Reconnect the plug securely, ensuring the locking tab clicks into place before testing functionality.
Step-by-Step Guide to Connecting a 7-Way Vehicle Tow Connector
Locate the factory harness behind the rear bumper–it’s typically bundled with a black or gray plug. Disconnect the retaining clip and separate the harness from the vehicle’s socket to expose the colored wires. Strip ¼ inch of insulation from each wire using wire strippers; twist strands lightly to prevent fraying before mating to the new connector.
Match the vehicle’s output leads to the 7-way connector pins using this standardized configuration:
| Pin Number | Function | Wire Color (Standard) | Vehicle Harness Color |
|---|---|---|---|
| 1 | Electric Brake | White/Black | White |
| 2 | Right Turn/Brake | Green | Dark Green/Yellow |
| 3 | Tail & License | Brown | Brown/Orange |
| 4 | Left Turn/Brake | Yellow | Dark Green/Red |
| 5 | Reverse Lights | Pink | Pink/Light Blue |
| 6 | 12V Aux Power | Red | Black/White |
| 7 | Ground | White | Black |
Align each lead precisely–confusing brake and turn signals can disable safety functions. Crimp connectors securely using a ratcheting tool; heat-shrink tubing over each joint ensures moisture resistance. Route excess wiring away from moving parts or exhaust components to prevent abrasion or melting.
Verify Connections with a Test Light
Attach the test light’s ground clamp to the vehicle chassis, then probe each pin in sequence while activating the corresponding function–brake pedal for pin 1, turn signals for pins 2 and 4, etc. Observe consistent illumination; flickering indicates a loose crimp or corroded wire. For pin 6 (Aux Power), confirm voltage holds steady at 12-14V without load.
Apply dielectric grease to both the vehicle socket and new connector before mating to prevent oxidation. Secure the connector bracket to the hitch receiver using the provided hardware–avoid overtightening to prevent thread damage. Recheck all functions after a short test drive; vibrations can loosen improperly crimped wires.
If towing a heavy load, install a relay kit between the battery and pin 6 to avoid voltage drop under load. Disconnect the negative battery terminal before splicing; accidental shorts can damage the computer module. Store spare wire insulation (e.g., heat-shrink scraps) and a multimeter in the glove compartment for quick diagnostics on the road.
