Toyota Tacoma 2014 Stereo Wiring Guide and Color Code Diagram

Installing aftermarket audio in your mid-size truck requires matching the factory harness pinout exactly. The front speaker wires–left positive, right positive, left negative, right negative–use 2 mm bullet connectors, while the rear channels follow a similar pattern but add a shielded ground for noise reduction. Check the continuity between the amplifier turn-on lead and the ignition circuit before splicing; a 12V test light at the fuse box confirms power.

For navigation integration, locate the blue/white remote wire behind the dash cluster; it carries 7 mA when active. Misrouting risks draining the battery or interfering with the CAN bus. Color codes vary slightly between SR5 and TRD Off-Road trims–TRD models include an extra orange/black wire for trailer brake control that must remain isolated.

Use crimp connectors rated for 16 AWG for all audio wires, and solder the ground directly to chassis metal; avoid factory bolt holes, which can loosen under vibration. Replace the OEM antenna plug with a universal Motorola adapter if kept. Power windows, if retained, share a grounding point near the driver’s kick panel–inseparable from the audio ground circuit.

Verify polarity with a 9V battery before finalizing connections. Reversing positive/negative on the tweeters will produce phase cancellation, muffling high frequencies. Double-check the harness for bridged pins; even a 0.5 mm short between the red accessory wire and purple illumination wire can trigger dashboard warning lights.

Factory Audio System Connection Blueprint for 2014 Pickup Models

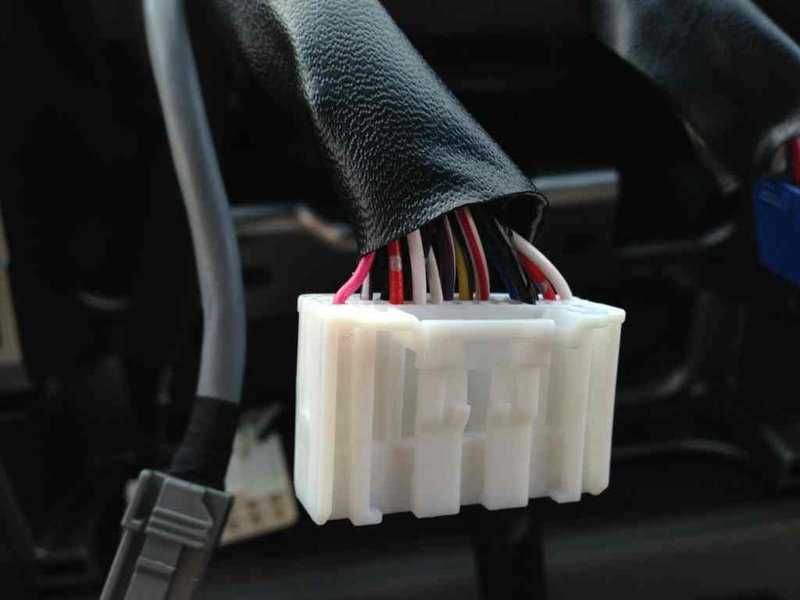

Locate the harness behind the dashboard’s lower panel on the driver’s side–unclip the plastic cover by prying upward at the edges with a trim removal tool. The 14-pin connector (labeled J136) carries all audio signals; pin 12 delivers switched 12V power from the ignition circuit, pins 5 and 6 ground the amplifier chassis, while pins 2 and 3 feed left and right front speakers (+). Colors follow a strict code: light green/black stripe (LF+), light green/white stripe (LF−), gray/black stripe (RF+), and gray/red stripe (RF−).

• Never splice into the factory harness–use a wiretap connector with built-in strain relief to avoid intermittent faults.
• Amplifier remote turn-on (pin 8) requires a 1kΩ resistor between the blue/white wire and ground to prevent amp shutdown errors.
• OEM navigation models include a separate CAN bus line (pin 14, pink/silver stripe) for voice guidance–leave it untouched unless integrating a compatible head unit.

Aftermarket interfaces like Metra AX-TOY1 or Scosche TA14B solve compatibility by translating analog signals into the vehicle’s proprietary data stream. These adapters plug directly into J136, presenting a standard ISO harness for new radios while preserving steering wheel controls and Bluetooth hands-free functions. Verify adapter firmware version–older revisions may fail to retain factory microphone performance.

1. Disconnect the negative battery terminal before removing the head unit to clear transient memory faults.
2. Route all new wiring away from sharp metal edges and moving components (e.g., steering column, pedals).
3. Secure the harness with automotive-grade cloth tape; avoid electrical tape as it degrades under heat.

Signal cables for rear speakers (pins 9 through 11) terminate at a 6-pin inline connector near the driver-side kick panel. Use a multimeter set to DC volts to confirm pin assignments–factory diagrams occasionally mislabel RF− as gray instead of gray/red. Subwoofer output (if equipped) enters J136 at pin 13 (purple/white stripe); this line carries a 2V preamp signal and requires a noise filter if integrating an external amplifier.

Factory steering wheel control modules communicate via a single-wire LIN bus protocol (pin 7, orange/white stripe). Aftermarket solutions (e.g., iDatalink Maestro RR) decode these pulses into resistive ladders compatible with most aftermarket radios, but installation demands exact voltage calibration–consult the adapter’s specific voltage mapping table rather than relying on generic values.

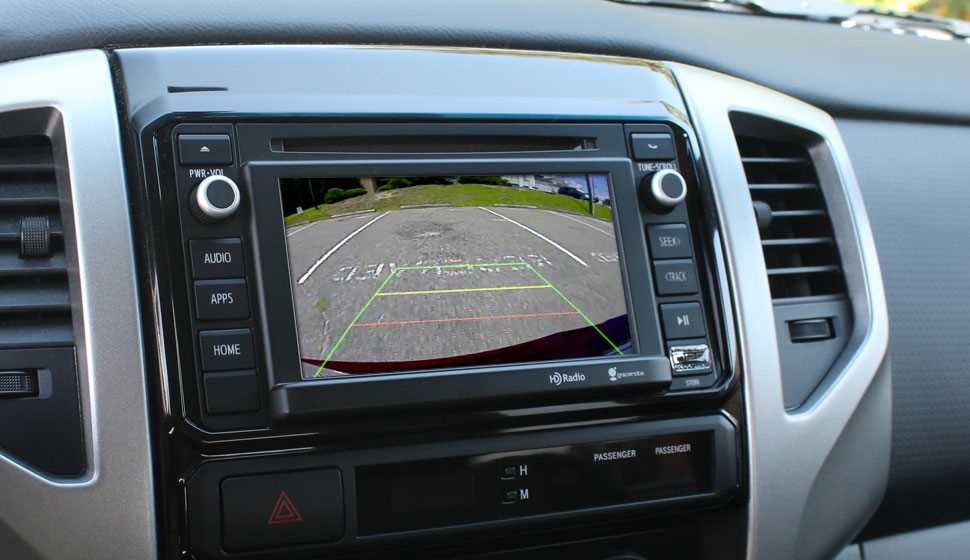

Auxiliary components like backup cameras or parking sensors tie into a secondary 8-pin connector (J137) adjacent to the main harness. Critical wires include the reverse trigger (purple, +12V when gearshift engages) and ground reference (black/white stripe). Failing to reconnect these properly results in backup camera image distortion or false parking sensor alerts.

Static suppression demands proper grounding–attach all ground wires to a bare metal chassis point, preferably the factory ground eyelet near the A-pillar base. Corrosion on the mounting surface (common in vehicles operating in humid climates) creates parasitic resistance that distorts audio clarity; sand the surface lightly with 120-grit paper before securing the lug. For persistent interference, install a 0.1µF ceramic capacitor across the power and ground wires at the head unit connector to eliminate alternator whine.

Finding the OEM Audio Connector Behind Your Pickup’s Dash

Begin by removing the trim panel beneath the climate controls–slide a plastic prying tool along the upper edge where it meets the dash pad. Two 10mm bolts secure the ashtray housing; unthread them before pulling the assembly straight out. The main 16-pin harness appears behind the gloss-black bracket, typically colored gray with a single red locking tab.

Trace the bundled cables toward the firewall–one cluster splits into speaker outputs, another feeds constant 12V memory and ignition-switched power. Pin one delivers illumination, while pins fourteen and fifteen carry left front door and tweeter signals, respectively. Matching aftermarket harnesses often label these connectors J1/J2 for clarity.

Drop the glovebox by squeezing its sides to release the stops, then swing it down to access the cabin fuse block. A secondary harness emerges from the lower-left corner, servoed to the amplifier if equipped. Snip the zip ties binding it to the HVAC ducting to expose the full run.

Locate the ground lug bolted to the chassis rail behind the driver kick panel–remove the single Philips screw to free the crimped eyelet. Factory splices near this point include antenna trigger (thin blue wire) and mute control (solid brown). Disconnecting these connectors first simplifies later splicing.

Measure each wire with a multimeter: yellow delivers battery voltage, red carries accessory current, blue/white handles remote antenna power. Speaker leads alternate between solid and striped colors–black/orange for rear left, gray/brown for front right. Verify continuity before soldering.

Label each connection with masking tape before severing–identifying anomalies like reverse polarity or missing parking lights saves rework. A digital schematic downloaded from the manufacturer portal confirms pin assignments against observed connections.

Replace any brittle insulation within six inches of terminations, using heat-shrink tubing spliced over butt connectors. Reattach the completed harness to the original mounting points using the factory screws, ensuring no tension remains near moving components.

Decoding Audio Harness Wire Colors and Purposes in Your Pickup’s Sound Setup

Begin by locating the factory plug behind the head unit–typically a 16-pin connector split into two rows. Pinpoint the constant power lead first, always distinguishable by its solid yellow insulation. This line maintains memory settings for presets and clock functions, delivering consistent 12V regardless of ignition state. Verify with a multimeter: red probe on the wire, black on chassis ground; a steady reading confirms proper function.

• Red (switched +12V): Ignition-controlled feed activates the unit when the key turns. Test for voltage drop during cranking–some pickups exhibit brief loss, causing resets.
• Black (ground): Thickest gauge, directly bolted to the firewall. Poor connection introduces whine; clean mounting surface with emery cloth before reattaching.
• Blue/white (remote turn-on): Triggers amplifiers at 200mA max. Overloading risks blowing the fuse; use a relay for high-current aftermarket systems.

Speaker wires follow a strict pairing: front left positive carries a colored stripe (e.g., gray/light green), while its paired negative removes the stripe (solid gray). Reverse polarity causes phase cancellation, thinning bass response. Label each wire with masking tape before cutting to prevent cross-channel miswiring.

For parking brake and reverse signal detection–critical for navigation interfaces–identify the light green and purple wires. Light green connects to the parking brake switch; tapping it enables video playback while driving (safety bypass). Purple links to the backup light circuit, triggering camera displays. Splice carefully; incorrect joins disable rearview functionality.

1. Use crimp connectors with heat-shrink tubing–solder alone fails under vibration.
2. Wrap splices in electrical tape then loom for strain relief.
3. Route wires away from sharp edges, rotating shafts, and exhaust manifolds.

Steering wheel controls utilize a dedicated sub-harness, typically pink and blue wires. Pink carries the data signal (CAN bus), blue grounds the resistive network. Swapping them renders buttons non-functional. Check resistance values with a meter: volume up/down should read between 300-500 ohms.

Factory-equipped models include an orange illumination wire, varying dimmer brightness with dash lights. Connecting aftermarket units without this wire causes display glare at night. If omitted, add a 10K ohm potentiometer inline to manually adjust brightness.
