Complete Wiring Harness Diagram for 2016 Chevy Silverado Explained Step by Step

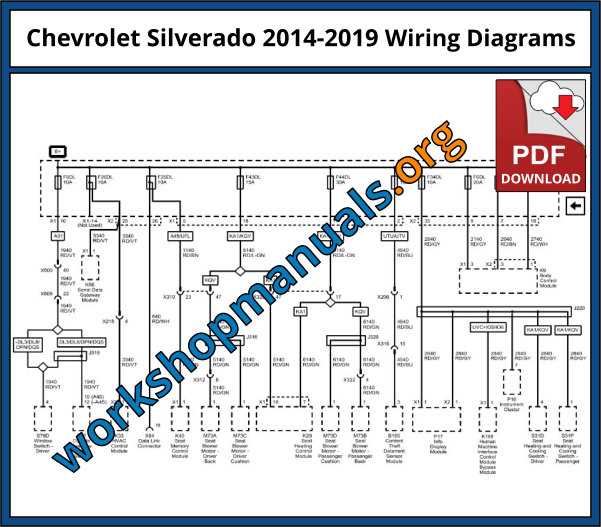

Start with the underhood fuse block schematic–identify slots 1 (20A mini), 11 (30A mini), and 21 (40A maxi) first. These control the ECM, cooling fans, and transmission shift solenoids, respectively. Trace the red 10-gauge wire from slot 21 to the transmission range switch connector (T47, gray 10-pin), ensuring continuity before addressing intermittent shifting delays. For the instrument cluster, focus on the brown 16-pin connector (C2): pins 7 (fuel level signal) and 13 (tachometer output) require 2.5kΩ resistor checks if gauges flicker.
Examine the front lighting harness where it splits at the driver-side headlamp assembly. The green/white striped wire (low beam circuit) feeds through a 15A fuse (slot 43) and must maintain 12.8–13.4V under load. If dimming occurs, bypass the fuse block test port with a multimeter to isolate voltage drops before replacing the entire 18-conductor harness section. For trailer brake circuits, verify the blue 7-way connector wires at the rear frame rail: pin B (brake output) should show 480±5Ω resistance to ground when brakes are applied–values outside this range indicate corroded terminals or faulty controller relocation.

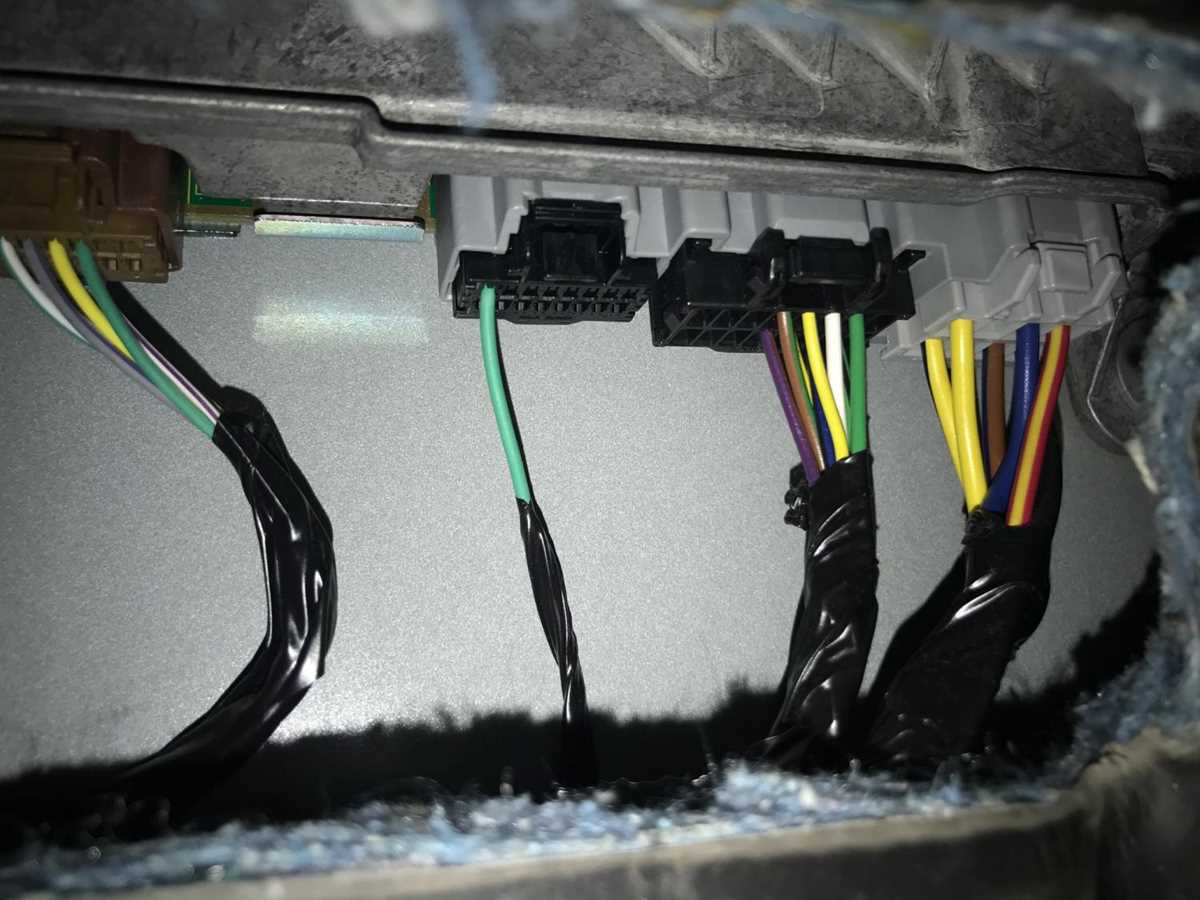

Access the passenger kick panel for the BCM connection (connector X30, black 32-pin). Critical pins include 9 (right turn signal) and 21 (door ajar switch); both should switch cleanly between 0V and battery voltage. Use a noid light to test pin 27 (park lamp feed) if the daytime running lights fail–this often reveals a melted splice upstream of the T-case skid plate. For HVAC blower motor issues, follow the dark blue 14-gauge wire from the motor resistor (mounted near the cabin filter) to the climate control module, checking for intermittent shorts at the bulkhead connector (grommet 3).
Replace the entire cabin wiring bundle only after confirming faults in these four segments:
- Under-dash harness (knee bolster area) for corroded fusible links.
- Rear cargo harness (near spare tire mount) for rodent damage to ignition-switched circuits.
- Engine bay primary harness (between battery tray and firewall) for chafing on the A/C compressor bracket.
- Transfer case wiring (driver-side frame rail) for melted insulation near heat shields.
Color-matched replacement harnesses from GM part #24257982 include pre-installed weatherpack connectors at all critical junctions–avoid aftermarket alternatives lacking Mil-spec terminals.
Electrical System Layout for 1500 Series GM Pickup Models
Start with identifying the main power distribution block under the hood–located near the battery on the driver’s side. Label X1 houses forty-four terminal connections; verify each fuse rating matches the factory guide (e.g., F5R – 20A for trailer brake controller, F6R – 30A for ignition coil). Ignore generic color codes found online; instead, cross-reference the vehicle’s VIN-specific build sheet with the official GM service manual.
Trace the instrument panel loom branching from the dashboard firewall connector (C201). Pin 16 supplies 12V constant power to the theft deterrent module; ensure corrosive-free crimps by applying dielectric grease after each splice. The radio circuit (pins 4-8) requires a dedicated 10-gauge ground strap directly bolted to the chassis–avoid piggybacking onto existing sensors to prevent voltage drop.
For trailer light circuits, bypass the factory tow package relay if installing aftermarket components. Insert an inline fuse holder rated 25A between the seven-way connector’s blue auxiliary wire and the brake controller feed. Test voltage at the rear junction box (X303) with a multimeter set to DC 20V; readings below 11.8V indicate a faulty ground at G401 behind the rear bumper.
The BCM (body control module) resides behind the glove box; accessing it requires removing the passenger airbag harness first. Unplug connector C1 before probing terminals–pins 18 to 24 control exterior lighting. Use terminal extraction tools to avoid damaging retaining clips. Heated seat connectors (red/white wires, pins 31-32) share a 15A fuse with the rear defrost; an overload here will disable both systems.
OEM loom splices for the 5.3L engine harness use ultrasonic welding–never solder or crimp factory connections. The MAF sensor branch (pink/black wire, pin A6) must connect directly to the ECM without intermediate junctions. If replacing the engine loom, match the wire gauge precisely: 20AWG for signal wires, 14AWG for power feeds.
Retain the original loom routing guides clipped to the frame rail–misalignment can cause chafing against the driveshaft tunnel. The rear oxygen sensor pigtails (gray connectors) use heat-resistant silicone coatings; replace with identical parts if brittle. For auxiliary lighting installs, tap into the orange/black wire (pin K37) at the under-hood fuse box but avoid exceeding 120W total load to prevent overheating the headlight switch.
Finding Primary Electrical Bundle Connections in the Engine Bay
Begin at the driver-side fender well where the main fuse block mounts. Trace the thickest loom exiting its rear toward the firewall–this is the primary power feed. Identify three key junctions:
- Battery terminal splice: Located 12 cm below the positive post, secured by a red cover with green adhesive label.
- Chassis ground pigtail: Bolted to the inner fender, bare wire twisted into 10-gauge lug, typically 8 mm fastener.
- ECM relay output: Yellow/red stripe running perpendicular to the firewall, terminates in 16-pin connector.
Inspect the passenger-side strut tower for auxiliary connection points–the under-hood lighting bundle splits here into two sub-looms: one heads toward the radiator fan (blue/white), the other dives beneath the air intake housing (brown/black). Mark each with labeled zip ties before servicing–mistakes here trigger false DTC codes P0562 (voltage low) or P2100 (TPS circuit) during diagnostics. Measure voltage at the splice clips: 13.8-14.4V at idle confirms proper junction integrity.
Step-by-Step Guide to Tracing Electrical Connections in the Engine Compartment
Begin by locating the main fuse box under the hood. It’s typically positioned near the battery or along the firewall. Remove the cover to expose the internal labels–each slot corresponds to a specific circuit, marked by amperage and function (e.g., “IGN” for ignition, “ECM” for engine control module). Use a multimeter set to continuity mode to verify connections between the fuse terminals and their respective wires. If a wire lacks continuity, follow its path backward to identify breaks or corrosion.
Identify the engine control unit (ECU) connectors. These are usually grouped near the intake manifold or strut tower. Label each connector with masking tape–note colors and pin numbers (e.g., “C1, Pin 8: Brown/White”). Disconnect the battery negative terminal before probing to avoid short circuits. Use a wiring schematic to cross-reference pin assignments; discrepancies often indicate faulty grounds or damaged terminals.
Inspect ground points next. These are bolted to the chassis or engine block, often near the transmission mount or coolant reservoir. Clean the contact surfaces with a wire brush–oxidation here mimics sensor failures. Test grounding integrity by connecting the multimeter between the ground wire and battery positive; readings above 0.2 ohms signal resistance issues.
- Trace sensor wires (MAP, TPS, crank/cam position) from their origin to the ECU. These follow twisted-pair or shielded cables to reduce interference.
- Avoid pulling wires; guide them with your fingers or plastic trim tools to prevent insulation damage.
- Note splices–taped joints or crimped connectors often fail. Re-solder if exposed.
Examine the ignition coil packs and injector harnesses. Each coil has a dedicated plug with 3-4 wires: power, ground, and trigger signals. Check for melted insulation or arcing at the boots–these signs point to voltage spikes from faulty spark plugs or coil failures. Swap coils between cylinders to isolate misfires; if the issue moves, replace the coil.
Follow the alternator wiring. The thick red cable connects to the battery positive, while the smaller wires (excitation and sense) link to the ECU. Voltage drop across these wires should not exceed 0.5V when the engine runs. Higher readings indicate corroded terminals or undersized cables–common in aftermarket setups.
Troubleshooting Hidden Breaks
Use a tone generator on suspected wires. Clip the transmitter to one end and probe along the path with the receiver. Silence indicates a break; marks the spot for repair. For bundled harnesses, gently flex sections while monitoring resistance–intermittent faults reveal themselves under stress.
Final Checks
Reconnect the battery and scan for trouble codes even if no CEL appears. Pending codes (monitors not yet set) often expose marginal sensors or loose connections. Clear codes after repairs and retest under load–drive cycles at highway speeds confirm fixed issues. Document all changes in a notebook; next diagnoses will be faster.
Locating and Decoding Dashboard and Instrument Cluster Connector Ports
Begin by locating the central fuse panel beneath the steering column–remove the lower dash cover (fastened with two 7mm bolts) to expose the primary assembly. The instrument cluster’s male plug (typically a 24-pin rectangular connector) is positioned directly behind the speedometer housing, secured by a single release tab on its upper edge. Press inward firmly while pulling the connector free–excessive force risks breaking the locking mechanism. Label each port immediately using adhesive tape or digital photos; misalignment during reassembly triggers erratic gauge behavior or backlight failure.
The 24-pin cluster plug divides into three functional zones: power input (pins 1-8), signal output (pins 9-16), and illumination/ground (pins 17-24). Use a multimeter set to DC voltage (20V range) to probe the following critical terminals–measurements should align with the reference values:
| Pin | Function | Expected Voltage (Key ON) |
|---|---|---|
| 2 | Battery feed (constant) | 12.6V ±0.5V |
| 4 | Ignition-switched power | 11.5V–14.2V |
| 7 | Security lamp output | Pulsing 0V–12V (blinking) |
| 10 | Fuel level sender signal | 0.5V–4.5V (varies with tank level) |
| 18 | Instrument panel dimmer control | 0V–5V (adjusts with knob) |
| 24 | Ground | 0V |
For vehicle speed sensor verification, back-probe pin 9 with the multimeter’s positive lead while grounding the negative probe–rotate the transmission output shaft manually; readings should fluctuate between 0V and 5V. Absence of voltage indicates an open circuit between the sensor and cluster or a faulty tone ring. The tachometer signal (pin 12) delivers a square wave at 50% duty cycle, frequency proportional to engine RPM–no signal triggers a dead needle or erratic sweep.
Illumination circuits demand precise resistance checks. Trace the violet wire from pin 17 to the headlamp switch–disconnect the switch and measure continuity to ground; resistance should not exceed 1 ohm. Dimmer-controlled feeds through pin 18 require 10k-ohm potentiometer validation; fractured contacts distort backlighting or gauge readings. If LEDs flicker under load, suspect corrosion at pin 20’s bulb monitoring feed–clean contacts with electrical-grade solvent and reinstall with dielectric grease.
Reassemble only after confirming all connections. Align the cluster’s guide rails with the dash frame and press firmly until the locking tab clicks–misalignment strains connector pins and disrupts data lines. Reattach the fuse panel cover and cycle the ignition to ensure all gauges sweep smoothly. Persistent issues (stalled needles, dim illumination) warrant inspection of the body control module’s CAN bus signals–pin 14 carries high-speed networking; examine for physical cuts or voltage drops below 2.5V.
Store reference materials–pinout schematics printed on waterproof paper–inside the glove compartment for future troubleshooting. Marking male and female connector halves with matching numbers (using a silver Sharpie) eliminates guesswork during later repairs. Replace any brittle retaining clips with OEM-grade components; aftermarket alternatives may lack proper tension and cause intermittent gauge failures.
