Complete Ford Fiesta 2017 Radio Wiring Guide and Color Codes

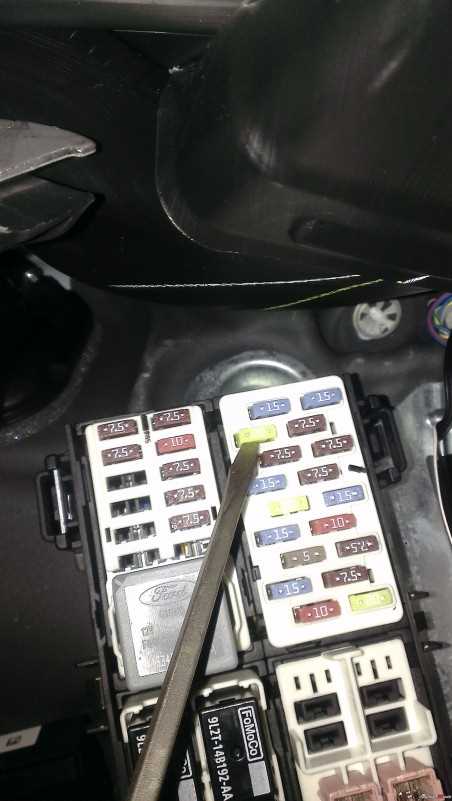

Start by locating the fuse box behind the glovebox–it’s the primary access point for your entertainment system’s power circuit. Pin 16 (12V constant) and pin 18 (switched power) on the harness must connect directly to their corresponding wires: yellow/green stripe for constant and red/black stripe for switched. Use a multimeter to verify voltage before proceeding–no exceptions. Factory harness colors are standardized, but aftermarket replacements often deviate; cross-check with a 20-page schematic section covering C291, C292, and C293 connectors.
Ground points are non-negotiable. Connect the thick black wire from the harness to chassis ground at G206, located beneath the driver’s side dashboard. Resistance should read below 0.5 ohms–anything higher indicates corrosion or loose mounting. If the screen flickers or the unit resets under bass loads, trace the ground path with a test light; faulty grounds are the most common failure point in this model’s installation.
Speaker outputs (front/rear, left/right) follow a consistent pattern: front left (+) is white/orange, front left (-) is white/brown. Rear channels mirror this logic with gray/green and gray/yellow for positive/negative. Use crimp connectors rated for 22-18 AWG–solder-and-heatshrink is preferred for longevity. Avoid twisting wires; vibration loosens connections over time, leading to intermittent audio dropouts.
For steering wheel controls, wire the resistive network to the interface adapter’s blue input. Reference the resistance values provided in the manufacturer’s datasheet–usually 200Ω to 4kΩ across different buttons. If controls stop responding, re-measure resistances at the harness; a single faulty button often disrupts the entire sequence.
Satellite radio and USB integration require specific modules: the SWC interface must match the aftermarket head unit’s protocol (iDrive, Axxess, or Metra). Check compatibility before purchase–incorrect models fail to initialize or cause constant reboots. USB signals (red/white data lines) connect directly to the head unit’s USB port, not the vehicle’s charging socket. Use a shielded twisted pair for these lines to prevent signal interference from the alternator.
Vehicle Audio System Electrical Schematic for the 2017 Model Variant
Locate the main harness connector behind the dashboard’s lower trim panel on the driver’s side–pinout colors follow a standardized 12-pin ISO layout. The upper row (from left to right) includes constant power (yellow, 16 AWG), ignition-switched feed (red, 18 AWG), and ground (black, 14 AWG). Verify continuity with a multimeter: yellow should maintain 12V regardless of key position, while red energizes only when the key is turned to ACC or ON.
Anticipate variance in rear speaker outputs–front doors utilize 2-ohm impedance tweeters paired with 4-ohm woofers, whereas rear coaxial units default to single 4-ohm drivers. Adapter harnesses must match these specifications to prevent amplifier overload. Measure resistance at the harness end before connecting aftermarket components; any reading below 3.8 ohms signals potential shorting risks requiring immediate insulation checks.
Critical Connection Points for Aftermarket Integration
Identify the telematics module adjacent to the fuse box–this interfaces with the original equipment amplifier via a 6-pin mini connector. Replacement head units must emulate the CAN bus protocol transmitted on pins 5 (high) and 6 (low) to retain steering wheel controls and chime functions. Bypass adapters lacking firmware updates risk triggering false fault codes (U1900) within the body control module.
Auxiliary inputs hide behind the glove compartment–access requires removing four Torx T20 screws and disconnecting the cabin air filter housing. The factory USB port (if equipped) splits into two sub-harnesses: one for data (green/white wire) and another for power (orange, 5V). Third-party interfaces must route these separately to avoid signal interference with Bluetooth modules, particularly in models equipped with SYNC 3.
Check illumination wires (gray/red, 20 AWG) before final assembly–these control dimming functions and must be tapped directly from the vehicle’s lighting circuit. Dual-voltage outputs (day/night) can damage sensitive digital displays if connected incorrectly. Test by toggling the headlight switch; proper function should yield smooth brightness transitions on the replacement screen instead of abrupt on/off behavior.
Parking brake and reverse signal inputs require activation for video features to comply with safety regulations–locate these on pins 9 (pink, 30 AWG) and 12 (purple/white, 24 AWG) of the secondary harness. Hardwiring a bypass switch voids manufacturer warranties and may fail state inspections. Use a relay for temporary testing only, ensuring all connections are re-secured with heat-shrink tubing to prevent corrosion.
Amplifier retention adds complexity–original setups route audio through a dedicated 8-channel DSP under the passenger seat. Aftermarket installations must either retain this module or install a bypass capacitor array to maintain equalization curves. Frequency response will deviate by ±3 dB without proper calibration, noticeable in bass-heavy tracks at volumes above 75%.
Choosing the Right Connector Adapter for Your Vehicle’s Audio System
Locate the factory harness behind the stereo unit–it typically splits into two distinct plugs: a 16-pin rectangular connector (ISO 10487) for signal and power, and an 8-pin square plug for speaker outputs. Measure the pin spacing with calipers if unsure–ISO standard spacing is 2.50mm for signal/power and 2.54mm for speaker terminals. Mismatched pinouts risk shorts or reversed polarity that can damage amplifiers or blow fuses rated at 15A for constant 12V and 10A for accessory lines.
Compare connectors against three common variants found in OEM setups: Metra 70-1770, Scosche FD17B, and Axxess AX-FD17. The Metra unit includes built-in noise suppression capacitors (470nF) for premium integration, while Scosche bundles a harness-to-RCA adapter for aftermarket decks requiring line-level inputs. Axxess provides color-coded wires matching factory schematics–brown for speed-sensitive volume, pink for reverse signal, and purple for antenna trigger.
| Adapter Model | Compatibility Notes | Key Features |
|---|---|---|
| Metra 70-1770 | Fits base trim levels; requires separate antenna adapter | Capacitive noise filtering, 12V memory keep-alive |
| Scosche FD17B | SEL/SES trims; includes RCA conversion | Pre-wired RCA plugs, integrated illumination wire |
| Axxess AX-FD17 | ST/ST-Line; retrofits steering wheel controls | OEM color matching, retains chime module |
Verify the ground wire gauge–factory spec requires 18 AWG minimum to prevent voltage drop under high bass loads. Use a multimeter to confirm the ground path shows ≤0.1Ω resistance to chassis; corroded points near the fuse box area often need cleaning with a wire brush and dielectric grease applied post-reconnection. For vehicles with active noise cancellation, retain the black/white striped wire (microphone input)–bypassing it may trigger error codes in the infotainment module.
Check for a small blue connector (AMP-CON) if the vehicle has a factory amplifier–this carries amplified speaker outputs and must not be confused with the main harness. Amplifier-equipped models route signals through this connector before sending them to door woofers, requiring an additional adapter like Metra AX-FD17AMP. Failure to use the correct adapter results in weak or distorted audio, as the head unit’s preamp outputs are bypassed.
Label wires before disconnecting using masking tape–mark both ends of each wire with codes like ILL+ (orange), AMP REM (blue/white), and PARKING BRAKE (green). Use solder and heat shrink for permanent joints; twist-and-tape connections can corrode in 18-24 months, especially in humid climates. For retained steering wheel controls, select an adapter with a data bus interface–generic resistor-based solutions may cause intermittent functionality.
How to Access the Vehicle Audio System Connection Blueprint Behind the Console
Disconnect the negative terminal from the battery before starting. Locate the dash panel release clips along the lower edge of the trim–these are typically positioned 15–20 cm apart on most compact models. Insert a trim removal tool at a 45-degree angle to avoid damaging the retaining tabs. Gently pry upward to release each clip in sequence, working from left to right for consistency.
The upper section of the console cover conceals the audio unit’s rear interface. Remove any screws securing the head unit–usually two 7mm bolts hidden beneath the climate control knobs or behind decorative plugs. Slide the unit outward carefully; excess force can snap the wiring harness connections at the back.
- Check for a detachable harness adapter (often black or grey) behind the unit–this simplifies tracing individual circuits.
- If no adapter is present, note the wire colors and pin positions directly from the main connector:
- Switched power: Yellow or red, 18–22 AWG, typically fused at 10–15A.
- Ground: Black or brown, wide gauge (14–16 AWG), always attached to metal chassis near the mounting bracket.
- Speaker outputs: Solid or striped colors (e.g., purple/violet, grey/white), often paired with a matching negative lead.
Common Pitfalls When Removing the Dash Assembly
Failing to label connectors before detachment can lead to incorrect reassembly–use masking tape and a marker to identify each plug. Avoid tugging wires directly; instead, grip the plastic housing to prevent internal shorts. Some aftermarket harnesses use non-standard color codes; cross-reference with the factory service manual if discrepancies arise.
Reinstallation requires precise alignment. Ensure the head unit’s guide rails align with the dashboard slots before applying pressure. Test all functions (volume, tuning, steering controls) before securing the trim–reversing the removal steps confirms no steps were missed.
- Reattach dash clips starting from the inner edge outward to distribute pressure evenly.
- Secure any screw mounts before reconnecting the battery–transient voltages during reconnection can damage sensitive electronics.
- If the system fails to power on, recheck ground connections first–improper grounding causes intermittent failures.
