Complete Electrical Wiring Diagram Guide for 2017 Hyundai Sonata

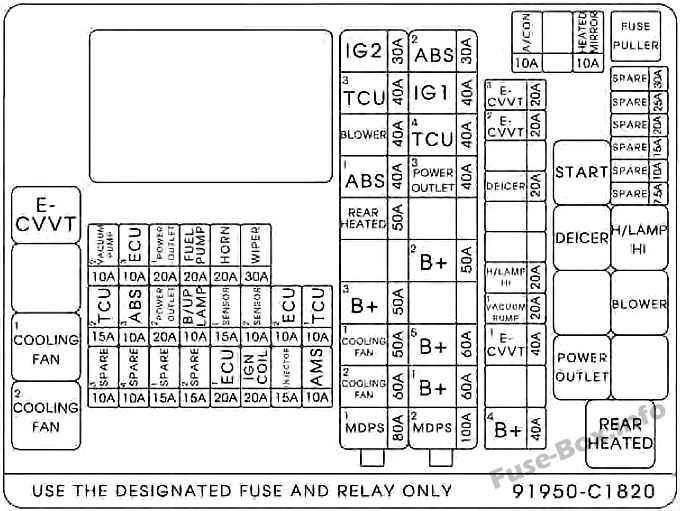

Locate the fuse box schematic under the dashboard on the driver’s side–labelled “BD” for interior circuits. Reference pinouts for the BCM (Body Control Module) at positions 32 (ground) and 45 (constant 12V), verified via multimeter readings between 11.8–12.3V with ignition off. Connector C204, a 54-pin harness, handles headlight and fog light signals; wire colors follow Hyundai’s standardized coding (e.g., black/white stripe for ground, red for power). Avoid splicing unless replacing entire sections–partial repairs risk voltage drop.

Check the engine bay wiring loom near the battery tray for corrosion, especially in models exposed to high humidity. The alternator output wire (thick yellow cable) must maintain 0.3Ω resistance or less; higher values indicate fraying. For OBD-II port diagnostics, focus on pins 6 (CAN High) and 14 (CAN Low)–deviations from 2.5V suggest bus faults. Always cross-reference repairs with the official service manual (section 9E) to confirm pin assignments.

Replace damaged wires using TFFN-grade copper (minimum 18 AWG for signal circuits). Secure connections with heat-shrink tubing, not electrical tape–vibration from the 2.5L engine loosens ad-hoc fixes. For tail light failures, inspect connector C103 (34-pin) behind the rear bumper; common issues include water ingress at terminal 17 (brake light signal). Use dielectric grease sparingly–excess attracts debris.

Diagnose parasitic drain by removing fuses one at a time while monitoring amperage. Priority targets: ECM (PCM) fuse (20A), audio system fuse (10A), and instrument cluster (15A). If current exceeds 50mA, trace the circuit back to the component using the colored wiring map. Ignore generic diagrams–this model’s adaptive cruise control module (if equipped) has unique power requirements (pin 8: 5V reference).

Electrical Schematic for Modern Sedan: Actionable Insights

Start troubleshooting by locating the fuse box under the dashboard’s left side–label F21 controls the instrument cluster. Verify continuity between pin 12 (yellow/black) of connector C112 and ground using a multimeter; resistance should read below 0.5 ohms. If readings exceed this, inspect the grounding point G103 behind the kick panel for corrosion or loose bolts. Replace the 10A fuse if burnt, but first probe the wiring harness along the driver’s side door jamb for chafed insulation, particularly near the firewall grommet.

For power window malfunctions, trace the brown/white wire from the door control module (DCM) to the motor assembly. Disconnect the battery before splicing–faulty signals often stem from the 30-amp circuit breaker at position JB-4 failing to reset. Check the splice pack SP-331 beneath the rear seat; water intrusion here damages the pink/black feed to the rear defogger relay. Use dielectric grease on all connectors during reassembly to prevent oxidation.

Headlight flickering requires examining the HID module’s red/blue wire at pin 5–voltage drops below 11.8V indicate a failing alternator or bad battery cell. The BCM communicates with the TCCM via CAN bus lines (orange/white and orange/green); If the traction control light stays on, backprobe pin 18 of connector I108 with a scan tool to confirm error code C1609 before replacing sensors.

Finding the Complete Electrical Schematic for Your Recent Model Sedan

Begin by accessing the official service portal from the automaker’s regional websites. Both the North American and European divisions maintain secure databases with technical resources, including full circuit layouts. Registration typically requires a dealership affiliation, but independent repair shops can request access through their local distributor. The schematics are organized by vehicle system–engine control, lighting, infotainment–so navigate to the sedan’s exact trim and optional equipment configurations to ensure accuracy.

• Available platforms:
  • Hyundai Motor America Technical Resources (U.S. & Canada)
  • Hyundai Motor Europe Tech Info System
  • Hyundai Aftersales Service Extranet (select Asian markets)
• File formats: PDF, vector-based CAD, or interactive SVG with zoom and search functions
• Download size ranges from 12MB to 45MB, depending on included subsystem diagrams

If official channels are inaccessible, aftermarket providers like Mitchell1, ALLDATA, or ChiltonPro offer subscription-based access to identical schematics. These services update quarterly and include annotations for common failure points–grounding issues, connector pinouts, and fuse ratings–specific to the sedan’s mid-size platform. Verify the publication date matches the model year’s production run to avoid discrepancies in wiring harness revisions introduced in late 2016.

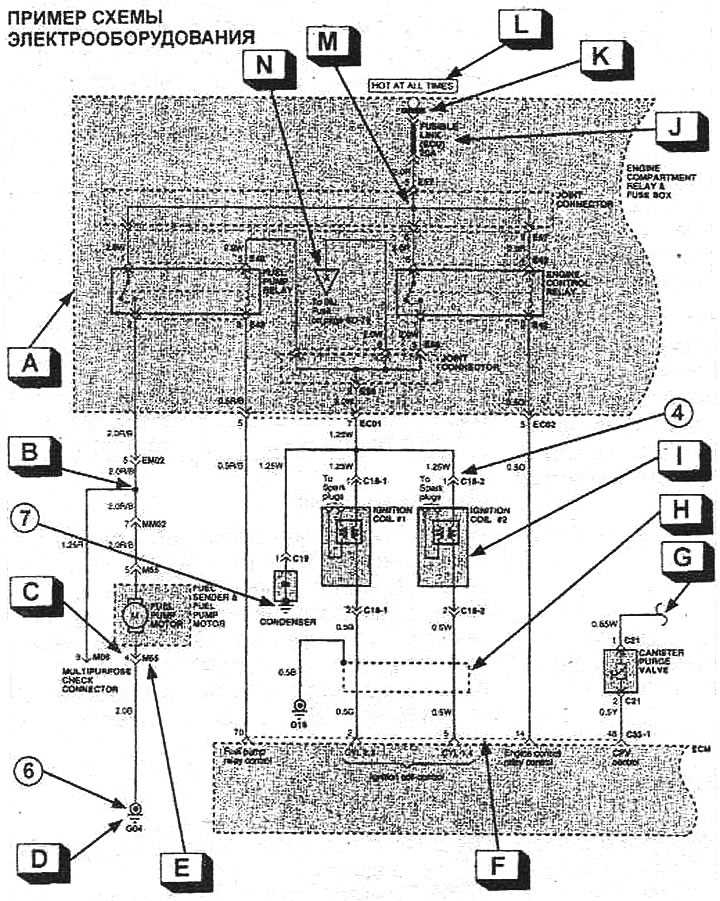

Locating Critical Circuit Elements in Vehicle Schematics

Trace the main power distribution lines from the battery terminal first–these appear as thick red or yellow strips on most blueprints. Each fusible link connects to primary junctions like the under-dash fuse box, which splits into secondary branches feeding critical modules. Label these segments as “B+” to avoid confusion when cross-referencing splice points later.

Pinpoint the ground reference points early–marked with black, brown, or dark green lines leading to chassis bolts or dedicated grounding blocks. Verify continuity between these nodes and the battery negative post to rule out voltage drop issues before diagnosing downstream faults. Look for star symbols or numbered circles denoting shared grounds; these often link multiple systems like engine control and body controllers.

Recognize relays by their standardized square or rectangular outline, typically near source circuits. The coil (thinner lines) triggers the switch (thicker lines), so isolate input signals from switched outputs using a multimeter. Check for inline diodes–identified by a small arrowhead–between the coil and the control module to prevent backfeed that could damage sensitive electronics.

Spot connectors by rectangular blocks with numbered or lettered pinouts. Note that male-female pairs often mirror each other; use a pinout guide for exact terminal assignments since slight variations exist between revisions. Probe only after disconnecting to prevent shorting adjacent circuits–common in multifunction plugs handling signals from sensors and actuators.

Isolate sensor circuits by following signal paths from the ECM or BCM to thin signal wires, usually purple, orange, or light blue. Resistance-based sensors (like thermistors) share a common power and ground, while active types (Hall-effect, pressure) require reference voltages–look for 5V feeds from the control module. Verify signaling range with a scan tool before assuming wiring faults.

Map actuator circuits separately from sensor lines–these carry higher current and use thicker gauges. Fuel injectors, solenoids, and ignition coils appear as recurring loops or parallel branches off the main bus. Measure trigger signals at the actuator connector rather than upstream to account for voltage drops across junctions; anything below 10.5V at idle suggests resistance in the feed path.

Identify communication networks by twisted pair wires–CAN bus uses yellow/black and green/black, LIN bus typically rests on a single violet line. Termination resistors appear as small rectangles or circles at endpoints; check resistance between CAN_H and CAN_L (~60 ohms) to confirm integrity. Noise filtering capacitors may be drawn as semicircles near bus junctions–skip these during continuity tests to avoid misdiagnosis.

Cross-reference color codes against schematics using a highlighter: solid colors denote primary wires, stripes indicate sub-circuits sharing the same base. Document deviations immediately–some builds mix legacy and current coding for hybrid systems. Use a digital schematic viewer with zoom and layer toggle to isolate sections like lighting, HVAC, or powertrain without clutter from unrelated branches.

Tracing Power and Ground Circuits for Common Faults

Begin with the fuse block under the instrument panel–remove the lower trim panel to access it. Use a multimeter set to DC voltage (20V range) to verify power at the fuse terminals. Probe the input side (battery side) first; if no reading appears, check the main relay or ignition switch. For fuses showing voltage on one side only, replace the fuse and inspect the downstream circuit for shorts. Ground-side issues often reveal themselves here–if power is present but the component remains inactive, shift focus to ground paths.

• Test ground points with a continuity check (multimeter resistance mode,
  1. G101 (left kick panel, near driver’s footwell)–corroded or loose bolts cause intermittent starts or dash light failures.
  2. G201 (behind the glove box)–affects climate control blower motor operation.
  3. G301 (under rear seat, passenger side)–linked to fuel pump and EVAP system faults.
• Scrape off corrosion at terminals using a wire brush, then apply dielectric grease to prevent recurrence. For hidden grounds, backprobe the connector while wiggling the harness–voltage drops >0.2V indicate a poor connection.
• If grounds test clean but issues persist, inspect relay coils (85/86 pins). A weak ground on coil-side pin 85 mimics a failed relay–swap with a known-good relay of the same type (e.g., horn relay) to isolate the fault.

For parasitic drains, disconnect the negative battery terminal and insert the multimeter (amps mode, 10A range) in series. A reading >50mA signals a short. Narrow it down by pulling fuses one at a time–when the amperage drops, trace the circuit from the relevant fuse to its components. Pay special attention to aftermarket accessories (e.g., audio amplifiers) wired directly to the battery; these often lack proper fuse protection. For OEM circuits, reference the electrical manual’s splice points (e.g., S105 in the main harness)–corroded splices create resistance, causing voltage drops under load. Repair by soldering and heat-shrinking new terminals, never twist-and-tape.
