Complete Ford Focus 2018 Electrical System Wiring Schematic Layout
Start with the engine bay fuse box under the hood–locate relay R5 for the cooling fan circuit. The wiring splits at connector C146, where a 16-gauge orange/white wire feeds power to the radiator fan motor. Verify continuity at pin 30 of the fan control module; corrosion here disrupts signal flow. Use a 12V test light instead of a multimeter for live voltage checks–false negatives are common with high-resistance faults.
For the instrument cluster, trace the CAN bus wiring harness (twisted pair) from the OBD-II port to the GEM module. The yellow/black wire carries the high-speed data line; shorts often occur near the firewall grommet. Remove the lower dash panel to access the splice at C200–inspect for chafed insulation where the harness bends around the steering column. Replace zip ties every 10 cm to prevent abrasion.
If diagnosing power window failures, focus on the driver’s door module. The blue/green wire from connector C351 supplies 12V to the window motor. Check for voltage drop at pin 6–a reading below 10.5V indicates a short between the switch and motor. Swap the door control module with a known-working unit before condemning the wiring.
For fuel pump issues, bypass the inertia switch temporarily to confirm power delivery. The pink/black wire at the pump connector (C400) should show 12V within 2 seconds of key-on. If voltage is present but the pump doesn’t prime, backprobe the gray/red wire at pin 87 of relay R19–no reading means an open circuit in the ground path.
Mastering the Electrical Blueprint of Your Compact Sedan
Locate the fuse box schematic beneath the dashboard on the driver’s side–pin 30 (brown/yellow stripe) supplies power to the instrument cluster. Verify continuity with a multimeter set to 200Ω; resistance above 0.5Ω signals corrosion in the harness. Use a torque wrench for terminal screws at 2.5 Nm to prevent backfeed into the BCM.
Ground points matter more than components. The critical G103 connection near the left strut tower often develops oxidation; clean with a fiberglass pen–not sandpaper–to avoid scoring the chassis. For rear lighting circuits, note the shared return path for brake and reverse lights via the tailgate switch; a faulty switch creates phantom shorts detectable with a non-contact voltage probe.
When tracing CAN bus lines (orange/purple and orange/white), disconnect the battery and probe between pins 6 and 14 on the OBD-II port–any voltage confirms noise interference. Replace suspect wiring with TXL-grade copper at 0.8mm²; thinner gauges overheat under PWM loads from the climate control module.
Locating the Authorized Electrical Schematics for the Model Year Vehicle
The most reliable source for the original circuit blueprint is the manufacturer’s technical service portal. Ford Motor Company provides authorized dealerships and certified repair facilities with direct access to ETIS (Ford’s Engineering Technical Information System)–a subscription-based database containing factory-approved documentation. Independent mechanics and owners can purchase temporary access via Motorcraft Service, where a single-day pass costs approximately $25 USD. Avoid third-party torrent sites; verified files from this platform match dealership-quality diagrams, including pinout details, connector views, and fuse locations.
Alternative Verified Resources
For those unable to use the official portal, Helminc and Mitchell1 offer digital repair manuals with identical schematics. Helminc’s subscription ($19.99/month) includes color-coded wiring charts and harness routing, while Mitchell1’s ProDemand software (library access starting at $39.99) cross-references diagrams with real-time labor estimates. Automotive forums like FFClub or FocusST.org occasionally host user-uploaded PDFs from dealership sources, but verify file integrity by checking file size (official schematics exceed 5MB) and metadata timestamps matching the vehicle’s production run (late 2017–early 2019).

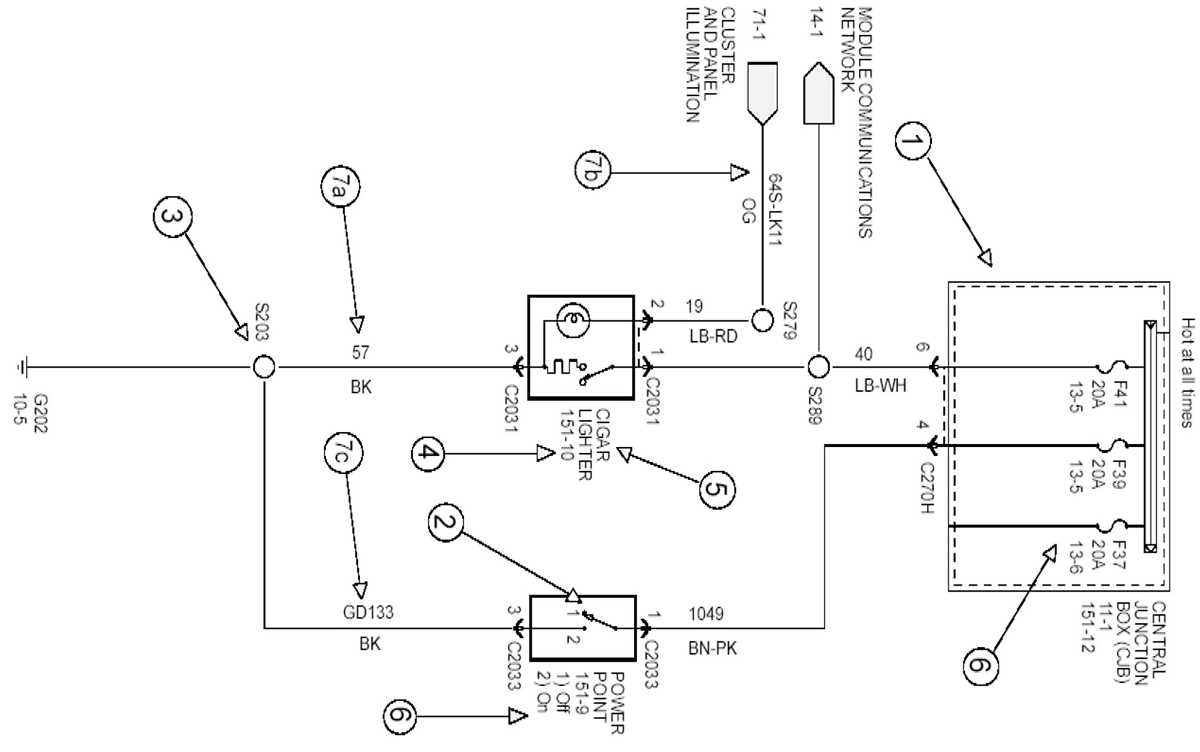

Understanding Fuse Box and Relay Positions in Electrical Schematics
Locate the power distribution section first–typically near the top or left of the schematic. Identify labeled boxes with numbers matching the fuse panel legend. Each box corresponds to a specific slot in the vehicle’s fuse block, often annotated with amperage ratings (e.g., 10A, 15A). Cross-reference these numbers with the owner’s manual or a separate fuse layout chart to confirm exact functions like “Headlight Control” or “HVAC Blower.”
Relays occupy similar rectangular symbols but feature an internal “coil” icon (a squiggly line). Their positions are marked with identifiers like “R1,” “R2,” or “K1,” followed by a brief description (e.g., “Starter Relay” or “Main Fuel Pump”). Unlike fuses, relays may appear multiple times in the schematic–once in the fuse box section and again near the component they control. Trace lines connecting relays to verify upstream power sources and downstream loads.
Decoding Symbols and Labels
- Solid lines: Indicate direct power feeds; thicker lines often denote higher current paths.
- Dashed lines: Represent switched or conditional circuits, such as ignition-controlled or accessory-only feeds.
- Square terminals: Mark fuse slots with standardized cavity numbers (e.g., “F34” for the 34th fuse).
- Circular terminals: Usually denote relay sockets, paired with internal switch symbols.
Some schematics include a miniaturized fuse box legend adjacent to the main diagram. This legend lists each fuse/relay number alongside its:
- Amperage rating
- System protected (e.g., “Powertrain Control Module”)
- Color of the wire entering the slot (critical for probing)
Use this legend to match physical fuse colors–common ones include red (10A), blue (15A), and yellow (20A).
Practical Verification Steps
Before testing:
- Disconnect the battery’s negative terminal to prevent short circuits.
- Use a multimeter set to continuity mode to probe fuse sockets; meter should beep if the fuse is intact.
- For relays, manually swap a suspect unit with a known-good relay of the same type (verify identical part numbers).
Refer to the schematic’s footnotes for critical warnings–for instance, some high-current fuses (e.g., 30A+) require removal with insulated pliers to avoid arcing. If a fuse blows repeatedly, the schematic will help trace the short by following the output wire to downstream components like motors, solenoids, or modules.
Non-standard relay configurations may include:
- Bosch-style (square): Often used for starter circuits; labeled “30” (constant power), “85/86” (coil), “87” (output).
- ISO micro-relays (smaller, rectangular): Common in interior systems; same terminal logic but compact form factor.
Always confirm relay pinouts–incorrect insertion can fry controllers. If the diagram lacks internal relay details, consult a standalone data sheet for the relay’s exact make (e.g., Panasonic, Tyco).
Step-by-Step Guide to Diagnosing Auto Glass and Access Control Electrical Paths
Locate the fuse box under the dashboard or in the engine compartment–identify the fuse labeled for “Power Glass” or “Door Actuators” using the reference chart inside the cover. A blown fuse (visible as a broken filament) indicates a short in the circuit; replace it with an identical amperage rating (typically 20–30A). If the fuse blows again immediately, disconnect the motor or actuator from the harness to isolate the fault–test for continuity between the motor’s terminals and ground using a multimeter set to ohms (Ω). Infinite resistance suggests an open circuit; zero resistance points to a short.
Trace the harness from the door switch to the central module, checking for pinched or frayed wires near hinges and door jambs–common failure points. Use a wiring schematic to identify connector pinouts: the switch typically sends a 12V signal on one wire and grounds another to activate the motor in the desired direction. Test voltage at the connector with the switch engaged: absence of voltage suggests a faulty switch or broken wire, while correct voltage but no motor movement indicates a defective motor. Replace components only after verifying all connections with a test light or multimeter.
| Component | Test Procedure | Expected Reading | Fault Indication |
|---|---|---|---|
| Fuse | Set multimeter to continuity; probe fuse terminals | 0 Ω (beep) | No continuity |
| Switch | Measure voltage at output terminal with switch on | 12V | 0V or fluctuating voltage |
| Motor | Apply 12V directly to terminals; observe movement | Smooth operation | No movement or grinding noise |
| Ground | Measure voltage between positive terminal and ground | 12V | 0V or |
Locating and Verifying Powertrain Control Unit Linkages
Begin by locating the vehicle’s central processing unit near the engine bay’s passenger side firewall. The harness connector typically features a 120-pin layout, split into two sections: the shorter (C1380A) for input signals and the longer (C1380B) for output and power delivery. Cross-reference the terminal labels with the manufacturer’s pinout chart to avoid misidentification of adjacent circuits.
Inspect the power pins (30, 15, and 58) first–dirty or oxidized contacts often mimic sensor failures. Use a multimeter set to 20V DC; pin 30 should show battery voltage (12.6V+), pin 15 ignition-switched power (~11-14V), and pin 58 a steady 5V reference. If readings deviate, trace the circuit back to the main relay or fuse box before assuming ECM failure.
Ground connections (pins 40-45) must exhibit near-zero resistance when probed against chassis ground. Use a continuity tester; anything above 0.5 ohms suggests corrosion or a loose chassis bolt. Clean contact surfaces with a wire brush and apply dielectric grease to prevent future oxidation. Ignoring this step risks intermittent voltage drops that trigger false fuel pump or injector codes.
Sensor circuits (MAP, IAT, TPS) share a common 5V supply and ground–disconnect the connector before testing. Probe pin 58 (5V feed) while monitoring pin 46 (signal return) for MAP sensor response. A dead signal often points to a shorted sensor rather than ECM damage, but verify by swapping in a known-good sensor first. Resistance checks alone may miss temperature-dependent shorts in wiring or connectors.
For CAN bus diagnostics, attach an oscilloscope to pins 62 and 63 (high/low). A healthy waveform resembles a square wave with clean edges; signals below 1.5V or above 3.5V indicate a faulty node or open termination resistor. Check for twisted-pair integrity–untwisted sections create noise that throws off transmission control modules. Replace any damaged shielding immediately; CAN faults cascade unpredictably.
Fuel injector circuits (pins 51-56) require a scan tool with active test capability. Command each injector individually while monitoring current draw with a clamp meter; expect 0.8-1.2A. Pulse-width inconsistencies often stem from corroded harness splices near the valve cover–inspect these areas first before condemning the ECM. For ignition coils, probe pins 1-4 with a scope; a missing peak-and-hold pattern confirms a dead driver.
Before replacement, bench-test the ECM by applying 12V to pin 30, 5V to pin 58, and grounding pin 45. Monitor pin 15 for ignition switch response; if absent, the internal power relay is suspect. Always reflash or reset adaptive values after installation–old fuel trims or timing maps can cause immediate drivability complaints despite correct hardware connections.
