Ford Raptor 2018 Upfitter Switches Wiring Diagram Electrical Guide

Start by locating the factory auxiliary control module beneath the driver-side dashboard–this is the central hub for non-standard electrical modifications. Pin assignments follow a color-coded system: violet wires for output relays, gray for inputs, and orange for constant 12V power. Verify all connections with a multimeter set to ohms mode before energizing any circuit to prevent unintended shorts. The primary bus bar, mounted adjacent to the fuse box, distributes power to auxiliary devices through 20A mini-blade fuses.

For aftermarket lighting, use the dedicated relay sockets marked “Lighting Aux” on the modular harness. These accept DIN-standard 4-pin bosch relays, rated for 40A continuous load. Ground secondary circuits directly to chassis points near the mounting location–avoid daisy-chaining grounds, as voltage drop becomes critical under high-current loads like winches or hydraulic pumps. The secondary control panel, positioned in the lower glovebox, houses pre-terminated connectors for immediate integration with third-party systems.

Programming custom functions requires software calibration via the manufacturer’s diagnostic port. Use OBD-II parameter IDs 0xC3 and 0xC4 to adjust auxiliary output behaviors without triggering fault codes. For persistent issues, access the body control module’s hidden menu by cycling the ignition three times while holding the brake pedal–this reveals advanced configuration settings. Avoid exceeding 10A per auxiliary channel when retrofitting high-draw components to prevent overheating the board traces.

Insulate all splices with adhesive-lined heat-shrink tubing and secure wire looms with aircraft-grade spiral wrap. Position bundles away from moving parts and heat sources, especially near the transmission tunnel where temperatures exceed 85°C during prolonged operation. Label each circuit with military-spec wire markers at both ends for troubleshooting. Test all modifications under load with an oscilloscope to check for transient voltage spikes that could damage sensitive electronics.

Custom Auxiliary Control Circuit Layout for High-Performance Pickup

Locate the OEM relay block behind the left kick panel–pin 87a connects to fused power (30A max), while pin 85 ties to ground via a 1kΩ resistor to prevent voltage spikes. Route 12-gauge wire from the relay output to the dash-mounted toggle bank, ensuring crimp terminals are heat-shrunk and soldered to prevent corrosion. Use a multimeter to verify less than 0.1V drop under load before finalizing connections; deviations indicate loose terminals or undersized wire.

For auxiliary lighting, split the circuit post-relay into two branches: one feeding rock lights (via 16-gauge wire with inline 15A fuse) and another dedicated to a roof-mounted bar (10-gauge with 25A fuse). Label each wire with heat-shrink tubing codes (e.g., RL for rock lights, RB for roof bar) and secure with zip ties every 6 inches to prevent chafing against the frame. Test circuits with a 10-second hold under full load; if relays audibly click off, replace the relay or check for parasitic draws.

Finding the Auxiliary Control Circuit Bundle in Your Performance Pickup

Start beneath the dashboard on the driver’s side. The bundle runs parallel to the main instrument panel harness, secured by plastic clips and foam tape. Look for a gray corrugated sleeve marked with colored stripes–this contains the dedicated leads for the auxiliary controls. If obscured by factory loom tape, gently peel it back without cutting; excessive force can damage the conductors beneath.

Key Anchor Points

• Steering column base: A 6-pin connector, typically blue or orange, sits adjacent to the fuse box.
• Center console rear: Follow the sleeve toward the rear passenger footwell–here, a secondary splice box splits power to optional equipment.

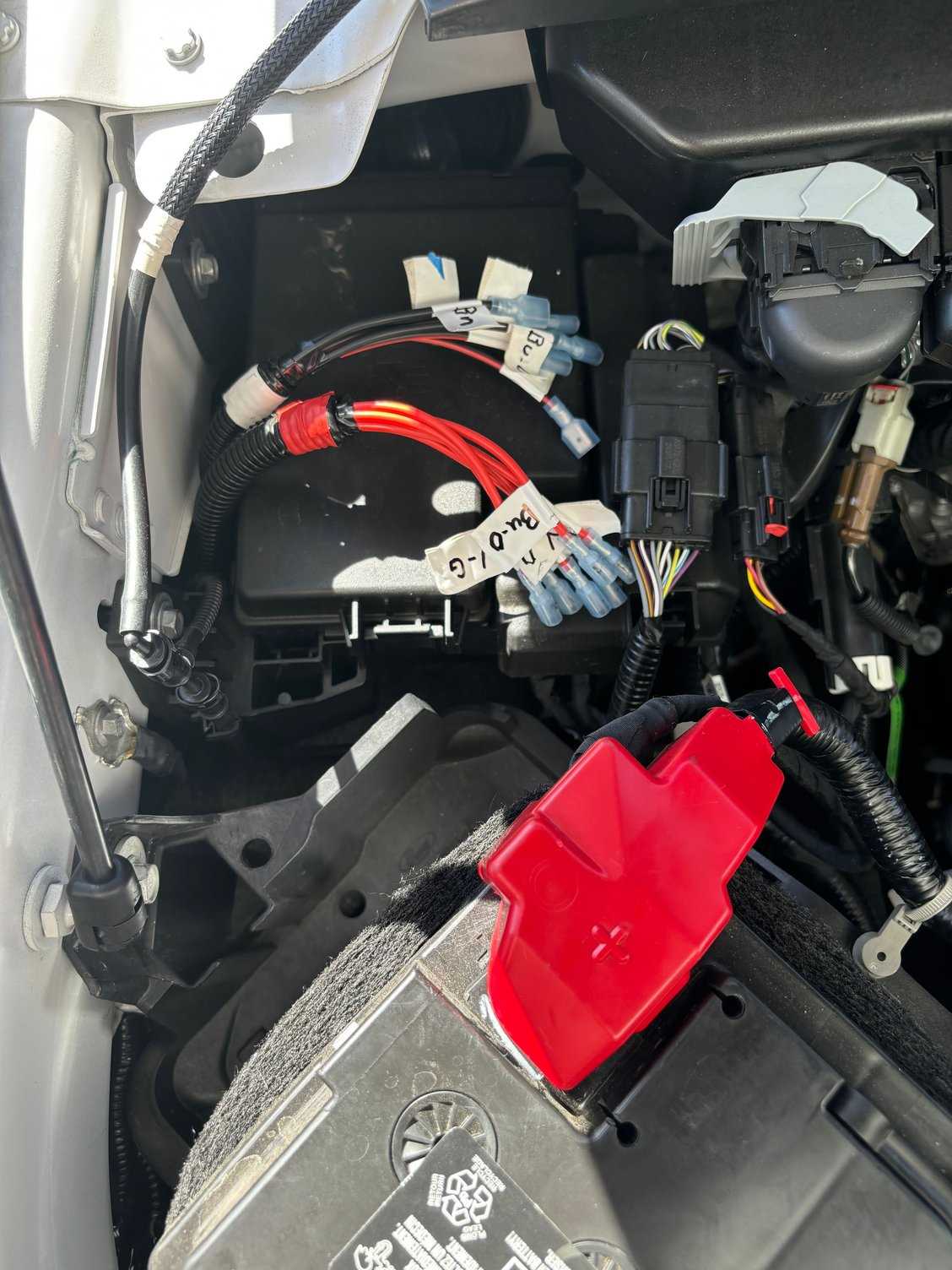

• Underhood fuseblock: A separate high-amperage cable exits near the battery tray, branching to winches or lighting.

Trace these paths with a multimeter set to continuity mode. Probe the identified color codes–red/yellow for ignition-switched circuits, solid green for ground returns–against a vehicle chassis point. Factory schematics show blue/white as the default trigger wire for accessory circuits; verify this against your specific trim package.

If the bundle disappears into the firewall grommet, remove the driver-side lower dash panel (two 7 mm bolts and four push clips). The harness enters the cabin via a black rubber grommet; pushing it inward from the engine bay exposes dormant wires coiled inside. Work methodically–avoid pulling wires taut, as this can dislodge internal connectors at the trailer module behind the glovebox.

Precautions During Tracing

1. Disconnect the negative battery terminal before probing live circuits.
2. Use silicone dielectric grease on connectors to prevent corrosion if routing wires externally.
3. Label each wire at splice points with heat-shrink tubing–factory color designations may vary on aftermarket plumbed circuits.

Step-by-Step Guide to Mapping Auxiliary Control Circuit Layouts

Locate the central fuse box beneath the driver-side dashboard. Remove the protective cover to expose the labeled terminals. Pinout labels follow a standard format: “V+” for power, “GND” for ground, and numbered outputs (e.g., “OUT1,” “OUT2”). Use a multimeter set to DC voltage (20V range) to probe each terminal while cycling the corresponding toggle in the center console. A reading of 12V+ on an “OUT” terminal confirms the active connection.

Trace wires from the fuse box to the rear auxiliary module. This module, typically near the spare tire well, houses secondary relays. Disconnect the negative battery terminal before handling internal connectors to prevent short circuits. Inspect the module’s harness for color-coded leads–black/white stripes often denote ground, while solid red or yellow indicate switched power. Cross-reference these colors with the vehicle’s electrical manual if discrepancies arise.

Identify the relay sockets within the auxiliary module. Use a test light or continuity tester to verify the coil side (pins 85 and 86) and the load side (pins 30 and 87). Switched outputs activate pin 87, while pin 30 remains hot at all times. If a relay is missing, measure resistance between pins 85 and 86; a reading below 100Ω confirms an intact coil. Replace any relay showing open circuit conditions.

Examine the center console interface for backlighting and signal wires. Backlighting circuits often use dimmer-controlled voltage (typically 5-8V), while signal wires carry full system voltage. Probe the 6-pin connector at the base of each toggle: pins 1 and 2 usually handle illumination, while pins 3-6 manage output switching. Document each pin’s voltage behavior under both day and night running conditions for accurate configuration.

Test all external connections before finalizing installations. Attach a 10A fuse inline with any add-on device to protect the circuit. For inductive loads (e.g., compressors, solenoids), ensure a flyback diode is installed across the load terminals to suppress voltage spikes. Verify all grounds terminate at factory-engineered bonding points–bolting to painted surfaces causes resistance issues.

Label every modified circuit with heat-shrink tubing or permanent marker. Record the function, wire gauge, and fuse rating for future troubleshooting. Avoid splicing into factory harnesses with solder alone; use crimp connectors and adhesive-lined heatshrink for corrosion resistance. Store spare fuses and relays in a labeled organizer within the glovebox for quick access.

Program custom functions using the vehicle’s onboard diagnostics menu. Navigate to the “Auxiliary Controls” submenu and assign each toggle to its corresponding output. Test the programmed sequences with a scan tool to confirm proper activation timing. Note that some outputs may require cycling the ignition to reset.

For high-current devices (over 20A), route wiring directly to the battery via a dedicated fuse holder. Use 10AWG or thicker wire for these applications, securing all runs with loom tubing and zip ties to prevent chafing. Reconnect the negative battery terminal last, then perform a full system test under load to validate all connections before operational use.

Secure Auxiliary Light Integration via OEM-Controlled Circuits

Identify the correct relay-triggered output on the vehicle’s pre-installed control panel–pinouts are labeled behind the fuse block cover near the driver’s footwell. Use a multimeter to verify the circuit pushes 12V DC when toggled, confirming it supplies sufficient amperage (typically 20A fused) without voltage drop under load.

Select a relay rated for 30/40 amps with integrated suppression diodes to prevent backfeed into sensitive modules. Route power directly from the battery’s positive terminal through an in-line fuse (amperage matched to light draw + 10% buffer) before connecting to the relay’s input; avoid tapping existing circuits to prevent overload. Ground the relay’s coil to a chassis bolt with a dedicated ring terminal, not shared factory grounds.

Component Selection and Layout

• Lights: Choose SAE/DOT-compliant LED units with internal regulators; avoid cheap imports lacking transient voltage protection.
• Wires: Use 10-12 AWG tinned copper for 20A loads, heat-shrink tubing over solder joints, and split loom for abrasion resistance.
• Connectors: Weatherpack or Deutsch terminals for moisture resistance; crimp then solder for redundancy.

Test all connections with a load simulator before mounting lights. Activate the circuit while monitoring voltage at the light terminals–drop exceeding 0.5V at full brightness indicates undersized wire or poor ground. Secure harnesses with zip ties every 12 inches, avoiding sharp edges and moving components. Recheck fuse ratings post-installation; coax relays draw minimal current, so original settings often need adjustment based on total load.
