Ford F350 2025 Auxiliary Switch Wiring Guide with Detailed Diagrams

Begin by locating the factory auxiliary relay panel beneath the dashboard on the driver’s side. Remove the lower knee bolster trim to access the wiring harness connections–pinouts for aftermarket add-ons are typically grouped in the C235 connector, marked with yellow and red stripes. Use a multimeter to verify voltage at the 30A fused circuit (labeled B+) before tapping into any leads; incorrect splicing can trigger BCM fault codes.

For momentary or latching switch integration, solder a 18-22 AWG ground wire directly to the chassis mount near the fuse block–avoid relying on dash framework for grounding, as painted surfaces cause intermittent conductivity. Route all wiring through the existing harness grommet behind the pedal assembly to prevent chafing against sharp metal edges. Secure cables every 10-12 inches with P-clips or spiral loom; zip ties degrade under engine bay temperatures.

When interfacing with the OBD-II port for auxiliary lighting or winch controls, use a diode-isolated relay to prevent backfeeding into the CAN bus. The SPDT configuration is ideal for toggling high-current devices–ensure the coil side draws less than 0.5A to avoid overloading the factory switch outputs. For dual-stage operations (e.g., floodlights with strobe), wire a dual-coil relay with separate activation circuits controlled by a single switch.

Test all connections under load before finalizing the installation. A load resistor (nominally 10W, 3Ω) should be placed in parallel with LED indicators to prevent hyper-flashing. Label each circuit at the relay panel and switch console using heat-shrink tubing printed with a Dymo labeler–handwritten tags fade within months. Store spare fuses (blade type, 20A) and a 10-test-point breakout box in the glovebox for rapid diagnostics.

For trailer interface compatibility, integrate a 7-way to aux adapter spliced into the blue wire (reverse signal) and brown wire (tail/running lights). Use marine-grade butt connectors> crimped with a ratcheting tool–standard crimps fail under vibration. Keep wiring harnesses at least 6 inches from exhaust manifolds to prevent heat damage; silicone-insulated wire (125°C rating) is mandatory for engine bay applications.

Electrical Integration Guide for Heavy-Duty Truck Custom Controls

For seamless aftermarket accessory activation, locate the OE programmable module behind the dashboard’s lower left panel. Identify the 12-pin connector–terminals 4, 7, and 9 correspond to USER_1, USER_2, and USER_3 outputs. Splice 18-gauge tinned copper wire (minimum 20A rating) directly to these pins, ensuring crimp terminals are solder-sealed for corrosion resistance. Route harnesses through the firewall grommet adjacent to the brake master cylinder to prevent chafing against the frame rail.

Prevent voltage drop by installing a relay bank within 18 inches of the battery’s positive terminal. Use 30A SPST relays for lighting circuits, 40A DPST for winches or compressors. Ground all relay coil triggers to the chassis near the relay location–avoid daisy-chaining grounds. For momentary functions (e.g., bed cameras), wire a 10A fused circuit through a transient voltage suppressor to protect the vehicle’s BCM from inductive load spikes.

Test each circuit with a multimeter before energizing: verify 12.8V at the switch connector with the ignition on,

Finding the Supplementary Control Unit in the Heavy-Duty Pickup

The auxiliary module is mounted behind the right-side kick panel, adjacent to the passenger-side footwell. Remove the lower trim panel by prying the four plastic clip fasteners with a flat-head screwdriver; start at the rear edge and work forward to avoid breaking tabs.

Once the panel is detached, the unit sits on a vertical metal bracket, secured by two T20 Torx screws. Unplug the 14-pin harness connector by squeezing the release tab and pulling straight out–do not rock the connector to prevent bending pins.

• Label the harness wires with masking tape before disconnecting.
• Use a non-contact voltage tester to confirm no live circuits remain.
• Photograph the module’s orientation for accurate reinstallation.

The bracket also holds a grounding stud; ensure the ring terminal is clean and torqued to 9-11 ft-lbs to prevent intermittent faults.

For models equipped with upfitter packages, an additional relay bank may be stacked above the primary module. Separate the stack by removing the single 10mm bolt between the layers, taking care not to strain the attached ribbon cable.

1. Inspect the relay sockets for corrosion or melted plastic; replace damaged relays immediately.
2. Check the module’s cooling fins for dust buildup–use compressed air at 45 psi max to clear debris.

A secondary access point exists beneath the glovebox. Drop the glovebox by releasing the damper strut and unsnapping the six plastic clips along the top edge. The module’s rear face is visible through a rectangular cutout in the dashboard support beam.

Troubleshooting Hidden Locations

If the module is absent from the right kick panel, verify it hasn’t been relocated to the under-seat compartment. Fold the passenger seat fully forward, then remove the carpeted access cover by unscrewing the two Phillips-head fasteners. The unit may be bolted to the crossmember or tucked behind the seat riser–trace the harness loom for confirmation.

On chassis-cab variants, the control block migrates to the driver-side B-pillar. Peel back the weatherstrip to reveal a concealed panel; the module is secured with three 8mm bolts and shares space with the HVAC blend door actuator.

Decoding Factory Control Circuit Colors and Connector Layouts

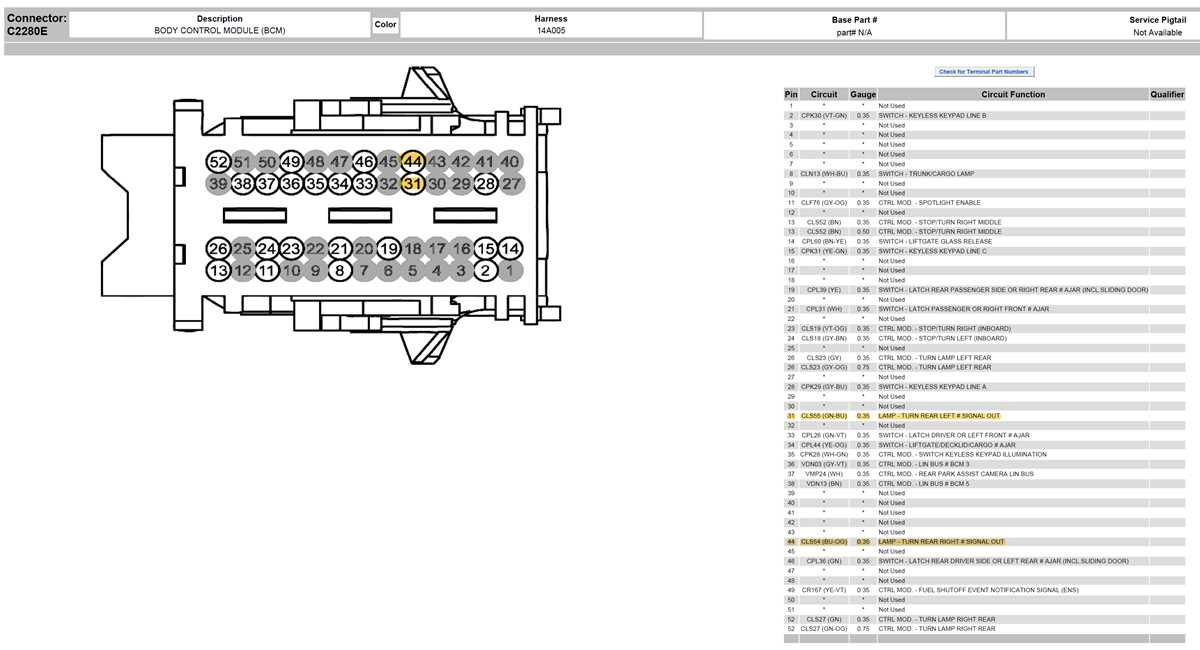

Begin by locating the pre-installed connector harness beneath the dashboard, typically adjacent to the fuse panel or behind the glove compartment. Use a multimeter set to continuity mode to confirm pin assignments–manufacturers often label factory harnesses with alphanumeric codes on the connector housing (e.g., “C1,” “C2,” or “P-“). For late-model heavy-duty pickups, the standard configuration includes:

• Power feed (red/orange stripe or solid yellow): Carries 12V+ from the fuse block or battery relay, capable of handling 20A continuous load. Verify with the ignition in both “ON” and “ACC” positions–if voltage drops in “OFF,” locate an always-hot alternate source.
• Ground return (black or brown with black tracer): Connects directly to chassis ground or the main body control module ground bus. Avoid splices into low-current sensor grounds–use a dedicated ring terminal fastened to bare metal for reliability under high-amperage loads.
• Activation signal (dark green with white stripe, purple, or light blue): Toggles via the vehicle’s onboard computer when the corresponding button is pressed. Test for a 0.5-4.5V pulse or ground switching, depending on the configuration–some models use open-collector outputs requiring a pull-up resistor (1kΩ to 3kΩ).
• Illumination circuit (amber, gray, or pink): Powers indicator LEDs at ~5V or 12V, often fused separately. Check for voltage only when the headlights are activated–some systems dim the backlight via PWM.

Cross-reference the pinout with the vehicle’s electrical reference manual (section 417-01 for add-on circuits), as color coding may invert polarity or split functions between two pins for redundancy. If the factory harness lacks a specific circuit (e.g., auxiliary outputs for aftermarket equipment), tap into the empty slots of the existing connector using Deutsch DT or Metri-Pack 280 terminals to maintain OEM-grade weatherproofing. For high-current applications (>15A), route power directly from the battery via an ANL fuse holder, bypassing the factory harness entirely.

Label all splices and connections with heat-shrink tubing and adhesive-lined butt connectors–not electrical tape–to prevent corrosion in cab environments. Use a torque screwdriver (12-15 in-lbs) when securing ring terminals to ground studs to avoid fracturing the terminal crimp. For diagnostic purposes, create a wiring reference card listing each circuit’s color, pin number, and expected voltage under various ignition states (OFF, ACC, ON, CRANK) to streamline future troubleshooting.

Step-by-Step Guide to Integrating Custom Electrical Connections

Begin by identifying a power source with adequate amperage for your additional components. Use a multimeter to verify the circuit’s voltage under load–ensure it matches your accessory’s requirements. For vehicles with factory-installed control modules, tap into the fused distribution block rather than splicing directly into the battery’s main feed to avoid voltage drops.

Select wire gauge based on the current draw of your device: 14 AWG for up to 15A, 12 AWG for 20A, and 10 AWG for 30A. Use automotive-grade copper wire with cross-linked polyethylene (XLPE) insulation to prevent heat degradation. Strip wires using a precision stripper–never a knife–to avoid nicking strands, which reduces conductivity and increases resistance.

Connect terminals using solderless crimp connectors for reliability. Crimp both the wire and insulation barrel with a ratcheting crimper, then apply heat-shrink tubing to seal against moisture. Avoid electrical tape; it degrades over time and traps heat. For high-vibration areas, add a small bead of dielectric grease to the connection to prevent oxidation.

Essential Tools and Materials

Tool/Material	Purpose	Notes
Digital multimeter	Voltage/continuity testing	Set to DC 20V range for accurate readings
Wire stripper (self-adjusting)	Clean insulation removal	Avoids damaging copper strands
Ratcheting crimper	Secure terminal crimps	Use color-coded dies for correct gauge
Heat gun (1500W+)	Shrink tubing activation	Even heating prevents bubbling
Dielectric grease	Moisture/oxidation barrier	Apply sparingly to male terminals

Route new wires along factory harnesses using zip ties spaced every 8–12 inches. Secure to existing clips or grommets to prevent chafing against sharp edges. For long runs (e.g., front-to-rear), use corrugated loom tubing to protect against abrasion and road debris. Avoid routing near hot exhaust components or moving parts.

Install a dedicated relay for accessories drawing over 10A. Connect the relay’s 85 terminal to a switched power source (key-on or accessory circuit) and 86 to ground. Route the accessory’s positive lead through the relay’s 30 and 87 terminals to prevent parasitic drain. Fuse both the relay’s incoming power and the accessory’s lead within 7 inches of the power source.

Test each circuit before finalizing the installation. Verify the accessory powers on and off correctly, and check for voltage drops under load (target
