Complete 24V 5-Pin Relay Wiring Guide with Circuit Diagrams
For optimal performance in automotive or industrial setups, connect the control circuit to terminals 85 and 86 using a 24-volt source. Ensure terminal 85 is grounded–either directly or via a switch–to prevent erratic behavior. The power contacts (30 and 87) handle the load, with 30 acting as the input and 87 as the output; never reverse these unless the device explicitly allows bidirectional flow. For high-current applications (above 10A), use a diode across 85-86 to suppress voltage spikes, reducing interference with nearby electronics.
Critical Settings: If the system includes an normally open (NO) and common (COM) configuration, wire the load to COM and the NO contact to 87. For dual-mode operations (e.g., latching or momentary control), add a push-to-make switch between 85 and the power supply–pressing it energizes the coil, holding the contact closed until released. Avoid exceeding 20A continuous current on standard 24V mechanical switches; for heavier loads, replace with a solid-state equivalent or add a heatsink.
Troubleshooting begins with verifying coil resistance: a reading outside 50-150 ohms indicates a fault. Check for loose connections at the screw terminals–tighten to 2.5 Nm torque. If the unit fails to switch, probe terminals 30 and 87 with a multimeter: 24V across them with the coil unpowered confirms stuck contacts. Replace immediately if arcing or pitting is visible on the contact surfaces.
Advanced Tip: For intermittent loads (e.g., pumps or compressors), wire a 10kΩ resistor across the coil to minimize residual magnetism, preventing false holds. Always fuse the input (30) with a value 10-20% above the maximum load current, placed no more than 15 cm from the terminal to limit short-circuit risks.
Guide to Connecting a 24VDC 5-Terminal Switching Device
Begin by identifying the coil inputs on the switching device–terminals 85 and 86–where the control signal applies. Apply 24VDC across these points to energize the internal electromagnet, ensuring current flows uninterrupted. For industrial applications, confirm the power source’s stability to prevent intermittent activation, which can damage sensitive equipment.
Attach the load to terminal 30 and one of the output contacts–either 87 or 87a–depending on the desired switch state. Terminal 87 closes when the coil is energized, while 87a disconnects, offering a fail-safe option. Use a multimeter to verify continuity before connecting high-current devices like motors or solenoids to avoid accidental shorts.
For low-power control circuits, insert a flyback diode across the coil terminals (85 and 86) to suppress voltage spikes. A 1N4007 diode suffices for most 24VDC setups, positioned with the cathode on the positive side. Omitting this step risks burning out nearby components during deactivation.
Wire Gauge and Fuse Recommendations
| Load Current (A) | AWG Wire Size | Fuse Rating (A) |
|---|---|---|
| Up to 5 | 18 | 7.5 |
| 5–10 | 16 | 15 |
| 10–20 | 14 | 25 |
| 20–30 | 12 | 40 |
Ground the common terminal (30) to the system’s chassis if the load permits, but isolate it for floating circuits. Use crimp connectors or soldered joints with heat-shrink tubing to prevent corrosion, especially in humid or outdoor environments. Twisted pairs reduce electromagnetic interference in long cable runs.
Test the switching behavior with a bench power supply before permanent installation. Simulate load conditions by toggling the control signal multiple times, observing for consistent engagement. Irregular clicking or delayed response may indicate a faulty unit or improper coil voltage.
For dual-coil latching variants, apply a pulse to either set or reset terminals (typically 85/86) instead of continuous power. This reduces energy consumption in battery-operated systems. Store unused devices in anti-static bags to prevent coil degradation from environmental moisture.
Label all connections with durable tags to simplify troubleshooting. In automotive or marine setups, use marine-grade heat-shrink tubing to seal connections from saltwater exposure. Replace the device if resistance across closed contacts exceeds 0.5 ohms, as increased resistance indicates wear.
Troubleshooting Common Issues
| Symptom | Possible Cause | Solution |
|---|---|---|
| No activation | Broken coil wire | Check continuity at 85/86 |
| Intermittent operation | Loose terminal | Tighten screws, re-crimp |
| Overheating | Load exceeds rating | Upgrade to higher amperage unit |
| False triggers | Stray voltage on control line | Add pull-down resistor |
Identifying the Terminals on a 24V 5-Position Switching Component
Locate the coil contacts first–typically marked 85 and 86–as these handle the control signal. Apply a 24-volt direct current across these two points to energize the internal mechanism, verifying their function with a multimeter set to continuity mode before connection. Polarity matters for DC-operated units: 85 connects to the negative side (ground) while 86 receives the positive input. Reversing these may prevent activation or damage sensitive equipment.
Next, examine the load terminals 87, 87a, and 30. The common input (30) serves as the primary power feed, distributing current to either the normally closed (87a) or normally open (87) contact depending on the coil’s state. Understand that 87a maintains a live connection to 30 when the coil is at rest, while 87 remains disconnected until triggered. This behavior is critical for fail-safe applications where power must default to a specific path.

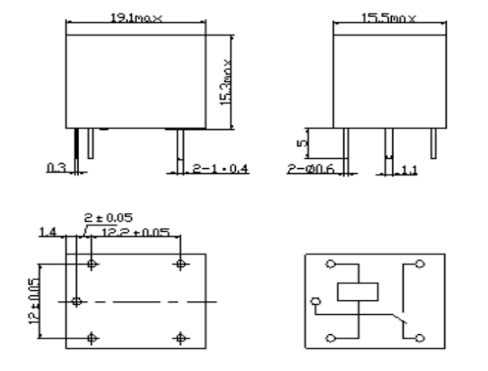

Check for stamped numbers on the housing–manufacturers often etch these near each terminal. If markings are absent or worn, refer to the datasheet for your specific model. Generic diagrams may mislead, as some variants swap 87 and 87a positions. Cross-reference with a schematic showing the component’s internal layout to avoid miswiring, especially in automotive or industrial setups where unintended switching can cause equipment damage.
Test the switching behavior with a low-power source (e.g., a 12VDC bulb) before integrating into a high-current circuit. Connect the bulb between 30 and 87, then energize the coil–if the bulb illuminates, the normally open path is functional. Repeat the test between 30 and 87a with the coil de-energized to confirm the normally closed path. This step isolates potential faults in the contacts before introducing higher voltages or loads.
Inspect the physical condition of each terminal. Corrosion, bent prongs, or loose connectors can cause intermittent failures or overheating. Clean oxide layers with a wire brush or contact cleaner, and ensure tight mechanical connections to minimize voltage drop. For high-current applications, consider crimping or soldering ring terminals to the wires rather than relying on push-on connectors, which can loosen under vibration.
Document the wiring configuration for future reference, labeling each wire with its corresponding terminal number and function. Use heat-shrink tubing or colored sleeves to distinguish inputs, outputs, and control leads. This practice simplifies troubleshooting and prevents accidental cross-connections during maintenance or modifications. Include notes on the expected voltage at each point during both energized and de-energized states for quick verification.
Finally, simulate real-world conditions by cycling the component multiple times under load. Observe for arcing, chattering, or delayed switching, as these indicate degraded contacts or insufficient coil drive. Replace the unit if performance is inconsistent–attempting repairs on sealed components is rarely cost-effective compared to procuring a new or higher-rated model.
Step-by-Step Connection Guide for a 24 Electrical Unit with 5 Terminals
Begin by isolating the power source from the circuit to eliminate any risk of short circuits. Use a multimeter set to continuity mode to verify the absence of current before handling any connections. Identify the control and load terminals: the 85 and 86 posts manage the switching mechanism, while 30, 87, and 87a handle the output. Label each terminal with masking tape to avoid confusion during installation.
Connect the input power feed to terminal 30. This line carries the full 24-unit supply and must use a gauge suitable for the expected load–typically 18-14 AWG for currents under 10 amps. Secure the wire with a crimp connector and heat shrink tubing to prevent oxidation. The control side begins at terminal 85, which should attach to the positive side of the triggering device, whether a switch, sensor, or microcontroller. Terminal 86 links to the negative return path, completing the activation loop.
- Ensure all connections use insulated spade or ring lugs compatible with the terminal spacing.
- For inductive loads (motors, solenoids), add a flyback diode across the control terminals to protect against voltage spikes.
- If the system includes a normally closed path, use terminal 87a instead of 87 to maintain continuity when the switch is off.
Before energizing, test the switching circuit in isolation. Apply the control signal and measure continuity between 30 and 87 with a multimeter–it should toggle between open and closed as the switch cycles. If the signal fails to activate, check for reversed polarity at the control posts (85/86) or a broken pathway. For applications requiring fail-safe operation, wire a secondary switch in parallel to terminal 85 as a backup trigger.
Troubleshooting Common Issues
- If the load does not engage, inspect the control path for loose connectors or incorrect polarity at 85/86.
- For overheating, reduce the load current or upgrade to a higher-rated component with matching contact capacity.
- Buzzing or intermittent operation suggests a weak control signal–verify the triggering device’s output meets the minimum 10 mA hold-in requirement.
Finalize the setup by securing all wires with cable ties and enclosing exposed terminals in a protective housing. Recheck every joint for corrosion resistance, especially in outdoor or high-humidity environments. Document the configuration with a simple schematic, noting wire colors and terminal assignments for future reference.
