Complete Guide to Wiring a 240 Volt Switch with Detailed Diagram
For a dual-pole breaker setup, connect the live conductors to separate terminal screws–typically brass-colored–on the control device. Verify the panel’s mains rating matches the conductor gauge: 10 AWG copper for 30-amp circuits, 8 AWG for 40-50 amps. Exceeding this risks insulation failure. Mark conductors with voltage-rated tape at splice points to prevent accidental contact during maintenance.
Use a four-terminal disconnect or switch rated for the application–single-throw for simple on/off, double-throw for backup power routing. Confirm the enclosure’s NEMA rating matches the environment (e.g., NEMA 3R for outdoor, NEMA 12 for dust resistance). For metal-clad installations, ground the enclosure to the neutral bus with a #6 AWG bare copper jumper per NEC 250.134.
Label each conductor at the panel and device ends:
- Line 1 (L1): Phase A, typically black or red.
- Line 2 (L2): Phase B, alternate color–blue or orange if available.
- Ground (G): Green or bare, bonded to the enclosure.
- Neutral (N) (if required): White, but omit if the circuit is load-only (e.g., motor, heater) to avoid parallel paths.
Test continuity with a multimeter before energizing: probe L1 to L2 should read 208-250V AC; L1 to G/N and L2 to G/N should show 120V if neutral is present. If readings deviate ±5%, inspect for loose connections or incorrect breaker sizing. For split-phase 120/240 systems, use a two-pole breaker with common trip to ensure simultaneous disconnection.
After wiring, torque all terminal screws to the manufacturer’s specification–usually 18-22 in-lbs for residential devices. Over-tightening can strip threads; under-tightening creates resistance points. Cap unused conductors with UL-listed wire nuts sized for the gauge (e.g., yellow for 10-12 AWG). Secure labels with heat-shrink tubing if exposed to moisture.
Understanding High-Current Circuit Connections
Begin by identifying the double-pole breaker in your panel–it handles a 208–250VAC supply for appliances like dryers, ranges, or machinery. Verify the breaker is off before proceeding, then strip ½ inch of insulation from both hot wires (typically black and red) and connect them to the switch terminals using copper lugs rated for at least 30 amps. Secure connections with a torque screwdriver to manufacturer specs (usually 18–22 in-lbs) to prevent arcing or overheating.
Use a multimeter to confirm zero voltage between the neutral bar and each hot wire before energizing. For single-phase applications, link the switch’s neutral terminal to the panel’s neutral bus only if the device requires it (e.g., smart controllers); otherwise, cap it with a wire nut. Ground the switch’s metal housing to the panel’s grounding bus with a dedicated 10 AWG or thicker wire, ensuring continuity to avoid shock hazards.
Label the installation with the load type and amperage–Eaton or Square D breakers often require matched switches for UL compliance. Test the setup by toggling the breaker on, checking for unusual heat at terminals after 10 minutes of operation. If voltages fluctuate, measure for loose connections or undersized conductors before full deployment.
Essential Parts for a High-Current Control Path
A double-pole breaker rated for the circuit’s amperage is non-negotiable. Verify the interrupting capacity matches the panel’s fault current rating–typically 10kA or 22kA. Install it in adjacent slots to ensure both hot conductors trip simultaneously under overload conditions.
Load conductors must comply with NEC Table 310.16 for ampacity. For 40A applications, #8 AWG copper or #6 AWG aluminum is mandatory; upsize if ambient temperatures exceed 30°C or conduit fill exceeds three wires. Avoid stranded wire in screw terminals unless terminated with a compression lug rated for solid-core clamping.
Neutral handling depends on the appliance type. Dedicated two-wire loads omit neutral; three-wire configurations require a separate neutral busbar connection. Never splice neutral within device enclosures–route it directly to the panel’s grounded bus to prevent parallel paths.
The control device itself demands attention to terminal torque specifications. Most manufacturers require 12-14 in-lbs for brass screws; under-tightening risks arcing, over-tightening strips threads. Use a calibrated torque screwdriver, not standard screwdrivers.
Arc Mitigation Components
Arc fault circuit interrupters (AFCIs) are now code-required for many branch circuits, including 20A+ residential paths. Select dual-function breakers combining AFCI and ground-fault protection where mandated–typically bedroom or kitchen installations. Test AFCI functionality monthly via the integrated test button to confirm trip response remains within UL 1699 standards.
Grounding conductors must match the size of the largest phase conductor or follow NEC 250.122. Insulate green ground wires only in corrosive environments–bare copper suffices otherwise. Ground rods, if used, require 8-foot minimum driven length and bonding to the service enclosure with #6 AWG solid wire.
Termination Best Practices
Aluminum junctions must use antioxidant compound rated for high-temperature connections. Apply sparingly–excess paste migrates under compression, creating resistive spots. Copper-to-aluminium splices demand approved connectors like Alumiconn or equivalent listed for such transitions.
Enclosure selection impacts safety and heat dissipation. NEMA 1 enclosures suffice for indoor dry locations, but NEMA 3R is essential outdoors or in damp areas. Mount on non-combustible surfaces with minimum 30-inch clearance from combustible walls unless the device is rated for closer installation per UL 508A.
Step-by-Step Guide to Installing a Heavy-Duty Dual-Circuit Control
Turn off the main power supply at the breaker panel before handling any conductors. Verify absence of current using a non-contact voltage tester on all incoming cables–two hot wires and a ground. Misidentifying live lines risks severe injury or equipment damage.

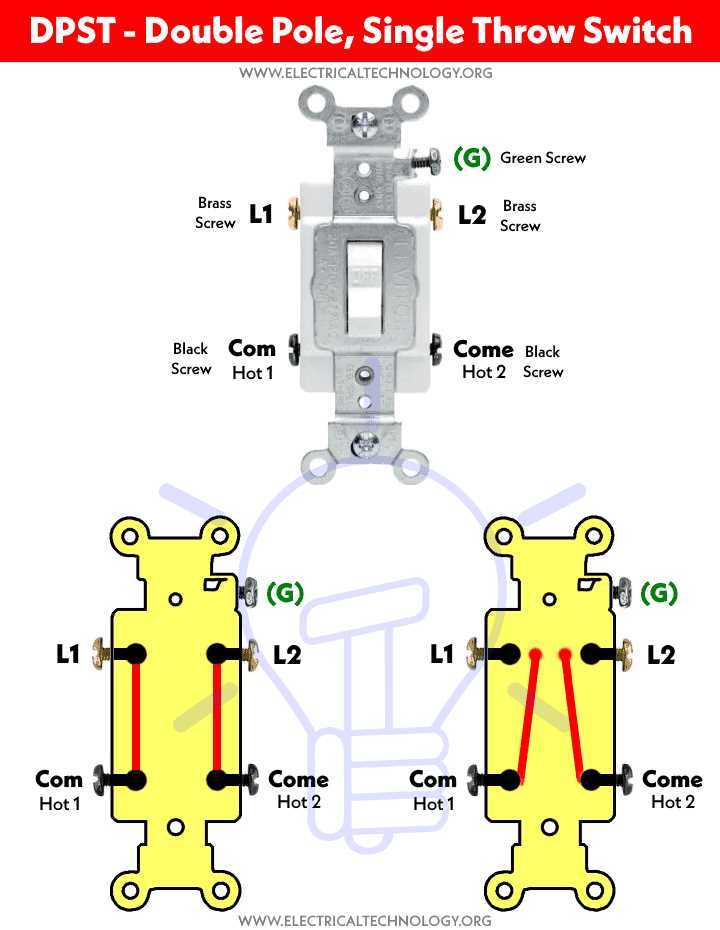

Identify the terminal configuration: most dual-pole mechanisms feature two brass screws for line/load connections and one green screw for grounding. Check the manufacturer’s markings–some models use black screws for line input and red for load output, while others may label them L1/L2 and T1/T2.
Strip ⅝ inch of insulation from each conductor using wire strippers calibrated for the gauge (typically 12 or 10 AWG). Twist strands clockwise to prevent fraying, ensuring full contact with terminal screws. Loose strands can arc, causing overheating.
Connect the first phase conductor to the upper brass terminal, looping clockwise under the screw head. Tighten to 18-22 lb-in torque–over-tightening damages threads, while under-tightening creates resistance hotspots. Repeat for the second phase conductor on the opposite brass terminal.
| Component | Color Code | Gauge Range | Torque Spec |
|---|---|---|---|
| Line Phase 1 | Black | 10-12 AWG | 18-22 lb-in |
| Line Phase 2 | Red | 10-12 AWG | 18-22 lb-in |
| Ground | Green/Bare | 10-14 AWG | 12-15 lb-in |
Attach the ground wire to the green terminal screw, securing it with 12-15 lb-in torque. For metal junction boxes, bond the ground to the box using a pigtail connection–omit this step for plastic enclosures. Ensure no bare wire extends beyond the terminal clamp.
Fold conductors neatly into the electrical box, avoiding kinks or sharp bends near terminals. Position the dual-circuit control so mounting holes align with the box, then secure with ½-inch #6-32 screws. Misalignment stresses terminals, risking intermittent contact.
Restore power at the breaker panel and test each circuit individually. Use a multimeter to confirm 208-250 AC between phases and zero voltage between each phase and ground. If readings are inconsistent, recheck connections for reversed wires or loose terminals.
Troubleshooting Common Issues
If the control fails to activate, verify the breaker trips are reset. Check for continuity across both brass terminals–an open circuit indicates a faulty mechanism or broken conductor. If only one side powers, suspect a miswired terminal or defective internal bridge. Replace the unit if resistance readings exceed 1Ω between line and load terminals.
Color Standards and Conductor Sizing for Dual-Phase Electrical Setups
Always use red and black for hot conductors in single-split phase circuits rated at this higher potential. These colors signal live wires carrying opposite legs of the power feed, ensuring clarity during installation and future maintenance. Neutral wires, when required, must be white or gray, while equipment grounding conductors demand bare copper, green, or green with a yellow stripe. Deviations from this scheme risk safety violations and operational failures.
For branch circuits supplying fixed appliances like ovens, water heaters, or air conditioners, use 10 AWG conductors as the minimum for 30-amp circuits. Larger appliances, particularly those rated at 40 or 50 amps–such as ranges or subpanels–require 8 AWG or 6 AWG copper wire respectively. Aluminum conductors, though permitted, necessitate one size larger: 8 AWG for 30 amps, 6 AWG for 40 amps, and 4 AWG for 50 amps. Verify ampacity tables against local codes as ambient temperature and conduit fill can mandate additional adjustments.
Label both ends of every conductor immediately after stripping insulation. Heat-shrink tubing or self-laminating tags work best; permanent markers smudge under heat or moisture. Include the circuit number and purpose–“Dryer – Phase A,” “Hot Tub – Phase B”–on each tag. Failure to mark wires leads to misidentification during troubleshooting, increasing the risk of cross-phasing and equipment damage.
Ground rods or buried grounding electrodes necessitate a minimum 6 AWG bare copper conductor for proper fault dissipation. Bonding jumpers between metal enclosures and the grounding busbar should match the cross-sectional area of the largest service conductor feeding the panel. Check torque specifications on all terminals: under-tightened connections generate resistance heating, while over-tightening can strip threads on aluminum busbars.
Disconnect switches and breakers serving these installations demand handle ties between poles to ensure simultaneous interruption of both phases. Use double-pole breakers rated for the exact current drawn by the load; avoid oversizing or derating factors from adjacent circuits in the panel. Overcurrent devices must trip instantaneously at 125% of the continuous load to meet NEC Article 210.
Perform insulation resistance testing before energizing. Apply 500 VDC megohmmeter leads between each hot conductor and ground, then between hot conductors themselves. Readings below 1 MΩ indicate compromised insulation and mandate wire replacement. Document all test results and breaker settings in a project log for future reference during inspections.
