Complete 240V Electrical Wiring Guide for Campervan Installations

Install a dedicated 230-volt system using at least 2.5 mm² copper cable for all fixed appliances like induction cooktops or air conditioners. Keep runs under 5 meters to prevent voltage drop–critical for high-wattage devices. Use a residual current device (RCD) with 30 mA sensitivity at the supply point; mount it within 2 meters of the main battery bank or shore power inlet.

Split the circuit into two branches: one for resistive loads (heaters, kettles) and another for inductive loads (compressor fridges, microwaves). Wire the first branch with 4 mm² cable and the second with 6 mm² where current exceeds 10 amps. Label each breaker clearly–32A for main feed, 16A for outlets, 10A for lighting. Ground all metal chassis components to a single bus bar connected to the negative terminal.

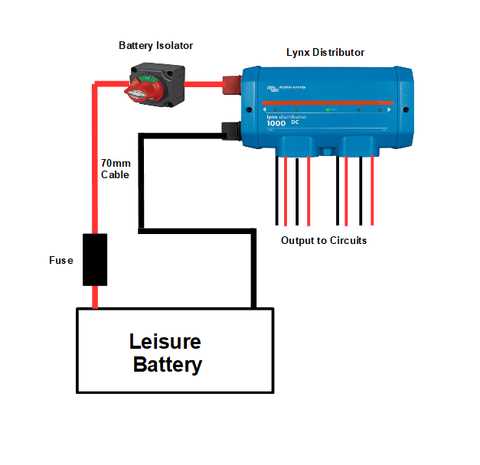

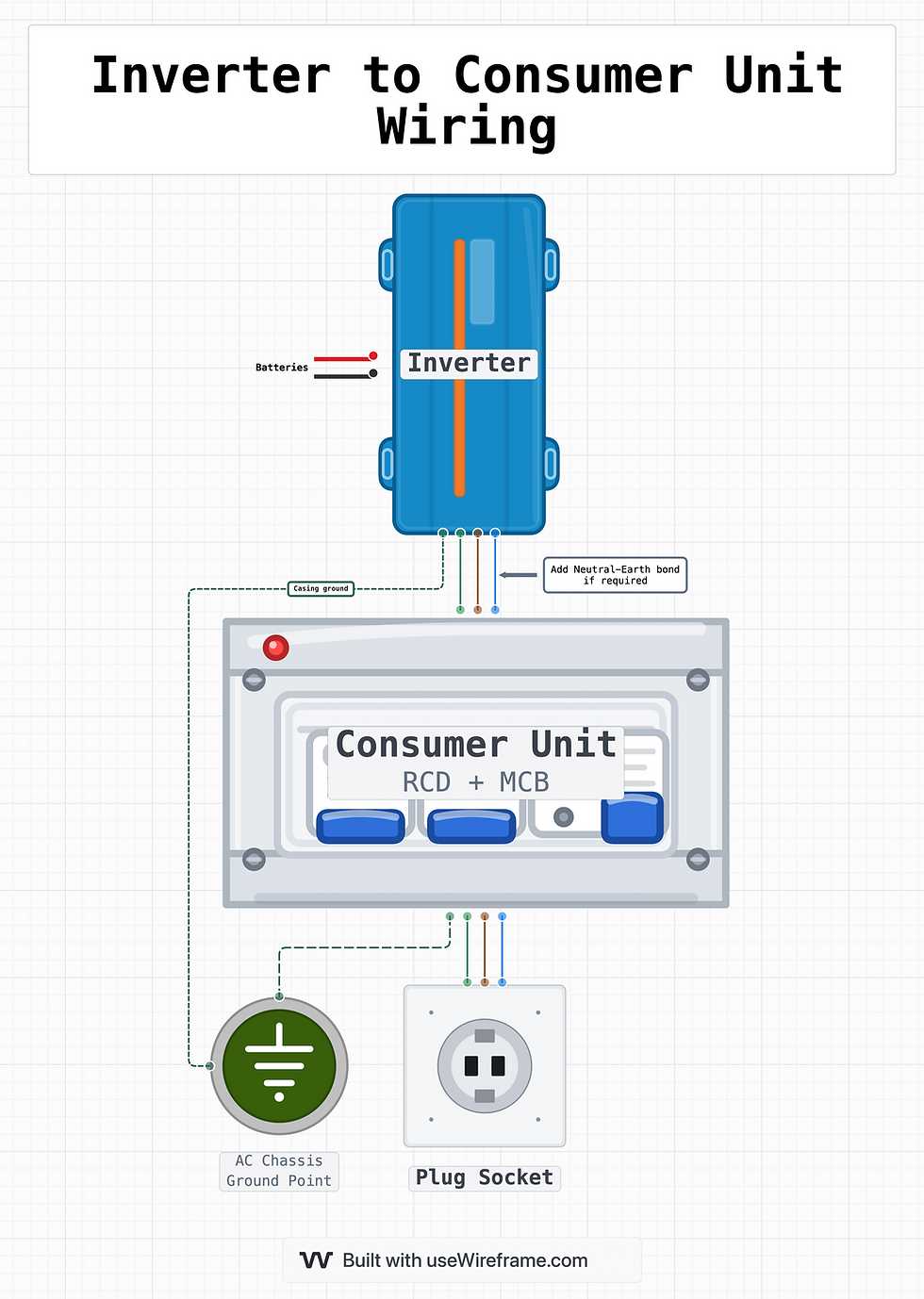

Select a pure sine wave inverter sized 1.5× your peak load; for 3 kW appliances, opt for a 4.5 kW model with built-in transfer switch. Position the inverter within 30 cm of the auxiliary battery, using 70 mm² cables for DC connections. Test continuity between neutral and ground at every outlet–should read

For European sockets, use IP44-rated connectors and seal all junction boxes with dielectric grease. Avoid daisy-chaining–each appliance needs its own breaker. When calculating cable size, assume 5% voltage drop for 230V circuits and derate by 20% if ambient temperatures exceed 30°C. Include a manual bypass switch for the inverter to allow direct shore power when working on the system.

Installing High-Voltage Electrical Systems in Mobile Conversions

Use a dual-pole 32A RCD as the primary safety device–install it immediately after the shore power inlet before branching to any circuits. This setup protects against leakage currents above 30mA and isolates both live conductors simultaneously. Connect the RCD’s output to a 16A main breaker to prevent overload; this should feed a sub-board, not individual appliances, to simplify troubleshooting and maintenance.

• Select 2.5mm² cable for all high-demand circuits (e.g., kettles, heaters, induction cooktops) and 1.5mm² for low-load outlets (lights, phone chargers).
• Route cables through flexible conduit if passing near moving parts or sharp edges–secure with P-clips every 300mm.
• Label every wire at both ends with heat-shrink tubing or printed tags (e.g., “L1 – Microwave,” “N – Fridge”).
• Test polarity and earth continuity with a multimeter before energizing; a reversed live/neutral can damage RCDs and appliances.

Circuit Distribution Tips

Split the sub-board into at least three dedicated circuits: one for cooking (max 10A), one for heating/water pumps (max 10A), and one for general outlets (max 16A). Each should have its own 20A MCB; avoid daisy-chaining. For 3kW appliances, like electric kettles, run a separate 6mm² cable directly to the main breaker–shared circuits risk nuisance tripping under simultaneous load.

1. Mount outlets at least 150mm above countertops to avoid moisture ingress; use IP65-rated units near sinks.
2. Install a surge protector after the RCD if parking in areas with unstable grid power.
3. Include a 40A changeover relay to prioritize battery charging when shore power is connected, preventing deep-cycle drain.

Selecting Optimal Wire Thickness for High-Voltage RV Electrical Systems

For 10-15 amp circuits in auxiliary vehicle installations, 2.5mm² flexible copper conductors meet safety standards while minimizing voltage drop over distances up to 15 meters. This specification aligns with IEC 60228 Class 5 stranded cores, which maintain conductivity under constant vibration typical of mobile applications. Verify insulation rating (H07RN-F or equivalent) to withstand 450/750V operational conditions and resist abrasion from sharp edges within chassis cavities.

Heavier loads requiring 20-30 amps necessitate 4mm² cross-sectional area, particularly for induction cooktops or climate control compressors. At this gauge, expect ≤5% voltage loss per 10 meters when paired with 30mΩ/100m copper resistance. Terminate with crimped ring lugs sized for M8 studs, ensuring torque compliance (1.5-2Nm) to prevent thermal creep at connection points. Always route cables through grommet-protected chassis penetrations, maintaining ≥20mm clearance from moving components or heat sources above 60°C.

Load-Specific Wire Gauge Reference Table

3kW water heaters: 6mm²

2.5kW air conditioning: 4mm² (dedicated circuit)

Microwave ovens (1.2kW): 2.5mm²

Washing machines (1.5kW): 2.5mm²

Outdoor-rated extension leads (temporary): 1.5mm² (max 10A)

Grounding conductors: Match current-carrying capacity but never exceed 1.5x the primary conductor’s gauge

Undersized conductors generate excessive heat under sustained loads, degrading PVC insulation at 75°C and accelerating oxidation of copper strands. For fixed installations, prefer tinned copper strands (IACS conductivity ≥94%) to resist corrosion from condensation. When splicing, use hydraulic crimpers with hexagonal dies rather than solder – solder joints can anneal under vibration, increasing resistance. Document all cable runs with wire markers every 30cm, noting ampacity and circuit function for future troubleshooting.

In dual-voltage systems combining low and high potential setups, segregate AC circuits from DC conduits using separate corrugated conduits or loom tubing. Cross-contamination risks catastrophic failure: a single nick in 48V lithium bank insulation contacting 750V AC can trigger arcing faults with 7kJ energy release. For inverters exceeding 2kW output, upsize the input conductor one gauge above table recommendations to account for inrush currents during compressor startup (typically 3-5x steady-state).

Field-test each circuit with a calibrated megohmmeter (500VDC test voltage) before energizing: acceptable insulation resistance exceeds 1MΩ. For circuits serving refrigeration or medical equipment, incorporate arc fault circuit interrupters (AFCI) rated for 32A. When coiled (e.g., shore power cables), derate capacity by 30% to prevent overheating due to inductance effects. Replace any conductor showing >5% reduction in cross-sectional area due to repeated bending or abrasion.

How to Set Up a Dual-Voltage Power Point in Your Mobile Home

Choose a residual current device (RCD) rated for 30mA protection, preferably a Type B model to handle variable loads from inverters or small appliances. Mount it within 2 meters of your breaker panel–longer runs diminish safety due to voltage drop. Use 2.5mm² tinned copper cable for the entire supply line, even if local codes permit 1.5mm²; corrosion resistance outweighs minimal cost savings in mobile environments.

Install a dedicated 20A miniature circuit breaker (MCB) upstream of the outlet. Position the MCB adjacent to the RCD to simplify troubleshooting–label both components clearly with a permanent marker: “Van Power – 230V Supply.” Avoid combining this circuit with lighting or low-draw outlets; surges from appliances like electric kettles risk nuisance tripping.

Select an IP44-rated socket with an integrated safety shutter to block dust and moisture ingress during travel. Hardwire the socket directly into a surface-mounted junction box rather than using surface clips; vibrations loosen cheap fixtures over time. Secure cable routes with P-clips every 300mm where they pass through bulkheads, ensuring no sharp edges contact the sheath–chafing causes shorts after 6-12 months of road use.

Test polarity with a socket tester before energizing. Connect live (brown) to the right-side terminal, neutral (blue) to the left, and earth (green/yellow) to the centrally mounted pin. For continuous loads like refrigerators, upsize the earth cable to 4mm²; smaller gauges heat excessively under fault conditions, risking circuit failure before the RCD trips. Double-check torque specs: 2Nm for brass terminals, 1.2Nm for steel–over-tightening cracks insulating rings.

Route all cables away from heat sources like exhaust pipes or diesel heaters; temperatures above 60°C accelerate insulation degradation. Where unavoidable, use silicone-jacketed cable rated for 180°C. Ground the socket’s metal backplate to the van’s chassis at a single point–bonding multiple points creates parasitic currents that interfere with sensitive electronics like solar charge controllers.

Label the outlet’s faceplate with its purpose (e.g., “Heavy Appliances Only”) and include a QR code linking to a PDF of your electrical schematic. Update this document whenever modifiying the system. Store a spare 10A fuse and a multimeter set to continuity mode inside the junction box–quick access prevents downtime during cross-country travel. Recheck all connections after 50 hours of operation; thermal cycling loosens terminals in mobile setups.

Critical Errors to Sidestep in High-Voltage Electrical Systems for Mobile Living Spaces

Skipping polarity checks on sockets risks reversing live and neutral connections, creating a silent hazard. Test every outlet with a multimeter before energizing the circuit–even factory-terminated cables can be miswired during packaging. A reversed neutral may not trip breakers but silently energizes appliance chassis, turning them into shock traps.

Underestimating cable ampacity for heavy loads like induction cooktops or electric kettles leads to overheating. Use flexible tinned copper cables with at least 2.5mm² cross-section for 16A circuits, and derate capacity by 20% in enclosed conduits. Insulation melt starts at 75°C–cheap PVC jackets fail first, while silicone withstands 200°C but costs 3x more.

• Extend circuits without calculating voltage drop: each meter of 1.5mm² cable loses ~0.1V at 10A. After 10m, a 230W fridge compressor struggles, drawing 1.5x current and overheating.
• Mixing solid core and stranded wire in connectors causes loose terminals. Crimp only stranded wire with ferrules; solid core work-hardens and fractures under vibration.
• Neglecting RCD protection for bathrooms/outdoor outlets violates IEC 60364. A 30mA RCD trips faster than a MCB, saving wet fingers from 50mA thresholds.

Grounding Pitfalls in Self-Built RVs

Bonding the neutral to chassis at multiple points creates ground loops, inducing 50Hz hum in audio systems and corroding dissimilar metals. Use a single star-ground connection bolted to a zinc-plated chassis point, not directly to plywood or composite walls.

Assuming a submersible water pump’s motor housing is grounded invites electrocution–plastic-bodied pumps isolate the winding from ground. Install a dedicated ground wire from the pump’s winding star point to the main ground busbar.

Using automotive circuit breakers instead of slow-blow fuses for compressors and motors invites nuisance trips. A 10A compressor startup surge hits 50A for 200ms; a 15A slow-blow fuse handles this, while a 16A MCB trips instantly.

1. Ignore IP ratings in wet zones: a IP44 bathroom extractor fan splash-resistant rating fails under direct hose spray. Upgrade to IP65 or relocate to a dry area.
2. Overlooking cable routing near sharp edges or exhaust pipes cuts insulation within weeks. Use spiral wrap or conduit near edges and keep at least 50mm clearance from 200°C exhaust manifolds.
3. Connecting a second battery bank without isolation diodes lets one bank drain into another. Use a bidirectional DC-DC charger or relay-based split-charge system with voltage sensing.
