Step-by-Step Guide to Wiring a 24V Battery Bank for Reliable Power

To achieve optimal performance from a 48-cell configuration, connect pairs in series first, then link these assemblies in parallel. This approach balances voltage output while maximizing capacity. Use 6 AWG copper cables for current paths to minimize resistance losses–every 1.5 meters of 6 AWG introduces roughly 0.004 ohms. For safety, incorporate a 150-amp fuse within 15 centimeters of the positive terminal on each series string.

Avoid mixing aged and new cells; mismatched internal resistance causes uneven charging currents. Test each unit’s open-circuit voltage before assembly–deviations exceeding 0.05 volts indicate potential failure. For fail-safe operation, wire a disconnect relay rated for 20% above the system’s expected load surges between the storage array and the charge controller.

Ground the negative bus directly to the chassis with a dedicated 4 AWG conductor, ensuring a resistance under 0.1 ohms to the frame. Space components to allow airflow; each 5°C temperature rise above 25°C reduces storage efficiency by 2%. Terminate connections with crimped lugs (not solder) and verify torque values for M8 bolts at 12 Nm to prevent vibrational loosening over time.

Label all buses clearly–positive, negative, parallel, and series–using heat-resistant sleeves. Install a shunt-based monitor on the negative rail to track state-of-charge with ±1% accuracy. Finally, cycle the completed array once at 80% depth of discharge to stabilize cell chemistry before deployment.

For systems exceeding 500 amp-hours, distribute current across multiple parallel paths–three or more–to prevent localized heating. Monitor interconnection resistance quarterly; an increase above 20 micro-ohms signals corrosion or fatigue degradation. Replace cables showing visible oxidation before resistance affects efficiency.

Parallel and Series Connection Schemes for Dual-Voltage Energy Storage

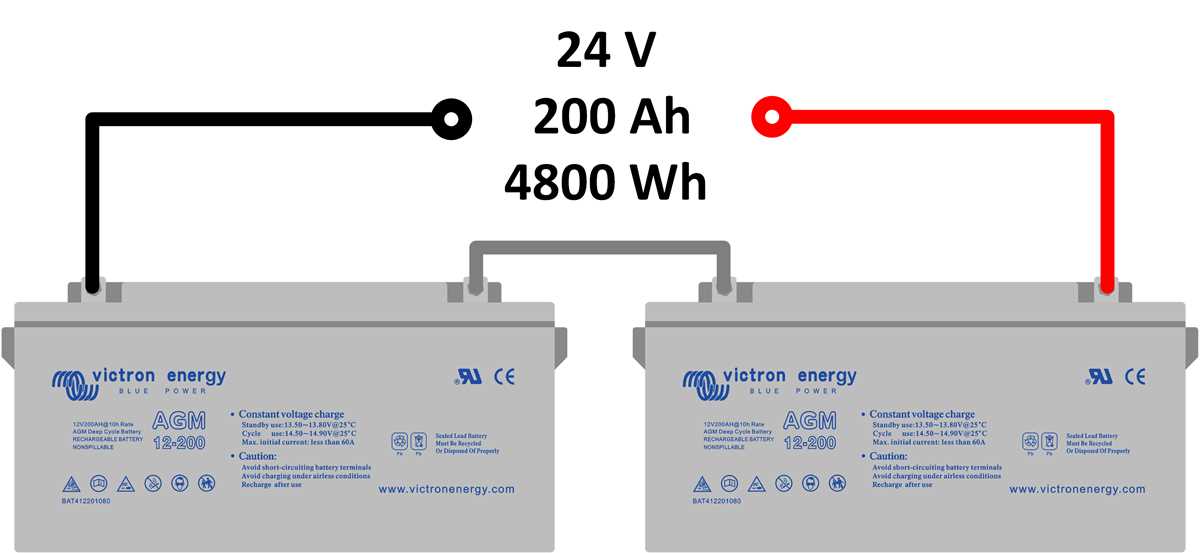

Begin by pairing identical 12-volt deep-cycle storage units in series pairs–positive terminal to negative–to reach the target potential. Ensure each pair shares the same brand, model, amp-hour capacity, and internal resistance to prevent imbalanced charging cycles. Use 2 AWG copper cables for interconnects between pairs, clad in heat-shrink tubing to prevent short circuits from vibration or moisture ingress.

• Measure open-circuit voltage across each series couple before final linking; deviations exceeding 0.1 volts indicate degraded cells requiring replacement.
• Connect module terminals in parallel with 1/0 AWG tinned copper bus bars, prioritizing shortest feasible cable runs to minimize resistive losses–every 30 cm of 2 AWG cable at 50 amps incurs 0.25% efficiency loss.
• Install a 250-amp class T fuse within 15 cm of the positive bus bar junction, sized no higher than 125% of the maximum continuous discharge current to prevent thermal runaway.
• Equip each series module with an individual 100-amp breaker or MRBF fuse to isolate faults without disrupting the entire array.

Balancing and Monitoring Considerations

Deploy a active balancer capable of handling 2 amp differentials between modules, configured to trigger at voltages below 2.0 volts per storage cell to extend cycle life. Integrate a shunt-based amp-hour meter sampling current at 10-second intervals, logging to non-volatile memory–avoid Hall-effect sensors for dual-voltage setups due to inherent 2% calibration drift.

1. Route sense wires (22 AWG twisted pair) along the positive bus bar to the midpoint of the array, terminating in a voltage divider network (4.7kΩ resistors) to avoid ground loops.
2. Mount a thermal sensor directly on each module’s negative terminal–indicate temperatures exceeding 45°C via remote alert for immediate fan activation or load shedding.
3. Use 4-conductor locking connectors (e.g., Anderson SB50) between paralleled strings to enable field servicing while maintaining series integrity during disconnection.

Selecting Optimal Energy Storage for a Dual 12-Cell Configuration

Lead-acid absorbed glass mat (AGM) units remain the most cost-effective choice for off-grid systems requiring 480–960 Ah capacity, delivering 400–600 full discharge cycles at 50% depth of discharge (DoD) with minimal maintenance. Their sealed construction eliminates electrolyte spillage risks during transportation or installation, making them ideal for mobile applications like marine or RV setups. However, weight and size constraints often necessitate parallel configurations, which can reduce overall reliability if not balanced precisely.

Lithium iron phosphate (LiFePO4) alternatives provide 2,000–5,000 cycles at 80% DoD while retaining 70–80% of initial capacity, but require a battery management system (BMS) to prevent overcharging or deep discharges. For a 2.4 kWh setup, expect a 30–40% higher upfront cost compared to AGM, though long-term savings from extended lifespan and 95% round-trip efficiency offset this. Avoid generic lithium-ion variants–cobalt-based chemistries pose thermal runaway risks under improper charging conditions.

Deep-cycle flooded lead-acid cells offer the lowest initial cost per watt-hour but demand regular topping with distilled water and ventilation due to hydrogen gas emissions. A 24-cell series arrangement at 200 Ah per cell yields 4.8 kWh, but performance degrades at temperatures above 25°C (77°F) or below 0°C (32°F) without temperature compensation. For stationary installations in moderate climates, they outperform AGM in longevity but require a ventilated enclosure and quarterly equalization charging.

Gel-type units strike a balance between AGM and flooded options, tolerating deeper discharges (up to 60% DoD) without sulfation risks while eliminating maintenance. A 24-cell gel string at 100 Ah per cell stores 2.4 kWh, though internal resistance increases by 20% after 300 cycles. Their slower charge acceptance compared to AGM makes them less suitable for rapid recharging from solar arrays under variable cloud cover. Match charging voltages to manufacturer specs–overvoltage above 2.35V per cell accelerates grid corrosion.

Nickel-iron (NiFe) storage, though rare, excels in extreme environments, enduring 3,000+ cycles across -40°C to 60°C (-40°F to 140°F) with negligible capacity loss. However, their 50% lower energy density requires twice the physical space of LiFePO4 for equivalent output, and self-discharge rates of 1–2% per day demand trickle charging for infrequently used systems. Voltage sag under load–dropping to 1.0V per cell at 80% discharge–necessitates oversized inverters for consistent power delivery.

When sizing dual 12-cell strings, always pair identical chemistries, ages, and capacities to prevent imbalance. Differential aging in mixed banks (e.g., AGM with LiFePO4) causes premature failure of the weaker cells due to unequal charge/discharge rates. For critical loads, use series-parallel topologies with cross-linking to isolate faulty strings, though this increases wiring complexity and potential points of failure.

Cold climates favor LiFePO4 due to their wider operational temperature range, while flooded lead-acid dominates in budget-conscious warm-weather installations. For redundancy, divide capacity into at least two strings–three parallel 100 Ah AGM strings provide 300 Ah total, allowing one string to fail without system collapse. Always size charge controllers and inverters to handle the peak current of the combined strings, not just the nominal rating.

Evaluate total cost of ownership (TCO) beyond purchase price: AGM’s replacement interval every 3–5 years, LiFePO4’s 10+ years, and NiFe’s 30+ years. Factor in disposal costs–lead-acid recycling programs are widely available, while lithium alternatives require special handling. For remote sites, prioritize chemistries with minimal maintenance and self-discharge, as access for servicing may be limited.

Step-by-Step Guide to Configuring Energy Storage for Dual-Voltage Setups

Select cells with matching capacities–differences exceeding 5% reduce system lifespan. Measure each unit’s voltage and internal resistance before grouping. Identical specs prevent imbalanced charging cycles, a primary cause of premature degradation.

For a higher voltage output, connect positive terminals to negative terminals of adjacent units. Link three 8-volt units this way to achieve a 24VDC nominal setup. Ensure polarity correctness; reversing polarity destroys components instantly.

Parallel connections multiply current capacity without altering voltage. Join all positive terminals together and all negative terminals likewise. This method suits configurations needing longer runtime, like backup power for off-grid inverters requiring 100Ah or more.

Combine series and parallel arrangements for scalability. A common configuration pairs two series chains of three 8-volt modules, then connects those chains in parallel. Total voltage remains constant (24VDC), while amp-hour rating doubles. Verify connections with a multimeter–open circuits or shorts waste energy and create hazards.

Safety Precautions During Installation

Isolate the power source before handling exposed terminals. Copper lugs and properly rated cables (minimum 2 AWG for 50A systems) prevent overheating. Apply anti-corrosion compound to terminals; oxidation increases resistance and reduces efficiency by 15-20% over time.

Secure modules on a non-conductive surface to avoid accidental shorts. Ventilated enclosures prevent gas buildup, particularly with flooded lead-acid variants. Lithium iron phosphate types require less airflow but need a battery management system (BMS) to balance cells during charge/discharge cycles.

Label each connection point with voltage and purpose (e.g., “Load Out” or “Solar In”). Use color-coded wires–red for positive, black for negative, and yellow for signal/ground references. Documentation aids troubleshooting; log performance metrics monthly to detect anomalies early.

Testing and Optimization

After assembly, load-test the system with a 10% discharge (e.g., 10A for a 100Ah setup). Monitor voltage sag–acceptable values stay above 23.5VDC for a 24VDC nominal system. Replace underperforming units immediately; weak cells drag down the entire configuration.

Calibrate charging parameters to manufacturer specs. Overcharging (exceeding 28.8VDC for most configurations) damages components, while undercharging (below 21VDC) causes sulfation. Adjust charge controllers to shut off at 95% capacity for maximum cycle life.
