Complete 24V Thermostat Wiring Guide and Diagram for HVAC Systems
Start by verifying the control unit’s voltage rating matches the transformer output–typically 12VA to 40VA for residential setups. Exceeding this range risks damaging the relay or causing erratic behavior. Locate the R (power), W (heating), Y (cooling), and G (fan) terminals on the control board. Use 18-gauge solid-core copper wire for all connections, ensuring strands are twisted tightly before insertion.
For heating-only systems, link R to W directly. If the system includes a fan, bridge R to G in parallel. Cooling circuits require R to Y, with the fan activated separately via G. Always disconnect power at the breaker before handling terminals–capacitors can retain charge even when unplugged.
Use a multimeter to test continuity between R and C (common) at 28–30 volts AC. If readings fluctuate, inspect the transformer’s secondary winding for corrosion or loose screws. Replace any wire nuts with lever-style connectors for secure, vibration-resistant joints. Label all wires with heat-shrink tubing to avoid misidentification during future maintenance.
For dual-stage systems, connect the second heating stage (W2) in series with W1, verifying the sequence triggers correctly during furnace startup. In heat pumps, add a defrost board between Y and O/B to manage reverse-valve operation. Check manufacturer specs–some models require a jumper between Y and G during cooling cycles to prevent fan delays.
Ground all metal components to the furnace chassis using a dedicated green grounding wire. Avoid daisy-chaining grounds–each component should have its own path to the common terminal. For outdoor units, route wiring through liquid-tight conduit to prevent moisture ingress. Seal conduit openings with silicone to maintain the enclosure’s IP rating.
Connecting a Low-Voltage Climate Control System: A Step-by-Step Guide

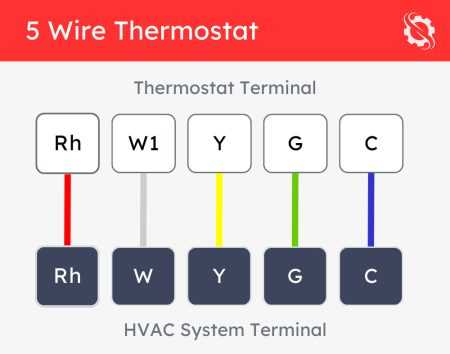

Identify the R (power), W (heat), Y (cool), G (fan), and C (common) terminals on your control board before making connections. Label each wire with masking tape to prevent misplacement during installation–this prevents reversed polarity or short circuits, which can damage the system. For most setups, attach the red wire to R, the white to W, the yellow to Y, and the green to G. If a blue or black wire is present, connect it to the C terminal for a reliable return path.
Use 18-gauge solid copper wire for all connections to ensure sufficient current flow without voltage drop. Strip 0.25 inches of insulation from each wire end, then twist the strands tightly before inserting into the terminal screws. Tighten screws to 12-15 inch-pounds of torque–over-tightening risks stripping threads, while loose connections cause intermittent failures. Test each connection with a multimeter set to continuity mode; readings should show near-zero resistance.
For zoned systems, add a relay between the control device and the HVAC equipment. The relay isolates high-current loads, protecting the delicate low-voltage circuitry. Connect the control’s output to the relay coil and the HVAC equipment to the relay contacts. Use a 24VAC relay with a 5-amp contact rating for standard applications; larger systems may require heavier-duty relays. Verify relay coil resistance matches the control’s output voltage to avoid overheating or premature failure.
If integrating a smart device, check compatibility with OEM equipment. Some digital controls require a dedicated power supply, while others derive power from the HVAC system. Avoid connecting third-party devices directly to the equipment without consulting manufacturer datasheets–improper voltage levels can void warranties or trigger safety lockouts. For adaptive controls, program heating and cooling cycles at least 3°F apart to prevent rapid cycling, which strains compressors and blower motors.
After installation, power on the system and observe the display for error codes. Adjust settings incrementally, allowing the climate system to stabilize between changes. Monitor energy consumption over 24 hours; unexpected spikes indicate wiring faults or sensor misalignment. Keep a log of temperature differentials at supply and return ducts–consistent readings confirm proper airflow and thermistor calibration.
Key Elements of a Low-Voltage Climate Control Setup
Start by identifying the power source–typically a step-down transformer delivering stable 24 alternating current. This component reduces household mains to a safer level for environmental regulation. Verify its capacity matches the load requirements; undersized units cause erratic behavior or failure. Locate the transformer near the control unit to minimize voltage drop over long runs, ideally within 15 meters of the main board.
Examine the control board itself, which acts as the central relay for heating, cooling, and fan operations. Modern boards feature multiple labeled terminals (R, W, Y, G, C) dictating distinct circuits. R supplies power, W triggers heat, Y engages cooling, G activates the blower, and C serves as the common return path. Miswiring these terminals risks damaging the equipment–always cross-reference terminal labels with manufacturer documentation before connecting.
Fan relays deserve special attention. A dedicated fan relay should trip independently when the blower requires forced airflow, separate from heating or cooling cycles. Bypass this relay only during maintenance checks, as continuous fan operation without temperature regulation wastes energy. For multi-stage systems, additional relays (Y2, W2) handle secondary compressors or auxiliary heat, each requiring precise calibration to avoid short-cycling.
- Power switch or fuse: Essential for circuit protection. Omit or bypass this only when troubleshooting specific faults under supervision.
- Anticipator: A resistive element in older mechanical units that fine-tunes cycle timing by adding slight heat to the sensor.
- Heat pump reversing valve: Switches between heating and cooling modes via an O/B terminal, requiring 24V AC to energize.
Sensors–whether bimetal strips, thermistors, or electronic probes–must maintain direct contact with ambient air for accurate readings. Mount them vertically, away from drafts, direct sunlight, or heat sources like lamps or appliances. Calibrate mechanical sensors by adjusting a small screw or lever; digital sensors often include self-test routines. Replace sensors exhibiting erratic behavior immediately, as degraded readings lead to inefficient operation.
For multi-zone configurations, zone dampers modulate airflow within ductwork. These require separate wiring back to the control board or a dedicated zone panel. Ensure dampers are fully open before initiating cycles, as partial closure restricts airflow and strains the blower motor. Use a multimeter to verify damper actuator functionality: they should draw consistent voltage during operation and return to a neutral position when inactive.
Troubleshooting Common Failures
- No power: Test transformer output with a meter. If voltage is absent, check primary fuse and surge protectors. Replace if readings fluctuate or are below 20V.
- Short-cycling: Inspect sensor placement and anticipator settings. Clean or replace dirty sensors–dust buildup skews temperature readings.
- Unresponsive cooling: Confirm Y terminal receives voltage during cooling calls. If not, inspect the compressor relay coil for continuity.
- Fan runs continuously: Check G terminal voltage; if present without system demand, the board may be faulty or miswired.
How to Connect a Low-Voltage Climate Control System for Heating and Cooling
Disconnect power at the circuit breaker before handling any electrical connections. Label each wire from the HVAC control board with masking tape–mark R (power), W (heat), Y (cooling), G (fan), and C (common)–to prevent miswiring. Strip 1/4 inch of insulation from each conductor using wire strippers, ensuring no exposed copper extends beyond the terminal screw.
Attach the labeled wires to the corresponding terminals on the control device. Secure R to the power input, W to the heating call terminal, Y to the compressor relay, G to the blower motor, and C to the neutral post. Tighten each screw with a screwdriver until snug–over-tightening can strip threads. Verify no bare wire touches another by visually inspecting connections before restoring power.
For systems with a heat pump, add the O/B terminal for reversing valve control. Set the selector switch to match your system’s voltage (typically labeled 20-30V). Test operation by adjusting settings on the climate regulator: raise the setpoint to activate heating, lower it for cooling, and set fan to “auto” to confirm proper sequencing. If the unit fails to respond, recheck connections against the manufacturer’s schematic.
Standard Conductor Hues and Terminal Markings for Low-Voltage Climate Control Systems
Begin by identifying the red conductor–this consistently delivers power from the control transformer’s “R” or “Rh” output. In most North American setups, it connects to the climate device’s “R” terminal, supplying the baseline 20-28VAC potential. Always confirm transformer labeling, as some split-system air handlers label the secondary feed as “Rh” for heating and “Rc” for cooling, requiring a jumper or separate link if both systems share a single climate interface.
Ground connections often use a bare copper or green-shielded wire, universally tied to the chassis or dedicated grounding terminal labeled “GND,” “COM,” or a simple earth symbol. Unlike power-carrying paths, this conductor carries no potential under normal operation but serves as a fault return; ensure it is screwed or crimped directly to a metal enclosure or grounding busbar without splices that might introduce resistance.
| Common Conductor Hue | Typical Terminal Label | Primary Function | Compatibility Notes |
|---|---|---|---|
| Red | R, Rh, Rc | Power supply input | Requires jumper between Rh/Rc if single transformer used |
| White | W, W1, W2 | Heat relay activation | W2 reserved for auxiliary/stage 2 heat |
| Yellow | Y, Y1, Y2 | Cooling compressor engagement | Y2 used for multi-stage cooling setups |
| Green | G | Fan/blower relay | Separate from equipment’s internal fan control |
| Blue (or Brown) | O/B | Heat pump reversing valve | O energizes cooling mode, B energizes heating mode |
| Black (or C) | C | Common return path | Essential for smart interfaces requiring constant power |
Blue or brown conductors usually signify heat pump reversing valves, labeled “O” or “B.” These dictate operational mode–O energizes cooling, B heating. Manufacturers employ opposite conventions, so cross-reference the outdoor unit’s specifications. When configuring zoned setups, label these legs clearly to prevent accidental 180-degree operational flips.
Smart interfaces often require a dedicated return path (common), traditionally black or marked “C.” Unlike switched legs, this maintains a continuous return to the transformer secondary, powering logic circuits without cycling relays. Verify transformer capacity–additional loads may demand a replacement or separate secondary rated for the cumulative VA draw.
Some legacy or proprietary control boards deviate: Carrier/Bryant frequently substitutes orange for the reversing valve leg, while Trane may use dark blue for emergency heat. Always trace each leg back to its relay or contactor to confirm function–visual hue alone risks misconfiguration, especially in retrofit scenarios where existing conductors may be repurposed or mismatched.
