Understanding the 35mm Audio Jack Wiring Schematic for DIY Projects

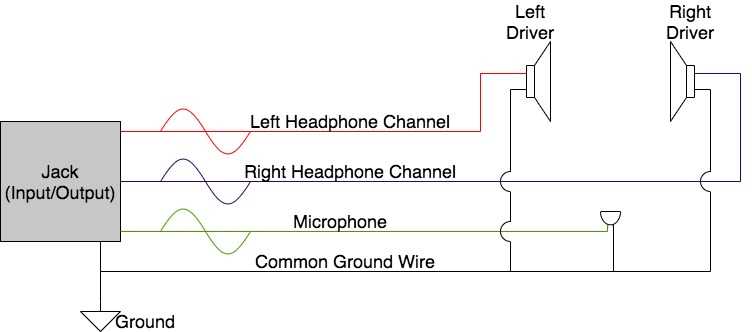

Begin by identifying the ground reference in the connector schema–typically the sleeve contact. This trace serves as the common return for both left and right audio channels and shields the signal from interference. Misrouting this path leads to audible hum or cross-talk, especially in unbalanced analog feeds.

For the stereo implementation, split the tip and ring segments into distinct pathways. Ensure each carries a separate channel (left/right) and terminates at a 1 kΩ resistor to maintain impedance balance. Bypass capacitors (0.1 µF) should sit adjacent to these resistors to filter high-frequency noise without affecting audio fidelity below 20 kHz.

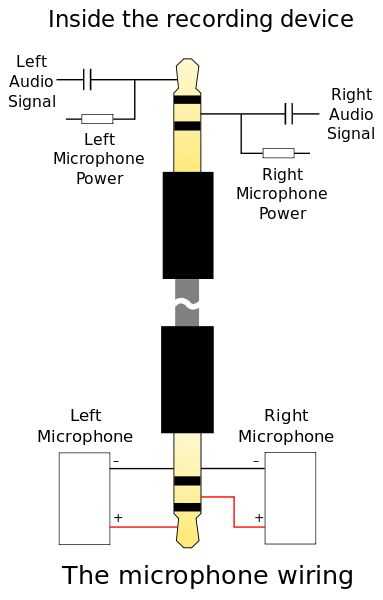

Power-sensitive designs–like condenser microphones or amplified headphone drivers–require an additional phantom line. Pull this line to +5 V through a 6.8 kΩ resistor, then split via two 3.3 kΩ resistors before feeding the tip and ring. This avoids DC offset while delivering stable bias current without clipping.

Trace layout demands isolated audio paths–avoid parallel runs exceeding 15 mm. If longer routes are unavoidable, shield them with a ground fill or insert a ferrite bead (10 Ω at 1 MHz) to suppress EMI from adjacent digital lines. Forgetting this step introduces audible buzz in portable devices where Wi-Fi/Bluetooth coexist.

Always verify the schema with an oscilloscope before finalizing the board. Probe the tip and ring under load (32 Ω) and confirm signal integrity remains within ±0.1 dB across 20 Hz–20 kHz. Any deviation suggests incorrect resistor values or missing decoupling components.

Miniature Audio Connector Electrical Layout

Begin by identifying the four primary contact points in a standard TRRS configuration: tip (left channel), first ring (right channel), second ring (ground), and sleeve (microphone or video sync). Measure impedance between the tip and sleeve with a multimeter set to 20kΩ–the reading should stabilize between 1.2kΩ and 2.4kΩ for headset mics, or below 100Ω for line-level output. If values deviate, inspect solder joints for cold connections or oxidized surfaces; reflow with rosin flux and 60/40 solder at 350°C.

• For passive devices, use a 10μF electrolytic capacitor in series with the tip connection to block DC offset, preventing diaphragm damage in 16Ω drivers.
• Active circuits require a 2.2kΩ resistor bridging the sleeve to ground for bias voltage; omit this for electret mics to avoid clipping.
• Shield the cable with aluminum foil or braided copper, maintaining a distance of at least 3mm from signal conductors to reduce 50/60Hz hum.

Test continuity under load by injecting a 1kHz sine wave at -10dBV through an audio interface–verify flat frequency response (±0.5dB) from 20Hz to 20kHz. If roll-off occurs below 100Hz, replace coupling capacitors with film types (polypropylene rated ≥50V). For repairing intermittent connections, apply conductive silver paint to the plug’s contact surface, then secure with heat-shrink tubing (minimum 2:1 ratio) to prevent oxidation.

Core Elements of a Standard Audio Connector

Begin by inspecting the sleeve–the longest contact at the base. This segment typically serves as the common ground, handling return currents for all channels. For mono configurations, it may also function as the negative terminal, while in stereo setups, it consolidates left, right, and microphone returns. Verify continuity between the sleeve and chassis ground to prevent hum or interference.

Locate the tip and ring contacts immediately above the sleeve. In a two-conductor plug, the tip carries the left channel signal, and the first ring manages the right. For three-conductor variants, the additional ring often accommodates a microphone input or power feed. Typical impedance ranges between 16 and 32 ohms; confirm voltage levels do not exceed 1V RMS for safe operation.

Signaling and Ground Separation

Isolate each conductor with heat-shrink tubing or insulating sleeves when repairing or assembling. Exposed copper near the junctions risks shorting channels, causing crosstalk or signal loss. For microphone-equipped plugs, the second ring usually supplies 2–5 volts DC, requiring a decoupling capacitor (47µF–220µF) to block DC while allowing AC audio.

Test signal paths with a multimeter in AC mode. Apply a 1kHz sine wave at -10dBV; expected output voltage should stabilize at ~300mV RMS across each channel. Deviations suggest faulty solder joints or damaged conductors. Avoid flux residue–it acts as a parasitic resistor, degrading high-frequency response above 10kHz.

Use gold-plated contacts for low contact resistance (under 10 milliohms). Nickel plating increases oxidation risk over time, leading to intermittent connections. For mobile applications, opt for molded plugs with strain relief; a minimum bend radius of 30mm prevents cable fatigue at the connector exit point.

Practical Troubleshooting

Intermittent audio typically traces to cold solder joints or fractured internal wires. Reheat joints with a narrow-tip iron, ensuring flux flows between conductor and pad. If wires snap inside the barrel, disassemble the plug housing–most consumer units split via external threading or snap-fit mechanisms. Trim damaged strands precisely at the fracture point, strip 2mm of insulation, and resolder.

Step-by-Step Wiring Guide for TRS and TRRS Configurations

Begin by identifying the connector’s tip, ring(s), and sleeve segments–each serves a distinct function in audio signal transmission. For standard stereo audio (TRS), solder the left channel wire to the tip, the right channel to the first ring, and the ground to the sleeve. Use a multimeter to verify continuity before finalizing connections, as even minor miswiring can introduce noise or mono-only output.

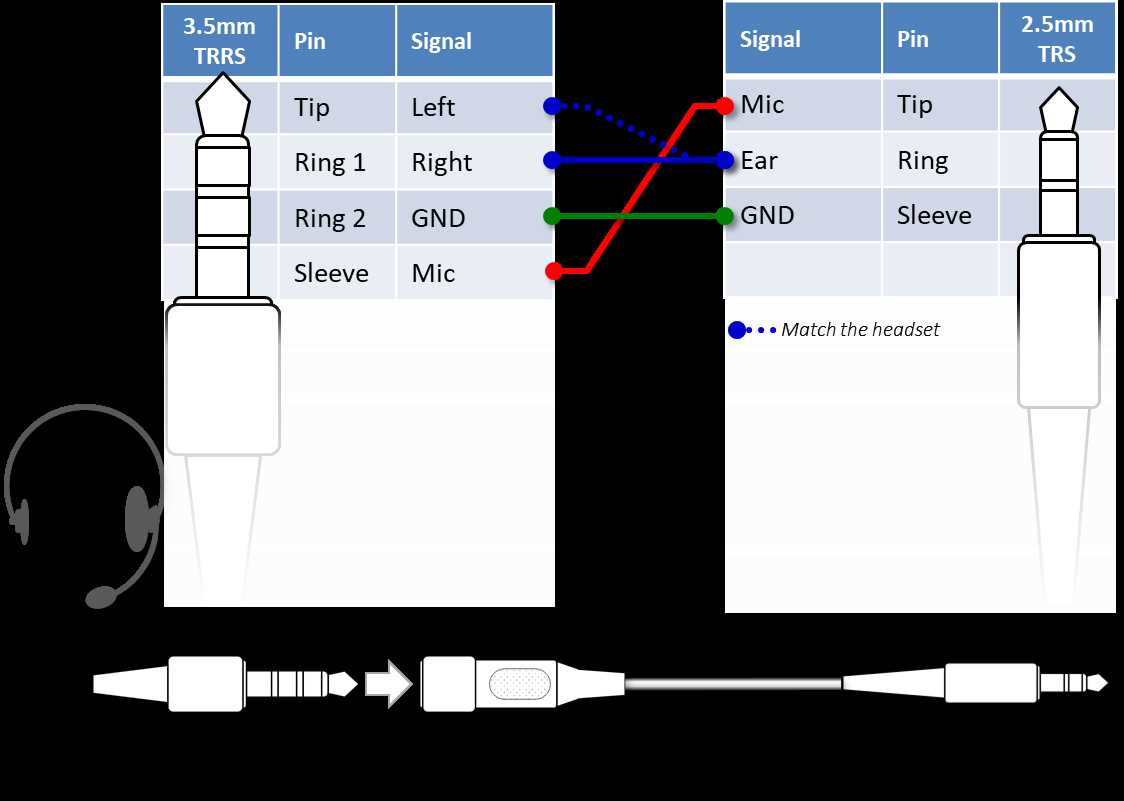

For connectors supporting microphone input (TRRS), follow the CTIA or OMTP standard–most modern devices adhere to CTIA. In CTIA, the tip carries the left channel, the first ring the right channel, the second ring the microphone, and the sleeve is ground. OMTP reverses the microphone and ground positions on the second ring and sleeve. Always confirm the standard of your device before proceeding.

• CTIA Configuration:
  1. Tip: Left audio
  2. First ring: Right audio
  3. Second ring: Microphone
  4. Sleeve: Ground
• OMTP Configuration:
  1. Tip: Left audio
  2. First ring: Right audio
  3. Second ring: Ground
  4. Sleeve: Microphone

Strip 2-3 mm of insulation from each wire using precision strippers to avoid damaging internal strands. Twist the exposed copper strands tightly to prevent fraying, then tin them with a thin layer of solder. This step ensures cleaner connections and reduces the risk of short circuits between adjacent segments.

Heat the connector segments evenly with a soldering iron (30-40W recommended) before applying solder. Apply flux to the segments to improve solder adhesion–this prevents “cold solder” joints that degrade signal quality. Keep the iron tip clean and use a brass wool or damp sponge for maintenance during the process.

For TRRS connectors, install a 1kΩ resistor between the microphone and sleeve (ground) if the device lacks microphone bias voltage. This stabilizes the signal and prevents audio distortion. Test the connection with a 3.5mm audio tester or by playing audio through the device before insulating the joints.

Insulate each segment with heat-shrink tubing or electrical tape after soldering. Slide the tubing over each wire before soldering, then heat it to shrink-fit around the joints. Alternatively, wrap electrical tape tightly, ensuring no bare wires remain exposed to avoid shorts. Reinforce the cable’s stress relief by securing it to the connector’s housing with hot glue.

Verify the wiring with an audio source and headphones. Check for stereo separation, microphone functionality (if applicable), and absence of noise. If issues arise, recheck continuity with a multimeter–common problems include reversed channels, broken microphone signals, or cold solder joints. Replace the connector if segments are damaged, as repairs are often unreliable.

Common Audio Connector Problems and Solutions

Check the contact points for oxidation if audio cuts out intermittently. Use a cotton swab dipped in isopropyl alcohol (90% or higher) to clean the metal surfaces. Avoid excessive pressure to prevent bending the thin connectors. Replace the cable entirely if corrosion is deep, as aggressive cleaning may compromise structural integrity.

Measure voltage drops across the plug pins with a multimeter set to continuity mode. A healthy connection shows near-zero resistance. Values above 1Ω indicate partial failure in wires or solder joints. For split audio plugs, test each segment (tip, ring, sleeve) independently–faulty grounds often cause channel imbalance.

Inspect solder joints under magnification. Cold joints appear dull with granular texture; resolder using rosin flux and a temperature-controlled iron (350°C–400°C). Overheating damages insulation–limit soldering time to 3 seconds per joint. For stranded wires, twist strands tightly before applying solder to prevent fraying.

Test different impedance loads if audio distorts at high volumes. Consumer-grade headphones typically expect 32Ω, while professional audio gear uses 250Ω–600Ω. Mismatched impedance causes clipping or weak output. Verify driver specifications against the amplifier’s output stage to identify incompatibility.

Signal Path Issues and Fixes

Symptom	Likely Cause	Diagnostic Method	Corrective Action
Single-channel dropout	Broken wire near strain relief	Gently flex cable while monitoring audio	Reinforce with heat-shrink tubing or replace cable
Static noise	Loose shield connection	Wiggle connector to isolate noise source	Resolder shield to chassis ground
Humming (50/60Hz)	Ground loop	Disconnect auxiliary devices; test with battery-powered source	Insert ground-loop isolator or use differential signaling
No audio	Open circuit	Continuity test from plug to driver	Replace damaged wire or re-terminate connector

Isolate power supply interference by testing with a floating ground. Connect the device to a laptop running on battery power. If noise disappears, the issue lies in the power adapter or AC wiring. Use ferrite cores on cables to suppress high-frequency interference from switching regulators.

For noise-induced problems, route signal lines away from switching components. Keep traces short (

Mechanical Failure Modes

Replace bent plugs immediately–straightening rarely restores full conductivity. Mechanical stress creates micro-fractures in the metal, leading to intermittent failures. For DIY repairs, use plugs with threaded collars instead of push-fit designs to reduce strain on solder joints.

Test cable flexibility by bending it at 90° increments. Stiff or cracked sections indicate internal wire breakage. For stranded cables, twisted pairs (e.g., red/blue for L/R) resist flex-fatigue better than parallel wires. Shielding braids should cover at least 85% of the cable length to block EMI.
