Step-by-Step Guide to 3 Phase UPS Wiring Diagram Installation

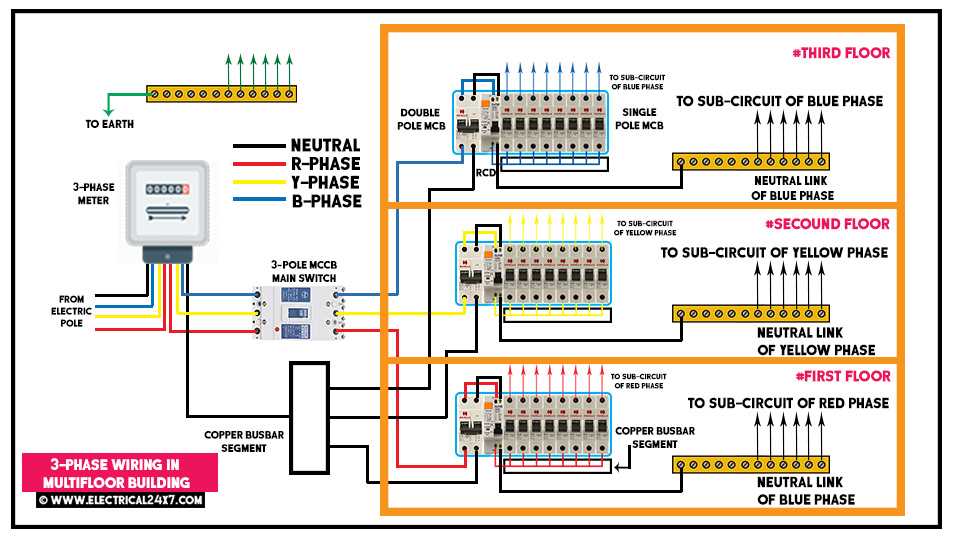

Use color-coded conductors for clarity: L1 (brown), L2 (black), L3 (gray), neutral (blue), and grounding (green/yellow). Terminate each active line directly to dedicated breakers rated for the load–never combine conductors on a single terminal. Verify voltage balance across lines before energizing; discrepancies beyond ±3% indicate miswiring or supply issues.
Isolate input and output circuits with separate enclosures: Route AC input through surge arrestors and EMI filters before reaching the conversion unit. Output circuits should include branch-rated fuses (125% of max continuous current) and contactors for emergency disconnect. Label all terminals with voltage ratings (e.g., 400VAC) and line designations to prevent cross-connection errors.
Grounding requires dedicated grounding busbars: Bond neutral and ground only at the service entrance, never downstream. Verify ground resistance below 0.1Ω using a low-resistance ohmmeter. For sensitive equipment, add a 30mA residual current device on the output to detect leakage paths that standard breakers may miss.
Sequence power-up carefully: Energize input breakers one at a time, check for stable waveform readings (THD 15% variance) shortens component lifespan.
Prevent overheating with proper cable sizing: For 16A loads, use 4mm² copper conductors; for 32A, upsize to 10mm². Secure all connections with calibrated torque drivers (e.g., Lugs: 3.5Nm for 16A, 5.0Nm for 32A). Leave 20% slack in conduit runs to accommodate thermal expansion without stressing terminations.
Test under load before deployment: Apply a three-line resistive load bank (60% of rated capacity) for 24 hours. Document voltage drop (max 3% at full load), temperature rise (max 70°C on terminals), and efficiency (min 90%). Replace any underperforming components immediately–partial failures cascade quickly under load.
Implementing a Triple-Line Power Protection System: Step-by-Step Installation
Start by isolating the main power panel before connecting any backup energy source. Verify the panel’s compatibility with a three-conductor setup by checking its ampacity rating–most industrial systems require a minimum of 100A per line. Use a multimeter to confirm zero voltage across all terminals before proceeding. If the panel lacks dedicated slots for the backup source, install a subpanel adjacent to the main distribution unit, ensuring it meets NEC or local electrical codes for parallel systems.

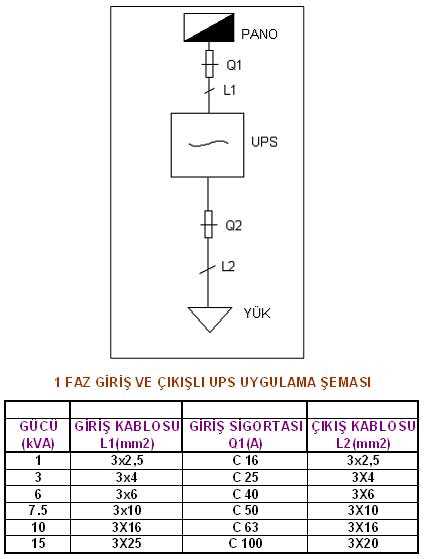

Selecting Conductors and Overcurrent Protection
Choose copper conductors with a cross-section of at least 35 mm² for 400V systems to reduce voltage drop under full load. For aluminum, increase the size by 1.5x to compensate for higher resistivity. Position circuit breakers rated for 125% of the maximum continuous current (e.g., 125A for a 100A load) upstream of the backup unit. Avoid using 60°C-rated terminals–opt for 75°C or 90°C variants to handle thermal stress from transient surges. Label each conductor with heat-shrink tubing or embossed tags to simplify troubleshooting.
Grounding must adhere to IEEE 1100 standards: connect the backup unit’s neutral to the grounding busbar using a #6 AWG or larger conductor, depending on the system’s short-circuit withstand rating. Install transient voltage suppression devices (TVSS) between each line and ground near the input terminals. For sites prone to lightning strikes, add a secondary surge arrester at the service entrance. Never bond the neutral and ground within the backup system itself–this creates parallel paths that violate safety codes.
Wire the three incoming live conductors to the backup unit’s input terminals in L1-L2-L3 sequence, matching the panel’s rotation (clockwise or counterclockwise). Use torque screwdrivers to tighten connections to manufacturer-specified values–typically 25–30 lb-in for copper lugs. If the unit includes a bypass switch, wire it separately to ensure seamless transitions during maintenance. Test the bypass functionality with a load bank before connecting critical equipment to confirm zero interruption during switchover.
Load Balancing and Final Checks
Distribute single-conductor loads evenly across all three lines to prevent overloading. For example, if the total load is 60kVA, each line should carry ~20kVA. Use a power analyzer to measure imbalance–acceptable deviation is
After energizing, monitor the backup unit for 24 hours under real-world conditions. Document voltage readings at input/output terminals every 6 hours. If using lithium-ion batteries, ensure the charging voltage matches the BMS specifications (typically 4.1V/cell for LiFePO4). For lead-acid, maintain float voltage at 2.25–2.30V/cell to extend lifespan. Replace batteries if internal resistance exceeds 1.5x the manufacturer’s baseline. Store spare fuses (type gG or aR) and contactors on-site–no system should operate without redundancy for critical failure points.
Critical Elements in a Tri-Linear Power Protection Configuration
Select a static bypass switch rated for 125% of the expected load current. Overlook this margin, and transient surges during failover may weld contacts or trip protective relays prematurely. Test switching times under full load–acceptable values fall between 2–4 ms; deviations beyond 6 ms indicate aging components or misadjusted gap settings.
Inverter modules must synchronize output within ±10 electrical degrees of the utility feed. Misalignment causes circulating currents exceeding 20% of nominal, accelerating capacitor degradation and triggering false alarms on voltage imbalance detection circuits. Calibration routines require a precise 0.1 Hz resolution to prevent cumulative drift over time.
Battery strings demand individual fuse protection, sized to interrupt fault currents up to 1.5× the charger’s maximum output. Avoid series-connected cells exceeding 110 per string–higher counts reduce fault resolution granularity, masking single-cell failures. Use temperature-compensated charging algorithms: coefficient ranges from -3 mV/°C for flooded lead-acid to -6 mV/°C for lithium variants.
| Component | Minimum Sustained Voltage (Vdc) | Peak Transient Rating | Isolation Resistance (MΩ) |
|---|---|---|---|
| IGBT bridge | 600 | 1200 V/µs | 10 |
| Snubber capacitor | 450 | 800 V/µs | 50 |
| Gate driver opto-coupler | 3300 | N/A | 1000 |
Neutral bonding points must handle at least 70% of the total system current during unbalanced loads. Loose connections elevate neutral voltages beyond 10% of line potential, cascading into downstream transformer saturation and neutral shift trips. Torque fasteners to 25 Nm for M10 studs, verified with a calibrated torque wrench.
Rectifier input filters require differential mode inductance between 0.5–1.2 mH per line segment to attenuate 5th and 7th harmonics below 5%. Capacitor values are calculated as C = Ih / (ω × Vh × √2), rounded to the nearest 10 µF increment. Failure to adhere risks nuisance tripping of hospital-grade equipment due to resonance at 250–350 Hz.
Surge arrestors must clamp within 10 ns under 10 kA, 8/20 µs test impulses. Metal oxide varistors degrade after approximately 50 surges at 80% rated energy; post-event leakage currents exceeding 1 mA necessitate immediate replacement. Install arrestors upstream of main breakers–downstream placement exposes sensitive controllers to residual transients.
Cabling inductance targets
Step-by-Step Guide for Connecting Triplex Supply Lines and Load Segments
Verify the neutral conductor is properly bonded to the grounding busbar at the main distribution panel before proceeding. Ensure all active conductors (L1, L2, L3) are disconnected from the grid to prevent accidental energization during installation.
For input linkages, follow this sequence:
- Attach each live conductor (L1, L2, L3) to the corresponding terminal marked on the rectifier module, adhering to torque specifications (typically 1.5–2.0 Nm for M6 bolts).
- Connect the neutral link to the designated terminal, ensuring no insulation damage occurs within 10 mm of the termination point.
- Route the protective earth (PE) wire to the chassis ground terminal; use a crimp lug for secure fastening.
Output linkages require strict adherence to load balancing:
- Identify critical load segments (e.g., servers, telecom equipment) and assign them to alternating supply branches (L1 → Load A, L2 → Load B, L3 → Load C) to distribute demand evenly.
- Confirm the neutral conductor from the inverter module is isolated from the input neutral unless a four-pole transfer switch is installed–mixing neutrals can create hazardous loops under bypass conditions.
- Test continuity between the output neutral and ground at the load-side panel; resistance should not exceed 0.1 Ω.
Use a calibrated multimeter to validate correct polarity before energizing. Check for 230V ±10% between each live conductor and neutral at both input and output terminals. For delta-to-wye conversions, measure phase-to-phase voltages (400V ±10%) to confirm conformance.
After initial power-up, monitor inrush currents for 30 seconds–transient spikes above 1.5x nominal rating may indicate incorrect tap settings on the auto-transformer. Label all terminals permanently with engraved tags or UV-resistant markers to simplify future diagnostics.
Common Errors in Tri-Level Power Supply Integration
Incorrect load balancing across circuits leads to premature component failure. Distribute connected equipment evenly, ensuring no single branch exceeds 80% of its rated capacity. Manufacturer specifications for current limits vary–consult documentation for exact thresholds. Overloaded branches generate excessive heat, reducing operational lifespan by up to 40%.
Neglecting proper grounding creates hazardous leakage currents. Bond all metal enclosures and neutral conductors to the grounding electrode system following local electrical codes. Improper grounding results in stray voltages detectable on equipment surfaces, risking electrical shock. Test continuity between neutral and ground conductors during installation and quarterly thereafter.
Using undersized conductors increases voltage drop, particularly in long cable runs. For 400V systems, select cables with a cross-sectional area matching the distance: 25mm² for 30 meters, 35mm² for 50 meters. Voltage drop exceeding 3% degrades performance of sensitive devices like servers and medical imaging equipment. Measure actual voltage at load terminals post-installation.
Inadequate Cooling Strategies
Blocked ventilation paths cause thermal shutdowns. Maintain minimum 30cm clearance around units, avoid placing in enclosed spaces. Ambient temperature above 25°C accelerates battery degradation–install climate control where necessary. Dust accumulation on internal fans reduces cooling efficiency by 15% within six months; implement quarterly maintenance to clean vents and filters.
Reversing sequence connections damages input rectifiers. Verify L1, L2, L3 alignment with utility supply rotation using a phase sequence indicator before energization. Incorrect rotation causes reverse torque in motors and unpredictable behavior in downstream transformers. Label all input and output terminals permanently to prevent future connection errors.
Ignoring battery maintenance shortens service intervals. Store replacement batteries at 20–25°C with monthly trickle charging if unused for over 30 days. Overcharging at temperatures above 30°C reduces battery life by half. Install monitoring systems to track voltage, temperature, and internal resistance–perform capacity tests biannually.
Improper Isolation Practices
Bypassing isolation switches during maintenance exposes personnel to live circuits. Always open input and output circuit breakers and verify zero voltage with a multimeter before servicing. Failure to isolate downstream loads risks backfeeding through rectifiers, maintaining hazardous voltages even when utility power is disconnected.
Skipping insulation resistance tests invites hidden faults. Perform megohmmeter tests between conductors and ground before commissioning–minimum acceptable value is 1MΩ for 600V systems. Low insulation resistance indicates moisture ingress or damaged cable jackets, leading to short circuits during transient events. Replace cables exhibiting resistance below threshold immediately.
