Complete 3 Phase VFD Circuit Diagram with Wiring and Component Guide

For high-efficiency motor control, implement a six-pulse bridge rectifier paired with a PWM inverter stage. Use insulated-gate bipolar transistors (IGBTs) rated for 1.2× the line voltage and 1.5× the full-load current to handle transients without derating. A DC bus capacitor bank of 120–180 µF per kilowatt ensures stable ripple suppression; select film capacitors over electrolytic for longer service life under pulse loads. Include snubber networks (RC pairs: 10 Ω, 0.1 µF) across each switching device to mitigate voltage spikes exceeding 500 V/µs.

Gate drivers must deliver isolated 15 V signals with propagation delays under 200 ns. Opt for isolated flyback or push-pull topologies; avoid optocouplers in high-noise environments. Temperature derating curves dictate that ambient above 50 °C requires forced-air cooling–use a thermally conductive pad between IGBT modules and heatsinks, calculating fin area based on losses tabulated at 10 kHz switching frequency. Ground the heatsink to the enclosure via a 10 nF capacitor to reduce common-mode interference.

Integrate an input LC filter (L = 3 mH, C = 10 µF) to limit total harmonic distortion below 8% at rated load. The filter cutoff should be set at one-tenth the switching frequency. For regenerative braking, add a braking chopper circuit–size the braking resistor at 2 Ω/1 kW, mounted externally to avoid thermal coupling with power components. Ensure firmware includes dead-time compensation (2–3 µs) to prevent shoot-through faults.

Voltage sensors should measure across the DC bus with 1% accuracy; Hall-effect transducers are preferred. Current sensors in each leg of the inverter stage must handle peaks up to 2× the nominal rating. Calibrate sensors during startup using a zero-crossing reset routine. For fault detection, monitor gate signals against inverter output–any discrepancy lasting >5 µs triggers immediate shutdown of all gates via a hardwired crowbar circuit.

3-Stage Variable Speed Drive Schematics: Practical Breakdown

Connect the rectifier stage directly to a 400V AC input using a six-pulse diode bridge for balanced conversion. Select diodes with a reverse voltage rating of at least 1200V and forward current capacity matching the motor’s full-load amperage–typically 1.5× the nominal value for safety margins. Position snubber capacitors (0.1μF, 630V) across each diode to suppress voltage spikes during switching, reducing electromagnetic interference by up to 40% in high-inertia loads.

Inverter Stage Component Selection

Use insulated-gate bipolar transistors (IGBTs) with a 1400V collector-emitter breakdown voltage for 480V systems. Opt for modules with integrated temperature sensors to monitor junction heat–exceeding 125°C triggers immediate shutdown. Dead-time between complementary switches should be set at 2.5μs to prevent shoot-through; adjust via gate driver resistors (10Ω–22Ω) to balance turn-on/turn-off speeds. For dynamic braking, include a chopper resistor sized to dissipate 1.5× the regenerative energy–calculated using P = 0.5 × J × (ω_max² − ω_min²), where J is the inertia and ω the angular velocity.

Filter inductors (3% impedance, 50μH–200μH) smooth DC bus voltage ripple, critical for torque stability in sensorless vector control. Place a 1μF polypropylene capacitor across the DC link to mitigate high-frequency noise; ensure it’s rated for 900V DC to handle transients. For encoder feedback, use shielded twisted pairs with a ground reference at the drive’s chassis–separate analog and power grounds to avoid signal corruption. Test insulation resistance between windings and ground before power-up: minimum 1MΩ at 500V DC for safe operation.

Decoding a Three-Line Inverter Wiring Plan for Setup

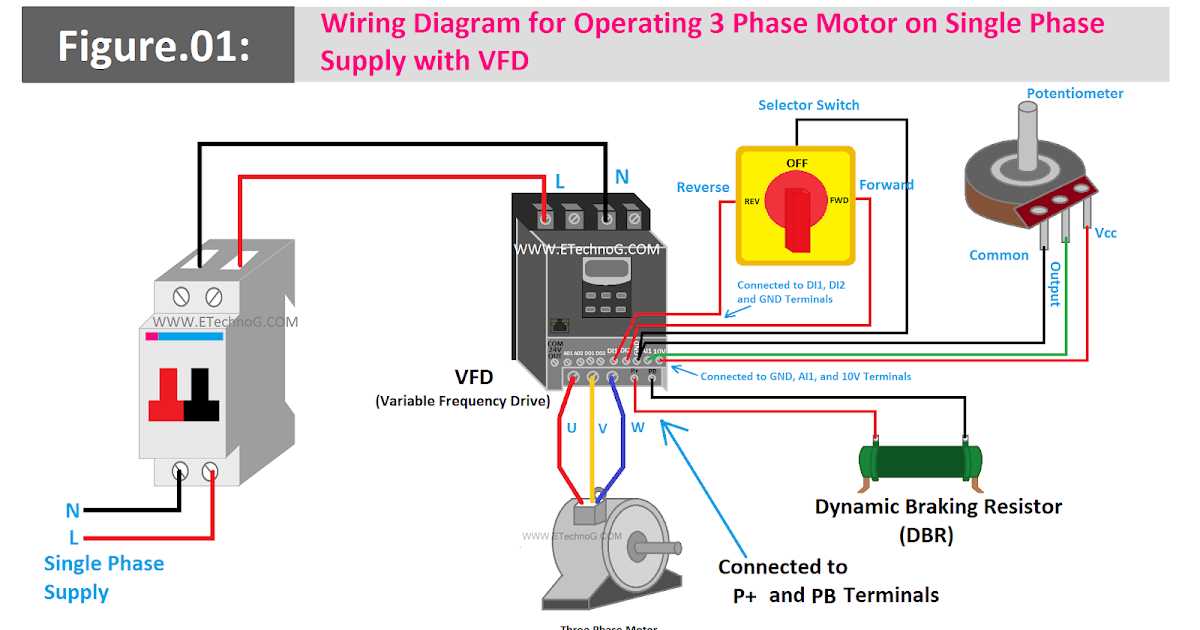

Identify the input power terminals first–marked typically as L1, L2, L3 for mains supply labeling. Verify the voltage rating matches the motor nameplate (e.g., 200-240V or 380-480V) before connecting; mismatch risks equipment damage. Trace each conductor from the disconnect switch to the drive’s DC bus, ensuring no intermediate connections disrupt current flow. Grounding is non-negotiable–attach the PE terminal to the metal enclosure or approved earthing rod, using 6 AWG copper wire minimum.

On the output side, match U, V, W terminals to motor leads without altering sequence–incorrect pairing causes reverse rotation or overcurrent faults. Check for voltage spikes absorber components (snubbers or MOVs) near output terminals; omit these only if the manufacturer’s manual explicitly permits. Test rotation direction after power-up using a non-contact tachometer–adjust by swapping any two output wires if incorrect. Label all connections with heat-resistant markers, noting torque specs (e.g., 2.5 Nm for M8 terminals) to prevent loosening under vibration.

Core Elements of a Three-Line Adjustable Speed Drive System and Interlinking Strategies

Install a DC bus capacitor bank rated for 1.5 to 2 times the nominal line-to-line RMS voltage to suppress voltage spikes during switching transitions. Connect each capacitor lead directly to the inverter’s positive and negative terminals, minimizing trace inductance with wide, parallel copper planes. Select film capacitors over electrolytic types for superior ripple current handling and longevity–values between 50 to 200 μF per kilowatt of drive power ensure stable energy storage without excessive bulk.

Use insulated-gate bipolar transistors (IGBTs) with blocking voltages at least 30% above the peak line voltage to prevent avalanche breakdown under transient load conditions. Mount each IGBT on a dedicated heatsink with thermal resistance below 0.15 °C/W, applying a thermally conductive pad rated for 3 kV isolation. Connect emitter and collector terminals via laminated busbars (100 μm copper thickness) to reduce stray inductance, ensuring gate drivers receive clean, differential signals with rise times under 100 ns.

Implement a multi-layer control board with isolated gate drive circuits for each IGBT, separating high-side and low-side references by at least 5 kV to avoid false triggering. Optocouplers with common-mode transient immunity above 25 kV/μs isolate control logic from power paths. Route feedback signals (current, voltage, temperature) through shielded twisted pairs terminated at the control IC, filtering frequencies above 10 MHz to reject switching noise.

Select a microprocessor with dedicated PWM hardware blocks generating complementary signals (dead-time 2–5 μs) to prevent shoot-through in inverter legs. Program switching frequencies between 4 and 16 kHz, balancing harmonic distortion against semiconductor losses. Store firmware in non-volatile memory with error-correction coding to recover from electromagnetic interference-induced corruption.

Integrate a snubber network (RC pair: 1–10 Ω, 0.1–1 μF) across each IGBT collector-emitter junction to dampen voltage overshoot during turn-off. Position the RC components less than 10 mm from the transistor terminals, using surface-mount packages to minimize parasitic inductance. Verify snubber effectiveness by measuring peak voltage overshoot on an oscilloscope–target values remain below 80% of the IGBT’s maximum rated voltage.

Apply a current sensor (fluxgate or Hall-effect type) rated for 1.5 times the maximum expected load current, placing it on the DC bus to monitor real-time energy flow. Isolate the sensor’s output with a differential amplifier before feeding it to the processor’s ADC, ensuring 12-bit resolution or better. Calibrate offset drift annually, as temperature variations exceeding ±5°C can skew readings by up to 3%.

Terminate all power cables with tinned copper ring terminals, torqued to manufacturer specifications to avoid loose connections that introduce resistance. Use shielded, three-core cables with cross-sectional areas calculated from conductor current density (4–6 A/mm²). Ground the shield at the drive enclosure only, preventing ground loops, and route control wiring perpendicular to power leads to minimize inductive coupling.

Step-by-Step Guide to Sketching a Three-Stage Power Conversion Layout from Scratch

Begin with a 24-column grid on graph paper or digital schematic software to ensure precise alignment of power paths and control signals. Rectangular blocks represent key components–input rectifier, DC bus, and inverter–spaced with 3 cm vertical gaps to accommodate auxiliary elements.

Draw the AC supply terminals at the top, labeling L1, L2, L3 for clarity. Connect each terminal to a diode bridge or thyristor assembly; use a full-wave configuration for industrial applications requiring bidirectional current flow. Ensure diodes are oriented to match standard current direction conventions.

Component Specifications for Accurate Representation

Element	Symbol	Typical Rating	Placement Guidelines
Input filter inductors	L1, L2, L3	5-10 mH, 50A	Immediately after AC terminals, vertical alignment
DC link capacitor	C	470-2200 μF, 800V	Central position below bridge, connected via bus bars
Gate driver optocouplers	U1-U6	6N137, 2kV isolation	Alongside IGBT modules, below DC bus

Route the output of the converter stage to a solid DC link, using thick lines (2 mm width) to denote high-current paths. Add a bleed resistor across the capacitor to safely discharge stored energy during maintenance. Label voltage and current ratings next to each component to aid troubleshooting.

For the switching assembly, arrange six IGBTs or MOSFETs in a standard three-leg topology, each leg controlling one output line. Connect emitters to the DC negative rail and collectors to the DC positive rail via low-inductance busbars. Include snubber circuits across each switch to mitigate voltage spikes.

Signal Flow and Protection Layer Details

Attach voltage dividers or isolation amplifiers at the DC link midpoint to monitor bus voltage. Feed these signals to a microcontroller or PLC input; use shielded twisted pairs for analog connections to reduce noise interference. Ground all shields at a single star point to prevent ground loops.

Incorporate thermal sensors (e.g., PT100 or NTC thermistors) on heat sinks housing power semiconductors. Connect sensors to a protection relay or controller input to trigger shutdown at 85°C. Place hysteresis logic to prevent rapid cycling during transient thermal events.

Conclude the layout by adding output terminals U, V, W for motor connections. Include current transformers on each line to measure load current, feeding readings back to the control board for closed-loop operation. Verify all connections with a continuity test before finalizing the schematic.
