3 Pin 35mm x 13mm DC Power Jack Circuit Wiring and Pinout Guide
Use a multimeter to verify conductor assignments before completing any connections. The standard configuration for this barrel-type interface assigns the center sleeve as ground, the inner tip as positive voltage, and the outer ring as a secondary signal or accessory line. Confirm these roles by checking resistance between terminals–ground should show near-zero ohms to the device chassis, while the positive line typically registers below 1 ohm when compared against a known reference voltage.
For low-current applications (under 2A), 24AWG stranded wire suffices, but upgrade to 20AWG or thicker for power demands exceeding 3A. Twist paired conductors (positive + ground) to minimize EMI, especially in noise-sensitive circuits like audio preamps or RF transceivers. Keep lead lengths under 10cm when possible to prevent voltage drop; each 5cm of 24AWG copper at 2A introduces ~0.15V loss.
When integrating this port into a printed circuit, allocate a 6mm diameter mounting hole with a 1mm annular ring for secure anchoring. Position a radial capacitor (10µF–100µF) within 2cm of the connector to suppress transients during hot-plug events. For reversible designs, install a Schottky diode (1N5817 or equivalent) in series with the positive line to block reverse polarity, though this adds ~0.3V forward drop.
Test the assembled interface with an adjustable bench supply. Verify correct polarity by gradually raising voltage from 0V while monitoring current draw–healthy connections should stabilize below 50mA at idle for most consumer devices. If unexpected behavior occurs (chirping, erratic output), re-examine the outer ring’s function–some manufacturers repurpose this element as a no-load detection input rather than a power rail.
Understanding the Miniature Coaxial Connector Circuit Layout
Begin wiring by connecting the concentric terminal to the ground plane–this ensures stability in high-noise environments. The central conductor (typically 0.5mm diameter) carries the primary voltage, while the outer ring acts as a return path or signal reference. For 5V applications, use a 1Ω resistor in series with the center contact to limit inrush current during hot-plug events, preventing contact arcing.
Isolate the switch terminal (usually the third contact) with a 0.1µF ceramic capacitor tied to ground–this suppresses transients when inserting or removing the plug. Test continuity between the outer sleeve and ground with a multimeter set to 200Ω range; readings above 5Ω indicate poor soldering or oxide buildup, requiring cleaning with isopropyl alcohol (99% purity).
| Contact | Recommended Wire Gauge | Max Current (A) | Insulation Rating |
|---|---|---|---|
| Center post | 24 AWG | 2.0 | 300V |
| Middle sleeve | 22 AWG | 3.5 | 300V |
| Switch terminal | 28 AWG | 0.5 | 150V |
Route the switch contact through a schottky diode (e.g., 1N5817) before reaching the load–this prevents backfeeding if the device is powered via USB while the barrel plug is inserted. For battery-powered circuits, add a 10kΩ pull-down resistor on the switch line to avoid false triggers from floating inputs. Verify the mating plug’s dimensions: the center pin must protrude 1.1mm ±0.1mm, while the outer insulator should measure 3.0mm ±0.2mm diameter to ensure proper engagement.
In high-vibration applications, secure the connector with a retaining clip or epoxy (e.g., Loctite 416) to prevent loosening–mechanical stress fractures the solder joints at the base of the contacts. For reverse polarity protection, place a 2A P-channel MOSFET (e.g., AO3401) on the positive rail; gate tied to ground, source to the center terminal, and drain to the load. This configuration adds

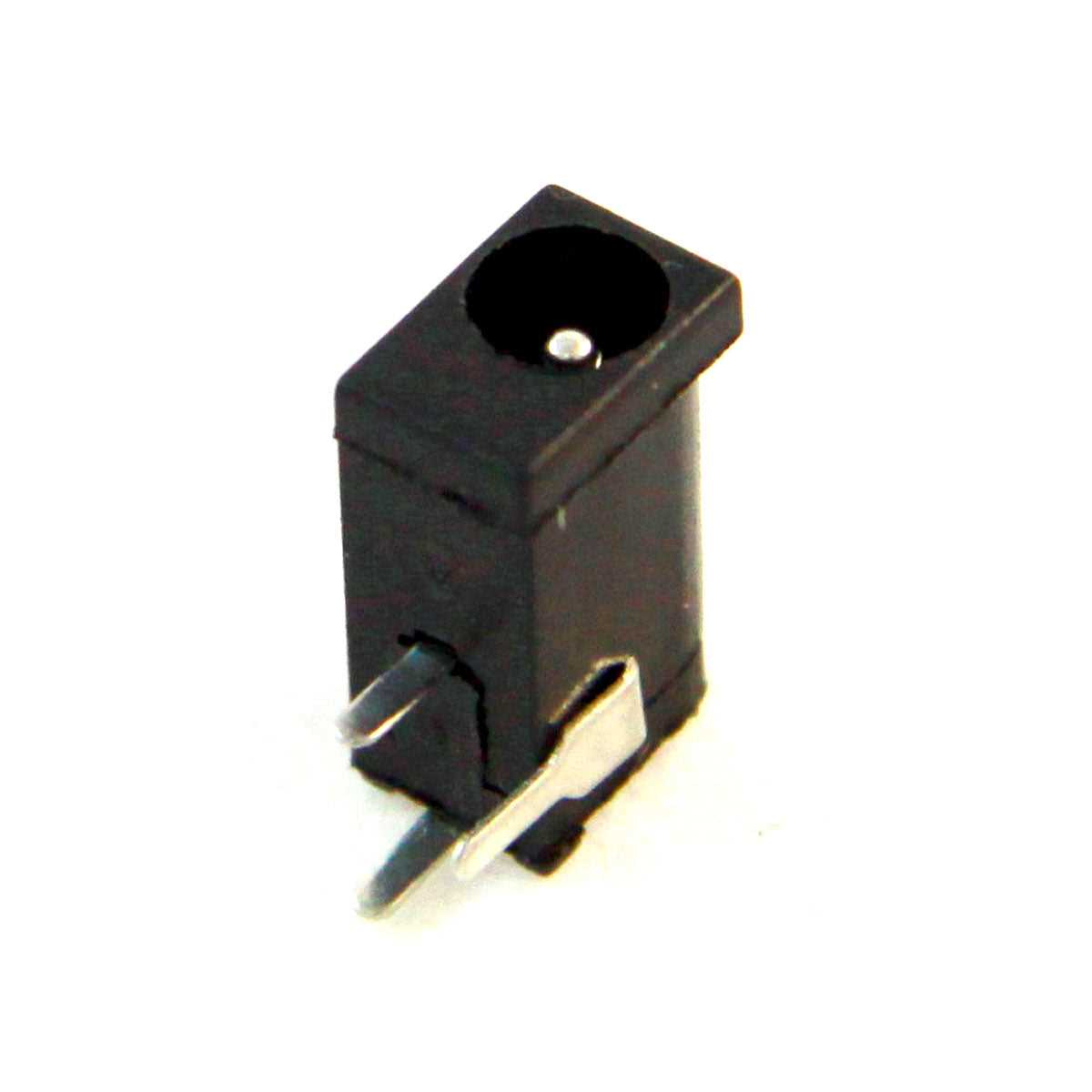

Identifying Contact Roles in a Three-Contact 3.5 x 1.3 Miniature DC Interface
Start by locating the central terminal–this is typically the primary voltage input channel in most coaxial connectors of this form factor. Measure continuity with the inner conductor of the barrel while disconnected; resistance should be near zero if the design follows common conventions. If the center channel is electrically isolated from the shell, expect it to carry the positive potential.
Examine the outer barrel sleeve–this segment often doubles as the negative return path. Some configurations include an insulated middle band, splitting the sleeve into two distinct zones: one connected to ground, the other reserved for signal sensing or switching. Probe with a multimeter: continuity between the sleeve and external ground circuitry confirms its role.
Check for a third contact, usually a thin ring between the core and sleeve. This intermediate ring may serve as a detection signal, switching element, or auxiliary voltage feed. Trace its routing: if linked to a low-current circuit, it likely acts as a tip-sense line, enabling device recognition when mated. Absence of continuity until engagement suggests a normally-open switch implementation.
Refer to the device’s service documentation–manufacturers often annotate contact assignments with symbols: “+” for core, “–” for sleeve, and “S” or “T” for the intermediate band. Cross-reference with common color-coding: red for positive, black for ground, and white or blue for signal carriers. Verify polarity under load; reverse wiring can trigger overcurrent protection.
Use an oscilloscope to observe transient behavior during mating cycles. A momentary open circuit on the intermediate band indicates a make-break connection, while steady voltage suggests a dedicated low-voltage supply line. Record waveforms; spikes exceeding 50 mV may hint at inadequate decoupling, meriting capacitor placement near the interface.
Prototype with a breakout adapter–map each contact’s behavior under operational conditions. If the intermediate band floats, suspect a high-impedance state; if it mirrors the sleeve potential, it may be tied to a ground plane internally. For custom wiring, label crimped connectors according to measured functions to prevent misapplication in future builds.
Step-by-Step Guide to Drawing the Circuit Symbol for a Coaxial DC Connector
Begin with a vertical rectangle measuring 8mm tall and 4mm wide, representing the outer shield of the connector. Place a filled circle (1.5mm diameter) centered 2mm from the top edge to denote the ground terminal. This circle should align flush with the left edge of the rectangle to mimic the physical contact location in most standard configurations.
Defining the Center Contact
Draw a 1mm horizontal line starting 1.5mm below the top edge of the rectangle, extending rightward for 3mm. From its endpoint, drop a 5mm vertical line downward. At the bottom, create a 2mm horizontal segment ending in a small triangle (0.8mm base, 0.5mm height) pointing left–this marks the positive terminal. Ensure the vertical segment avoids intersecting the outer rectangle to maintain schematic clarity.
Add a 0.3mm gap between the lower horizontal segment and the triangle to visually separate the live contact from the ground. For enhanced readability, label the ground terminal with “GND” placed 1mm above the filled circle and the positive terminal with “V+” 1mm to the right of the triangle. Use 2.5pt font size for consistency with industry standards.
Finalizing the Symbol
Verify the proportions using a 0.5mm grid for precision. The center contact’s vertical segment should terminate 1mm above the lower edge of the shield rectangle, leaving adequate space for adjacent components. Save the symbol as a reusable CAD block with the following attributes: Connectors_Coaxial_DC_3P, IEC 60617 compliance, and a rotation anchor at the ground circle’s center.
Common Wiring Mistakes When Connecting a 2.5mm Connector for Low-Voltage Inputs
Reversing polarity at the barrel plug causes immediate component failure in devices lacking reverse-voltage protection. Verify the outer shell contact connects to ground before soldering–most adapters use center-positive wiring, but cheap or unbranded chargers frequently invert this standard. Use a multimeter on continuity mode to confirm sleeve-to-ground correlation before attaching any leads. Skipping this step risks permanent damage to voltage regulators, capacitors, and integrated circuits upon first energization.
Loose crimp connections create intermittent power delivery, generating voltage drops under load that trigger unexpected reboots. Secure the inner conductor with a 30-gauge ferrule or a dab of 63/37 solder to prevent axial movement within the cylindrical socket. Bare wire ends, even when tightly twisted, work-harden over weeks of thermal cycling, eventually detaching under the strain of vibration. Apply heatshrink tubing over exposed joints to reinforce mechanical strength and prevent shorting against adjacent traces.
Overlooking strain relief leads to solder joint fatigue within fifty mating cycles. Route the cable through a small grommet or tie-wrap anchor 30mm from the insertion point, distributing bend stress away from the fragile solder bridge. Ignoring this detail allows cable torque to concentrate at the solder joint, fracturing the copper pad on the PCB and necessitating costly board-level repairs.

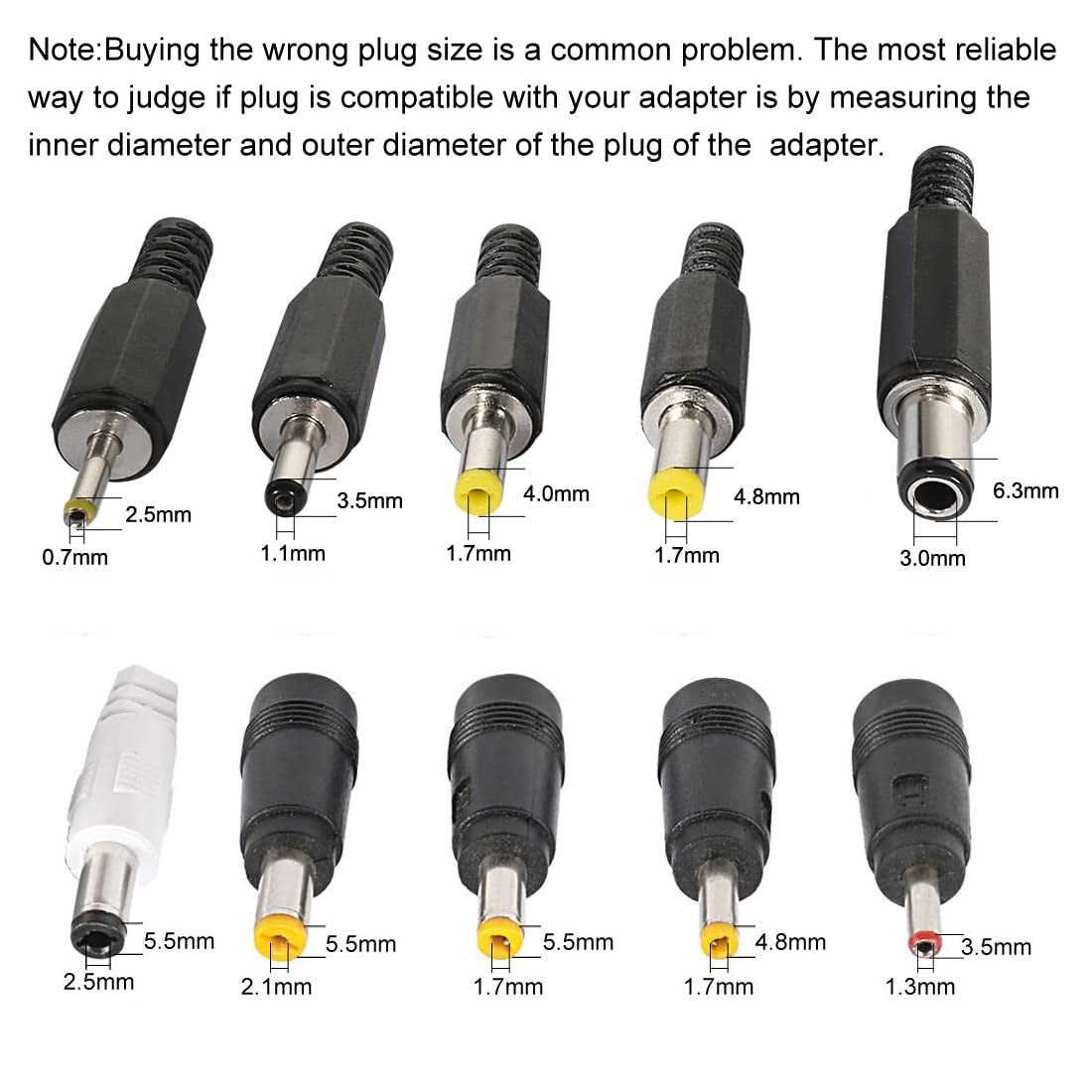

Misidentifying the tip diameter as 1.35mm instead of 1.30mm causes poor retention force between the plug and receptacle, accelerating intermittent contact failures. Match the receptacle’s bore precisely–tolerances tighter than ±0.03mm guarantee reliable wipe action and corrosion-resistant engagement after repeated disconnections.
