How to Wire a 3 Pin Push Button Switch Step-by-Step Guide

Start by identifying the common terminal–this is the central contact that bridges the circuit when actuated. Most two-position electric controls of this type label it as “COM” or mark it with a distinct color, often silver or a darker metal. The remaining two connections are the normally open (NO) and normally closed (NC) terminals. Before energizing, use a continuity tester to confirm which side remains closed in the resting state–this prevents unintended signal paths when power is applied.

For low-voltage applications (up to 24V), a single-pole double-throw configuration works without additional components. Wire the load directly to the NO contact if activating a device on press, or to the NC terminal for a latching or fail-safe arrangement. Always disconnect the power source before making adjustments–mismatched polarity or incorrect pairing can short sensitive electronics, especially microcontrollers or LED indicators. If resistance exceeds 1kΩ, introduce a flyback diode across inductive loads to suppress voltage spikes.

In high-current setups (5A or more), bypass soldered joints with crimp connectors or faston terminals to prevent heat damage. For repeated actuation cycles, opt for gold-plated contacts rated for 100k operations–they resist oxidation better than standard copper. Label each lead immediately after testing to avoid confusion during final assembly. If integrating into a printed circuit board, use 22-26 AWG solid-core wire for solder stability, but keep traces under 6mm wide to prevent signal interference in dense layouts.

When routing cables, avoid sharp bends near the housing–stress fractures develop over time, especially in high-vibration environments. For waterproof models, seal the back of the enclosure with silicone before securing the panel. If debugging, check for erratic behavior by measuring voltage drop across terminals under load–values above 0.1V suggest poor contact or undersized wiring. Replace any component showing visible pitting on the surface, as this indicates degradation under electrical arcing.

Connecting a Three-Terminal Momentary Actuator: Key Steps

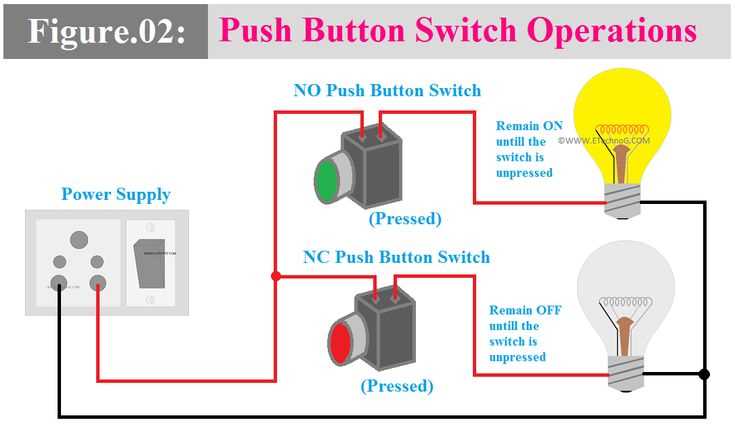

Connect the common terminal to the power source’s positive rail or ground, depending on whether the circuit uses normally open (NO) or normally closed (NC) contacts. The remaining two terminals serve as the toggle path–attach the NO side to the load (e.g., LED, relay coil) and leave the NC side disconnected for momentary activation. A 1 kΩ resistor in series prevents accidental shorts if interfacing with microcontrollers or logic gates. Always verify polarity with a multimeter before energizing to avoid damaging components.

Troubleshooting Incorrect Configurations

If the circuit remains inert, swap the NO and NC leads–some actuators reverse these internally. For intermittent response, inspect solder joints for cold connections or oxidation, especially in high-vibration environments. Replace worn actuators if tactile feedback feels inconsistent; mechanical wear alters spring tension, causing unreliable contacts. Use heat-shrink tubing on exposed connections to prevent moisture ingress, which degrades conductivity over time.

Identifying the Terminal Connections on a Three-Contact Momentary Actuator

Start by examining the back of the component–most manufacturers label terminals with numbers (1, 2, C) or letters (NO, COM, NC). If markings are absent, use a multimeter in continuity mode: press the actuator and note which contacts close. The common contact (often middle) remains connected in both states, while the normally open (NO) and normally closed (NC) contacts alternate.

• Common (COM): Acts as the pivot–always connected to either NO or NC.
• Normally Open (NO): Completes the circuit only when the actuator is engaged.
• Normally Closed (NC): Breaks the circuit when the actuator is pressed.

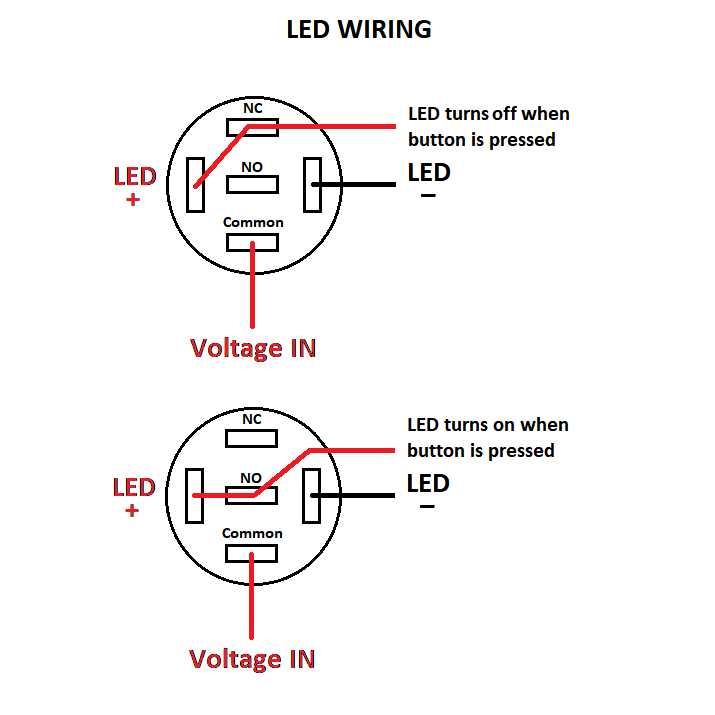

For illuminated actuators, the third contact typically powers the LED–consult the datasheet to distinguish it from signal terminals. If no documentation exists, probe with 5V while observing the LED behavior. Avoid assuming polarity unless specified; many LEDs are polarity-sensitive and may not illuminate if reversed.

Test with a 9V battery and 1kΩ resistor to confirm functionality without damaging sensitive circuits. Connect the common terminal to the positive side, then briefly touch the other terminals–NO should activate the load only during engagement, while NC should deactivate it when pressed.

Symptoms of misidentified contacts include circuits that stay on/off permanently or flicker unpredictably. Recheck connections if behavior doesn’t match the expected switch state. For latching variants (bistable), both NO and NC remain in their last state–use a multimeter’s continuity beep to track changes.

1. Mark terminals with tape to avoid confusion during installation.
2. Note that some microswitch-style actuators have solder pads–scratch-test with a screwdriver if labels wear off.
3. For waterproof versions, ensure the common terminal aligns with the seal’s orientation to prevent moisture ingress.

In industrial switches, thicker contacts may indicate higher current ratings (e.g., 10A verses 2A for consumer models). Never exceed the rated voltage–tiny actuators often max at 12–24VDC, while heavy-duty versions handle 125VAC.

When daisy-chaining, the common terminal serves as the input, with NO/NC distributing the signal. Reverse this for fail-safe designs, where the circuit defaults to NC (e.g., emergency stops). For momentary-to-latching conversions, add a relay or flip-flop circuit–do not rely on mechanical modifications.

Step-by-Step Connection Guide for Momentary and Latching Operations

Begin by identifying the common terminal–typically the middle conductor–and connect it directly to your power source, ensuring polarity matches if using DC. For a fleeting contact setup, link one remaining contact to your load (e.g., relay coil or LED) and the other to ground or return path. Momentary activation requires holding the actuator to maintain continuity; releasing breaks the circuit instantly.

Latching behavior demands a self-holding mechanism. Wire a secondary path from the load terminal back to the actuator’s third conductor, creating a bypass. When pressed, current flows through the primary path; upon release, the bypass sustains the circuit until power is interrupted externally. Use a diode or transistor to prevent feedback loops if integrating with sensitive components like microcontrollers.

For low-voltage applications (5–12V), solder joints or crimp connectors suffice; higher currents (above 1A) necessitate screw terminals or spade lugs. Test continuity with a multimeter before energizing–momentary should show resistance only while actuated, latching should toggle between open/closed states with each press. Include a fuse rated for 120% of the expected current to protect downstream components from faults.

If pairing with a microcontroller, add a pull-up or pull-down resistor (10kΩ) to stabilize input signals. Momentary mode often requires edge detection in code (e.g., `digitalRead()` triggering on change), while latching can use a simple toggle flag. Avoid connecting directly to logic pins without current-limiting resistors to prevent damage from voltage spikes.

For industrial or high-cycle use, select actuators with silver or gold-plated contacts to minimize oxidation. Momentary configurations are ideal for user inputs (e.g., reset functions), while latching suits power-on/power-off control. Always verify the datasheet for contact ratings–exceeding these will drastically reduce lifespan or cause immediate failure.

Integrating a Three-Terminal Momentary Contact into Your Microcontroller Project

Begin by identifying the common, normally open (NO), and normally closed (NC) contacts on your component. Most compact tactile elements label these as C (common), NO, and NC directly on the housing. If labeling is absent, use a multimeter in continuity mode: the terminal that beeps when the actuator is untouched is the NC contact, while the one that beeps when pressed is the NO.

For basic activation detection, connect the common terminal to the microcontroller’s ground rail. Wire the NO contact to a digital input with an internal or external pull-up resistor enabled. This configuration ensures the input reads HIGH when idle and LOW during actuation, eliminating the need for external debouncing circuitry in most cases.

Debounce timing depends on the actuator’s mechanical characteristics. Use the following empirical values as starting points:

• Miniature tactile types: 20–50 ms
• Standard panel-mount units: 50–100 ms
• Heavy-duty industrial variants: 100–200 ms

Implement debouncing in firmware with a simple state machine: track the last stable state and ignore transitions within the specified window. Alternatively, use hardware capacitors (0.1 µF across contacts) for minimal code overhead, though firmware solutions offer greater flexibility for adjustments.

When interfacing with power-hungry loads (LEDs, relays, or solenoids), isolate the control signal using an NPN transistor (2N2222) or a MOSFET (IRLZ44N). Connect the actuator’s NO terminal to the transistor’s base/gate via a 1 kΩ resistor, and the load between the collector/drain and supply voltage. Ensure the flyback diode is present for inductive loads to prevent voltage spikes from damaging the microcontroller.

For bi-color LED feedback, connect a dual-contact element (common cathode) to two digital outputs. Activate the desired color by pulling one output LOW while holding the other HIGH. Use current-limiting resistors (220–470 Ω) in series with each LED segment to prevent burnout. Verify LED polarity before soldering; common cathode variants require the cathode terminal to ground.

Advanced configurations may require interrupt-driven handling. Configure the digital input as an interrupt-on-change or falling-edge trigger. Prioritize interrupts by assigning vectors based on response urgency (e.g., emergency stop on highest priority). Remember to clear interrupt flags promptly and validate the event duration to filter noise–brief spikes below the debounce threshold should be ignored.
