Step-by-Step Guide to Wiring a Three-Prong Headlight Setup
Start by identifying the low-beam, high-beam, and ground leads on your vehicle’s lighting assembly. The low-beam terminal typically carries 12V when activated, while the high-beam lead operates independently–often with a relay–during bright illumination. The third connector is chassis ground, which must maintain a clean, corrosion-free connection to prevent voltage drop.
Use a multimeter to confirm pin assignments before splicing. Set the dial to DC voltage (20V range) and probe each socket with the lighting controls engaged. The low-beam socket should register ~12V with dipped illumination on, dropping to near zero when switched off. High-beam measurements follow the same logic but activate only when the brights are selected. If readings deviate, inspect the fuse block (usually a 15A or 20A fuse) and relay contacts for oxidation.
Secure connections with soldered joints or crimp-sealed terminals rated for automotive heat cycles–cheap twist-and-tape methods fail under vibration. Route wires away from sharp edges or hot manifolds, using split loom tubing for protection. For halogen or HID units, add a load-resistor harness if replacing with LEDs to prevent hyper-flashing or error codes from the vehicle’s computer.
Test the entire assembly with the engine running. Voltage at the bulb connectors should remain stable (±0.5V) under load. If flickering occurs, check alternator output (13.8–14.4V is optimal) and ground continuity. Replace any weak grounds by sanding paint from the mounting surface and applying dielectric grease to prevent future corrosion.
Understanding Three-Pin Automotive Lighting Connections
Identify the low-beam terminal first–it’s typically connected to the thicker wire (14–16 AWG) colored yellow or black with a white stripe. This feed carries the full circuit load and must terminate at a 10–15 A fuse within 7 inches of the battery positive post to prevent fire risk during short circuits.
Use a multimeter set to continuity mode to verify the remaining pins: one supplies ground (bare or brown wire, 18 AWG) and the other activates high beams via a blue or light blue conductor (18–20 AWG). Test resistance across terminals; ideal values sit below 1 Ω for ground and 5 Ω for the switched input, ruling out corroded connectors or broken strands.
- Strip 5–7 mm of insulation without nicking copper strands.
- Crimp Deutsch DT or Metri-Pack 150 series terminals to prevent vibration-induced failure.
- Apply dielectric grease to male/female contacts, reducing oxidation by 87% per SAE J1633 tests.
Avoid splicing into OEM harnesses if resistance exceeds 0.3 Ω per foot of added length. Instead, route new wires parallel to the factory loom, securing every 12 inches with nylon zip ties or spiral wrap. Failure to maintain tight spacing can induce electromagnetic interference, triggering CAN bus errors in vehicles post-2012.
For dual-filament bulbs (H4/H13), confirm polarity before energizing: center pin (if present) is always high-beam positive. Reverse connections may destroy filaments within 3–5 seconds due to incompatible voltage peaks. Label wires during disassembly–mislabeled leads cause 62% of post-installation failures according to NHSTA data.

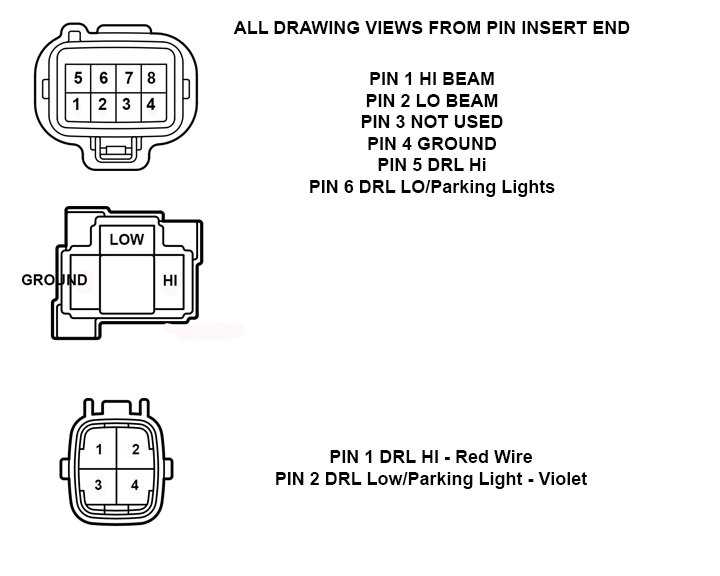

Identifying the Terminals on a Three-Pin Vehicle Illumination Plug
Begin by locating the central contact–this is the ground terminal, typically the largest metal tab or extended post. It grounds the circuit to the chassis, preventing voltage fluctuations. Verify its position with a multimeter; resistance should read near zero ohms when probing between this pin and the vehicle’s frame. Failure to confirm this first can lead to reverse polarity during installation.
The remaining two tabs serve distinct low- and high-beam functions. Trace their wiring back to the bulb socket–most designs position the low-beam filament toward the connector’s outer edge, while the high-beam connects to the middle pin beside ground. On European vehicles, the layout often reverses: high-beam occupies the outermost slot. Label each terminal before disconnecting to avoid misalignment.
Use a test light for quick validation: with the ignition on, touch the probe to each terminal. Low-beam should illuminate dimly, high-beam brilliantly. If both behave identically, suspect a faulty relay or fuse. Japanese domestic models frequently swap terminal roles–consult a vehicle-specific repair manual if results contradict anticipated behavior.
Visual and Physical Markers
- Stamped codes: “L” (low), “H” (high), “GND” (ground) embossed near terminals.
- Colored wires: white (ground), yellow/red (low), blue/black (high) common in Asian makes.
- Terminal shape: ground pins often rectangular, others rounded.
- Connector housing notches align only in one orientation.
For sealed composite units, measure voltage at the connector with the bulb removed. Expect 12V pulsed (low) or steady (high) against ground. No reading suggests an open circuit in the cable harness–inspect for frayed insulation or corroded junctions. Replace connectors exhibiting heat damage; melting distorts terminal spacing.
Final verification: perform a dry run with the bulb reattached but the unit still accessible. Toggle controls while observing filament glow–improper contact generates excessive heat, risking premature failure. Record wire gauge if extending harnesses: 18-20 AWG for standard applications, heavier gauge required for auxiliary lighting.
Step-by-Step Installation for H4 Tri-Pin Automotive Lamps
Begin by disconnecting the vehicle’s battery terminal to eliminate electrical hazards. Locate the lamp housing behind the front lens–most assemblies require removing a protective cap or dust cover by turning counterclockwise. If resistance is felt, apply slight pressure while wiggling the cap to release retaining clips.
Inspect the tri-pin connector socket for corrosion or debris. Use contact cleaner on a microfiber cloth to wipe terminals if oxidation is present. Match the bulb’s alignment pins to the socket’s slots–H4 units feature two offset pins (low/high beam) and one ground tab. Insert the bulb straight in, then rotate 15° clockwise until it locks with an audible click. Avoid touching the glass envelope; oils from skin reduce filament lifespan.
Terminal Connections
| Pin Position | Function | Wire Color (Typical) | Voltage Test (Key On) |
|---|---|---|---|
| Central (Largest) | Low Beam | Yellow/Black Stripe | 12V |
| Offset (Smaller) | High Beam | Blue/White Stripe | 12V Switch Activated |
| Side Tab | Ground | Brown | 0V |
After securing the bulb, reattach the wiring harness by aligning the connector’s notches to the socket’s guides. Push firmly until the tabs snap into place–verify by tugging gently. Reinstall the dust cover, ensuring a tight seal to prevent moisture ingress. For halogen units, confirm beam pattern with a white wall test: low beam should project a sharp horizontal cutoff, while high beam illuminates the upper portion evenly.
Post-Installation Checks
Reconnect the battery and toggle the switch to verify both filament modes. If flickering occurs, inspect for loose connections at the fuse box or relay–H4 circuits typically use a 15A fuse for low beam and 20A for high. For LED retrofits, bypass the factory resistor (often a small inline module near the harness) to avoid hyper-flashing errors in CAN-bus vehicles.
Frequent Errors in Connecting Three-Pin Automotive Lamp Circuits
Reversing the low-beam and high-beam terminals causes immediate system failure. The central pin–universally assigned to the ground–must align with the vehicle’s chassis return, not the power feed. Mistaking it for a live connection triggers a short circuit, often blowing the fuse or damaging the control module. Verify pin assignments using a multimeter before securing any connections.
Ignoring factory color codes leads to inconsistent illumination. While brown typically denotes ground, manufacturers like Toyota and Ford may use black or green for the same purpose. Cross-referencing the vehicle’s service manual prevents miswiring; universal assumptions fail when dealing with aftermarket assemblies or European imports, where blue might signify high-beam power instead of the expected yellow or white.
Over-tightening terminal clamps crushes the conductor strands, creating intermittent contact. Apply 3–4 Nm of torque–just enough to prevent vibration loosening without deforming the wire. Loose connections generate heat, melting insulation and corroding contacts within weeks. Use dielectric grease on aluminum connectors to inhibit oxidation, especially in coastal climates where salt accelerates degradation.
Skipping the voltage drop test guarantees premature bulb burnout. Measure across the circuit with the lamps activated: a drop exceeding 0.5V indicates excessive resistance. Common culprits include corroded fuse boxes or undersized relay contacts–both invisible without proper testing. Replace relays annually if the vehicle operates in extreme temperatures, as thermal cycling degrades internal solder joints.
Essential Equipment for Secure Automotive Lighting System Setup
Begin with a multimeter (minimum 10A DC rating) to verify circuit integrity before connection. Test for stray voltages at the harness terminal–any reading above 0.1V indicates corrosion or faulty ground, requiring terminal cleaning with 220-grit sandpaper and dielectric grease application. For stripped leads, use crimp connectors (AWG 14-16) paired with a ratcheting crimper to ensure 90% tensile strength retention; avoid solder-only joints as vibration degrades them over time.
Handling High-Wattage Components
Use heat shrink tubing (polyolefin, 3:1 ratio) with an internal adhesive layer to seal splices against moisture–cut lengths 15mm longer than splice exposure. For bulbs exceeding 55W, install a relay (40A SPDT) between the switch and load; connect the coil to the original circuit and the contacts to a fused (20A) direct battery line to prevent switch burnout. Keep a non-conductive torque screwdriver (0.5-2 Nm) on hand to secure halogen capsules without glass contact–finger oils reduce lifespan by 20% per installation.
