How to Wire a 3 Terminal Lamp Socket Practical Circuit Diagram Guide

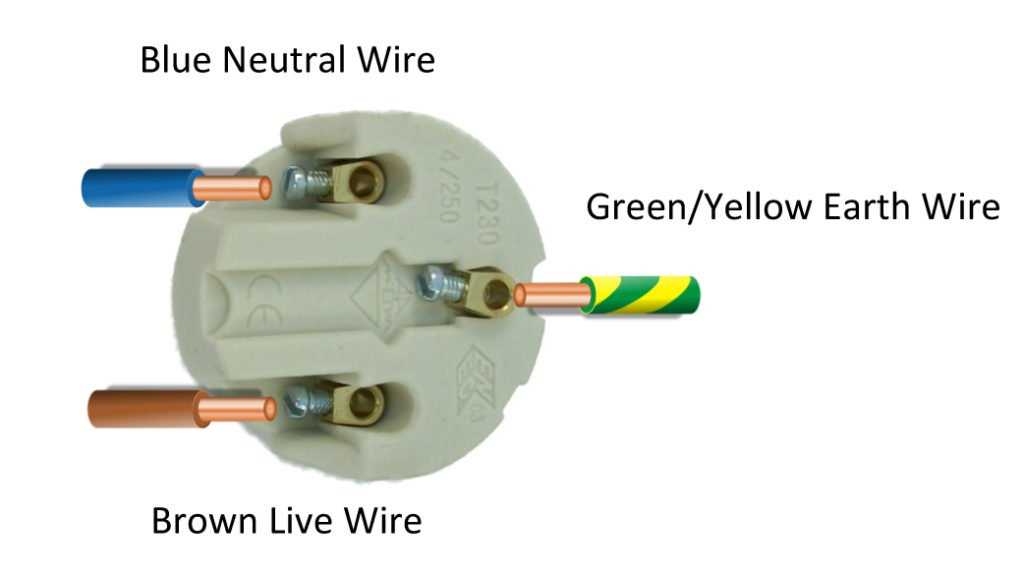

For a standard three-contact connector setup, identify the live (hot), neutral, and ground contacts immediately. The live wire–typically colored brown or black–must connect to the brass-colored screw or pin. Neutral (blue or white) attaches to the silver contact, while ground (green/yellow) secures to the base’s metal frame or a dedicated post. Verify these assignments with a multimeter before proceeding; reversed polarity risks short circuits or component damage.
Strip wires to 6–8 mm of exposed copper, then twist strands tightly to prevent fraying. If using push-in slots, insert the wire fully until it clicks–loose connections cause overheating. For screw terminals, loop wire clockwise around the screw before tightening to 1.5–2 N·m torque. Over-tightening strips threads; under-tightening leads to arcing. Insulate all joints with electrical tape or heat-shrink tubing rated for 600V.
Test the fixture before final assembly. Power on and check for flickering, humming, or excessive heat at the joints. If the bulb fails to illuminate, switch off power and re-examine connections–common culprits include crossed wires or a broken ground path. For dimmable circuits, ensure the base and bulb type match; incompatible pairings degrade performance. Always use a fuse or breaker sized for the circuit (typically 5–10A).
Replace any cracked ceramic or brittle plastic bases immediately–damaged housings compromise insulation. For outdoor or high-moisture areas, use IP44-rated components and seal wire entries with silicone caulk. Avoid soldering unless necessary; crimped or clamped joints are more reliable under thermal cycling. Keep emergency protocols visible: a labeled circuit map and non-contact voltage tester should be within reach.
How to Connect a 3-Pin Light Base Safely
Identify the base’s pins–one for live, one for neutral, and one for ground–before making connections. The live pin (often brass or copper) carries current from the power source, while the neutral (silver or white) completes the circuit. The ground pin (green or bare) prevents shocks by redirecting stray voltage. Use a voltage tester to confirm which pin is live if markings are unclear.
Strip 6-8mm of insulation from each wire, ensuring strands remain intact. Twist strands clockwise to prevent fraying, then match them to their corresponding pins: live wire to the brass contact, neutral to the silver, and ground to the green. Secure connections with a small screw or clamp, avoiding overtightening to prevent wire damage.
Check polarity before finalizing. Reverse connections can cause flickering or overheating. For bulbs with metal casings, always attach the ground wire to the base’s screw or designated pin–skipping this risks electrical faults or fire. Use heat-shrink tubing over joints for extra insulation, especially in damp areas.
Test the setup with a low-wattage bulb first. If the bulb glows steadily without buzzing, the connections are correct. Flickering or dim light indicates loose wires or reversed polarity. Turn off power at the circuit breaker before rechecking–never work on live circuits.
For push-in bases, insert wires firmly until they click. For screw-type mounts, loop wire clockwise around the screw for tighter grip. Avoid aluminum wire in high-moisture environments; use copper instead for better conductivity. If the base feels warm after five minutes, verify wattage against the bulb’s rating.
Label wires with tape if the base will be reused. Note colors: black/brown (live), white/blue (neutral), green/yellow (ground). In older fixtures, neutral may be bare–wrap it with electrical tape for safety. Always use wire nuts or terminal blocks for splices, never twist-and-tape alone.
Replace cracked or corroded bases immediately. Even minor damage can cause arcing. For dimmer-compatible bulbs, ensure the base supports variable voltage–some require a specialized contact design. Keep excess wire coiled neatly inside the fixture to avoid interference with moving parts.
Identifying the Correct Contacts on a 3-Way Base
Examine the brass fittings inside the fixture–one will be larger or positioned centrally, designated for the main conductor (typically brass-colored). The remaining two smaller contact points correspond to the low and medium brightness levels; trace their paths to distinguish them: the middle setting often connects to a brass screw adjacent to the grounded shell (silver/metal), while the dimmest links to a separate brass post opposite it. Verify using a multimeter in continuity mode–touch probes to the center pin (if present) and each contact; the correct pairing will emit a beep, confirming electrical continuity.
Testing Sequence for Immediate Verification
| Fixture Contact | Expected Multimeter Reading (Continuity) | Bulb Brightness Outcome |
|---|---|---|
| Central brass post | Beep (main circuit) | Highest lumen output |
| Smaller brass screw (near shell) | Beep (medium circuit) | Mid-range illumination |
| Opposite brass screw (isolated) | Beep (low circuit) | Minimal light emission |
Mark each verified contact with tape or a permanent marker–use color-coding (red for main, blue for medium, green for low) to prevent cross-connection during assembly. Avoid relying on screw size alone; some bases integrate reverse-thread designs or offset contacts, requiring physical confirmation. If the fixture lacks visible labels, prioritize the central post as the primary current path, as it carries the full load in most commercial bulb housings.
Step-by-Step Wire Connections for a Three-Point Light Fixture
Identify the brass contact (live), silver screw (neutral), and green or bare screw (ground) on the fixture base before handling any conductors. Strip 6–8 mm of insulation from each wire using a dedicated tool–never a knife–to avoid nicking the copper strands. Loop the exposed ends clockwise around their corresponding screws, ensuring the wrapped section covers at least 270 degrees; clockwise tightening prevents loosening when fastening.
Connect the hot lead to the brass contact first, securing it with pliers for equal tension. Match the neutral to the silver post and tighten until a slight resistance is felt–typically 0.6 Nm for #18 AWG wire. Attach the ground to its post last, then tug each connection with 2 kg of force to verify hold. If the wire slips, re-strip and re-wrap, checking that strand alignment remains parallel to prevent stray copper from shorting against adjacent screws.
Verification Before Powering On
Visually confirm no exposed copper extends beyond the screw seats. Test continuity between ground and each conductor using a multimeter set to 200 ohms; readings below 1 ohm indicate proper contact. Energize the circuit and measure voltage: 110–125 VAC between hot and neutral, 0 V between ground and neutral. If voltage drops below 100 VAC, immediately de-energize and inspect the brass contact for oxidation–clean with 400-grit sandpaper if necessary.
Common Errors in Connecting a Three-Contact Light Fixture
Mixing up the switch contact with the neutral path is the most frequent blunder. The brass-colored screw is always the common connector, while the two silver screws link to the traveler leads. Reversing these assignments causes the bulb to glow only when the switches conflict, leaving it dark in standard positions. Verify polarity with a continuity tester before securing any conductors.
Skipping the grounding braid or attaching it to an improper point invites electrical hazards. Fasten the bare copper strand to the green screw on the fixture’s base–never to a traveler contact or the common screw. If the fixture lacks a grounding screw, bond it directly to the metal junction box instead. Loose or omitted grounding reduces shock protection and can trigger unexpected flickering.
- Overlooking wire gauge mismatches strains the circuit. The maximum load for 18 AWG conductors is 6 amps, while 16 AWG handles 8 amps. Exceeding these ratings heats the contacts and melts insulation.
- Tightening screws too aggressively cracks the Bakelite base or strips threads. Apply firm pressure–approximately 8 in-lbs of torque–just enough to prevent loosening.
- Using aluminum conductors without antioxidant paste accelerates corrosion. Copper-to-copper junctions are safer; if aluminum is unavoidable, coat every contact point.
Improperly securing stranded wire within screw terminals leads to intermittent failures. Twist strands clock-wise, wrap around the screw once, then trim excess length flush to the insulation. Loose strands touching adjacent screws cause short circuits. Always trim sharp edges to prevent piercing the jacket.
Ignoring the fixture’s current rating risks overheating. Standard Edison-base holders support 250 watts, but specialty ceramic types handle up to 500 watts. Mounting a 400-watt halogen bulb in a plastic holder warps the enclosure. Check the embossed rating on the underside; replace the holder if the label is illegible.
Essential Equipment for Secure Light Fixture Assembly
Use a multimeter with non-contact voltage detection to verify power absence before handling connections. Models like Fluke 1AC II or Klein NCVT-3 offer audible alerts and visual indicators for AC voltages between 50V-1000V. Test both live conductors and neutral points to eliminate false negatives from induced currents or faulty switches. Store the device in a padded case to prevent probe damage.
Insulated screwdrivers meeting IEC 60900 standards–category 1000V AC–are mandatory. Opt for VDE-certified tools with insulated shafts extending to the handle’s base, such as Wiha 32092 or Wera Kraftform. Blade sizes #1 (3.5mm) and #2 (5.5mm) cover most fixture fasteners. Avoid cheaper alternatives with unprotected metal collars near the tip, which risk short circuits during adjustments.
Wire strippers with precise gauge markings prevent conductor nicking. Klein Cat. No. 11047 or Knipex 12 62 180 reduce copper exposure by 20% compared to manual stripping. Adjustable stop screws lock onto the conductor’s sheath thickness, ensuring consistent 6-9mm insulation removal. Pair with needle-nose pliers (e.g., Channellock 301) to bend loops–improper bends reduce contact area by 15%, increasing resistance over time.
Heat-shrink tubing with a 2:1 shrink ratio (TE Connectivity ATUM series) insulates splices more reliably than electrical tape. Select tubing diameter 1mm larger than the thickest conductor bundle, then trim excess after shrinking. A butane soldering iron (Portasol P-1K) reaches 400°C in 30 seconds, ideal for field repairs, while rosin-core solder (Sn60/Pb40) ensures flux penetration into stranded cores without corrosive residue.
